Samsung Wf53bb8900 Bespoke Ultra Capacity Front Load Washer User Guide

SAMSUNG WF53BB8900 Bespoke Ultra Capacity Front Load Washer

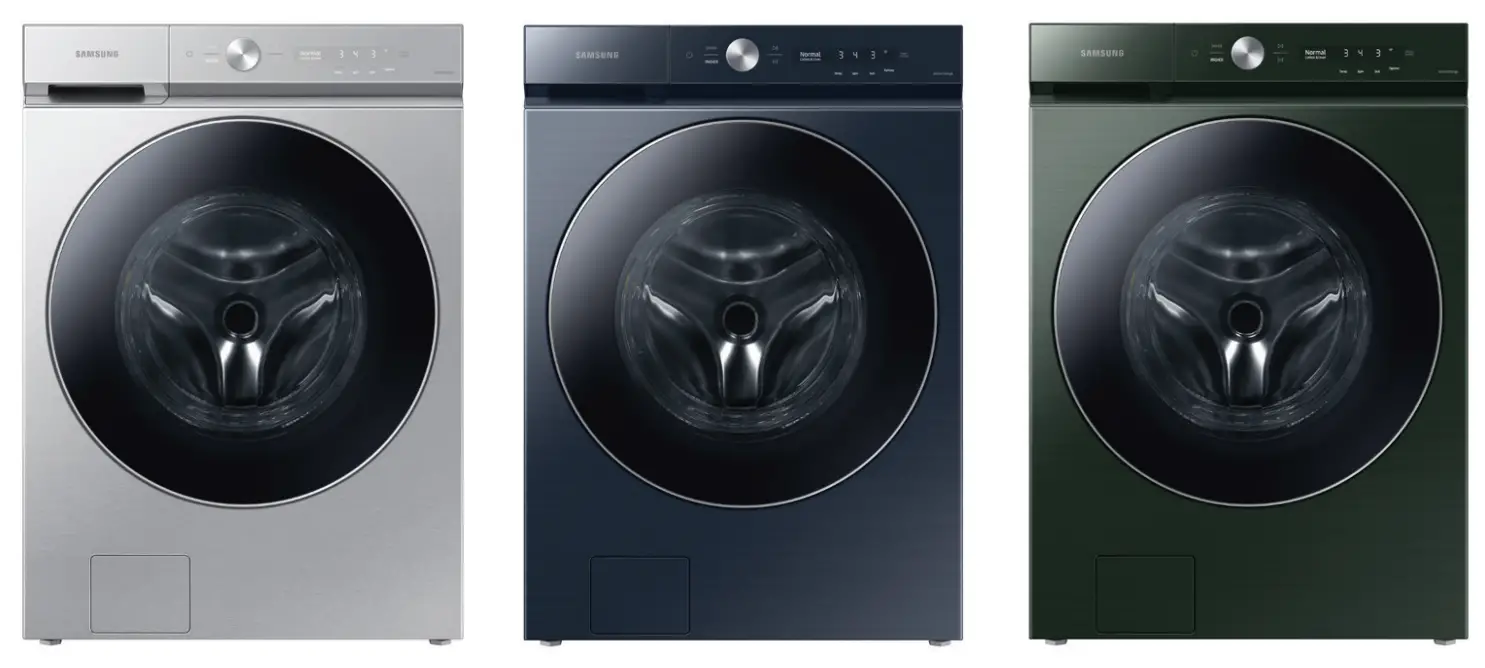

Available Colors

	Silver Steel WF53BB8900AT
	Brushed Navy WF53BB8900AD
	Forest Green WF53BB8900AG

Features

• Bespoke Design
• 5.3 cu. ft. Ultra Capacity
• AI OptiWash™
• Auto Dispense System
• Super Speed Wash
• AI Smart Dial
• MultiControl™
• ENERGY STAR® Most Efficient
• Shallow Closet-Depth Fit1
• Flexible Installation
• Wi-Fi Connectivity2
• Steam
• Antimicrobial Technology3
• Self Clean+
• Premium Tempered Glass Door
• Vibration Reduction Technology+
• Swirl+ Drum Interior
• Internal Drum Light
• ADA Compliant4
• 1200 RPM Maximum Spin Speed
• Direct Drive Motor
• 25 Total Washing Cycles
• 18 Options

Convenience

• Child Lock
• Dispenser Trays: Main Wash, Bleach, Auto Detergent, Auto Softener

Ratings

CEE Tier 3
IMEF = 3.1
IWF = 2.9
103 kWh/yr

Electrical Requirements

120 V / 60 Hz
15 Amps

Specifications

25 Total Washing Cycles:

Normal, AI OptiWash, Heavy Duty, Bedding, Permanent Press, Delicates, Activewear, Wool, Towels, Eco Cold, Rinse + Spin, Self Clean+, Small Load, Colors, Spin Only, Outdoor, Denim, Super Speed, Steam Sanitize, Steam Allergen, Steam Normal, Power Steam, Steam Whites, Steam Bulky, Power Rinse.

18 Additional Washing Options:

Presoak, Extra Rinse, My Cycles, Delay End, Smart Control, Super Speed, Drum Light, Dose per Wash, Dose per Rinse, Child Lock, Detergent Concentration Level, Softener Concentration Level, AI Pattern, Alarm, Calibration, Wi-Fi, Language, Factory Reset.

5 Temperature Settings:

Extra Hot, Hot, Warm, Cold, Tap Cold

7 Spin Settings:

Extra High, High, Medium, Low, Extra Low, No Spin, No Drain

1 Designed to fit a 38″ installation depth.
2 Requires wireless network, Samsung account and Samsung SmartThings App. The Samsung SmartThings App supports Android OS 4.0 (ICS) or later which is optimized for Samsung smartphones (Galaxy S and Galaxy Note series). This app also supports iOS 7 or later for iPhone models. Samsung SmartThings App available in App Store and Play Store.
3 Antimicrobial treatment does not protect users or other items against bacteria, viruses, germs, or other disease organisms.
4 ADA Compliant when using 27″ wide riser. (Riser model codes: WE272NV, WE272NW, WE272NC)

5 Soil Settings:

Extra Heavy, Heavy, Normal,
Light, Extra Light

Warranty

One (1) Year Parts and Labor
Three (3) Years Stainless Tub Part (Part Only)
Washing DIT (Digital Inverter Motor)
Motor Part (Part Only):
Ten (10) Years
Twenty (20) Years Limited to “U.S.-Assembled” Washers Only

Product Dimensions & Weight (WxHxD)

Dimensions: 27″ x 383 /4″ x 34 1/2″
Weight: 227.1 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 293 /8″ x 4215/16″ x 36 1/4″
Weight: 233.7 lbs

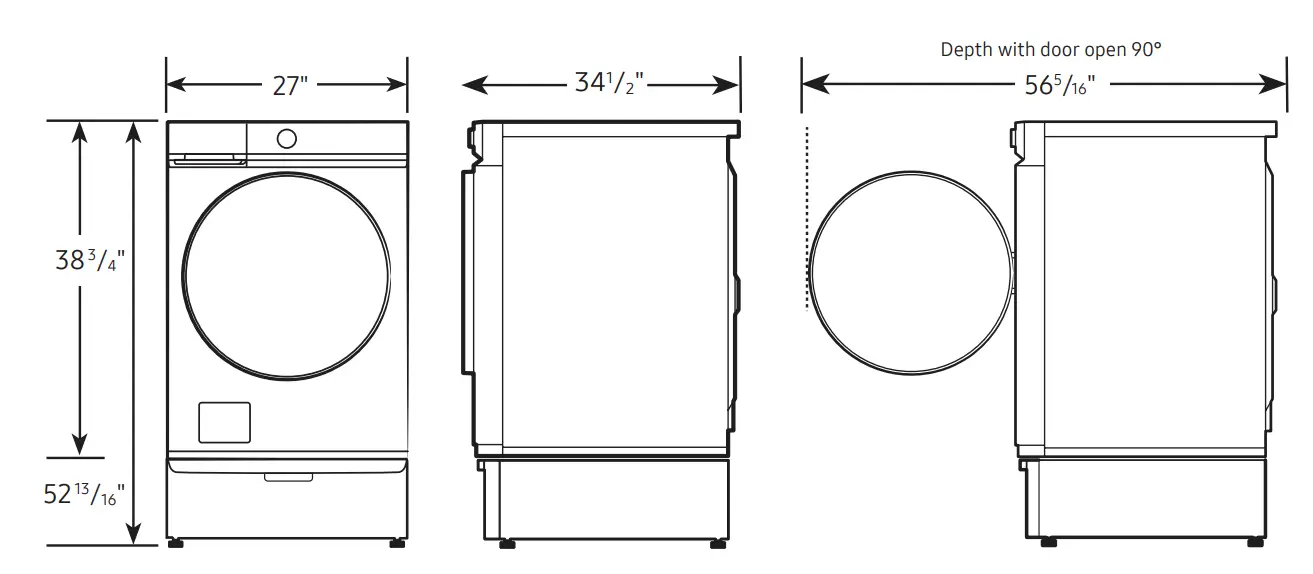

Dimensions

Required dimensions for installation with pedestal:

Installation Specifications – Side-by-Side

If the washer and dryer are installed together or the dryer alone, the closet front must have two unobstructed air openings for a combined minimum total area of 72-inch2 . Your washer alone does not require a specific air opening

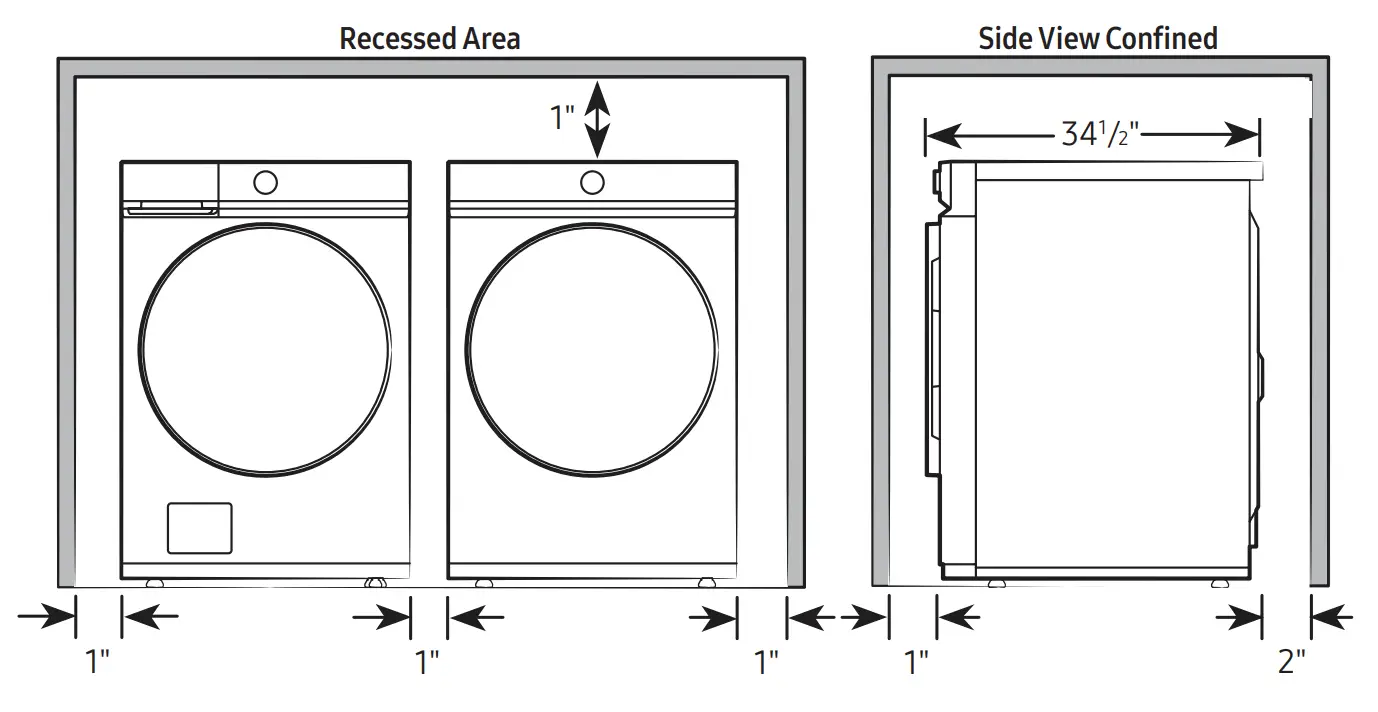

Alcove or closet installation
Minimum clearance for closet and alcove installations:

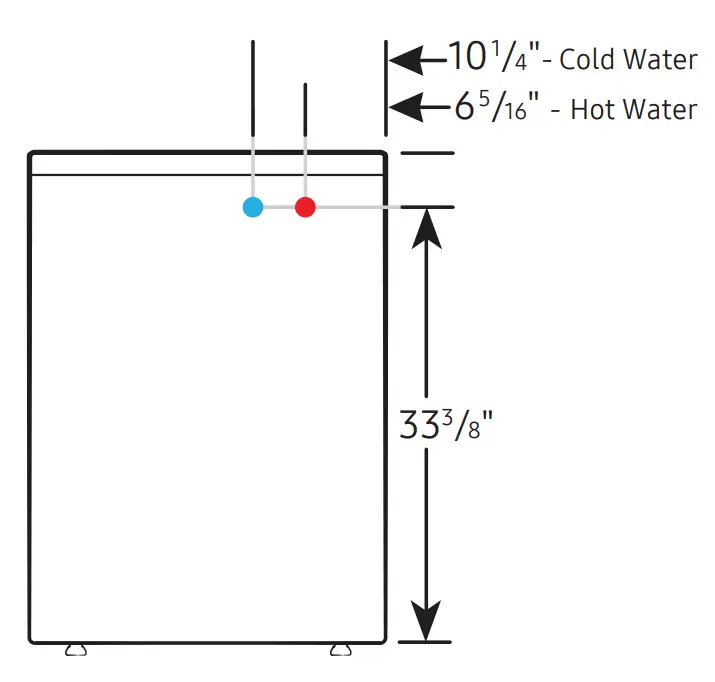

Connection Dimensions

Back view of washer

LEGEND

Cold Water Connection
 Hot Water Connection

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate

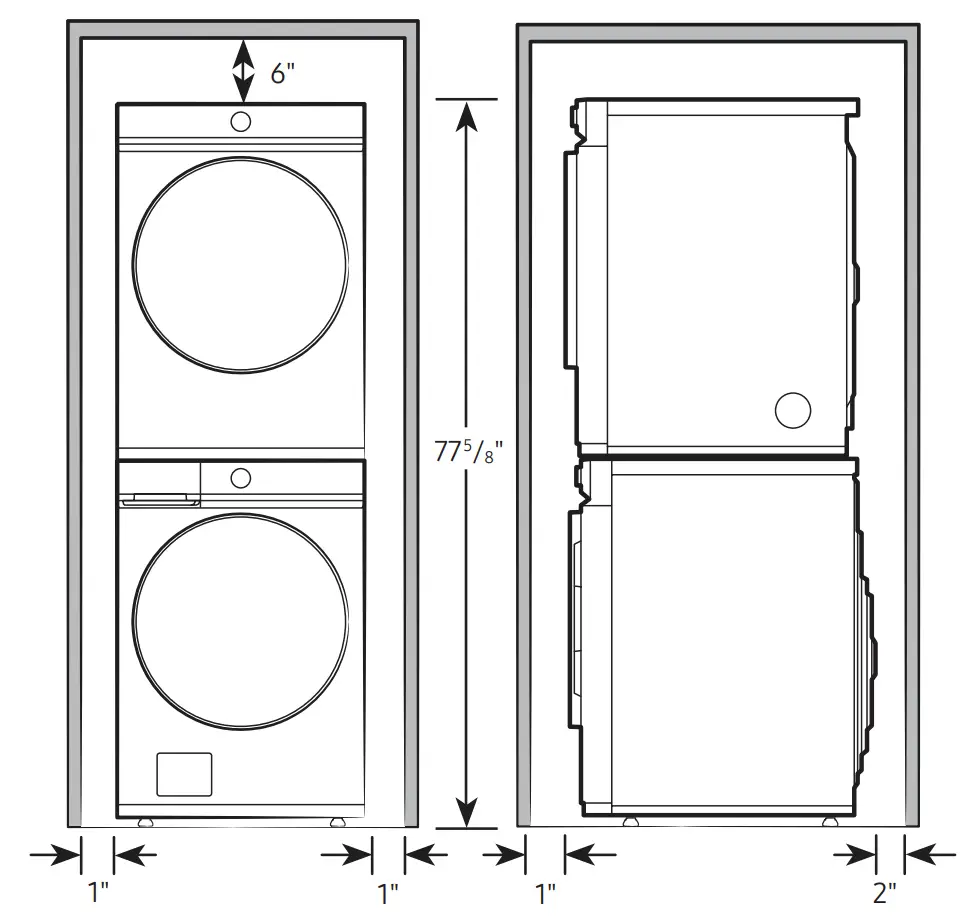

Installation Specifications – Stacked Pair

Clearances indicated are for stacked pairs. The closet front must have two unobstructed air openings for a combined minimum total area of 72-inch2

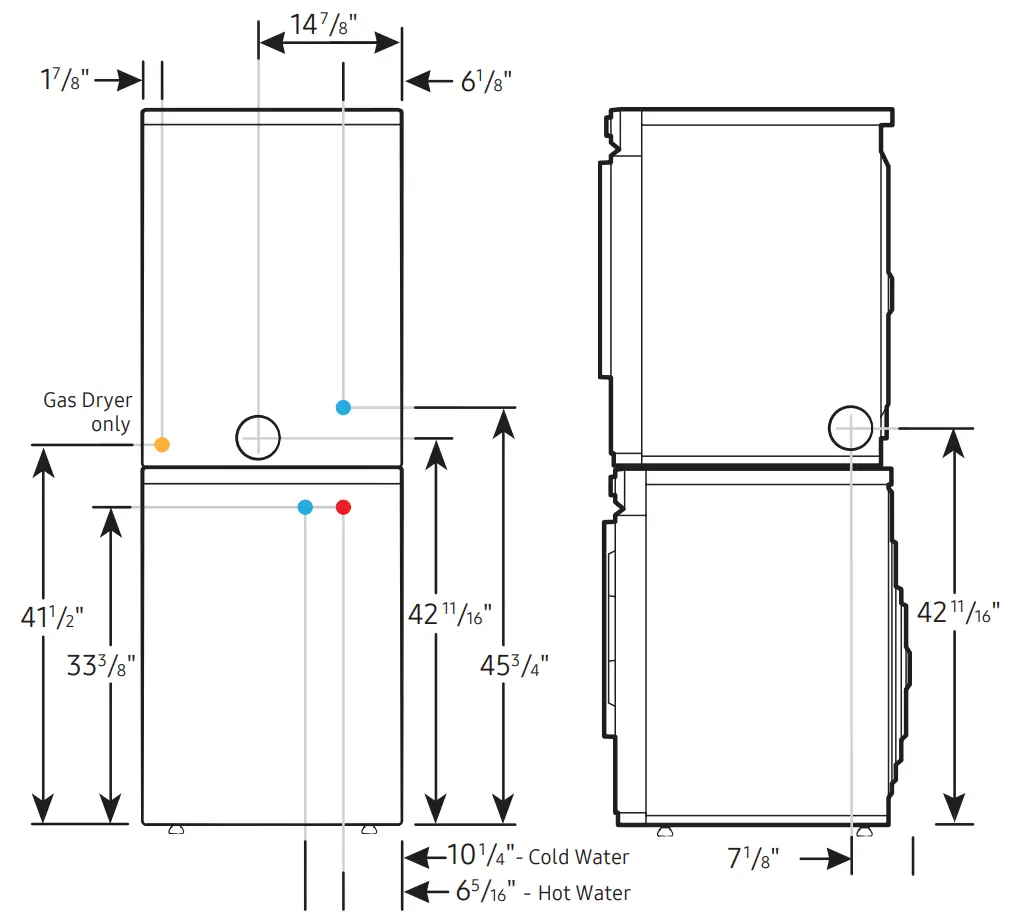

Connection Dimensions

Back and side views of stacked pair

LEGEND

 Cold Water Connection
 Hot Water Connection
 Gas Connection

Customer Support

©2022 Samsung Electronics America, Inc.,
85 Challenger Road, Ridgefield Park, NJ 07660.
Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
