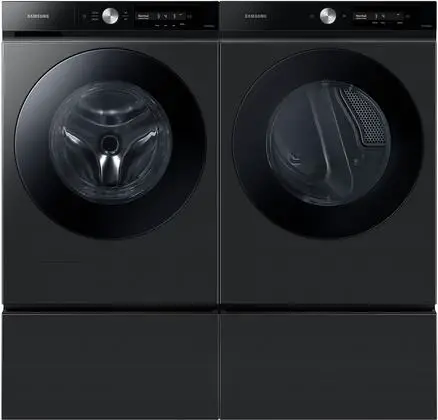

Samsung Wf46bb6700 Bespoke Large Capacity Ai Smart Dial Front Load Washer User Guide (+ PDF)

Designed to fit a 38″ installation depth.
Requires wireless network, Samsung account and Samsung SmartThings App. The Samsung SmartThings App supports Android OS 4.0 (ICS) or later which is optimized for Samsung smartphones (Galaxy S and Galaxy Note series). This app also supports iOS 7 or later for iPhone models. Samsung SmartThings App available in App Store and Play Store.
Antimicrobial treatment does not protect users or other items against bacteria, viruses, germs, or other disease organisms.
ADA Compliant when using 27″ wide riser. (Riser model codes: WE272NV, WE272NW, WE272NC)

Specifications

24 Total Washing Cycles:

Normal, Heavy Duty, Bedding, Permanent Press, Delicates, Activewear, Wool, Towels, Eco Cold, Rinse + Spin, Self Clean+, Small Load, Colors, Spin Only, Outdoor, Denim, Super Speed, Steam Sanitize, Steam Allergen, Steam Normal, Power Steam, Steam Whites, Steam Bulky, Power Rinse.

13 Additional Washing Options:

Presoak, Extra Rinse, My Cycles, Delay End, Smart Control, Super Speed, Child Lock, AI Pattern, Alarm, Calibration, Wi-Fi, Language, Factory Reset.

5 Temperature Settings:
Extra Hot, Hot, Warm, Cold, Tap Cold

7 Spin Settings:

Extra High, High, Medium, Low, Extra Low, No Spin, No Drain.

Washer	Model #	UPC Code
Brushed Navy	WF46BB6700AD	887276659763
Brushed Black	WF46BB6700AV	887276659770
Matching Electric Dryer
Brushed Navy	DVE46BB6700D	887276660035
Brushed Black	DVE46BB6700V	887276660059
Matching Gas Dryer
Brushed Navy	DVG46BB6700D	887276660141
Brushed Black	DVG46BB6700V	887276660158

Optional Accessories	Model #	UPC Code
Brushed Navy Pedestal	WE502ND	887276665276
Brushed Black Pedestal	WE502NV	887276665290
Brushed Black Riser	WE272NV	887276197630
Brushed Navy Bespoke Stacking and MultiControl™	SKK-9MCD	887276667362
Brushed Black Bespoke Stacking and MultiControl™ Combo K	SKK-9MCV	887276667386
Kit

Available Colors

Brushed Navy WF46BB6700AD
Brushed Black WF46BB6700AV

5 Soil Settings:
Extra Heavy, Heavy, Normal, Light, Extra Light

Warranty

One (1) Year Parts and Labor
Three (3) Years Stainless Tub Part (Part Only)

Washing DIT (Digital Inverter Motor)
Motor Part (Part Only): Ten (10) Years
Twenty (20) Years Limited to “U.S.-Assembled”
Washers Only

Dimensions

Product Dimensions & Weight (WxHxD)

Dimensions: 27″ x 383 /4″ x 313 /8″
Weight: 202.8 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 293 /8″ x 435 /16″ x 341 /8″
Weight: 207.2 lbs

Required dimensions for installation with pedestal:

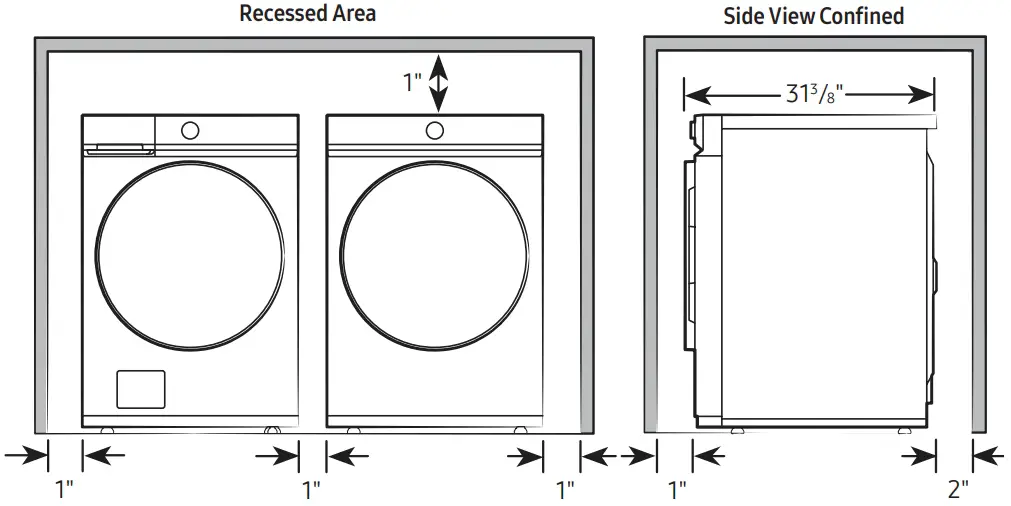

Installation Specifications – Side-by-Side

If the washer and dryer are installed together or the dryer alone, the closet front must have two unobstructed air openings for a combined minimum total area of 72-inch2. Your washer alone does not require a specific air opening.

Alcove or closet installation
Minimum clearance for closet and alcove installations:

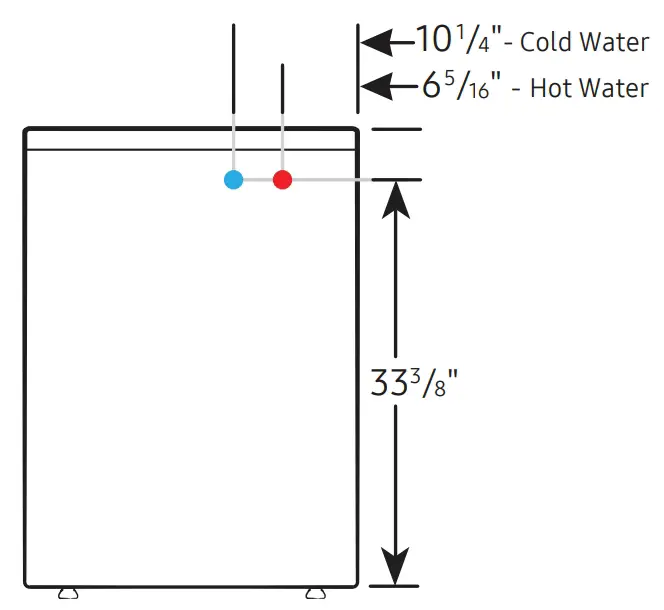

Connection Dimensions

Back view of washer

LEGEND

Cold Water Connection
Hot Water Connection

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.

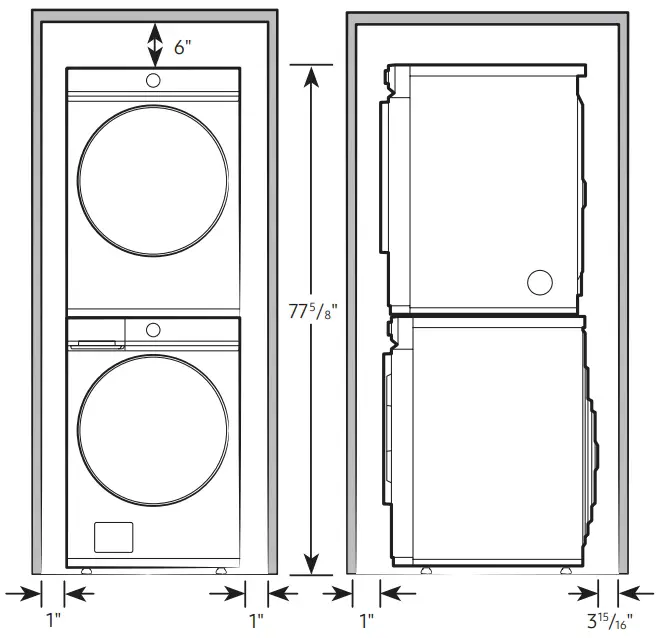

Installation Specifications – Stacked Pair

Clearances indicated are for stacked pairs. The closet front must have two unobstructed air openings for a combined minimum total area of 72-inch2.

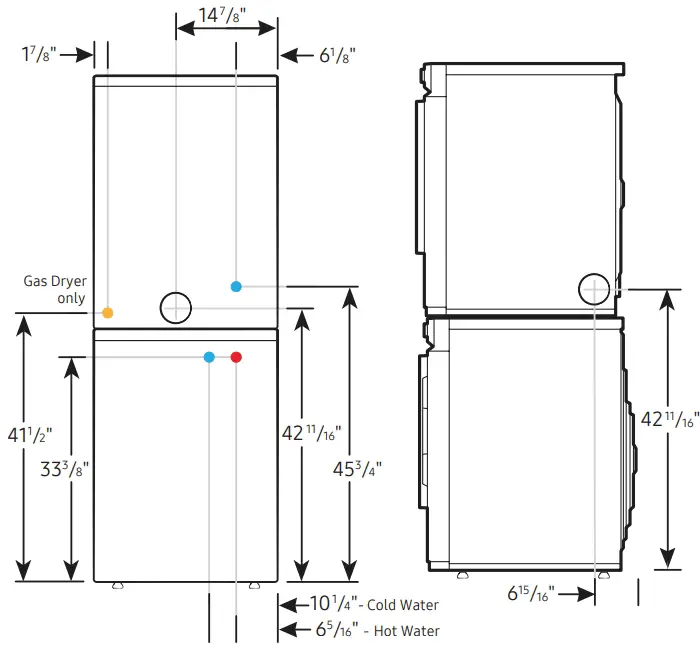

Connection Dimensions

Back and side views of stacked pair

LEGEND

Cold Water Connection
Hot Water Connection
Gas Connection

Warranty

One (1) Year Parts and Labor Three (3) Years Stainless Tub Part (Part Only)

Washing DIT (Digital Inverter Motor Motor Part (Part Only): Ten (10) Years Twenty (20) Years Limited to “U.S.-Assembled” Washers Only.

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate. ©2022 Samsung Electronics America, Inc., 85 Challenger Road, Ridgefield Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
