Samsung Wf53bb8700 Bespoke 5.3 Cu. Ft. Ultra Capacity Front Load Washer User Guide

WF53BB8700 Bespoke 5.3 cu. ft. Ultra
Capacity Front Load Washer
User Guide

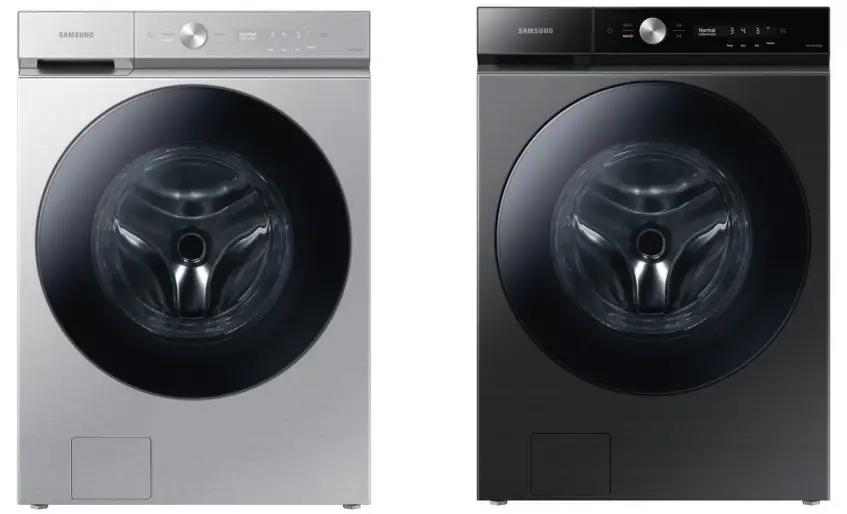

Available Colors
Silver Steel WF53BB8700AT
Brushed Black WF53BB8700AV

Features

Convenience

• Child Lock
• Dispenser Trays: Main Wash, Softener, Bleach

Ratings

CEE Tier 3
IMEF = 3.1
IWF = 2.9
103 kWh/yr

Electrical Requirements
120 V / 60 Hz
15 Amps

Specifications

24 Total Washing Cycles:
Normal, Heavy Duty, Bedding, Permanent
Press, Delicates, Activewear, Wool, Towels,
Eco Cold, Rinse + Spin, Self Clean+, Small
Load, Colors, Spin Only, Outdoor, Denim,
Super Speed, Steam Sanitize, Steam Allergen,
Steam Normal, Power Steam, Steam Whites,
Steam Bulky, Power Rinse
14 Additional Washing Options:
Presoak, Extra Rinse, My Cycles, Delay End,
Smart Control, Super Speed, Drum Light,
Child Lock, AI Pattern, Alarm, Calibration,
Wi-Fi, Language, Factory Reset
5 Temperature Settings:
Extra Hot, Hot, Warm, Cold, Tap Cold
7 Spin Settings:
Extra High, High, Medium, Low, Extra Low,
No Spin, No Drain
5 Soil Settings:
Extra Heavy, Heavy, Normal, Light, Extra Light
Warranty
Two (2) Years Parts and Labor*
Three (3) Years Stainless Tub Part (Part Only)
Washing DIT (Digital Inverter Motor)
Motor Part (Part Only):
Ten (10) Years
Twenty (20) Years Limited to “U.S.-Assembled” Washers Only
* Effective for purchases made between 10/1/22 – 9/30/23; proof of purchase required.
Product Dimensions & Weight (WxHxD) Dimensions: 27″ x 38 3 /4″ x 34 1   /2″ Weight: 224.9 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 29 3/8″ x 42 15 /16″ x 36 1/4″ Weight: 231.5 lbs

1. Designed to fit a 38″ installation depth.
2. Requires wireless network, Samsung account and Samsung SmartThings App. The Samsung SmartThings App supports Android OS 4.0 (ICS) or later which is  optimized for Samsung smartphones (Galaxy S and Galaxy Note series). This app also supports iOS 7 or later for iPhone models. Samsung SmartThings App available in App Store and Play Store.
3. Antimicrobial treatment does not protect users or other items against bacteria, viruses, germs, or other disease organisms.
4. ADA Compliant when using 27″ wide riser. (Riser model codes: WE272NV, WE272NW, WE272NC)

WF53BB8700
Bespoke 5.3 cu. ft. Ultra Capacity Front Load Washer
with Super Speed Wash and AI Smart Dial

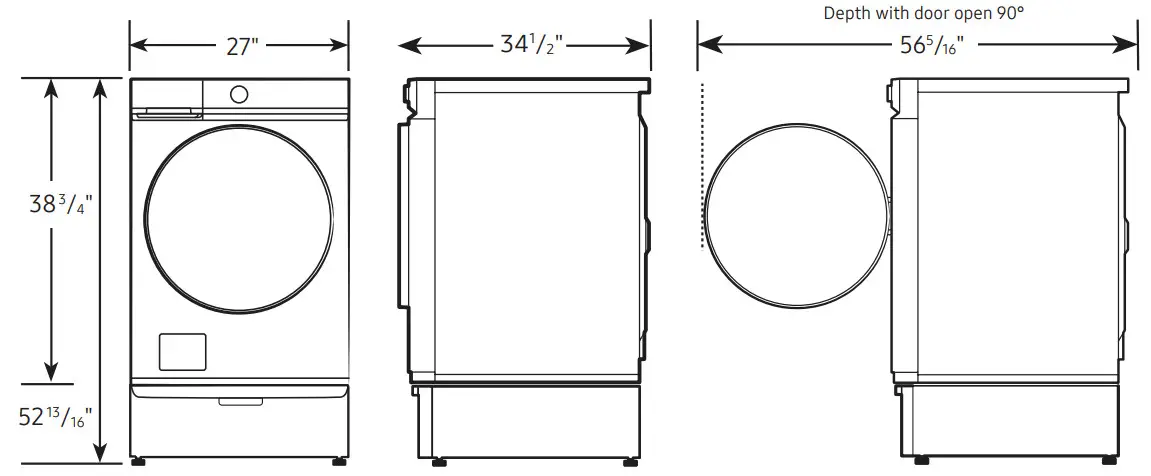

Dimensions

Required dimensions for installation with pedestal:

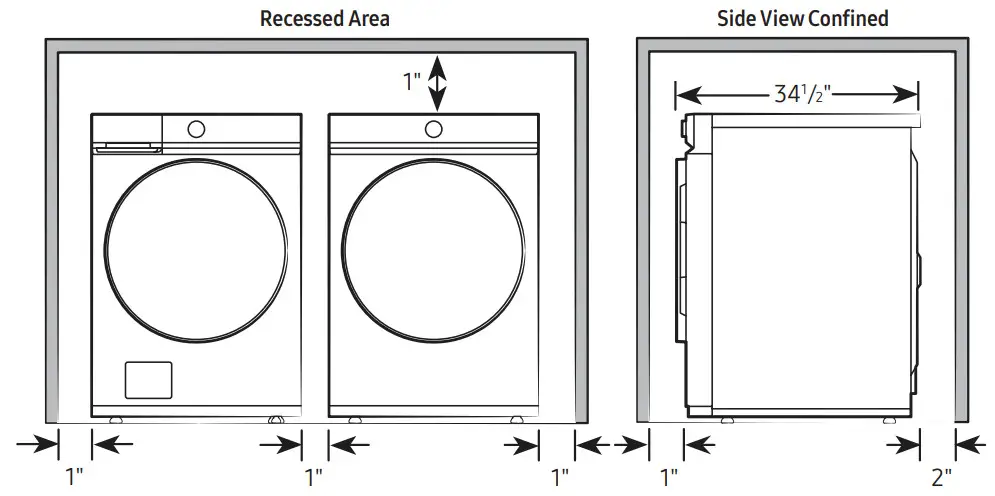

Installation Specifications – Side-by-Side
If the washer and dryer are installed together or the dryer alone, the closet front must have two unobstructed air openings for a combined minimum total area of 72-inch2.
Your washer alone does not require a specific air opening.

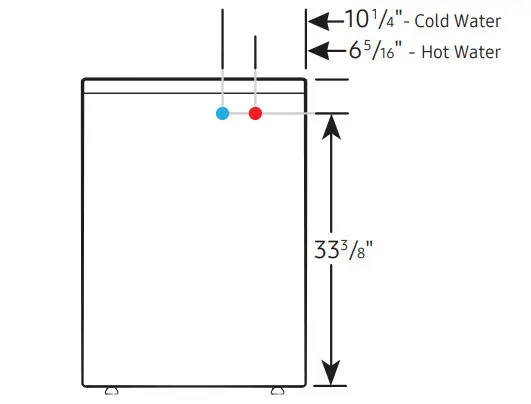

Connection Dimensions
Back view of washer

LEGEND:

• Cold Water Connection
• Hot Water Connection
  Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.

©2022 Samsung Electronics America, Inc.,
85 Challenger Road, Ridgefield Park, NJ 07660.
Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.

WF53BB8700
Bespoke 5.3 cu. ft. Ultra Capacity Front Load Washer with Super Speed Wash and AI Smart Dial

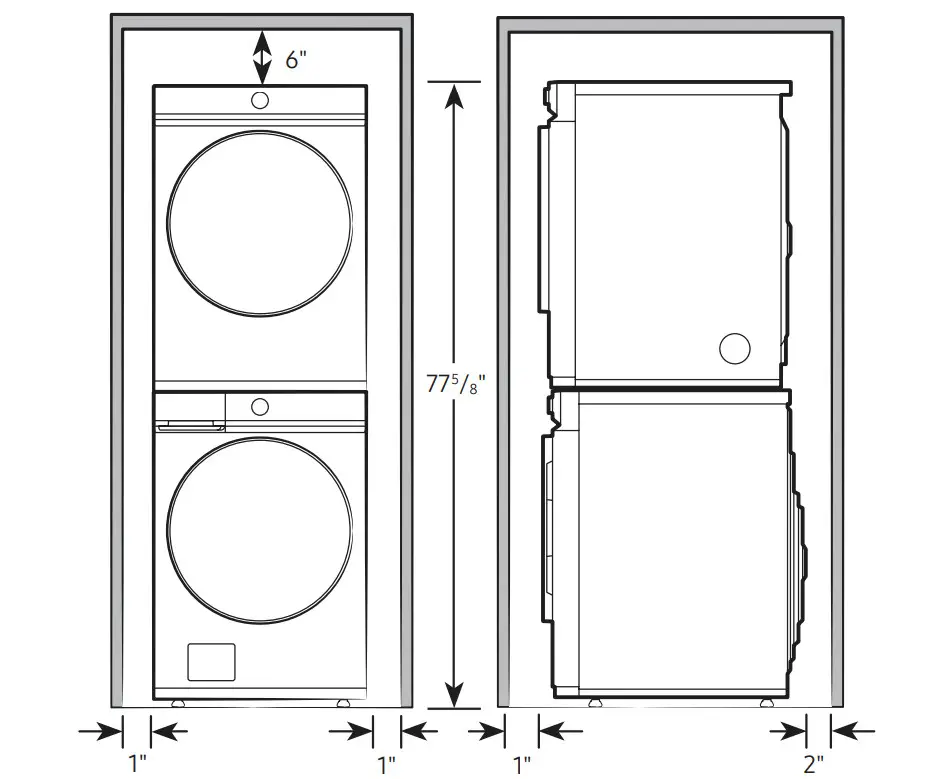

Installation Specifications – Stacked Pair
Clearances indicated are for stacked pairs. The closet front must have two unobstructed air openings for a combined minimum total area of 72-inch.Connection Dimensions

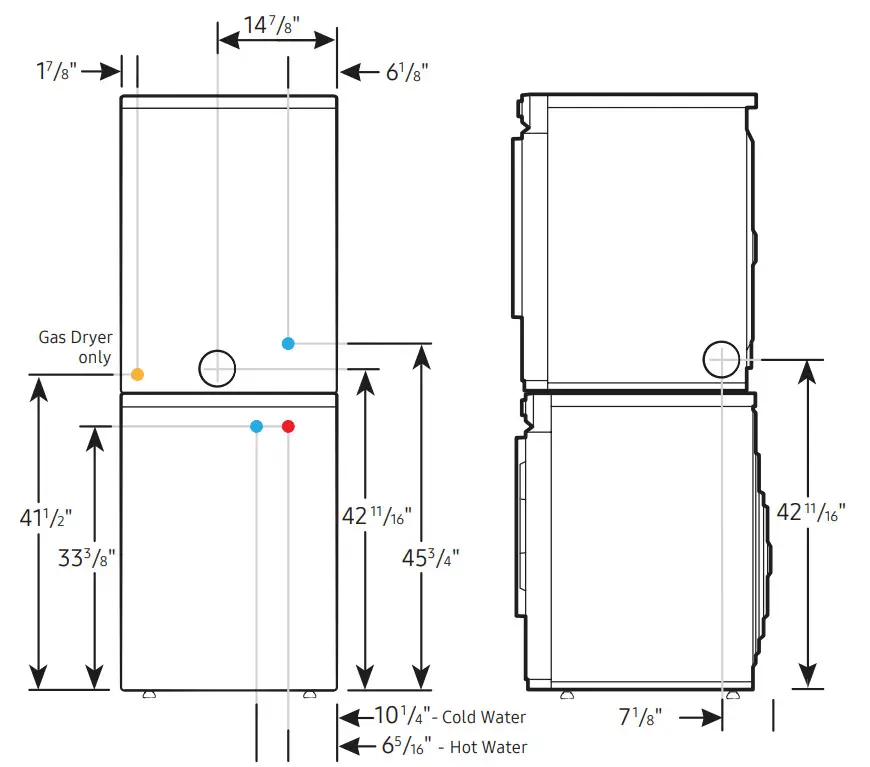

Back and side views of stacked pair

LEGEND:

	Cold Water Connection
	Hot Water Connection
	Gas Connection

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
@2022 Samsung Electronics America, Inc.,
85 Challenger Road, Ridgefield Park, NJ 07660.
Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
