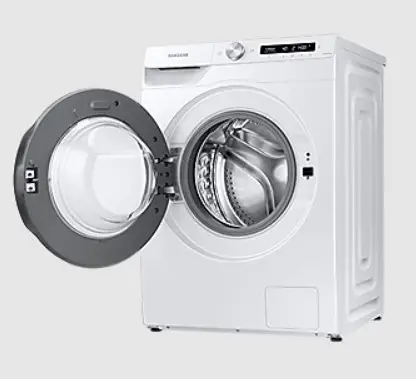

SAMSUNG WW85M74FNOR/SA 8.5kg Front Load Washing Machine Instruction Manual
WW7800M EXPLODED VIEWS AND PARTS LIST (WW85M74FNOR/SA)
[Material code standards]
Material codes and names and their respective naming rules are managed in accordance with the prescribed standards.
Please refer to these standards when requesting a material.

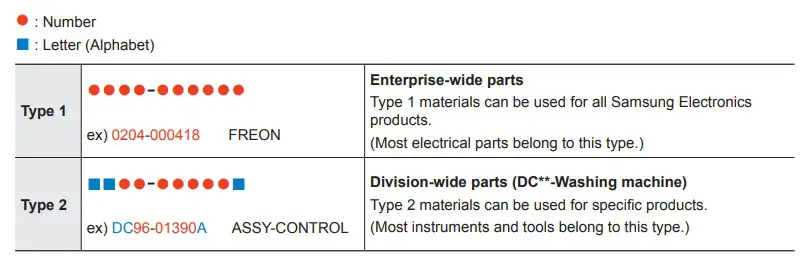

- Material Code Type
- Ass’y Materials
All ass’y material codes start with DC9*.
An ass’y material is created by combining more than two materials. If a requested material cannot be provided, you can request an ass’y material that contains that material.

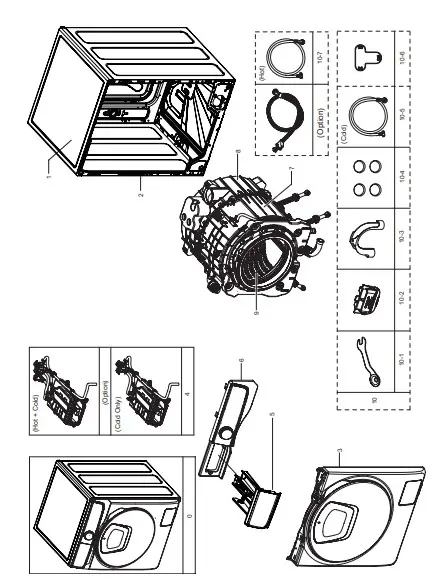

1. MAIN (WW85M74FNOR/SA)

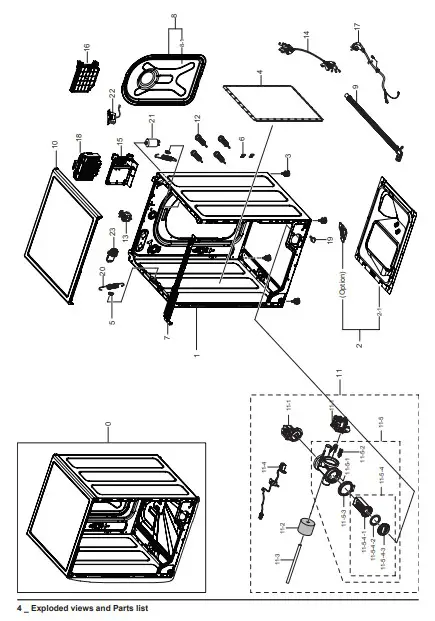

2. ASSY FRAME & COVER PARTS (WW85M74FNOR/SA )

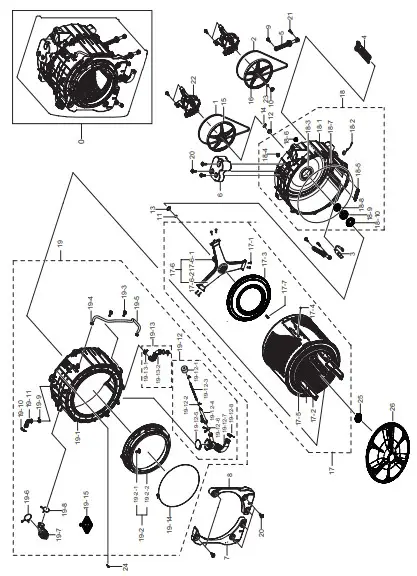

3. ASSY TUB & DRUM PARTS (WW85M74FNOR/SA )
4. ASSY FRAME PARTS (WW85M74FNOR/SA )
5. ASSY PANEL CONTROL PARTS (WW85M74FNOR/SA )
6.ASSY DRAWER parts (WW85M74FNOR/SA )
