SAMSUNG logoWA65F5S6DRW Top Loader Washing Machine
Instruction Manual

Main

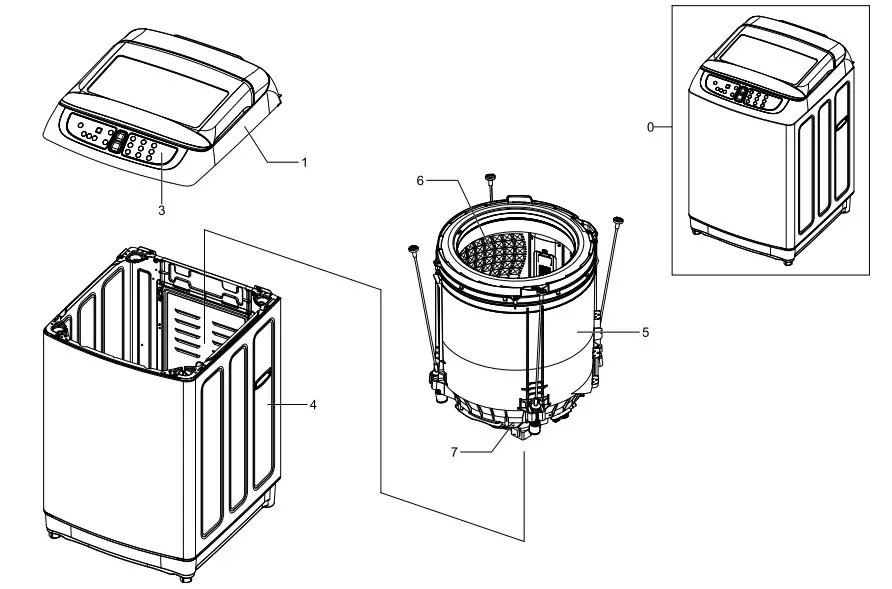

Exploded View

SAMSUNG WA65F5S6DRW Top Loader Washing Machine

Assy Cover Top Parts

Exploded View

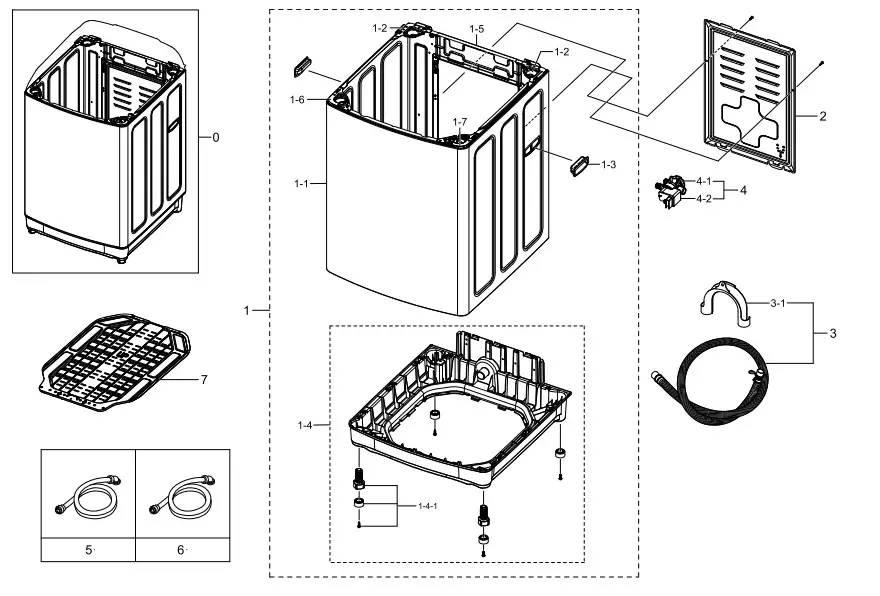

SAMSUNG WA65F5S6DRW Top Loader Washing Machine - Figure 3

Assy Tub Parts

Exploded View

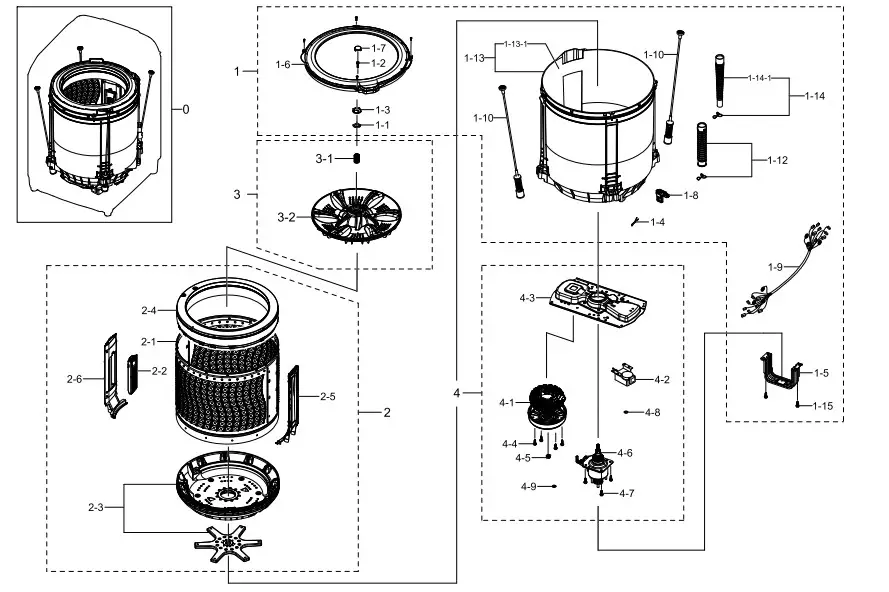

SAMSUNG WA65F5S6DRW Top Loader Washing Machine - Figure 2

Small Parts

Exploded View

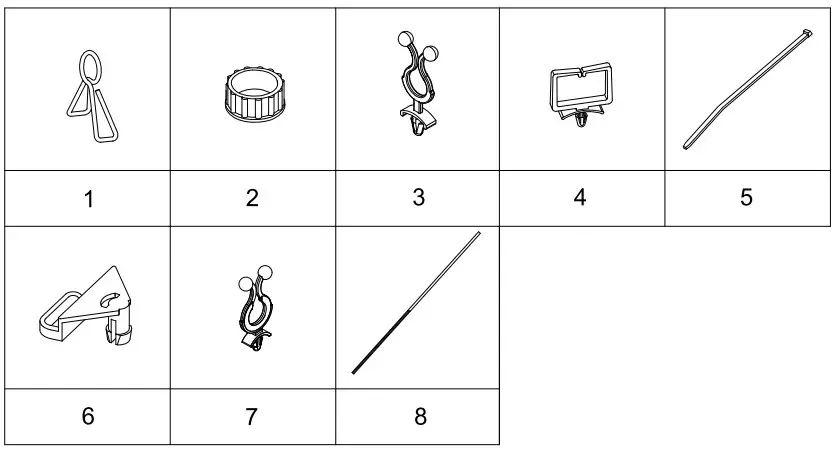

SAMSUNG WA65F5S6DRW Top Loader Washing Machine - Figure 4

Copyright© 1995-2013 SAMSUNG All rights reserved

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
