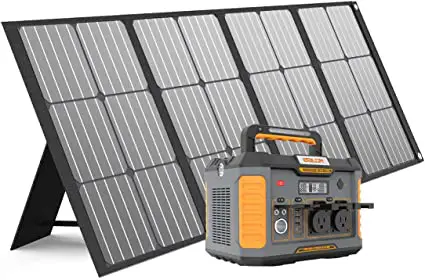

LOOM SOLAR Solar Generator 500 Watts User Manual

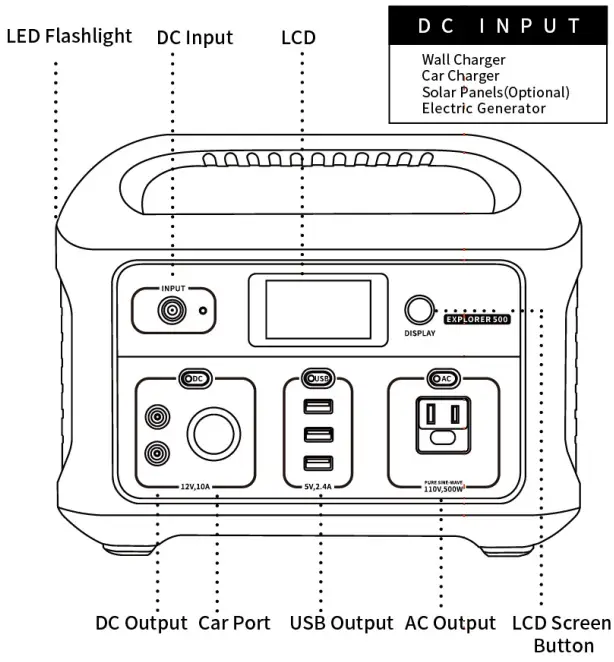

Product Overview

What’s In the Box

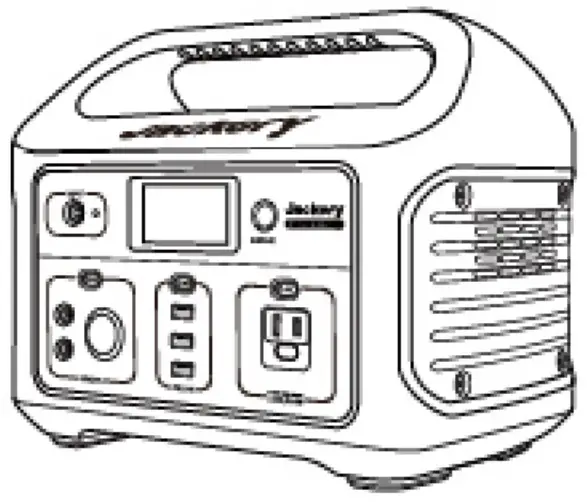

• Solar Generator

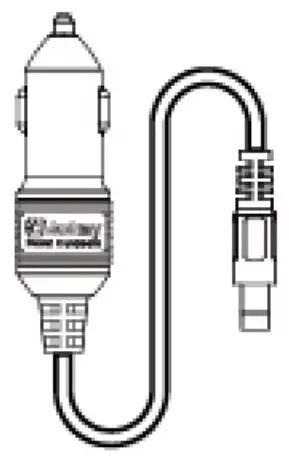

• Car Charger Cable

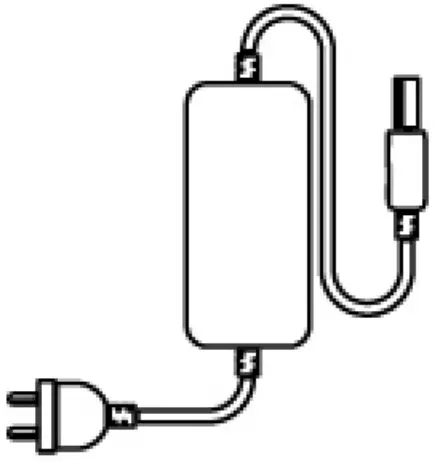

• AC & AC Cable (2 Parts)

• User Manual


Specifications

SPECIFICATIONS
Capacity	Weight	Dimensions	DC Input	AC Output	Car Port	DC Output	USB Output
24Ah/21.6V (518Wh)	Around 6kg/ Around 13.3(bs	Around 30 x 19.2 x 24.2cm Around 11.8 x 7.6 x 9.5in	25.2V3.5A, (Support 12-30V)	110V-4.54A, 60Hz, 500W max continuous, 1000W surge peak	12V10A	2 x 12V7A	3 x USB-A Output: 5V2.4A (USB Output: Total 30W max)
					(2 x DC Output +Car Port: Total 120W)

Battery	LED Flashlight	Lifecycles	Operating Temperature	Recharging Temperature	Management System	MPPT	Warranty	Certifications	Technical
Lithium-ion	SOS LED	500	-10 – 40 °C	0 -40°C	Under voltage Protection Over voltage Protection Over current in Charge /Disc harge Protection Short Circuit in Charge/ Disc harge Protection Over temperature in Charge/Discharge Protection Overcharging Voltage Protection	Support Solar Panel MPPT Charging	24 Months	FCC,RoHS, UN38.3	Lifetime

Charging

Here are some common devices and their power requirements for each charging port.

DC Output

• Car Fridge (60W) Around 9 Hours

• Drone (90W max) Around 9 Recharges


AC Output

• 12″ Mac book (30W) Aroun 4.5 Recharges

• 32″ TV (60W) Around 7 Hours

• CPAP Machine Around 9 Hours


USB Output

• Smartphone (18W max) Around 53 Recharges

• Motion Camera (5W max) Around 95 Recharges


Explorer 500 will be turned off automatically in 12 hours when being drawn under lOW power for power saving
