Phono Solar BM6-16B-G 410W Twin Mono Perc All Black Owner’s Manual
Contents hide
EXTRAORDINARY PRODUCT PERFORMANCE
- Up to 30% additional power yield benefited from bifacial technology and up over 80% cell bifocality
- Competitive high-temperature performance with ameliorated temperature co-efficient
- Better weak illumination response, higher power generation with N-type technology
HIGHER QUALITY RELIABILITY
- Zero Light Induced Degradation(LID),can increase power generation
- Encapsulation with POE and dual glass contributes to excellent anti-PID characteristic

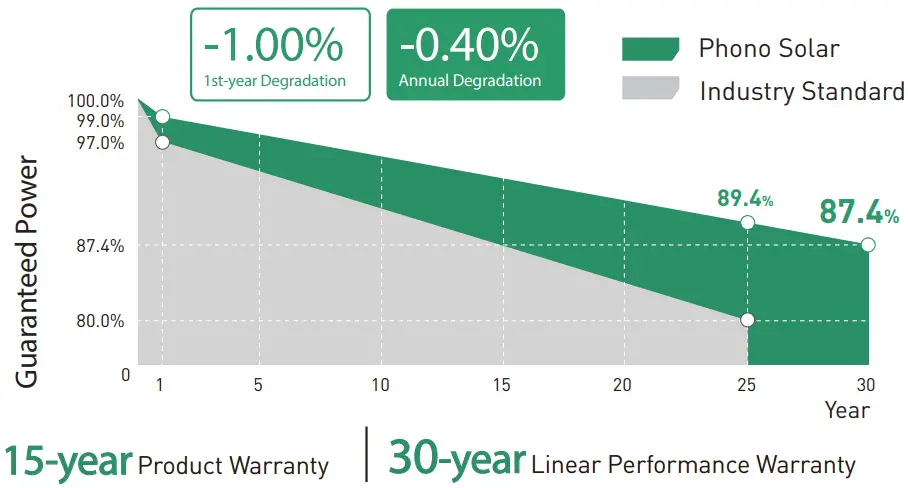

- First-year degradation is less than 1.0%, with linear degradation of 0.4% per year for 30 years
WIDER APPLICATION CONDITIONS
- BIPV , vertical installation , snowfield , high-humid area , windy and dusty area
- Safer and easier handling during transportation and installation
MANAGEMENT SYSTEM CERTIFICATES
IEC 61215, IEC 61730
- ISO 9001: 2015/Quality management system
- ISO 14001: 2015/Standards for environmental management system
- ISO 45001: 2018/International standards for occupational health & safe
ELECTRICAL TYPICAL VALUES
| Model | 1000V | PS410M8GF-18NNH | PS415M8GF-18NNH | PS420M8GF-18NNH | PS425M8GF-18NNH | PS430M8GF-18NNH | |||||
| 1500V | PS410M8GFH-18NNH | P5415M8GFH-18NNH | PS420M8GFH-18NNH | PS425M8GFH-18/VNH | PS430M8GFH-18NNH | ||||||
| Testing Condition | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Rated Power (Pmpp) | 410 | 311 | 415 | 315 | 420 | 319 | 425 | 323 | 430 | 326 |
| Rated Current (Impp) | 13.06 | 10.53 | 13.12 | 10.57 | 13.18 | 10.62 | 13.24 | 10.67 | 13.30 | 10.72 |
| Rated Voltage (Vmpp) | 31.40 | 29.56 | 31.64 | 29.79 | 31.87 | 30.01 | 32.10 | 30.23 | 32.34 | 30.45 |
| Short Circuit Current (Isc) | 13.71 | 11.05 | 13.77 | 11.10 | 13.83 | 11.15 | 13.89 | 11.20 | 13.95 | 11.24 |
| Open Circuit Voltage (Voc) | 37.86 | 36.27 | 38.16 | 36.56 | 38.44 | 36.83 | 38.73 | 37.10 | 39.03 | 37.39 |
| Module Efficiency (%) | 21.00 | 21.25 | 21.51 | 21.76 | 22.02 |
STC(Standard Testing Conditions):Irradiance 1000W/m2, AM 1.5, Cell Temperature 25°C
NOCT (Nominal Operation Cell Temperature): Irradiance 800W/m2, Ambient Temperature 20°C, Spectra at AM1.5, Wind at 1m/S
ELECTRICAL CHARACTERISTICS WITH DIFFERENT POWER BIN
| 5% | Maximum Power(W) | 426 | 432 | 437 | 442 | 447 |
| Module Efficiency(%) | 21.84 | 22.10 | 22.37 | 22.63 | 22.90 | |
| 1500 | Maximum Power(W) | 459 | 465 | 470 | 476 | 482 |
| Module Efficiency(%) | 23.52 | 23.80 | 24.09 | 24.38 | 24.66 | |
| 2500 | Maximum Power(W) | 492 | 498 | 504 | 510 | 516 |
| Module Efficiency(%) | 25.20 | 25.50 | 25.81 | 26.12 | 26.42 |

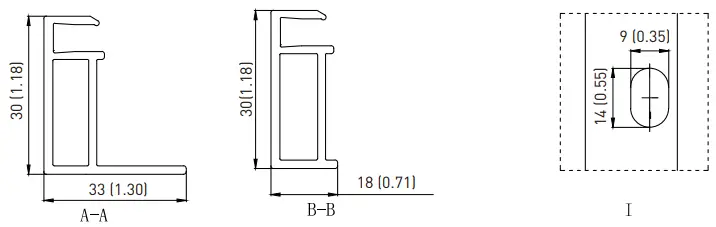

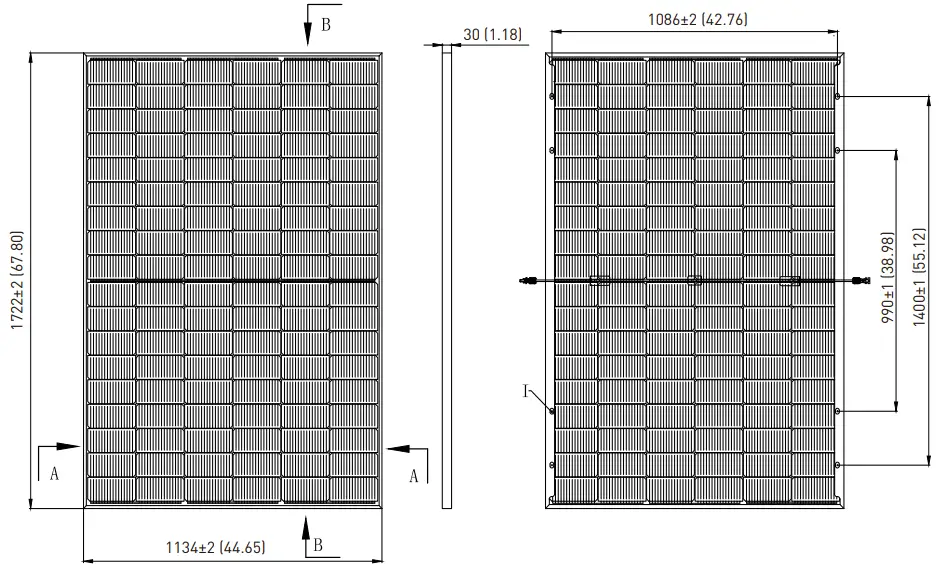

MECHANICAL CHARACTERISTICS
| Cell Type | Monocrystalline 182mm x 91mm |
| Dimension (Lx W x H) | Length: 1722mm (67.80 inch) Width: 1134mm (44.65 inch) Height: 30mm (1.18 inch) |
| Weight | 21.0kg (46.30 lbs) |
| Glass | 1.6mm/1.6mm Toughened Glass |
| Frame | Anodized Aluminum Alloy |
| Cable | 4mm2 (IEC), (+): 450mm,(-1:250mm or Customized Length |
| Junction Box | IP 68 Rated |
TEMPERATURE RATINGS
| Voltage Temperature Coefficient | -0.25%/°C |
| Current Temperature Coefficient | +0.045%/°C |
| Power Temperature Coefficient | -0.30%/°C |
| Tolerance | 0-+5w |
| NOCT | 42±2°C |
| Bifocality | 80±5% |
ABSOLUTE MAXIMUM RATING
| Operating Temperature | From -40 to +85°C |
| Hail Diameter @ 80km/h | Up to 25mm |
| Front Side Maximum Static Loading | 5400Pa |
| Rear Side Maximum Static Loading | 2400Pa |
| Maximum Series Fuse Rating | 30A |
| PV Module Classification | If |
| Maximum System Voltage | DC 1000V/1500V |
PACKING CONFIGURATION
| Container | 20′ GP | 40′ HQ |
| Pieces/Container | 216 | 936 |

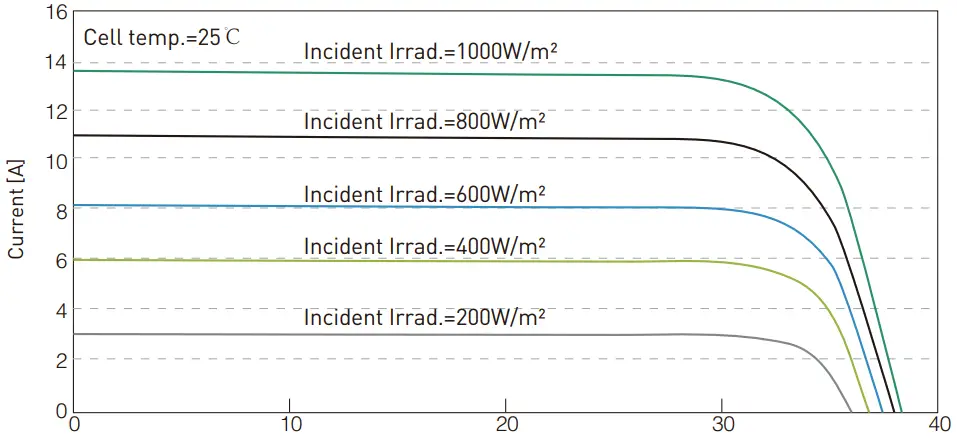

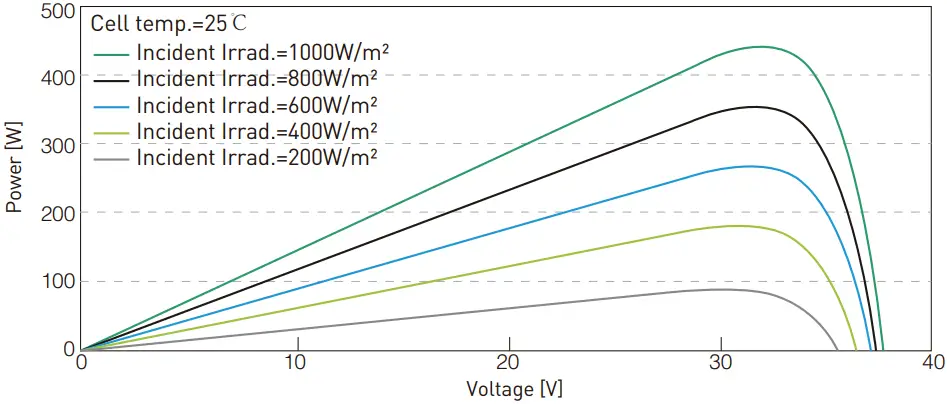

ELECTRICAL CHARACTERISTICS
PHONO SOLAR TECHNOLOGY CO.,LTD reserves the right to make necessary adjustments to the information described herein at any time without further notice.
The specifications and certificates contained in this datasheet may deviate slightly from our actual products due to the on-going innovation
and product enhancement.
Please be sure to use the most recent version of data.
