PHILIPS BVP125 Coreline Tempo Medium

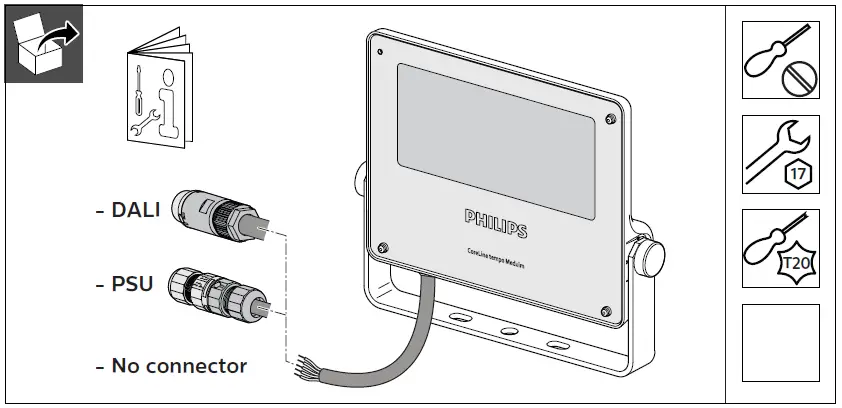

WHAT’S INCLUDE
FEATURE
| Luminaire Flux (lm) | Power (W) | CCT | CRI | Beam |  |  | |
| BVP125 LED120-4S/740 BVP125 LED80-4S/740 BVP125 LED98-4S/830 BVP125 LED67-4S/830 | 12000 8000 9800 6700 | 95 63 97 67 | 4000
3000 | 70
80 |
S/OFA52 |
0.1 |
5 |

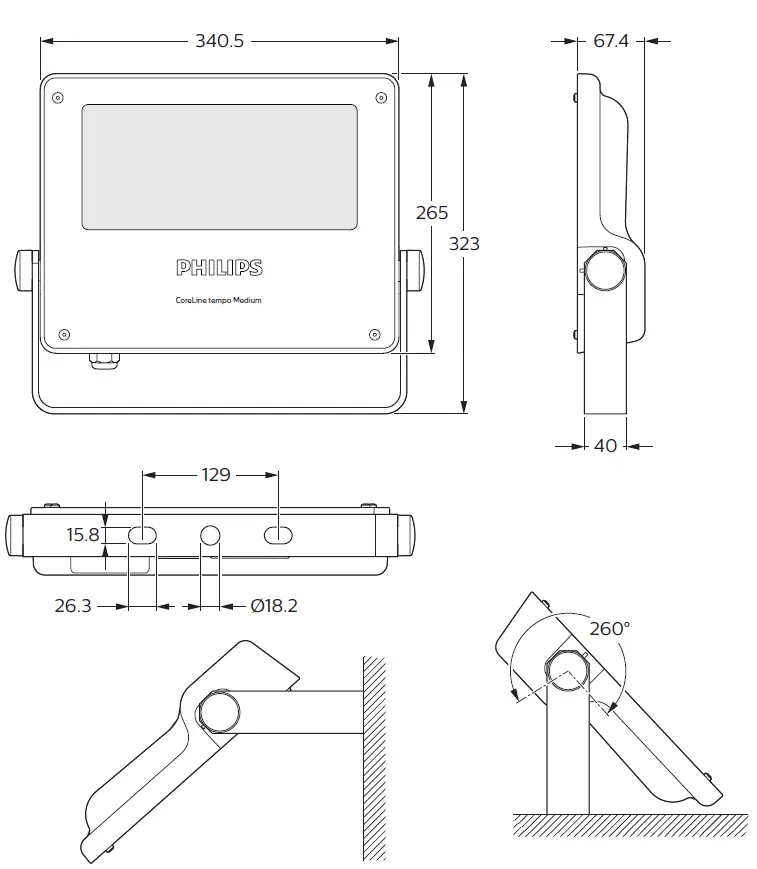

Dimensions

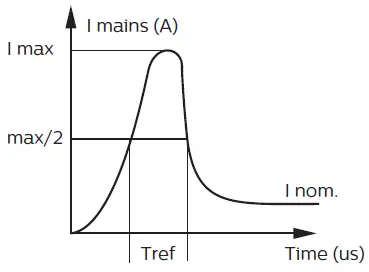

Inrush current
INSTALLATION
- InstaIl the luminaire according to the national regulations.

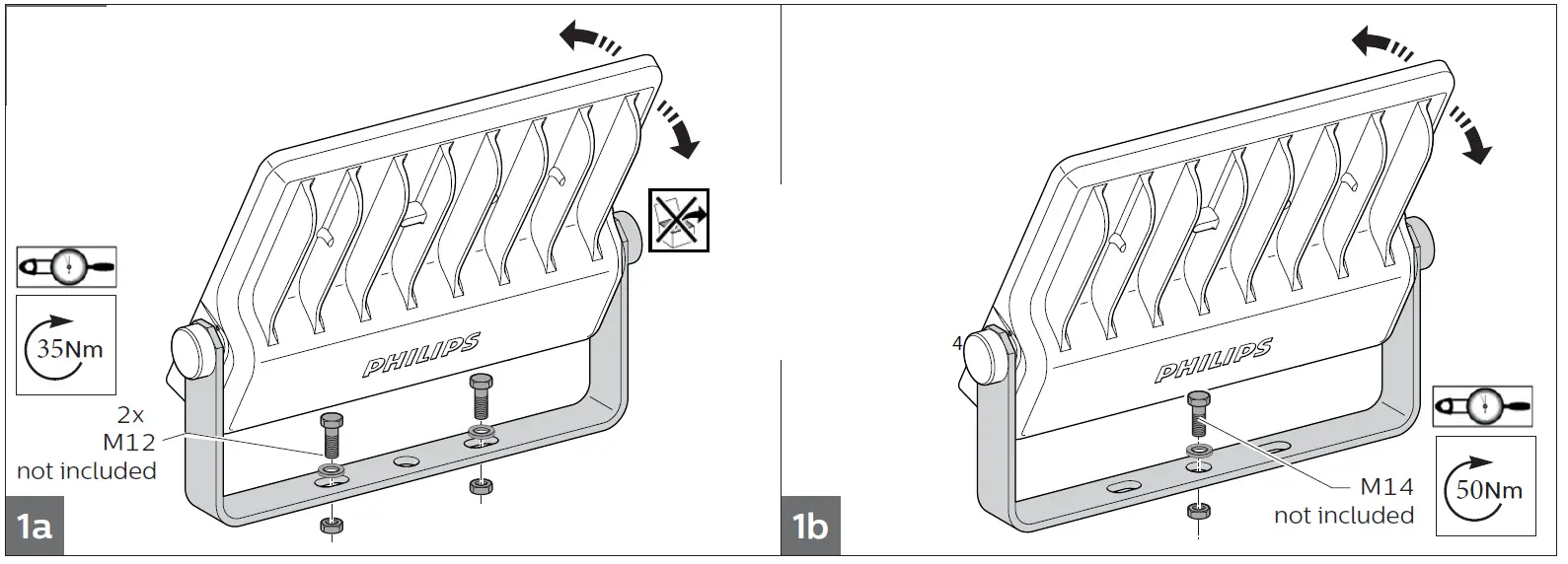

- In case of using only the central hole fixation and if the luminaire is higher >3m, the use of 2nd fixing security system is mandatory.

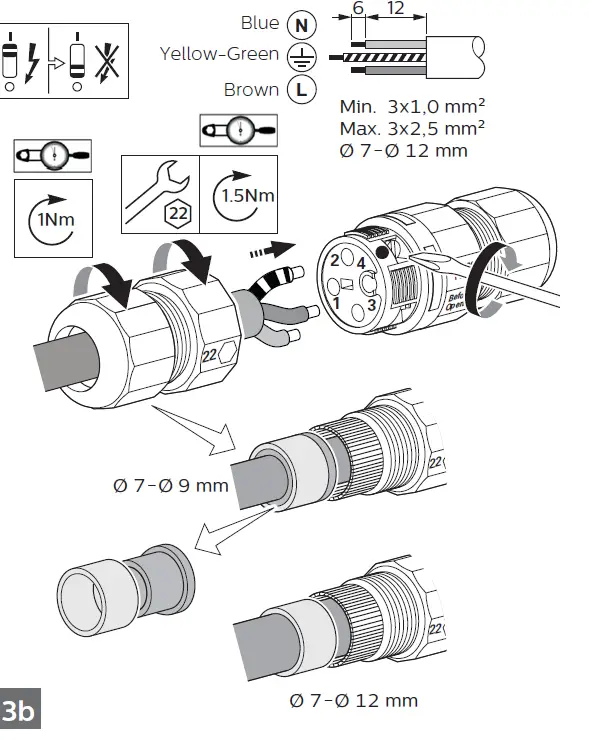

PSU with 3 poles connector

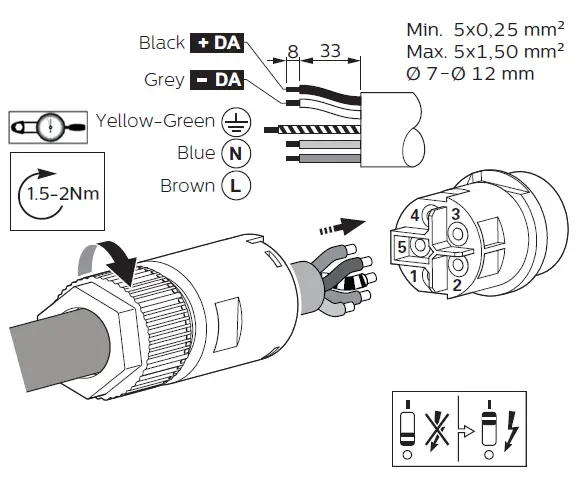

DALI with 5 poles connector
| Connector position | PSU connector 3 poles | DALI connector 5 poles |
| 1 | – | N (blue) |
| 2 | L (brown) | DALI+ (black) |
| 3 | N (blue) | DALI- (grey) |
| 4 | ground (yellow/green) | L (brown) |
| 5 | – | ground (yellow/green) |
| No connector (L brown, N blue, GRD yellow/green, DALI- grey and DALI+ black) | ||

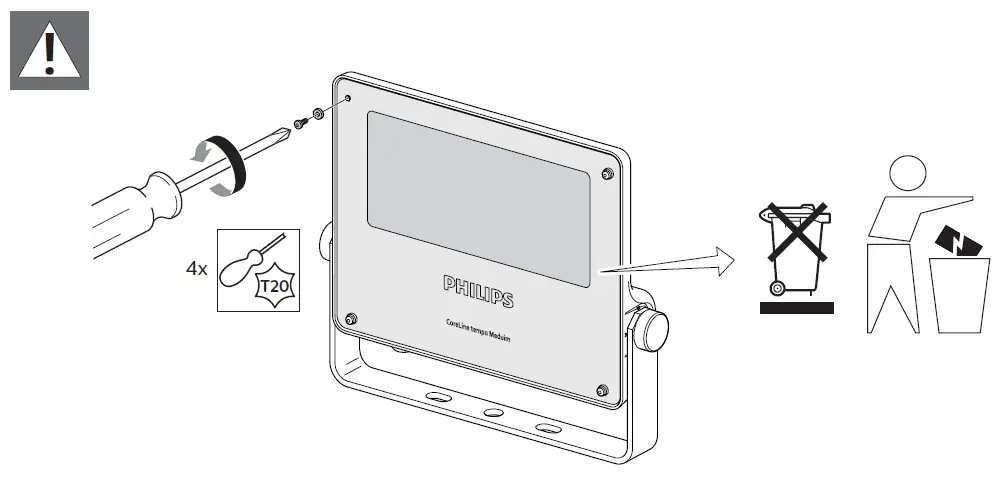

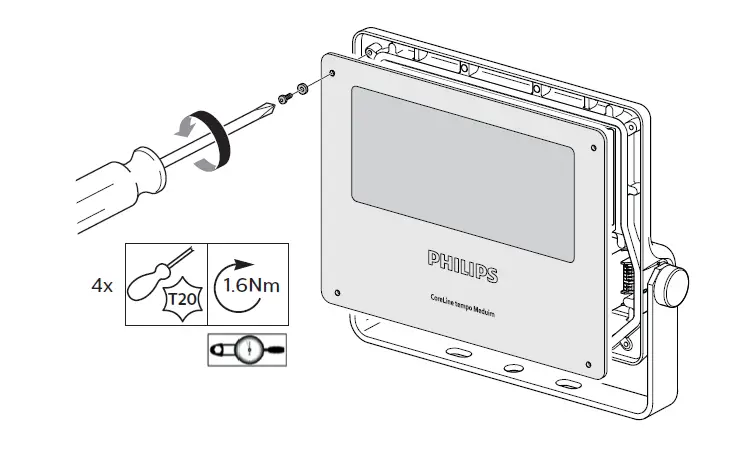

glass maintenance instruction
WARNING
- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
- The luminaire shall be installed or maintained by a qualified electrician and wired in accordance with the latest IEE electrical regulations or the national requirements.
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
- Outdoor use only.

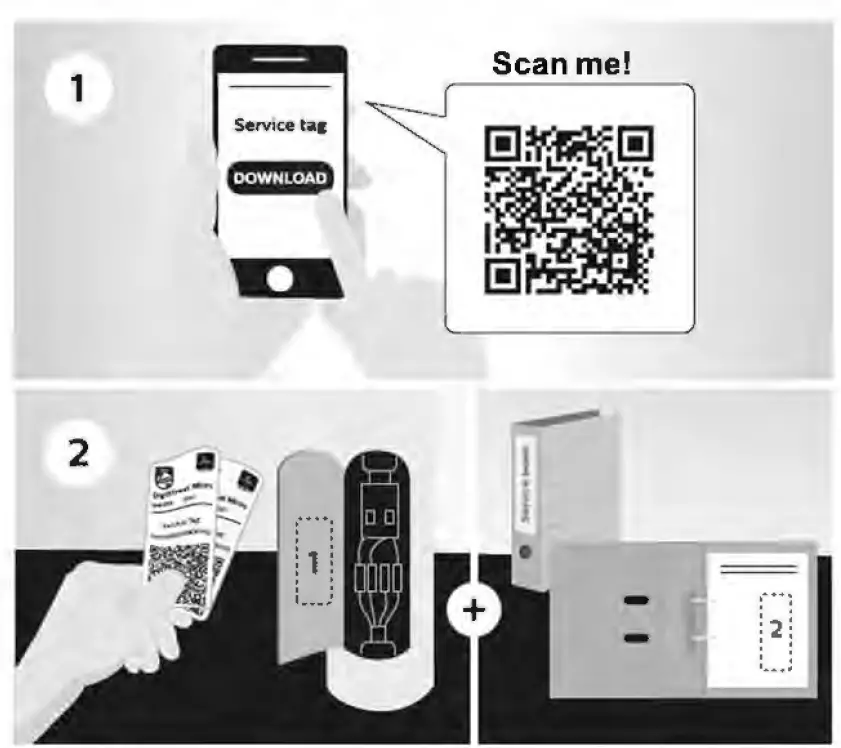

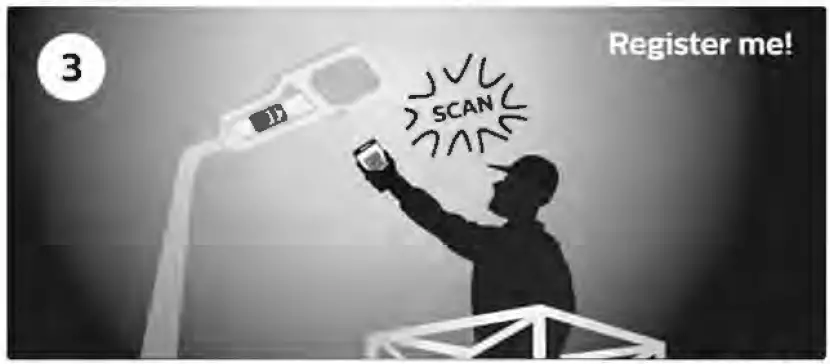

For products with TAG Label
To get an overview of all spare parts for a luminaire, please refer to detailed instructions in the service manual available via the Signify Service tag apps (Android and iOS). To program a spare the driver is supported by Signify Service tag (Android only).
Disconnect before servicing
- Luminaire has basic insulation between Low Voltage supply and control conductors.
- The light source and/or control gear and/or the external flexible cable contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.

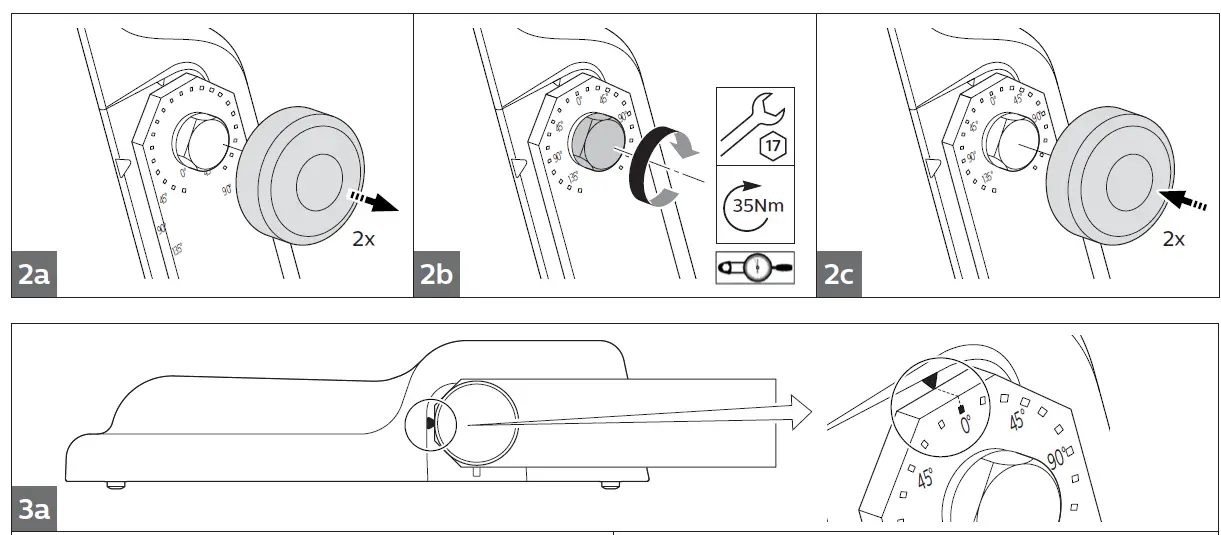

Storage, installation, use, operation and maintenance of the products needs to be performed exactly according the instructions in this manual and/or other instructions as may be provided by us to guarantee safe use of the product over its entire lifetime. Failure to adhere to these instructions will invalidate your entitlement to warranty. Bolts with indication of torque strength on the drawing need to be tightened using a calibrated torque wrench. Pre-assembled bolts need to be retightened again to the required torque specification to assure maximum strength over lifetime.
This product contains a light source of energy efficiency class: see table or label.
© 2020 Signify Holding.
All rights reserved. This document contains information relating to the product portfolio of Signify which information may be subject to change. No representation or warranty as to the accuracy or completeness of the information included herein is given and any liability for any action in reliance thereon is disclaimed. The information presented in this document is not intended as any commercial offer and does not form part of any quotation or contract. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.. All other trademarks are owned by Signify Holding or their respective owners.
583-443000020863_M
© 07/2021 Signify Holding. All rights reserved
Printed in Spain
Data subject to change without notice
Keep for future reference: www.lighting.philips.com
