AFC16-04-00-85 Contactors and Contactor Relays
Instruction Manual

Contents hide

1 SAFETY INSTRUCTIONS

2 INSTALLATION INSTRUCTIONS

3 Assembly

4 Disassembly

5 Documents / Resources

5.1 References

6 Related Posts

SAFETY INSTRUCTIONS

AF(C)09…38(Z)(B), NF(C)(Z)(B)22…80E, CA4, CAL4, CAT4, CC4, LDC4, RV4, RC4
Contactors AF, contactor relays NF and accessories
Warning: Hazardous voltage! Refer to installation instructions. Disconnect and lock out power before working on this device.
Attention! Installation by person with electrotechnical expertise only.

INSTALLATION INSTRUCTIONS

AF(C)09…38(Z)(B), NF(C)(Z)(B)22…80E, CA4, CAL4, CAT4, CC4, LDC4, RV4, RC4
Contactors AF, contactor relays NF and accessories

	NF(C)(Z)(B)40E AF(C)09…25(Z)(B)-30-10 AF(C)09…16(Z)(B)-40-00 AF(C)26…38(Z)(B)-30-00	AFC16-04	NF(C)(Z)(B)22…31E AF(C)09…25(Z)(B)-30-01 AF(C)26…38(Z)(B)-40-00 AF(C)09…38(Z)(B)-22-00	NF(C)(Z)(B)44…80E AF09…38(Z)-30-22	AF26…38(Z)-30-11

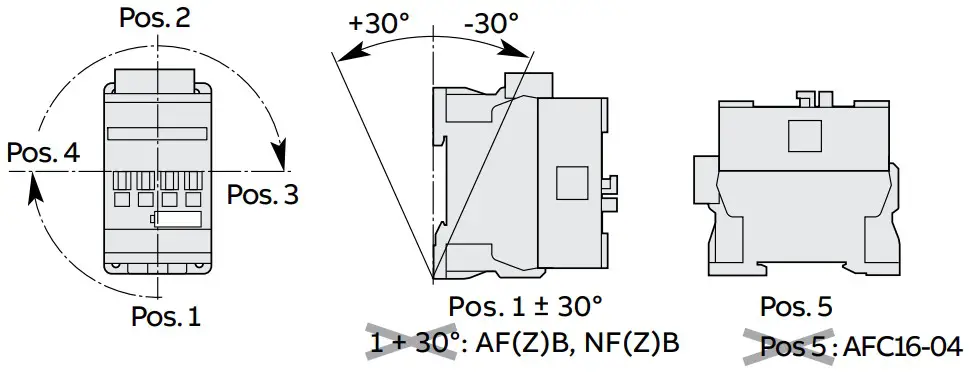

Pos. 1 2, 3, 4 ,	max 6 aux contacts* / 4NC**	max 5NO aux contacts* max 1NC** max 2CC4-10	max 6 aux contacts* / 3NC**	max lx CAL4-11	max 2x CAL4-11
Pos. 1 ± 30° 5 ‘	max 6 aux contacts* / 3NC**	max 5NO aux contacts* max 1NC** max 2CC4-10	max 6 aux contacts* / 2NC**	max lx CAL4-11	max 2x CAL4-11

CC4 : * max 1x CC4-10 + max 1x CC4-01 / CC4-01 : ** max NC-1


				Rigid Solid	Rigid Stranded
AF(C)09…25(Z)(B)	M 3.5 1.5 Nm (13 Lb.in)	0 5.5 mm (0.22 in)	2.N AP Pzod	1 or 2 x 1…4 mm` 1 or 2 x AWG 16-10	1 or 2 x 1…6 mm2 1 or 2 x AWG 16-10	.75…6 mmz 1 or 2 x 0.75…6	1 x 0.75…4 mm2 2 x 0.75…2.5 mmt	10 mm (0.39 in)	< 9.6 mm (0.38 in)
AF(C)26…38(Z)(3)-30	M4 2.5 Nm (22 Lb.in)	0 6.5 mm (0.26 in)		1 or 2 x 2.5…4 mmz 1 or 2 x AWG 14-10	1 or 2 x 2.5…10 mm2 1 or 2 x AWG 14-8	1 or 2 x 15…10 mm= .	1 x 1.5…10 mm2 2 x 1.5…4 mm2	14 mm (0.55 in)	< 12.5 mm (0.49 in)
AF(C)26…38(2)(B)-40/22	M 4.5 2.5 Nm (22 Lb.in)	0 5.5 mm (0.22 in)		1 or 2 x 1.5…4 mmz 1 or 2 x AWG 16-10	1 or 2 x 1.5…16 mm2 1 or 2 x AWG 16-6	.5…16 mmz 1 or 2 x 1.5…16	1 or 2 x 1.5_16 mm2	12 mm (0.47 in)	–
NF(C)(Z)(B).. AF(C)09…25(Z)(B)-30-10 AF(C)09…25(Z)(B)-30-01 AF09…38(Z)-30-22 AF26…38(Z)-30-11	M 3.5 1.2 Nm (11 Lb.in)	0 5.5 mm (0.22 in)		1 or 2 x 1…2.5 mmz 1 or 2 x AWG 18-14		1 or 2 x 0.75…2.5 mm	1 x 0.75…2.5 mrnz 2 x 0.75…1.5 mm2	10 mm (0.39 in)	< 8 mm (0.31 in)
NF(C)(Z)(B).. AF(C)09…38(Z)(8) LDC4 RV4…/RC4…
CA4-.. CC4-.. CAT4-.. CAL4-11

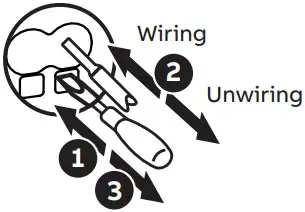

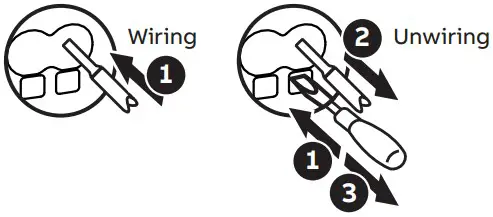

Push-in / Spring	Wiring / Unwiring		Rigid Solid
LDC4K CA(L)4-_K	Wiring Push-in / Unwiring with screwdriver	0 3 mm (0.12 in) x 0.5 mm (0.02 in)	1 or 2 x 1…2.5 mm2 1 or 2 x AWG 18-14	1 or 2 x 1…2.5 mm2	1 or 2 x 1…1.5 mm2		10 mm (0.39 in)
LDC4K CA(L)4-_K	Wiring / Unwiring with screwdriver	0 3 mm (0.12 in) x 0.5 mm (0.02 in)	1 or 2 x 1…2.5 mm2 1 or 2 x AWG 18-14	1 or 2x 0.5…2.5 mm2	1 or 2x 0.5…1.5 mm2	1 or 2x 0.5…2.5 mm2	10 mm (0.39 in)

According to UL60947-4-1 and CSA C22.2 NO. 60947-4-1, for use on a circuit capable of delivering not more than the max. symmetrical amperes at the max. voltage shown in the table below.
WARNING: if opening of BCP, controller shall be examined and replaced if damaged.

Max short- circuit at 480 V, 600 V (kA)	AF(C)09…12		AF(C)16,AFC25		AF(C)26-30		AF(C)30…38-30
	max Fuse		max Fuse		max Fuse		max Fuse
	30 A/RK5	30 A/J	60 A/RK5	60 A/J	60 A/RK5	60 A/J	100 A/RK5	100 A/J
	5	100	5	100	5	100	5	100
Max short- circuit at	AF(C)09…25				AF(C)26…38-30
	Circuit Breaker XT2V125 (60 A)				Circuit Breaker XT2V125 (125 A)
480 V (kA)	10				100
600 V (kA)	10				42

Acc. to UL60947-4-1 and CSA C22.2
NO. 60947-4-1 min. enclosure for:
AF(C)09…25(Z)(B), NF(C)(Z)(B)..: 180 x 130 x 150 mm
AF(C)26…38(Z)(B)-30: 255 x 180 x 175 mm
AF(C)26…38(Z)(B)-40/22: 180 x 130 x 175 mmNOTICE: This product has been designed for environment A. Use of this product in environment B may cause unwanted electromagnetic disturbances in which case the user may be required to take adequate mitigation measures.

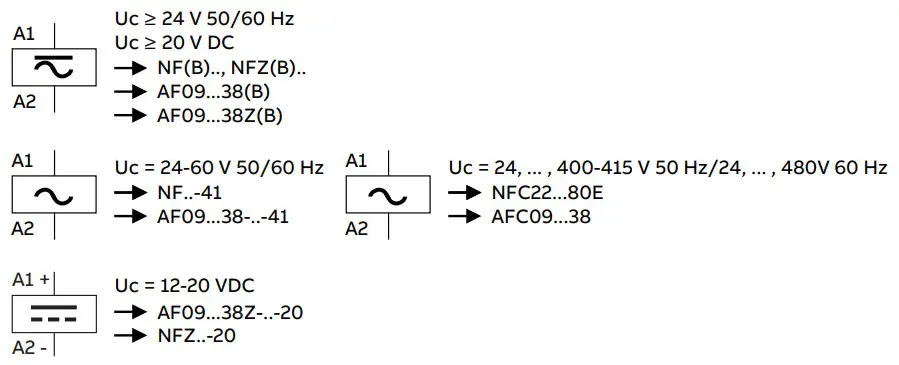

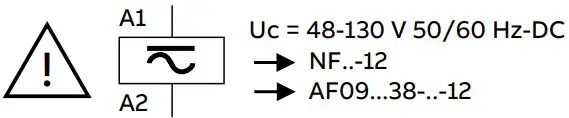

… V 50/60 Hz	Devices comply to GB21518	Energy efficiency level	Holding power VA
24…250 V	AF09…38(Z)(B)-30..	2	3.5
250…500 V	AF09…16(B)-30.. AF26…38(B)-30..	2 2	5 5.5
24…480 V	AFC09…25-30.. AFC26…38-30..	3 2	9.5 9.5

NFC, AFC09…38 :
LDC4(K) feeder block can be replaced by RC4.. / RV4.. surge suppressor.
When using 2 feeder blocks, one of them can be replaced by RC4.. / RV4.. surge suppressor.

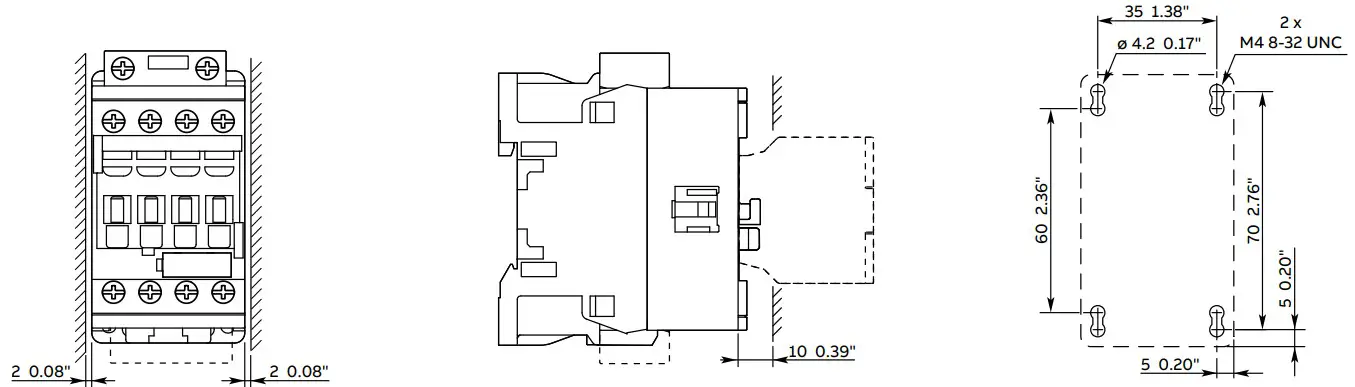

	A mm inch	B mm inch	C mm inch	D mm inch	E mm inch	F mm inch
						CA4(K) CC4	CAT4
AF(C)09…25(Z)(B) NF(C)(Z)(B)22…40E	45 1.77″	57 2.24″	77 3.03″	73 2.87″	71 2.80″	110.5 4.35″	102.5 5.03″
AF(C)26…38(Z)(B)-30			86 3.39″	82 3.23″	80 3.15″	119.5 4.70″	111.5 4.39″
AF(C)26…38(Z)(B)-40			101 3.98″	97 3.82″	95 3.74″	134.5 5.30″	126.5 4.98″

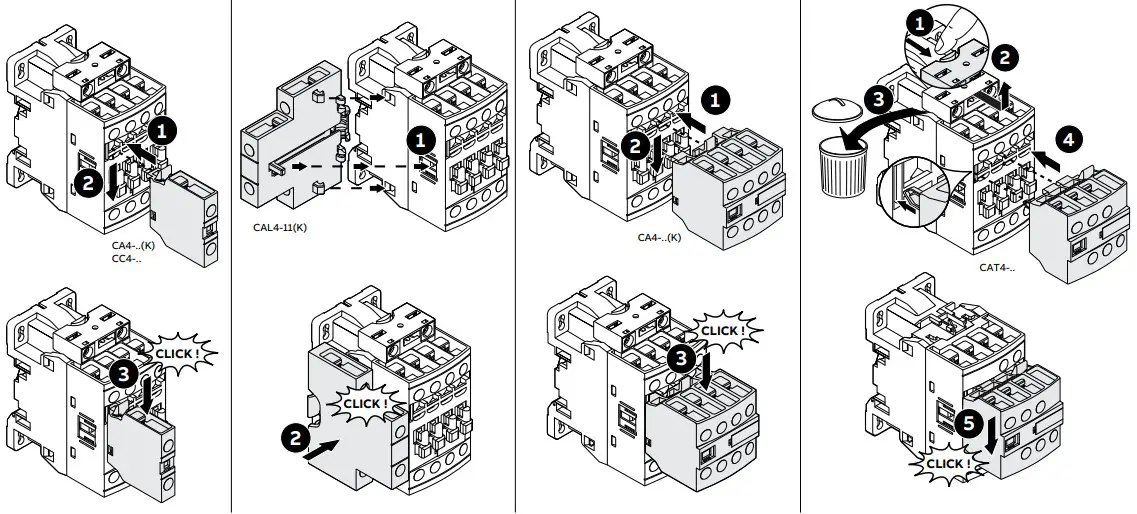

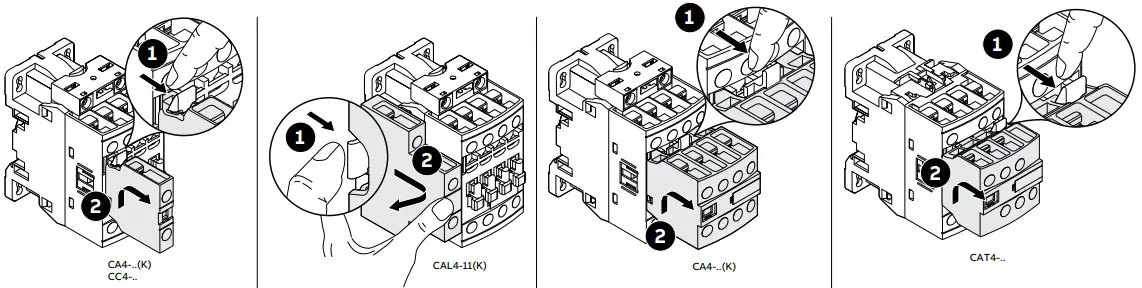

	CA4-10(K) CA4-01(K) CC4-10 CC4-01	NF(C)(Z)(B).. AF(C)09…38(Z)(B)
	CAL4-11(K)	NF(C)(Z)(B).. AF(C)09…38(Z)(B)
	CA4- .. N(K)	NF(C)(Z)(B)..
	CA4- .. E(K)	AF(C)09…25(Z)(B)-30-10
	CA4- .. M(K)	AF(C)09…38(Z)(B)-40-00 AF(C)09…38(Z)(B)-22-00 AF(C)26…38(Z)(B)-30-00
	CA4- .. U	AF(C)09…25(Z)(B)-30-01
	CAT4- .. U	AF(C)09…25(Z)(B)-30-10
	CAT4- .. E	AF(C)09…38(Z)(B)-40-00 AF(C)09…38(Z)(B)-22-00 AF(C)26…38(Z)(B)-30-00
	CAT4- .. M	AF(C)09…25(Z)(B)-30-01

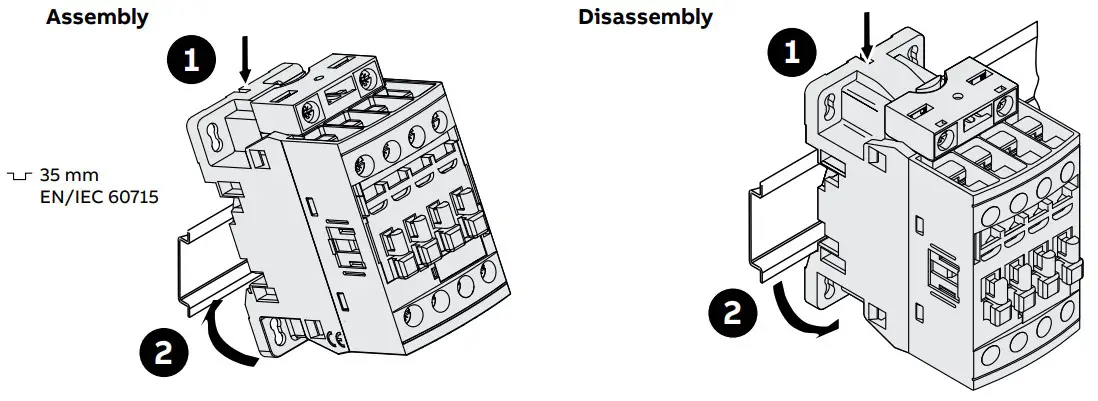

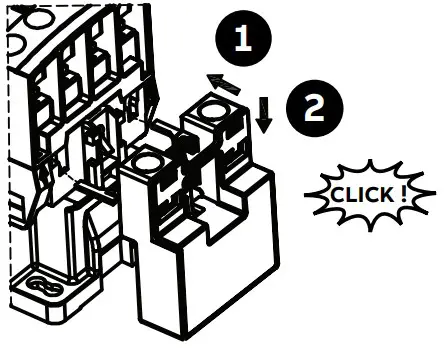

Assembly

Disassembly

ABB France
11, rue d’Arsonval
69680 Chassieu
France
www.abb.com/lowvoltage
