VYNCO 2CS1W Home Card Switch
VYNCO 2CS1W Home Card Switch
SPECIFICATIONS
| SPECIFICATIONS | |
| Input Voltage | 250V AC, 50Hz |
| Rated Current | 16A Resistive |
| Minimum Load | 0A |
| Contacts | 1xN/0 |
WARRANTY
This product is covered by the standard 5 Year Vynco Warranty – proof of purchase is required. Please contact Vynco for details of returns procedure.
NOTE: This product contains NO user serviceable parts.

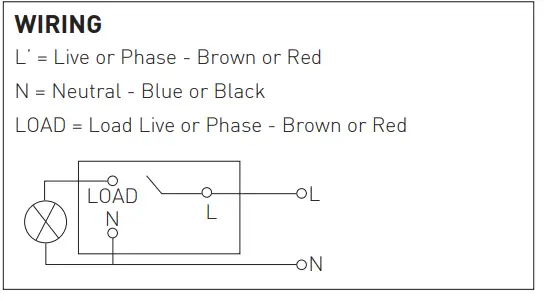

WIRING
SAFETY
This product must be installed with the card slot facing upwards. Do not install horizontally or facing downwards. This keycard switch is required to be protected by a 16A MCB or RCBO.
- This product complies in full with AS/NZS 606691.
- This product should be installed by a suitably qualified person in accordance with Australian and New Zealand wiring rules.
SWITCHING
Electronic switch activated with standard sized card, specific card not required.
- Switch On: Instant switching on insertion of card.
- Switch Off: 1 minute after card is removed (time interval not adjustable).
INSTALLATION PROCEDURE
- Card switch is designed for installation into a flush box or similar location secured with two fixing screws.
- Ensure the relevant circuits are isolated and safe prior to installation.
- Cut out flush box opening.
- Terminate wiring to card switch.
- Secure card switch into flush box with two securing screws (supplied). Then clip on fascia cover.
