BERTAZZONI REF30BMBIXRT 30 Inch Stainless Steel Right Hinge Built In Bottom Mount Refrigerator
PRODUCT DIMENSIONS

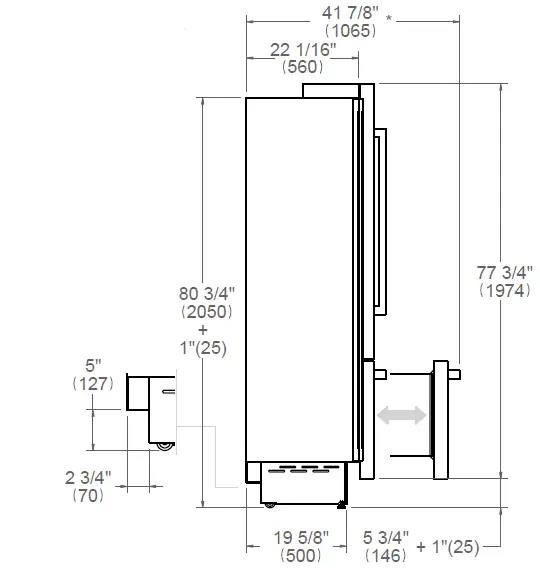

SIDE VIEW

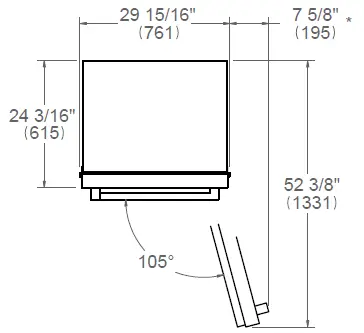

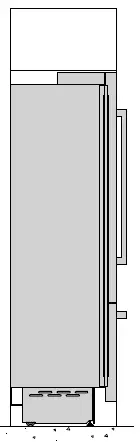

FRONT VIEW
TOP VIEW
- Maximum Overall Handle Dimension
CUTOUT DIMENSIONS
SIDE VIEW

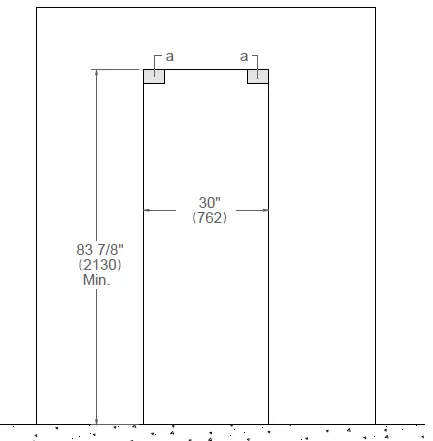

FRONT VIEW

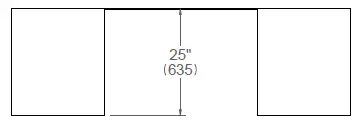

TOP VIEW
- Area to be left clear for the anti-tipping brackets 3”1/2×5” (82x127mm)

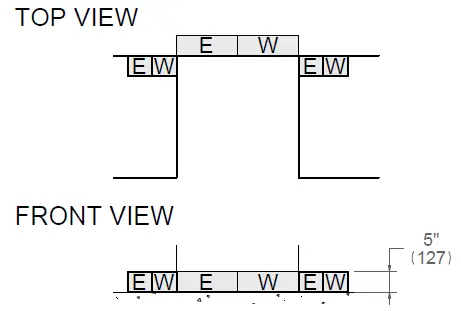

ELECTRICAL & WATER CONNECTION
- E: A properly-grounded, horizontally-mounted electrical receptacle should be installed according to this drawing.
- W: To connect to the water supply system, a 1/4” NPT waterline with accessible shut-off valve must be supplied.
Connection(s) placement within the opening may require additional cabinet depth.
A separate circuit breaker servicing only this appliance is recommended. For the installation of multiple products in combination, refer to the Built-in Food Preservation Design Guide. Dimensions in parentheses are millimeters unless otherwise specified.
INSTALLATION REQUIREMENTS
If the appliance(s) is not connected through the side profile trims to secured cabinetry anti-tip brackets must be installed.
