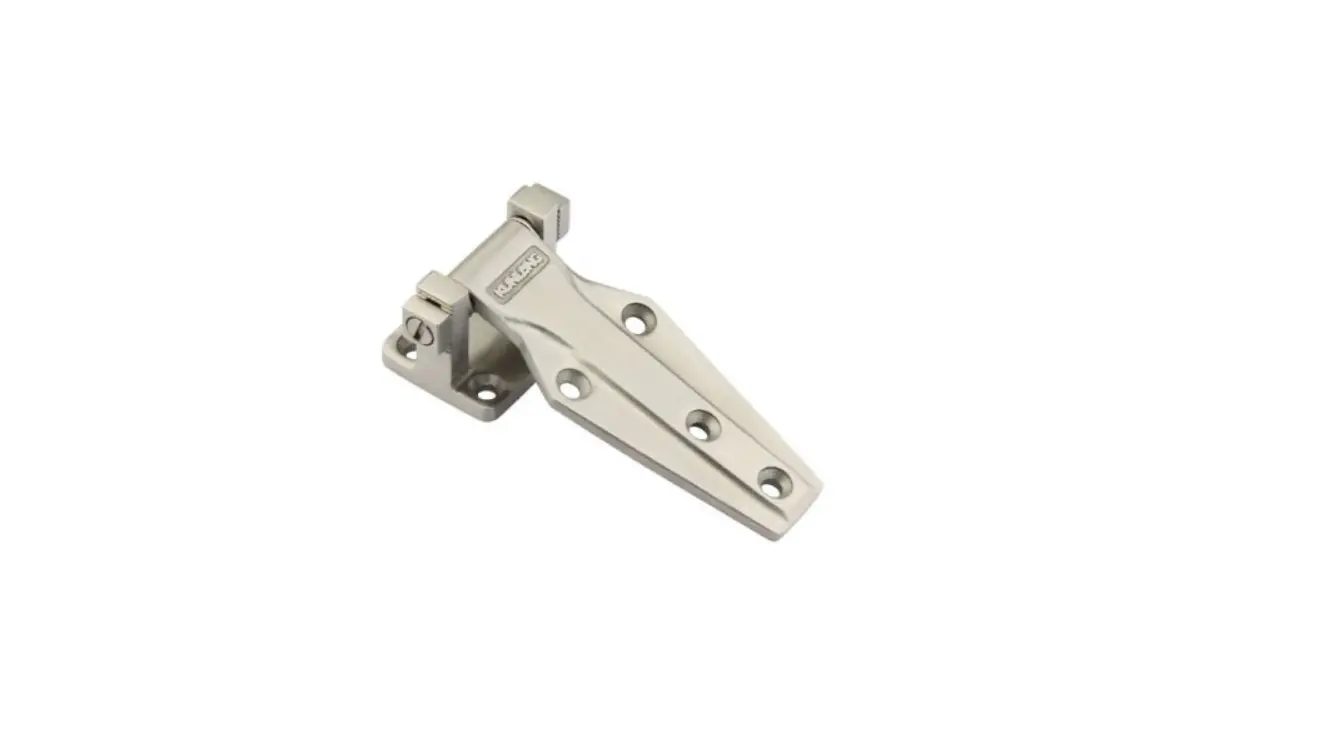

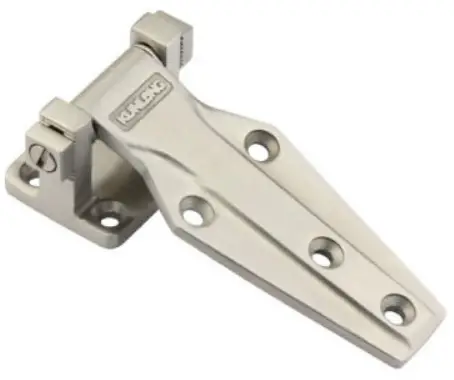

KUNLONG SK2-053 Refrigerator Hinge

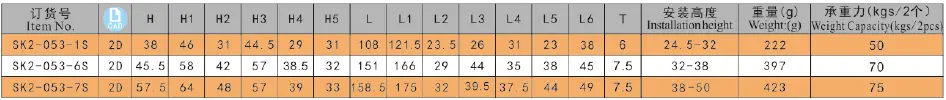

Model SK2-053

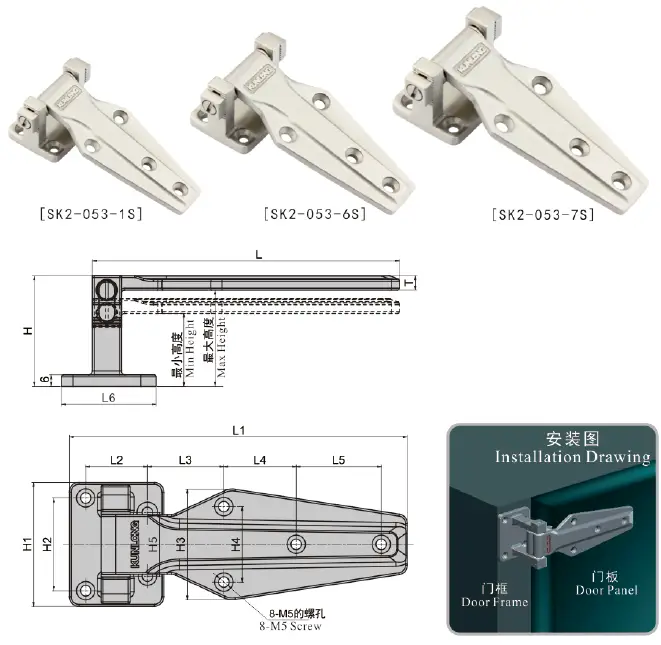

Dimension
Features
- With a 180-degree opening angle
- Cam door structure design and installation height can be adjusted
- Suitable for left and right side hinging
Specification
- Material: Stainless Steel (SUS304)
- Finish: Wire-drawing Polishing
Application
- Industrial Oven, Test Equipment, etc.
Date of delivery
- Common product inquiry is welcome
Remark
- Refer to the detailed dimension drawing for installation height
- Please use countersunk screws when installing

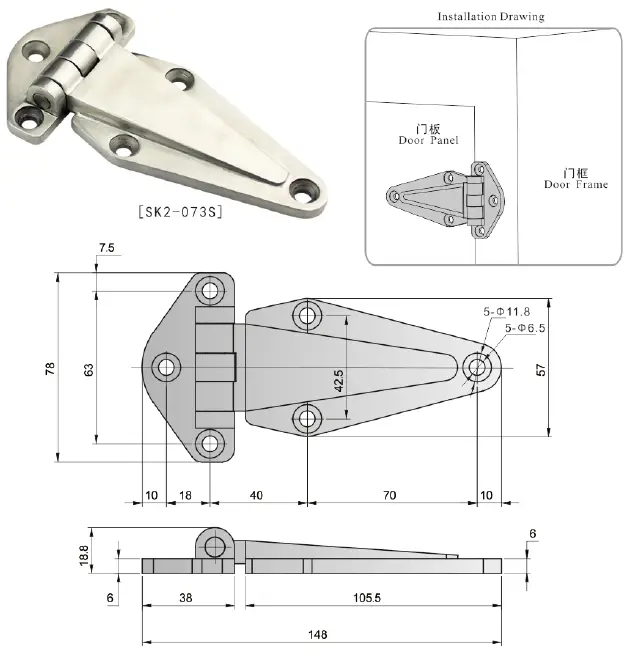

Model SK2-073S
Dimension
Features
- Low profile with a 180-degree opening angle
- Large and small side designs, suitable for the requirements of the door panel and the door frame
- Stainless Steel material, great corrosion resistance performance
Specification
- Material: Stainless Steel(SUS304)
- Finish: Wire-drawing Polishing
Application
- Steam cabinet; Kitchen cabinet; Industrial oven; etc.
Date of delivery
- Common product inquiry is welcome
Remark
- Suitable for left and right side hinging

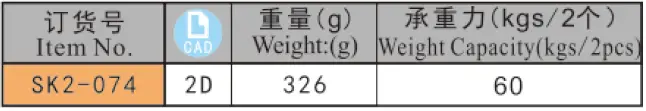

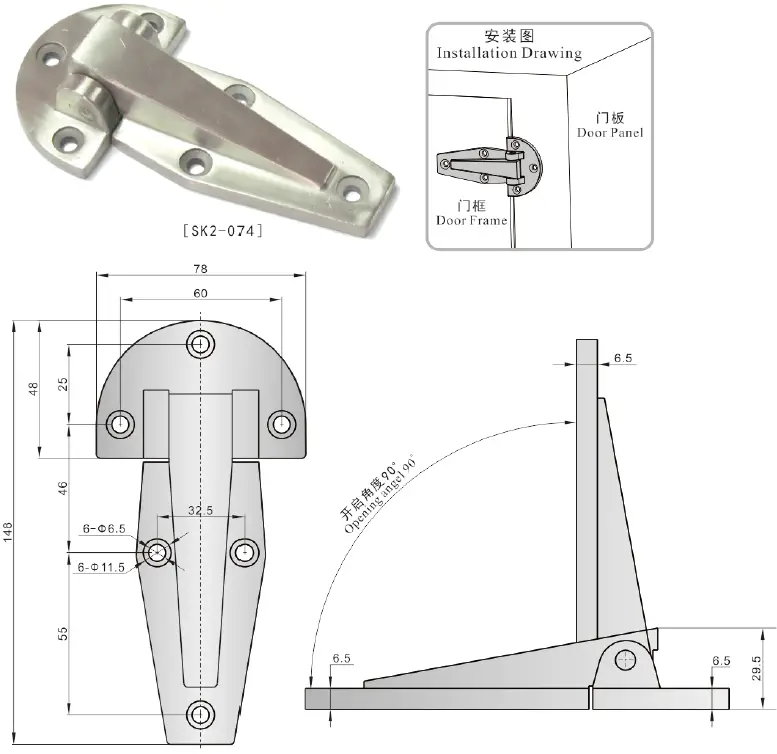

Model SK2-074
Dimension
Features
- 90-degree limited design, low profile with a 90-degree opening angle
- Large and small side designs, suitable for the requirements of the door panel and the door frame
Specification
- Material: Stainless Steel(SUS201)
- Finish: Wire-drawing Polishing
Application
- Steam cabinet; Kitchen cabinet; Industrial oven; etc.
Date of delivery
- Common product inquiry is welcome
Remark
- Suitable for left and right side hinging

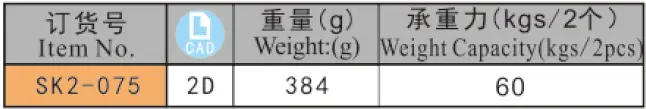

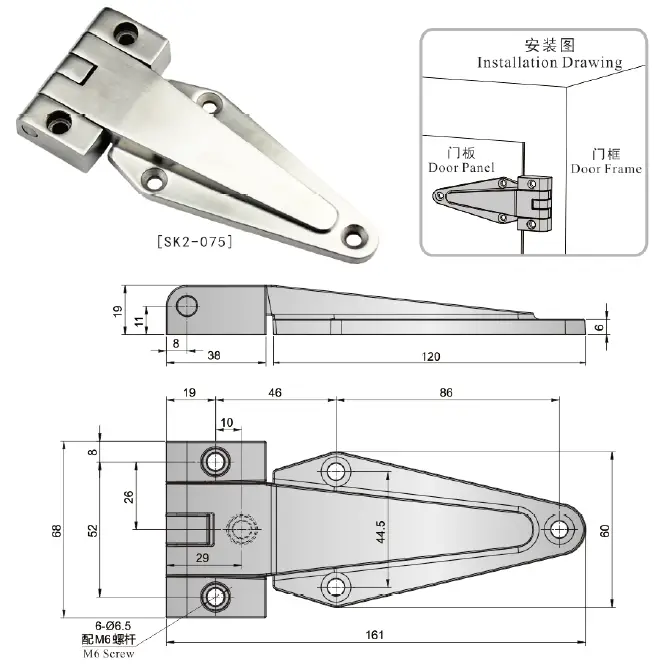

Model SK2-075
Dimension
Features
- Low profile with a 180-degree opening angle
- Large and small side designs, suitable for the requirements of the door panel and the door frame
- Stainless Steel material, great corrosion resistance performance
Specification
- Material: Stainless Steel(SUS304)
- Finish: Wire-drawing Polishing
Application
- Steam cabinet; Kitchen cabinet; Industrial oven; etc.
Date of delivery
- Common product inquiry is welcome
Remark
- Suitable for left and right side hinging
