smeg FAB50RWH5 Right Hand Hinge Fridge
Freezer User Guide
TYPE
Product Family: Refrigerator • Installation: Free standing • Category: Double Door • Cooling type: Total No Frost – Double Cooling system • Defrost: Automatic • Hinge position: Right • Hinge type: Standard • EAN code: 8017709299446
AESTHETICS
Colour: White • Finishing: Glossy • Aesthetics: 50’s Style • Design: Rounded • Material: Heat-moulded • Handle type: Fixed • Handle: External • Handle colour: Chrome • Side material: Steel • Side colour: White • Display: LED • Display porition: Interno (cella frigo) • Door shelves profile color: Silver • Drawers profile color: Silver • Color of glass shelf profile: Chrome
REFRIGERATOR COMPARTMENT FEATURES
No. of adjustable shelves: 2 • Number of fruit and vegetables drawers: 1 • Type of crisper/vegetable drawers cover: Standard • Type of adjustable shelves: Glass • Crisper Cover: Yes • Type of crisper/vegetable drawers cover: Glass • Life Plus zone-0°C: Yes • Internal light in fridge: Yes • Type of internal light (fridge): LED
REFRIGERATOR INNER DOOR
Number of adjustable door shelves: 3 • No. of bottle shelves: 1
OTHER REFRIGERATOR FEATURES
MultiFlow: Yes • Fan: Yes • Ionizer: Yes
FREEZER COMPARTMENT FEATURES
No. of shelves: 1 • Type of shelves: Glass • Internal light in freezer: Yes • Type of internal light (freezer): LED
FREEZER INNER DOOR
No. of adjustable door shelves: 2
OTHER FREEZER FEATURES
Manual ice maker: Yes • Ice maker: Manual • Fast freezing compartment: Yes
OTHER TECHNICAL FEATURES
Functions display: Fast freezing, ECO, Temperature alarm • Fast freezing button: Yes • Door open alarm: Acoustic and visual • Type of temperature control: Electronic • No. of compressors: 1 • Type of compressor: Inverter
TECHNICAL FEATURES
PERFORMANCE / ENERGY LABEL NEW 2019
Annual energy consumption: 265 kWh/a • Energy efficiency class: E • Total net volume: 524 l • Sum of the volumes of the frozen compartment(s): 124 l • Sum of the volumes of the chill compartment(s) and the unfrozen compartment(s): 400 l • Airborne acoustical noise emission class: C • Temperature Rise Time: 15 h • 4 star – Freezing capacity: 8 Kg/24h • Climate class: SN, N, ST, T • EEI: 96 %
ELECTRICAL CONNECTION
Electrical connection rating: 197 W • Voltage (V): 220-240 V • Frequency (Hz): 50/60 Hz • Power supply cable length: 200 cm
OPTIONAL ACCESSORIES
ALSO AVAILABLE
LOGISTIC INFORMATION

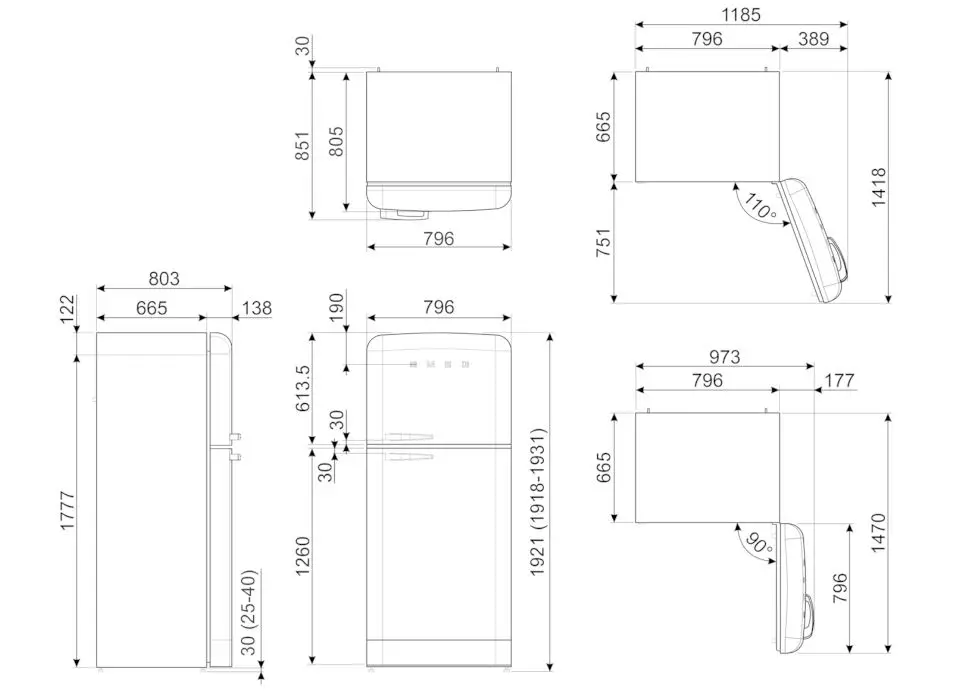

Dimensions: 1921x796x805 mm • Width: 796 mm • Product width with maximum doors opening: 1185 mm • Height: 1921 mm • Depth without handle: 805 mm • Product depth with handle: 851 mm • Product depth with doors open at 90°: 1470 mm • Gross weight (kg): 131.000 kg • Net weight (kg): 114.000 kg
