Style Left Hand Hinge Fridge
FAB28LSV5
User Manual

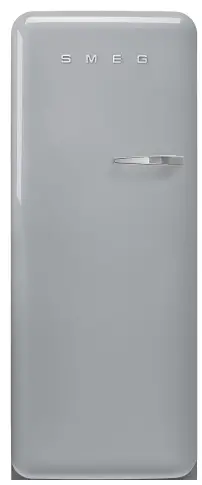

FAB28LSV5 60cm 50s Style Left Hand Hinge Fridge
Refrigerator, 50’s Style , One Door, Free Standing, Hinge position: Left, Silver, Fan assisted refrigerator, static freezer, D
INSTALLATION
When positioning these appliances adjacent to a wall or kitchen unit a gap of 175mm must be left on the hinged side of the product to allow the door to open.
TYPE
- Product Family: Refrigerator
- Installation: Free Standing
- Category: One Door
- Cooling type: Fan assisted refrigerator, static freezer
- Defrost: Automatic for refrigerator, manual for freezer
- Hinge position: Left
- Hinge type: Standard
- Reference width: Until 60
- Reference height: 100 – 160
- EAN code: 8017709299026
AESTHETICS
- Colour: Silver
- Finishing: Gloss
- Aesthetics: 50’s Style
- Design: Rounded
- Material: Heat-moulded
- Handle type: Fixed
- Handle: External
- Handle colour: Chrome
- Side material: Steel
- Side colour: Silver
- Door shelves profile colour: Chrome
- Drawers profile colour: Chrome
- Colour of glass shelf profile: Chrome
REFRIGERATOR COMPARTMENT FEATURES
- No. of adjustable shelves: 2
- Number of fruit and vegetables drawers: 1
- Type of crisper/vegetable drawers cover: On sliding rails
- Type of adjustable shelves: Glass
- Crisper Cover: Yes
- Type of crisper/vegetable drawers cover: Glass
- Life Plus zone-0° C: Yes
- Internal light in fridge: Yes
- Type of internal light (fridge): LED
REFRIGERATOR INNER DOOR
- No. of door shelves with transparent cover: 1
- Number of adjustable door shelves: 1
- Adjustable door shelves with wire support: Yes
- No. of bottle shelves: 1
- Bottle shelves with wire support: Yes
OTHER REFRIGERATOR FEATURES
- MultiFlow: Yes
- Fan: Yes
FREEZER COMPARTMENT FEATURES
Internal freezer compartment: Yes
OTHER TECHNICAL FEATURES
Door open alarm: Acoustic and visual
- Antibacterial Gasket: Yes
- Type of temperature control: Electronic
- No. of compressors: 1
- Type of compressor: Variable Speed Compressor
TECHNICAL FEATURES
PERFORMANCE / ENERGY LABEL NEW
- Annual energy consumption: 130 KWh/year
- Energy efficiency class: D
- Total volume: 270 l
- Sum of the volumes of the frozen compartment(s): 26 l
- Sum of the volumes of the chill compartment(s) and the unfrozen compartment(s): 244 l
- Airborne acoustical noise emission class: B
- Thaw time: 9 h
- 4 star – Freezing capacity: 2.6 Kg/24h
- Climatic class: SN, N, ST, T
- EEI: 79 %
- Noise level: 35 dB(A) re 1pW
ELECTRICAL CONNECTION
- Nominal power: 90 W
- Voltage (V): 220-240 V
- Frequency (Hz): 50/60 Hz
- Power supply cable length: 180 cm
OPTIONAL ACCESSORIES
ALSO AVAILABLE
LOGISTIC INFORMATION

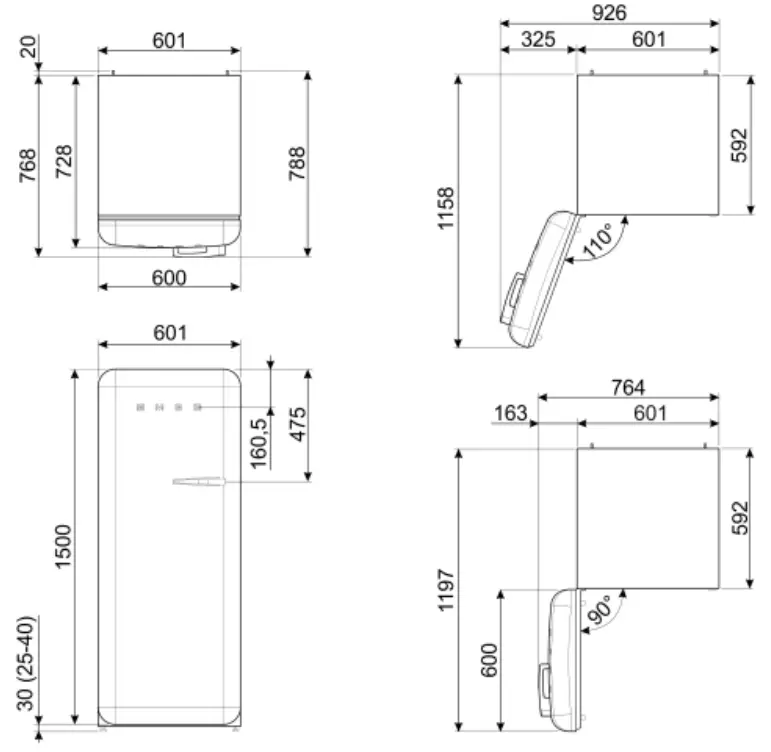

- Dimensions: 1530x601x728 mm
- Width (mm): 601 mm
- Product width with maximum doors opening: 926 mm
- Product Height with feet: 1530 mm
- Depth without handle: 728 mm
- Product depth with handle: 768 mm
- Product depth with doors open at 90°: 1197 mm
- Gross weight (kg): 85.600 kg
- Net weight (kg): 73.500 kg
