BERTAZZONI REF36BMBIXLT 36 Inch Stainless Steel Left-Hinge Built-In Bottom Mount Refrigerator

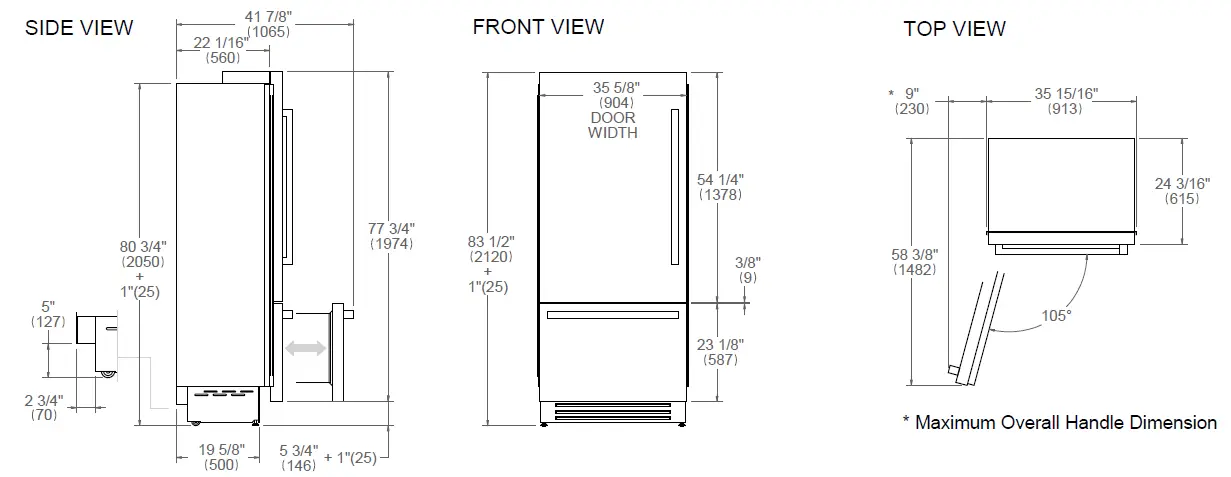

PRODUCT DIMENSIONS

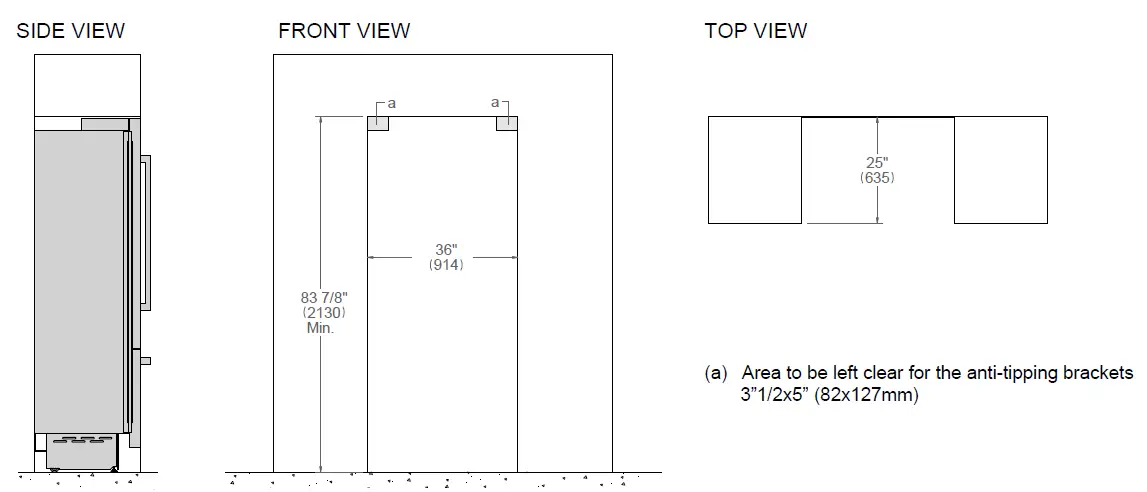

CUTOUT DIMENSIONS

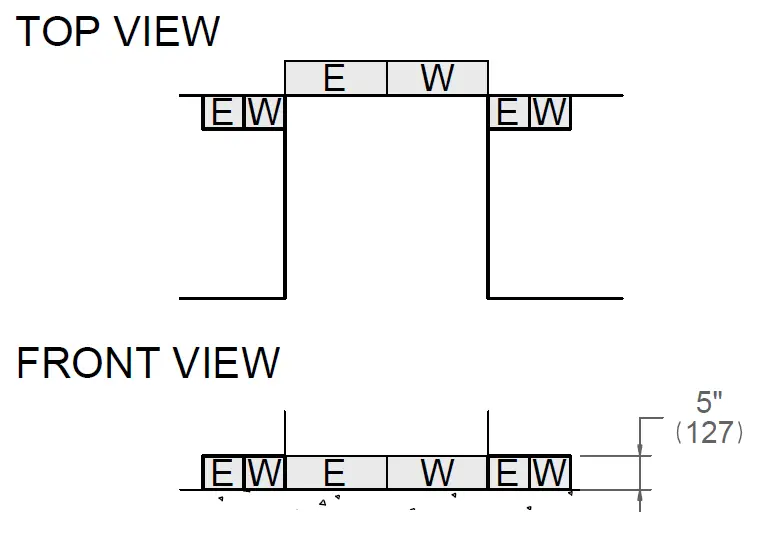

ELECTRICAL & WATER CONNECTION
- A properly-grounded, horizontally-mounted electrical receptacle should be installed according to this drawing
- To connect to the water supply system, a 1/4” NPT waterline with accessible shut-off valve must be supplied.
Connection(s) placement within the opening may require additional cabinet depth. A separate circuit breaker servicing only this appliance is recommended. For installation of multiple products in combination, refer to the Built-in Food Preservation Design Guide. Dimensions in parentheses are millimeters unless otherwise specified.
INSTALLATION REQUIREMENTS
If the appliance(s) is not connected through the side profile trims to secured cabinetry anti-tip brackets must be installed.
