REF30BMBIXLT 30 Inch Stainless Steel Left Hinge Built In Bottom Mount Refrigerator
Instruction Manual

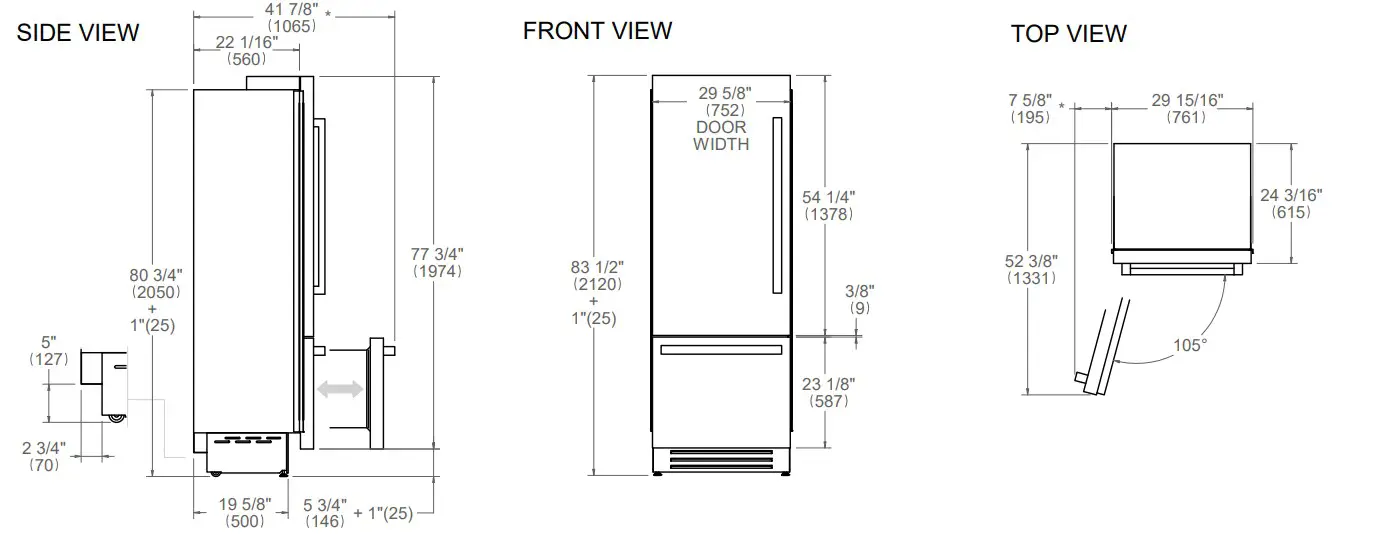

PRODUCT DIMENSIONS
* Maximum Overall Handle Dimension

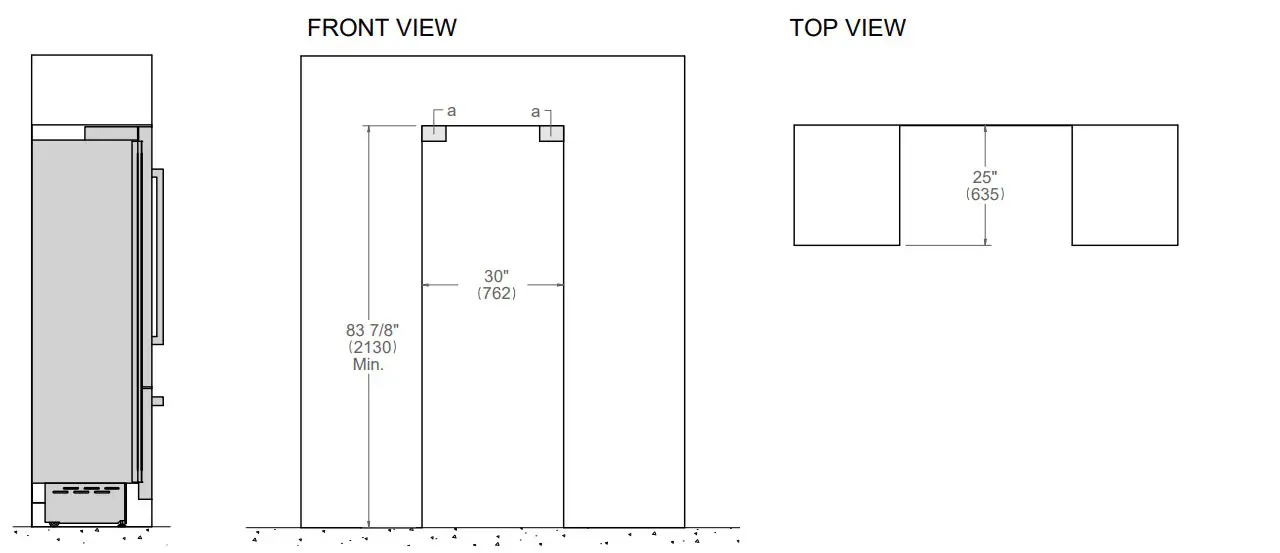

CUTOUT DIMENSIONS
(a) Area to be left clear for the anti-tipping brackets 3”1/2×5” (82x127mm)

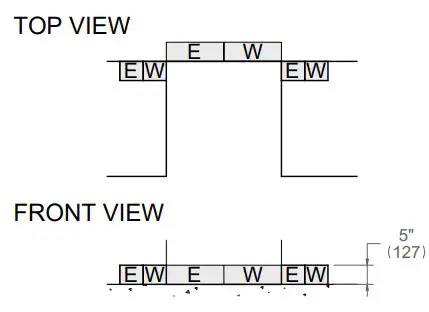

ELECTRICAL & WATER CONNECTION
E A properly-grounded, horizontally-mounted electrical receptacle should be installed according to this drawing
W To connect to the water supply system, a 1/4” NPT waterline with accessible shut-off valve must be supplied.
Connection(s) placement within the opening may require additional cabinet depth.
A separate circuit breaker servicing only this appliance is recommended. For installation of multiple products in combination, refer to the Built-in Food Preservation Design Guide. Dimensions in parentheses are millimeters unless otherwise specified.
INSTALLATION REQUIREMENTS
If the appliance(s) is not connected through the side profile trims to secured cabinetry anti-tip brackets must be installed.
