Bega 67719 Indoor Wall Luminaire Instruction Manual

Wall luminaire for indoor use
67719 Indoor Wall Luminaire
Instruction Manual

67719 Indoor Wall Luminaire

Application

Wall luminaire · indoor luminaire made of handblown opaque crystal glass and metal housing, for all lighting tasks in interior applications. They are ideal for places where a soft and uniform lighting distribution is required.

Product description

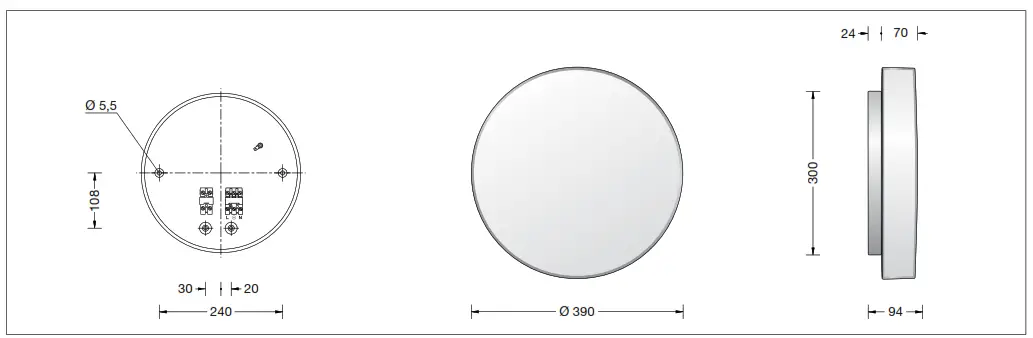

Metal housing, finish Colour white Hand-blown opaque crystal glass, with crewneck and gasket 2 mounting holes ø 5.5 mm Distance apart 240 mm 2 cable entries for through-wiring for mains cable up to ø 10,5 mm max. 5 x 1.5@ Connecting terminal 2.5@ with plug connection Earth conductor connection 2-pole connecting terminal for digital control LED power supply unit 220-240 V 0/50-60 Hz DC 170-276 V DALI-controllable Number of DALI addresses: 1 Basic insulation is provided between the mains and control cables BEGA Thermal Control®  Temporary thermal regulation to protect temperature-sensitive components without switching off the luminaire Safety class I Protection class IP 44 Protected against granular foreign bodies ≥ 1 mm and splash water Impact strength IK06 Protection against mechanical impacts < 1 joule
 – Safety mark
 – Conformity mark
Weight: 6.2 kg
This product contains light sources of energy efficiency class(es) D, E

Safety

The installation and operation of this luminaire are subject to national safety regulations.
Installation and commissioning may only be carried out by a qualified electrician.
The manufacturer accepts no liability for damage caused by improper use or installation. If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.

Overvoltage protection

The electronic components installed in the luminaire are protected against overvoltage in accordance with DIN EN 61547. To achieve an additional protection against e. g. transients, etc. we recommend separate overvoltage protection components.
You can find them on our website at www.bega.com.

Installation

LED are high-quality electronic components!
Please avoid touching the light output opening of the LED directly during installation or revamping.
Disassemble LED module.
Loosen LED-connection and earth connection (plug connection).
Lead mains supply cable through the cable entry into the luminaire housing.
Fix the luminaire housing with enclosed or any other suitable fixing material onto the mounting surface.
It is imperative to use the enclosed gaskets.
Make earth and electrical connection to the terminal.
For digital control please use the connecting terminal DA, DA.
In case this terminal is not used the luminaire will be operated at full light output.
Make earth connection between LED module and luminaire housing (plug connection).
Push LED-plugs into couplers as far as it will go.
Assemble LED module.
Tighten the screws evenly (max. 0,8 Nm).
Please observe that the LED module is not damaged mechanically.
ATTENTION!
Make sure that the start of thread (glass) corresponds exactly with the start of thread (luminaire housing).
Fix glass to the luminaire housing by turning it clockwise.
Make sure that the gasket is seated correctly.
Replacement of the LED module ·

Maintenance

The designation of the LED module is noted on a label in the luminaire.
The light colour and light output of BEGA replacement modules correspond to those of the modules originally fitted. The module can be replaced by qualified persons using standard tools.
Disconnect the system.
Unscrew glass from luminaire housing by turning it counter-clockwise.
Clean glass and luminaire regularly with solvent-free cleansers from dirt.
Please follow the installation instructions for the LED module.
Screw in glass by turning it clockwise as far as it will go.
A broken glass must be replaced.
Spares

BEGA Gantenbrink- Leucite KG
Postfach 31 60 · 58689 Menden
[email protected]
www.bega.com
