1-Channel Amplifier Box
Model No.: SYS-PT2
Features
The amplifier is to amplify the power and signal for the “SYS-PT1 1-channel host control box”. It can amplify the signal from the “SYS-PT1 control box” to connect more LED lamps, and synchronously control more lamps. When you add one more amplifier, you can connect double LED lamps.
Parameters
Model No.: SYS-PT2
Input: AC 100~240V 50/60Hz
Output Voltage: DC24V
Output Current: Max 8.5A
Output Power: Max 200W
IP Rate: IP66
Product Weight: 3.02kg
Installation Instruction
 | ||

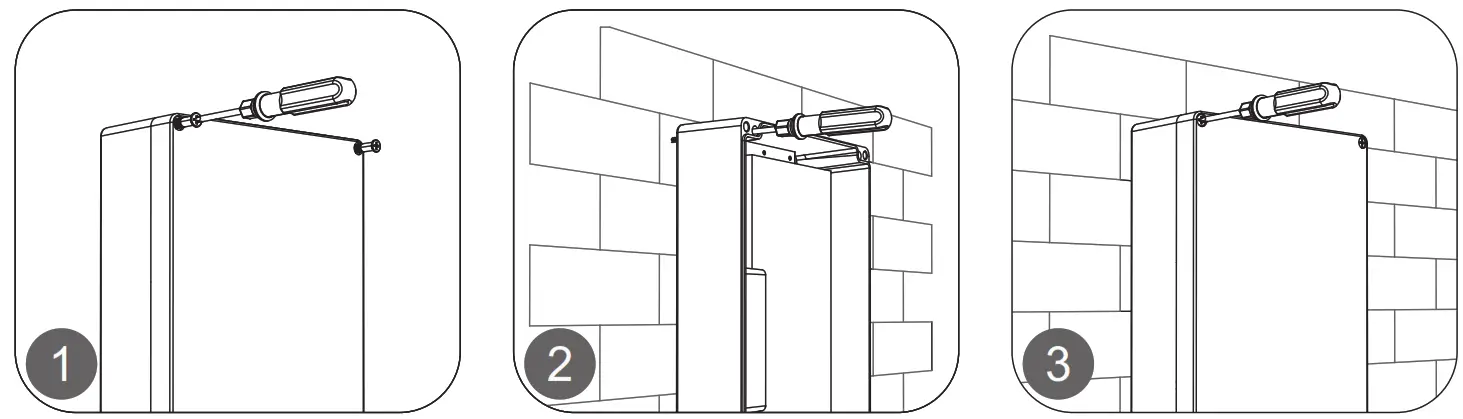

| Twist off the screws on the 4 corners; take apart the case cover. | Fix the product in the specified position with the screws in the fitting | Lid the case cover and lock the screws on the 4 corners |
Note: When using the “SYS-PT1 control box”, you need again to add the “SYS-PT2 1-channel amplifier box” for the below 3 situations.
- Connecting over 50pcs lights.
- Connected cable length over 300m.
- Output power over 200W.

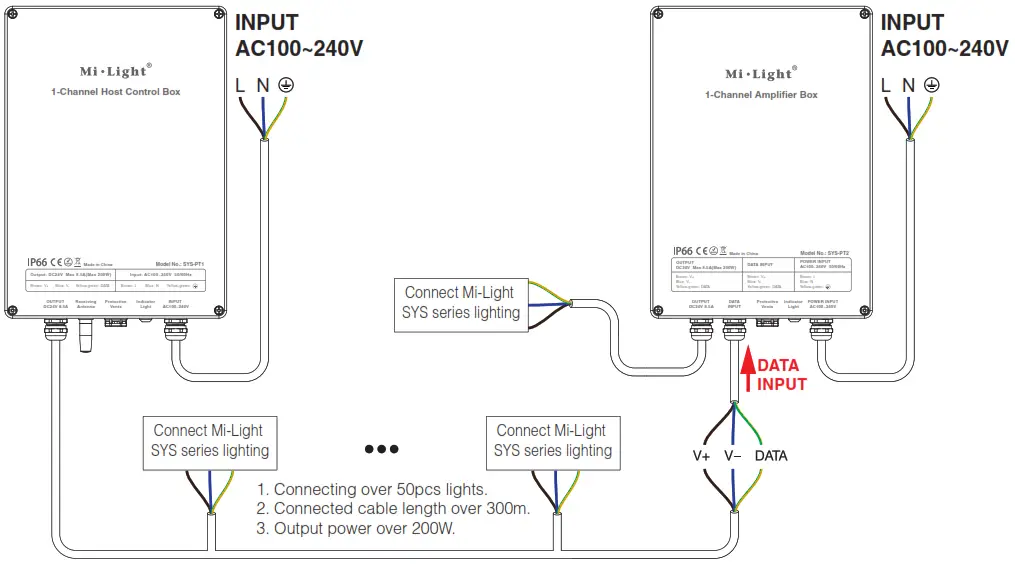

Wiring Diagram
SYS-PT1 1-Channel Host Control Box (Need to buy separately)
Note：
- All connected lights to the “SYS-PT1 control box” cannot be over 200W, otherwise, it will damage the control box.
- The wiring method, please see details for the SYS series instructions.
Attention
- Please check whether the input voltage is in accordance with the control box working voltage, and please check the connection of both the cathode and anode.
- Non-professional users cannot dismantle the control box directly, Otherwise, the control box may be broken.
Made in China
