METER ATMOS 14 ATMOS 14 4 Inch 1 Sensor Temp-RH-Barometric Pressure-Vapor Pressure

INSTALLATION INSTRUCTION
| Document Title: Description, ATMOS 14 Quick Start | Part # 18268 | ||
| Release Date: 7.31.2018 | |||
| Rev | Description | Revision By | Date |
| 00 | New | CSC | 6.30.2018 |
| 01 | DCO 03580 | CSC | 1.31.2019 |
| 02 | DCO 04050 | CSC | 8.9.2019 |
| 03 | Edited according to | CSC | 1.17.2020 |
| 04 | Edited for Gen 2 according to | CSC | 7.31.2020 |
| 05 | 08883 – Remove “Zentra” from ATTN Box | RRK | 8.25.2021 |
| 06 | Multiple updates according to DCO 13596 https://app.asana.com/0/308057532565579/1201646630162327/f | RRK | 1.2022 |
Working Filename:
/Volumes/GoogleDrive/Team Drives/Product Number Library/18200-18299/18268
Production Filename:
http://publications.metergroup.com/Quick%20Start%20Guides/18268_ATMOS14_Print.pdf
- Dimensions: 8” wide x 5.25” tall (folded, 8”x10.5”)
- Colors: CMYK/Full color 4/4
- Printer: In-house printing
- Material: Card stock, Bright White, 216 g/m2 (folding cardstock) Image below is for reference only. Not to scale.

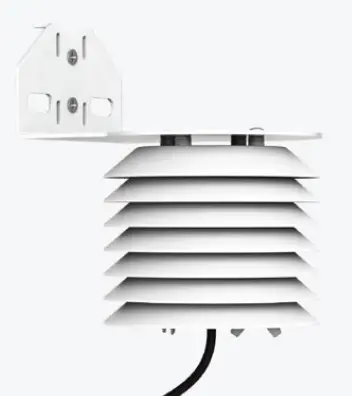

ATMOS 14
- 4-IN-1 TEMPERATURE AND RELATIVE HUMIDITY SENSOR
