INSTRUCTION MANUAL
TEMPERATURSENSOR
220-240V~50/60Hz
4512765 Gibe Humidity Temperature Sensor
| Description: | Humidity & Temperature Sensor |
| Protocol: | ZigBee 3.0 |
| Wireless Range: | 100m Outdoor, 30m Indoor |
| Power Source: | CR2450 |
| Max. Working Current: | 10.8mA |
| Standby Current: | ＜1uA |
| Temp. accuracy: | ±1.5°C |
| Humidity accuracy: | ±5% |
| Operating Temp: | -10°C~ 40°C |
| Operating Humidity: | Up to 85% non-condensing |
| Dimension: | 45.2*45.2*17.1mm |

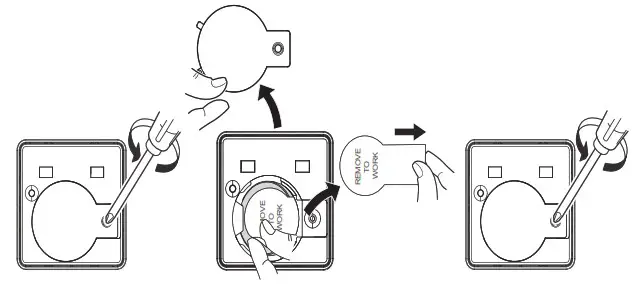

MOUNTING
This sensor combine two sensors in one unit. The sensor measures temperature and humidity in the environment where the sensor is installed.

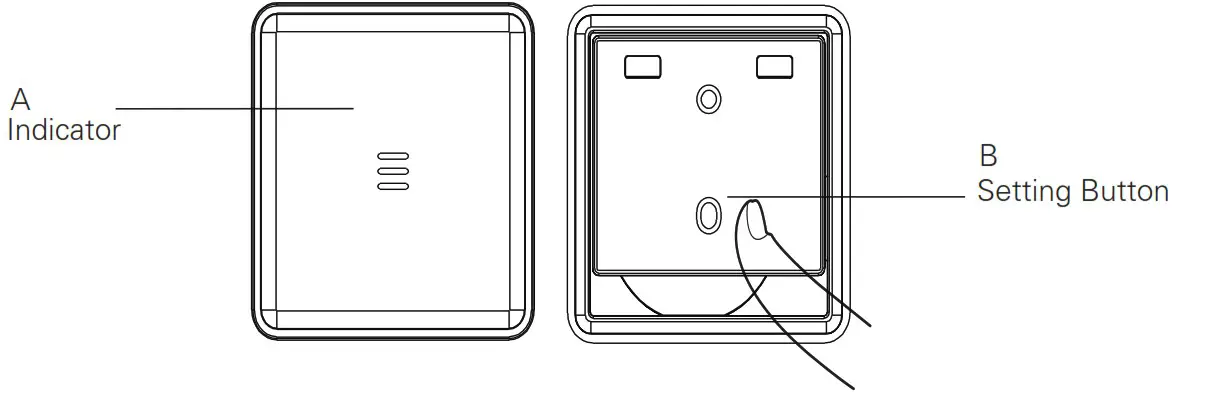

OPERATION
- FACTORY RESET
Long Press Button B for 10s, A will blink quickly in red after 10s, release B and A will stay solid for 3s to reset. - ADD TO THE ZIGBEE NETWORK
Short press B for 3 times,
• if the device is not in the network, A will blink slowly in orange, then it will start searching network and adding.
• if the device is in the network, A will blink slowly in green for 5s.
Then please do factory reset then pair. - INDICATOR MEANING
A blink slowly in green for 7 times: Device powered on
A blink slowly in orange: Network pairing(timeout 2mins)
A stay in solid green: Network pairing successful.
A stay in solid orange for 3s:Network pairing failed.
A blinking in orange once per minute: battery power empty soon
A blinking quickly in orange for 3s:Lost connection with hub
MEASURES
