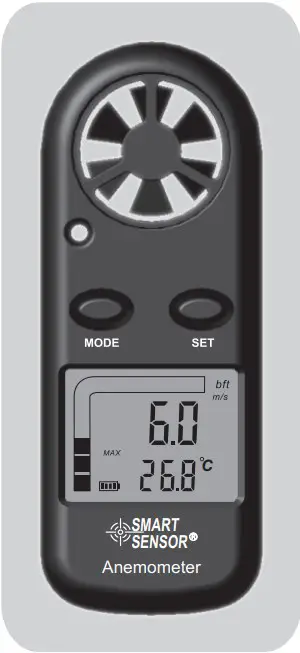

Smart Sensor Ar816 Anemometer Instruction Manual

SMART SENSOR AR816 Anemometer Instruction Manual

A.Function:

1. Wind speed & temperature measurement.
2. Wind chill indicaton.
3. Temperature display in Celsius or Fahrenheit.
4. Different wind speed measurement unit
5. Measure wind speed in: Current/Average/ Max .
6. Low battery warning
7. LCD backlight .
8. Auto / Manual off.

B.Operation

1. Put battery into battery compartment, LCD will blink all display for a second.
2. Recover battery door, push “ MODE ” in 1 second to turn on the unit. LCD will display wind speed, temperature and battery icon. LCD backlight will lasting for 12 seconds.
3. Setting different wind measurement:
   Push “ MODE ” for 3 seconds until “ m/s ” starts to blink. Push “ SET ” to select desired measurement unit. To confirm the desired measurement unit by push “ MODE ” . Digit symbol:m/s meter per second; km/hr kilometer per hour; ft/min feet per minute; knots nautical mile per hour;mph mile per hour; Cu Current wind speed, MAX max wind speed, average wind speed.
4. switch option:Press the little conceal key on the rear cabinet to select different temperature unit.
5. Press any key will active LCD backlight for 12 seconds.
6. Measurement: when the wind vane ( impeller ) turns, LCD will instant display wind speed and temperature. When temperature below 0℃,wind chill symbol will shown on the LCD.
7. Push MODE+SET to turn off the unit.
8. Build in 14 minutes auto off Remark: Temperature switch key ( ) conceal in the rear cabinet, please use a little pushpin to press the key for conversion

C.Specifications
