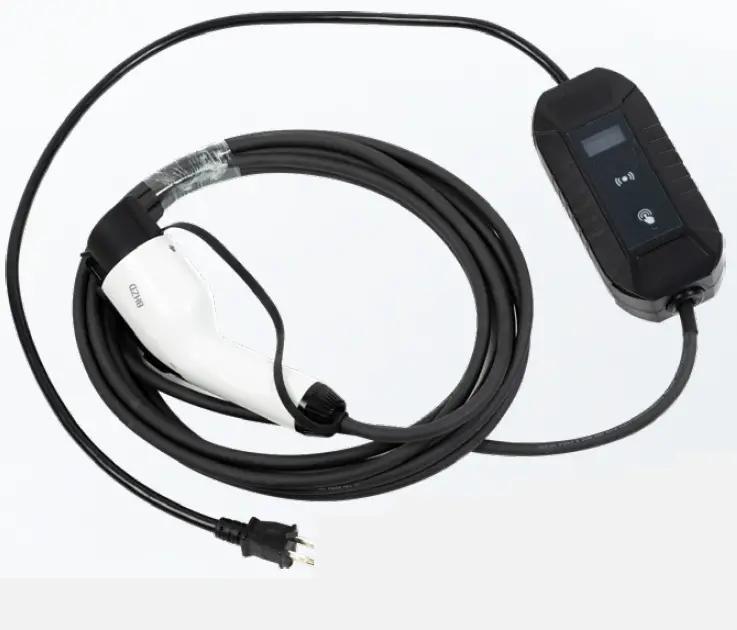

EVTAURUS JT-M2C03 Portable EV Chargers
INCLUDED PARTS
PRODUCT ADVANTAGES
- With built-in Type A RCD, our charger is suitable for all the markets.
- LCD to show real-time current, voltage and time etc.
- 5 current switching modes to ensure safe charging.
- The indicator light can clearly show the working conditions of its different operating states temporarily
SPECIFICATIONS
Electric parameters
- Model: JT-M2C03
- Input voltage/Output voltage: 100v-250vAC
- Input frequency: 47-63Hz
- Max.output power: 3.5KW
- Max.output current: 16A
- Rated current: 6A-16A
- Leakage current operating value: ≤38ma
- Charging interface type: IEC 62196-2,SAEJ1772
Function
- Ethernet/WIFI/4G/Buletooth: NO
- LCD: OLED 0.9 inch
- LED indicator light:
- Current adjusting:
Working environment
- IP rating: IP67
- Environment temperature: -25℃-55℃
- Relative humidity: Maximum 95% (relative humidity)
- Maximum altitude: ≤2000m
- Cooling: Free cooling
- Standby power consumpiton: ≤8W
External structure
- Dimension(L/W/H): 400*380*80mm
- Shell material: ABS+PC
- Equipment net weight: ≤2.5kg(with gun)
- Cable: 5m or customized
- Certificate: CQC,CE,UL
Package
- Carton: user manual, QC certificate
