General Description

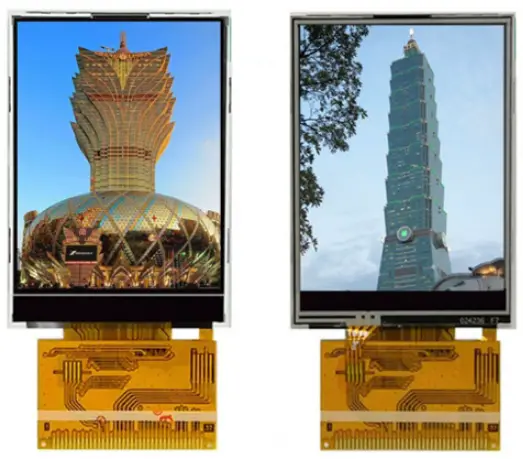

MODEL NOSTP0240B2-240320 (YT240S030)
Display ModeTransmissive
Display FormatGraphic 240RGB*320 Dot-matrix 240xRGBx320
Input Data4 Line-SPI interface 4 -SPI
Viewing Direction12 o’clock 12
DriveST7789V

Mechanical Specification

ItemSpecificationsUnit
Dimensional outline42.72(W)*60.26(H)*2.55(T)(NTP)42.72(W)*60.26(H)*3.75(T)(RTP)
(FPC not include)
mm
Resolution240RGB*320dots
LCD Active area36.72(W)*48.96 (H)mm
Pixel size0.153(W)*0.153(H)mm

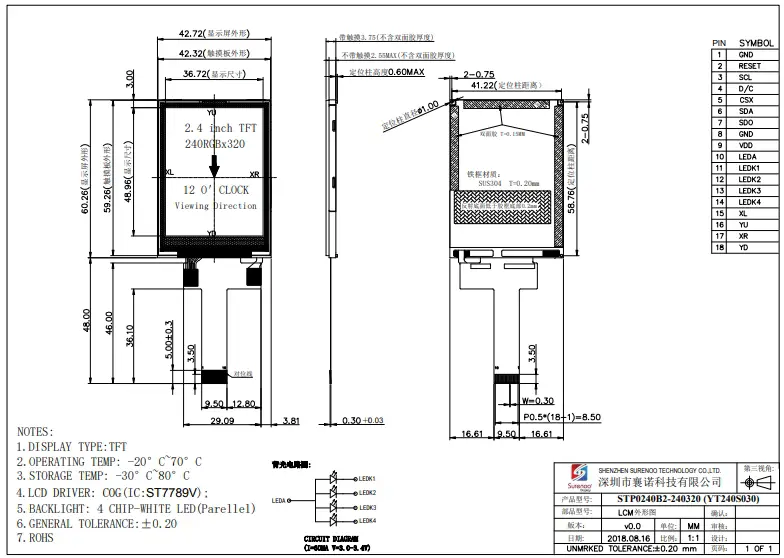

Mechanical Dimension

Mechanical Dimension

Electrical Maximum Ratings

ItemSymbolMinMaxUnitNote
Supply voltageVDDI )V1.83.3V
Supply voltageVDDV2.83.3V
Operating temperature TOPR-2070
Storage temperatureTSTR-3080

Brightness characteristic & Power dissipation

ItemSymbolMinTypicalMaxUnit
LED module Forward voltageVLED293.13.3V
LED module currentILED60mA
LCD Surface LuminanceLS250300Cd/m2
LCM Surface brightness uniformLD80%
LCD power dissipationPLCD0.22W

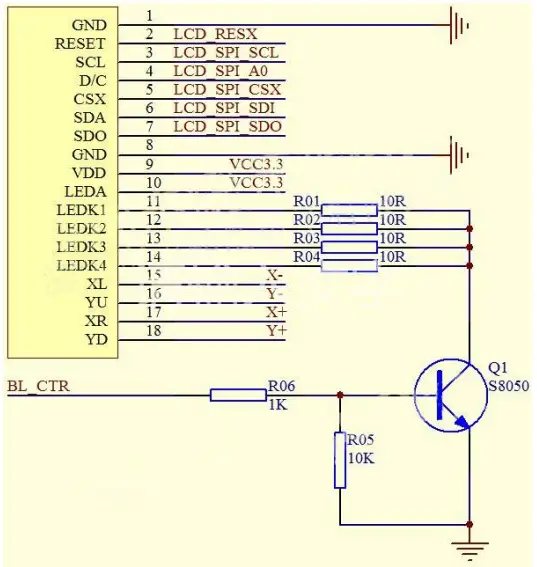

Module Function Description

PIN No.SymbolDescriptionNotes
1GNDGround
2RESET
  • This signal will reset the device and it must be applied to properly initialize the chip.
  • Signal is active low.
3SCLThis pin is used to be serial interface clock.
4D/CDisplay data/command selection pin in 4-line serial interface.
5CSX
  • Chip selection pin Low enable.
  • High disable.
6SDASPI interface input pin.
  • The data is latched on the rising edge of the SCL signal.
  • If not used, please fix this pin at VDDI or DGND level.
7SDO
  • SPI interface output pin.
  • The data is output on the falling edge of the SCL signal.
  • If not used, let this pin open.
8GNDGround
9VDDPower Supply for Analog, Digital System and Booster Circuit.
10LEDAAnode of Backlight (2.9V-3.3V Typical:3.1V)
11LEDK1Cathode of Backlight
12LEDK2Cathode of Backlight
13LEDK3Cathode of Backlight
14LEDK4Cathode of Backlight
15XLTouch panel Logical foot
16YUTouch panel Logical foot
17XRTouch panel Logical foot
18YDTouch panel Logical foot

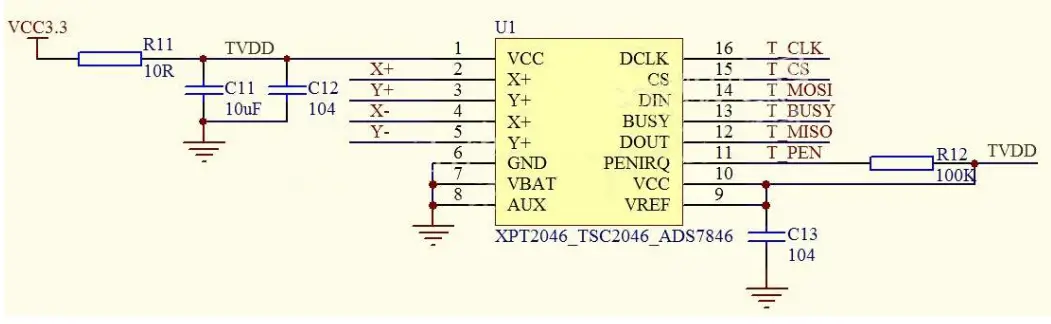

Module Function Description

Module Function Description

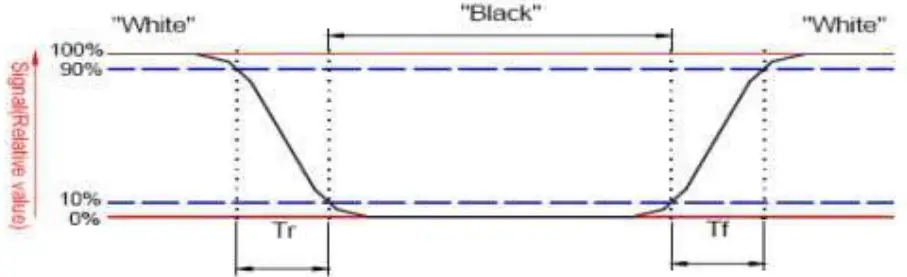

Response time&Contrast ratio

ItemSymbolConditionRemarkUnit
Min.Typ.Max.
Response timeTr+Tfθ=0°2540ms
Contrast ratioCRθ=0°350500

Response time&Contrast ratio

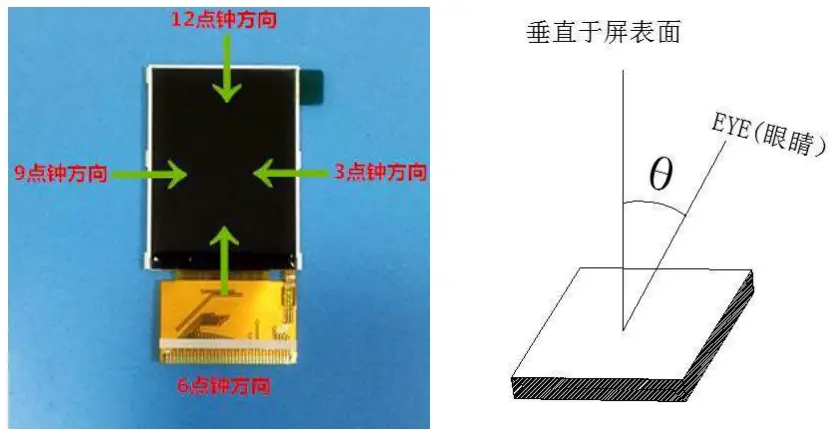

Viewing Angle

ItemSymbolConditionRemarkUnit
Min.Typ.Max.
Viewing angleTop 12CR≥104050Deg.
Bottom 6CR≥105565
Left 9CR≥105565
Right 3CR≥105565

Viewing Angle

Reliability Trial

NO.ITEMCONDITIONCRITERION
1High Temperature Non-Operating Test80℃*120HrsNo Defect Of Operational Function In Room Temperature Are Allowable
2Low Temperature Non-Operating Test-30℃*120Hrs
3High Temperature/Humidity Non Operating Test60℃*90%RH*120Hrs
4High Temperature Operating Test70℃*72Hrs
5Low Temperature Operating Test-20℃*72Hrs
6Thermal Shock Test-20  ℃ (30Min)     Q70  ℃
(30Min) *10CYCLES

Inspection standard

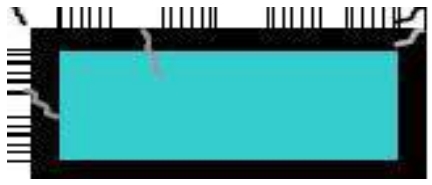

Glass defect
NODefect itemCriteriaRemark
1Dimension Unconformity (Major defect)By Engineering Drawing
2Cracks (Major defect)
  1. Linear cracks panel【Reject】
  2. Nonlinear crack contrast by limited sample
Glass defect
3Glass extrude the conductive area (minor defect)a: disregards and no influence assemblage.
  1. b≤1/3Pin width(non bonding area)【Accept】
  2. bonding area≤0.5mm 【Accept】
A: Length, b: Width
4Pin-side ,conductive area damaged (minor defect)(a c: disregards)
b≤1/3of effective length for bonding electrode 【Accept】
a: length, b: Width, c: Thickness
5Pin-side,non-conductive area damaged (minor defect)
  1. Damage area don’t touch the ITO (Inclueling contraposition mark, except scribing mark)【Accept】
  2. C<T b≦BM1/3of width【Accept】
  3. c=T b not touch the seal glue【Accept】
  4. a disregards
a: Length, b: Width c: Thickness

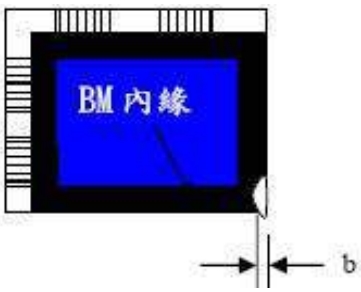

6Non-pin-side damage (minor defect)c<T

1)b exceeds 1/3Bm
Reject】

c=T
b not touch the seal glue
【Reject】

c: Thickness b: width of damage
Glass defect
LCD appearance defect(View area)
NODefect itemCriteriaRemark
1Fiber glass cratch polarizer scratch/folded (minor defect)SpecificationAllowablenote1: L: Length, W: Width note2: disregard if out of AA





W≦0.03mmdisregard
0.03mm<W≦0.05mm;
L≦3.0mm
2
0.05mm<W≦0.1mm;
L≦3.0mm
1
W>0.1mm;L>3.0mm0

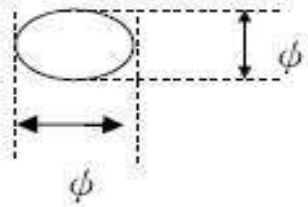

2Polarizer bubble concave and convex (minor defect)φ≦0.2mmdisregardnote1: φ=(L+W)/2,L:Length,
W :Width
note2:disregard if out of AA
0.2mm<φ≦0.3mm2
0.3mm<φ≦0.5mm1
0.5mm<φ0
3Black dots dirty dotsφ≦0.15mmdisregardnote2:disregard if out of AA
Impurities eye winker (minor defect)0.15mm<φ≦0.25mm2
0.25mm<φ≦0.3mm1
0.3mm<φ0
4

Polarizer prick (minor defect)

φ≦0.1mmdisregardnote1: φ=(L+W)/2,L=Length,

W=Width

note2:the distance between two dots>5mm

0.1mm<φ≦0.25mm3
φ>0.25mm0
