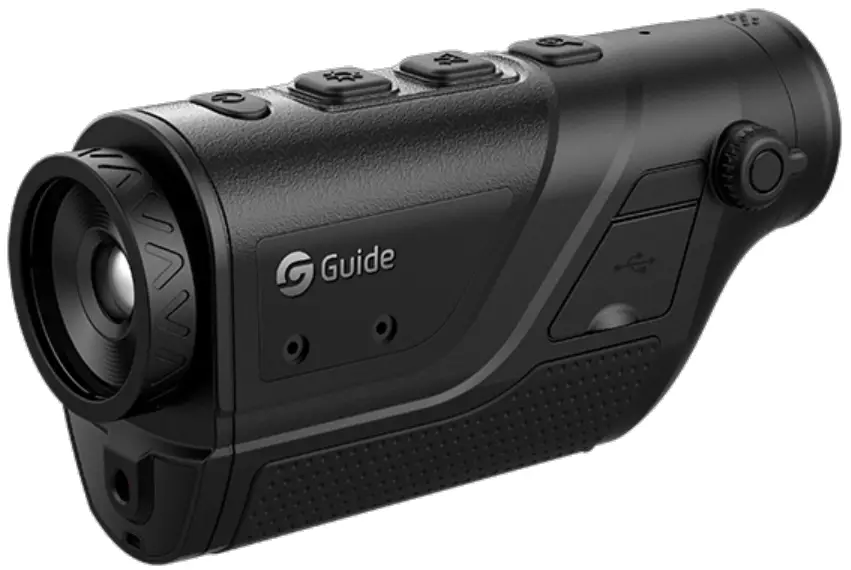

Guide sensmart TD210 TD Delphinus Series Handheld Thermal Imaging Monocular
Introduce

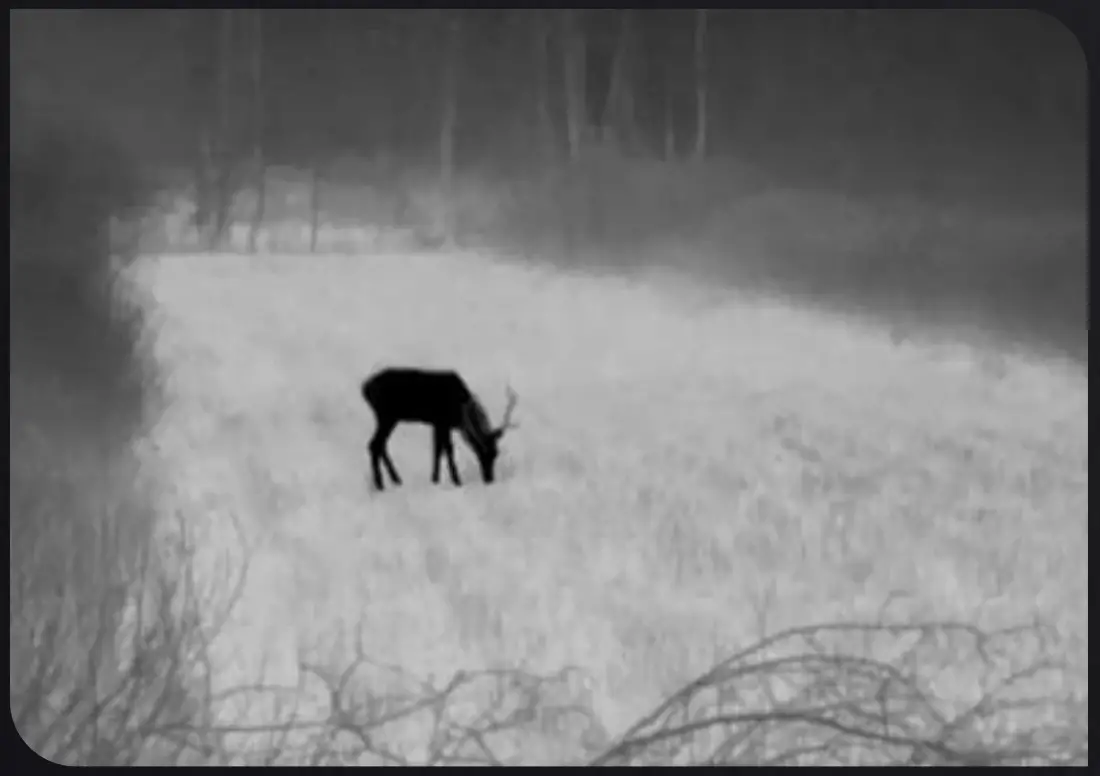

TD Delphinus Series follow the design of traditional optical equipment. It is a small, lightweight , simple operation, and a wide range of application scenarios for infrared handheld thermal imaging monocular. TD Thermal scope has clear imaging and comfortable observation, suitable for medium distance and short-distance observation, It is an ideal equipment for outdoor night vision.
Features and Benefits
- Boot up in 2 seconds and ready to use
- High-sensitivity self-developed infrared detector to accurately detect targets o Built-in laser indicator to locate the target easily
- 1280×960 High Resolution LCOS Display Screen to provide a comfortable observation
- PIP mode to Highlight Target Clearly
- Connect App via WIFI to share anytime
- Support 8 hours super long operation time
- IP66 Encapsulation, Rugged and Durable
Application
- Outdoor
- Wild Adventure
- Law Enforcement
- Search & Rescue
- Personal Security
- Livestock Breeding
Specifications
Model | TD210 |
| Detector | |
Detector Type | 256×192@12μm, VOx |
Spectral | 8μm～14μm |
| NETD | ≤50mk |
| Lens | |
Focal Length | 10mm/F1.0 |
| FOV | 17.5°×13.1° |
Focusing | Electric Focusing |
| Display | |
Screen | Full-Color LCOS Screen,1280×960 |
| Eyepiece | Exit pupil distance 17 mm, Adjustable diopter -4~＋2 |
Magnification | 1.8X~3.6X |
| Imaging | |
Frame Rate | 25Hz |
| Digital Zoom | 1X~2X |
| Color Palettes | White Hot, Black Hot, Red hot, Blue Hot, Red Hot |
Scenes Modes | Enhanced, Highlight, Natural |
| Picture-in-picture | Picture-in-picture enlarged image is displayed on the upper left, upper middle or upper right |
| Functions | |
Hotspot Tracking | √ |
| Laser Rangefinder | Red Yellow Green |
WIFI/APP | Connect App (IOS & Android) via WIFI to realize remote control, live image and video transmission |
| Compensation Modes | Shutter Compensation |
| Power Supply | |
Battery Type | Removable Standard 18650 Li-ion battery x1 |
| Working Time | ≥8h |
| Interface | |
USB/Video Output | TYPE C(USB 2.0 Standard)Interface for charging, data transmission and simulation video output |
| Laser Indicator | Yes, Distance within 200m |
Tripod Interface | Inch 1/4-20 |
| Others | Picatinny Interface/ Bluetooth/ WIFI |
| Environmental Characteristics | |
Operating Temperature | -10°C～50°C |
| Storage Temperature | -30°C～60°C |
Encapsulation | IP66，1-meter drop test |
| Certificate | UN38.3 (Battery certificate), RoHS, CE, FCC, EAC |
| Weight & Dimensions | |
Weight | 360g |
| Dimensions | 143mm×45mm×73mm |
| Package Contents | |
Standard | Type-C To USB + Analog video cable, 18650 Battery x1, Charger, Lens Cover Wrist strap, Portable package, Quick Start Guide |
| Optional | Picatinny rail, Remote Control |
Guide Sensmart Tech Co., Ltd.
Loeffelholzstrasse 20, Haus 12 Eingang Nord, 90441 Nuremberg, Germany
Email: [email protected]
*Technical parameters are subject to change without notice. For the latest information, please visit our website:
www.guideir.com
