TN Normae Series
Handheld Thermal
Imaging Binoculars
Fearless the darkness, All in your eyes
Introduce
TN Normae Series follows classic binocular design, greatly reducing the fatigue feeling of long-time observation.
It adopts high-sensitivity VOx uncooled IR detector, bring you high quality imaging and immersive observation experience with full color OLED 1024×768 high-definition display. A variety of functions to meet all your needs, such as taking photos, videos, WIFI, laser ranging, GPS, compass, etc.
Features and Benefits
- IR resolution up to 640 × 480, Superior image quality
- Quick location, laser ranger finder with 600m accuracy
- Full color OLED 1024×768 high-definition display, easy observation
- Adjustable interpupillary distance between 60mm~70mm
- Well-designed PIP mode, highlighting the target
- Realize live image and remote control via WIFI connection
Application
- Night hunting
- Law enforcement
- Search & Rescue
- Personal security
Specifications
| Model | TN430 | TN450 | TN630 | TN650 |
| Infrared Detector | ||||
| Detector type | VOx | |||
| Detector resolution and pitch | 400 × 300, 17 μm | 640 × 480, 12 μm | ||
| Spectral range | 8 to 14 μm | |||
| NETD | ≤30mk @ F1 25℃ | |||
| Lens | ||||
| Focal length | 35 mm; F1.2 | 50 mm; F1.2 | 35 mm; F1 | 50 mm; F1.2 |
| Focus | Manual | |||
| Field of view | 11.1° × 8.33° | 7.78° × 5.84° | 12.52° × 9.41° | 8.78° × 6.59° |
| Frame Rate | ||||
| Output frame frequency | 50 Hz | |||
| Zoom | ||||
| Optical zoom | 2.3x | 3.2x | 2.0x | 2.8x |
| Digital zoom | 1 – 4x | 1 – 8x | ||
| Visual effect | It’s like viewing at a 22’‘ screen at 1 meter | |||
| Power | ||||
| Battery type | 2 replaceable 18650 batteries | |||
| Battery life | ≥ 5.5 hours | |||
| Interface | ||||
| USB | Type C (USB 2.0 standard), supporting power supply and data access | |||
| Video interface | micro HDMI | |||
| External expansion | External Display and Bluetooth remote control | |||
| Mechanical interface | UNC ¼”-20 (Tripod mounting, L-bracket is required), Picatinny | |||
| Display | ||||
| Display type | 0.39’’ OLED × 2 | |||
| Resolution | 1024 × 768 | |||
| Eyepiece | Monocular, exit pupil distance≥10 mm, diopter adjustment: -4 to＋2 | |||
| Eyepiece zoom | 13.8x | |||
| Video output | Digital video | |||
| Button | ||||
| Button functions | Power / Up / Menu / Down / Photo / Video / Ranging | |||
| Functions | ||||
| Smooth zoom | Available | |||
| Screen brightness adjustment | 10 levels | |||
| Detector brightness adjustment | 10 levels | |||
| Detector contrast adjustment | 10 levels | |||
| Image enhancement | Available | |||
| Scene modes | Enhanced, Highlight and Natural | |||
| Image capturing | Available | |||
| Video recording | Available | |||
| WIFI | Transmission of real-time video via WIFI for remote control in the 2.4G frequency band and within 15 meters | |||
| Color palettes | Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot | |||
| Hot spot tracking | Available | |||
| Working indicator | On/Off | |||
| Compensation modes | Automatic, shutter and scene compensation | |||
| Rough ranging | Available | |||
| Automatic shutdown | Closed, 15, 30 or 60 mins | |||
| Automatic sleep | Closed, 5, 10, or 15 mins | |||
| Language settings | Chinese / English / Russian / German / French | |||
| System | ||||
| Time setting | Available | |||
| Watermark settings | Closed, setting of date or date and location | |||
| PIP | Upper left, Upper middle, Upper right, Closed | |||
| Restore to default | Available | |||
| Start up | 2 s | |||
| Memory capacity | 16 GB | |||
| Environmental | ||||
| Operating temperature range | -30 ℃ to 50 ℃ | |||
| Storage temperature range | -40 ℃ to 60 ℃ | |||
| Humidity | 10 % to 95 % non-condensing | |||
| Shock | 30 G at 11 ms half sine pulse (as per IEC60068-2-27) | |||
| Vibration | 10 Hz – 150 Hz – 10 Hz 0.15 mm (as per IEC60068-2-6) | |||
| Drop | 1 m | |||
| Encapsulation | IP66 | |||
| Certification | IP66, FCC, CE, RoHS, EAC, un38.3 | |||
| Physical | ||||
| Weight | ≤860 g | ≤880 g | ≤860 g | ≤880 g |
| Size (L × W × H) | 162 × 146 × 70 mm | |||
| Standard | Power adapter (in compliance with FCC, CE, EAC, and ROHS), Type C cable, Micro HDMI cable, lens cap, shoulder strap, 2 detachable eye masks, carry bag, 2 replaceable 18650 batteries (UN38.3), quick start guide | |||
| Optional | Bluetooth remote control | |||

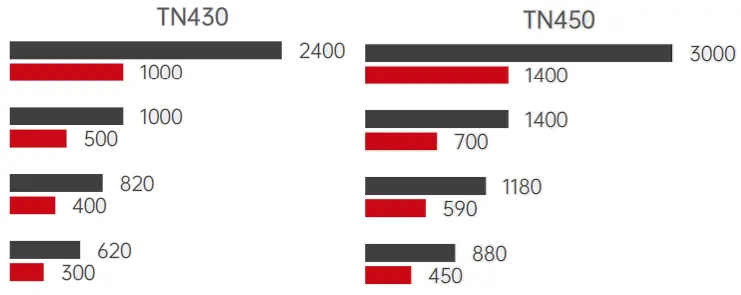

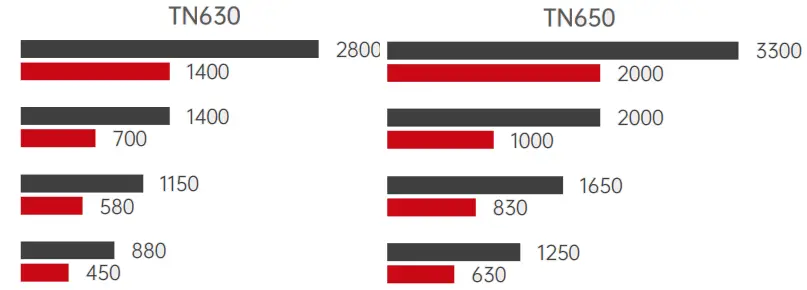

Detection Range
Recognition Range
Vehicle (2.3m×2.3m)
Human (1.8m×0.5m）
Deer (1.5m×0.5m）
Boar (0.9m×0.7m
Vehicle (2.3m×2.3m)
Human (1.8m×0.5m）
Deer (1.5m×0.5m）
Boar (0.9m×0.7m）
Guide Sensmart Tech Co., Ltd.
Loeffelholzstrasse 20, Haus 12 Eingang Nord, 90441 Nuremberg,
Germany
Email: [email protected]
*Technical parameters are subject to change without notice.
For the latest information, please visit our website: www.guideir.com
