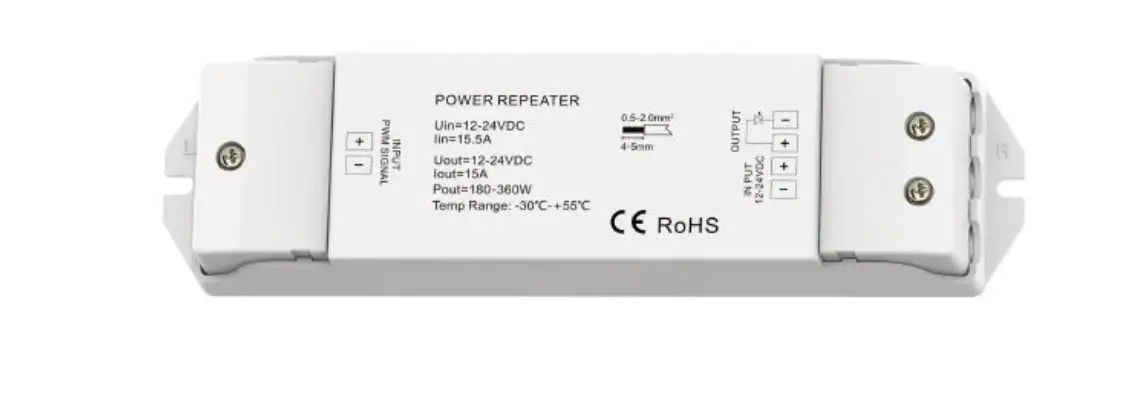

OPTONICA 6393 1 Channel Constant Voltage Power Repeater
Channel Constant Voltage Power Repeater
SKU: 6393
Channel/PWM signal input/Constant voltage output/3KV optoelectronic isolation.
Features
- 12-24V constant voltage power repeater
- One channel, 15A.
- To receive PWM signal control.
- Power repeater in series or in parallel to expand output unlimitedly.
- Apply to single color constant voltage LED strip or module.
Technical Parameters
| Input and Output | |
| Input voltage | 12-24VDC |
| Input current | 15.5A |
| Input signal | PWM |
| Output voltage | 12-24VDC |
| Output current | 15A |
| Output power | 180-360W |
| Output type | Constant voltage |
| Safety and EMC | |
| EMC standard EMC | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard LVD | EN 62368-1:2020+A11:2020 |
| Certification | CE,EMC,LVD |
| Warranty and Protection | |
| Warranty | 3 years |
| Protection | Reverse Polarity |
| Weight | |
| Net weight | 0.100kg |
| Gross weight | 0.119kg |

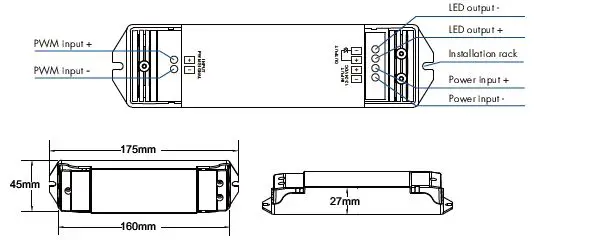

Mechanical Structures and Installations
Wiring Diagram

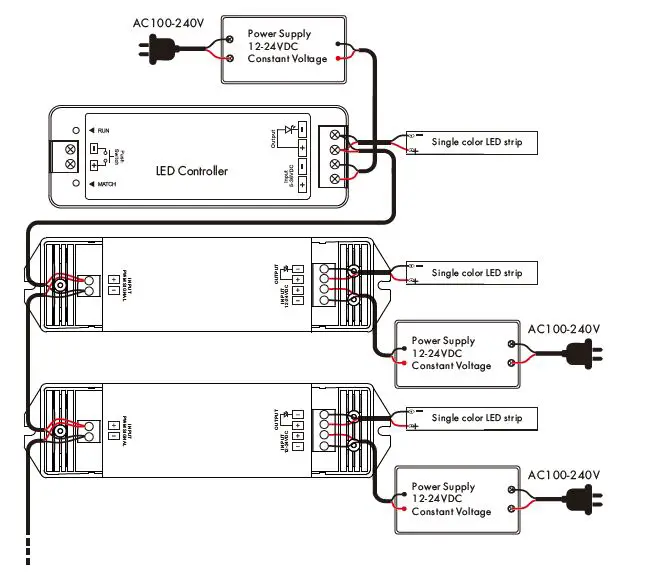

Parallel connection

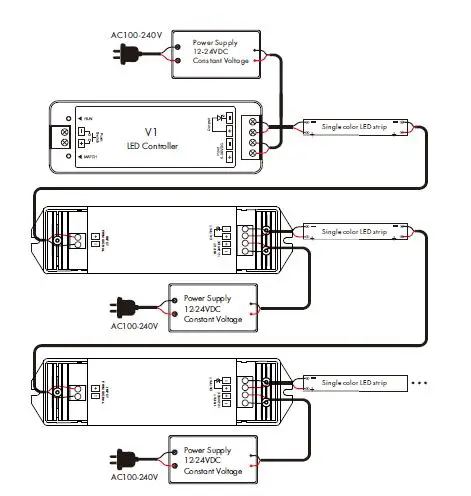

Series connection
Malfunctions analysis & troubleshooting
| Malfunctions | Causes | Troubleshooting |
| No light | No power. Wrong connection or insecure. | Check the power. Check the connection. |
| Uneven intensity between front and rear,with voltage drop | Output cable is too long. Wire diameter is too small. Overload beyond power supply capability. Overload beyond controller capability. | Reduce cable or loop supply. Change wider wire. Replace higher power supply. Add power repeater. |
Safety & Warnings
- The product shall be installed and serviced by a qualified person.
- This product is non-waterproof. Please avoid the sun and rain.
- Good heat dissipation will prolong the working life of the controller.
- Please ensure good ventilation.
- Please check if the output voltage of any power supplies used comply with the working voltage of the product.
- Ensure all wire connections and polarities are correct and secure before applying power to avoid any damages to the LED lights.
- If a fault occurs please return the product to your supplier.
- Do not attempt to fix this product by yourself.
