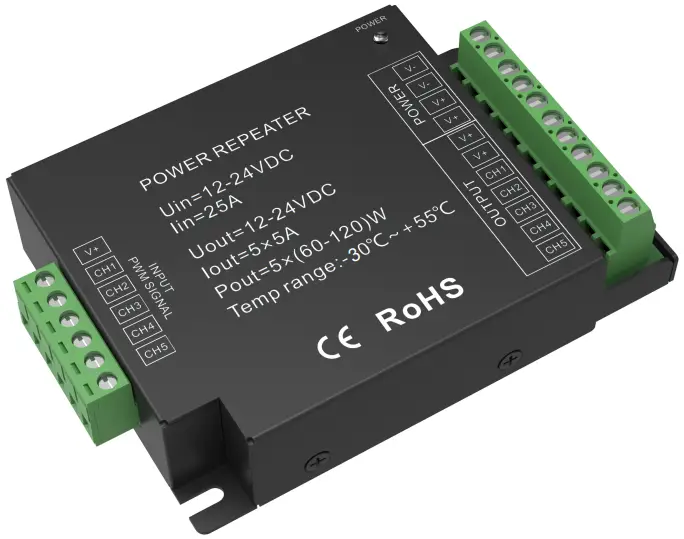

OPTONICA 6396 5 Channel Constant Voltage Power Repeater Instructions
Features
- 12-24V constant voltage power repeater.
- 5 channel, 5A per channel.
- To receive PWM signal control.
- Power repeater in series or in parallel to expand output unlimitedly.
- Apply to RGB+CCT constant voltage LED strip or module.
Technical Parameters
| Input and Output | |
| nput voltage | 12-24VDC |
| Input current | 25.5A |
| Input signal | PWM |
| Output voltage | 5 x (12-24)VDC |
| Output curren | 5CH,5A/CH |
| Output power | 5 x (60-120)W |
| Output type | Constant voltage |
| Environment | |
| Operation temperature | Ta: -30 O C ~ +55 O C |
| Case temperature (Max.) | T c:+85O C |
| IP rating | IP20 |
| Safety and EMC | |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Certification | CE,EMC,LVD |
| Warranty and Protection | |
| Warranty | 3 years |
| Protection | Reverse Polarit |
| Weight | |
| Net weight | 0.243k g |
| Gross weight | 0.264k g |

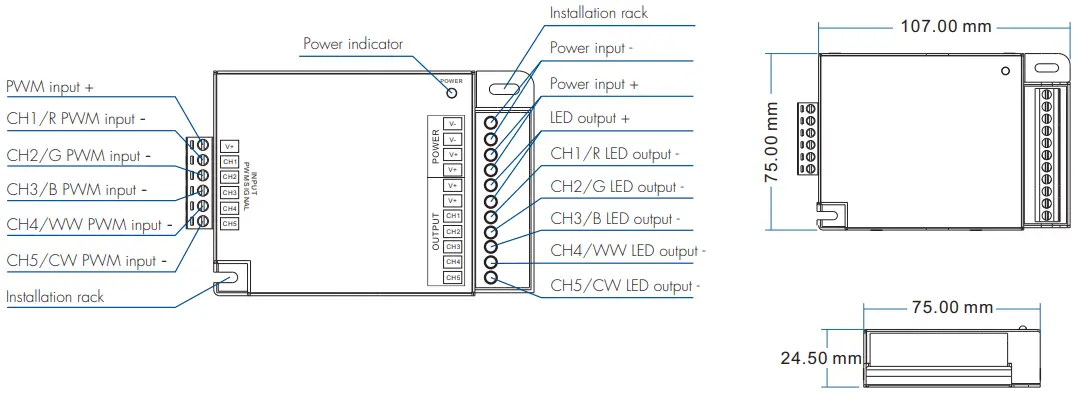

Mechanical Structures and Installations

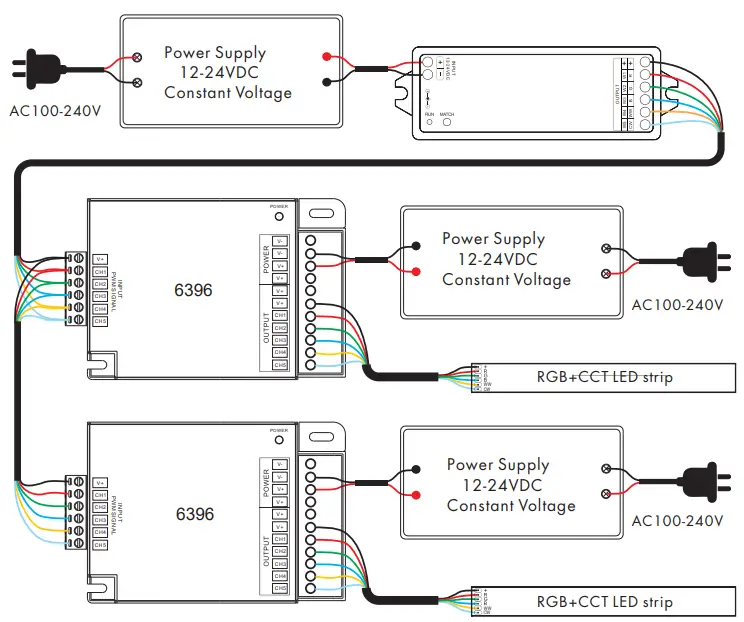

Wiring Diagram
Malfunctions analysis & troubleshooting
| Malfunctions | Causes | Troubleshooting |
| No light |
|
|
| Wrong color |
|
|
| Uneven intensity between front and rear,with voltage drop |
|
|
Safety & Warnings
- The product shall be installed and serviced by a qualified person.
- This product is non-waterproof. Please avoid the sun and rain.
- Good heat dissipation will prolong the working life of the controller,Please ensure good ventilation.
- Please check if the output voltage of any power supplies used comply with the working voltage of the product.
- Ensure all wire connections and polarities are correct and secure before applying power to avoid any damages to the LED lights.
- If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself.
IMPORTER: Prima Group 2004 LTD, Bulgaria, 1784 Sofia,
Mladost 1, bl. 144, Ground Floor; Phone: +359 2 988 45 72;
