OPTONICA 6394 3 or 4 Channel 12-60V Constant Voltage Power Repeater
Features
- 12-60V constant voltage power repeater.
- 3/4 channel, 5A max. per channel.
- To receive PWM signal control.
- Power repeater in series or in parallel to expand output unlimitedly.
- Apply to single color, dual color, RGB or RGBW constant voltage LED strip or module.
Technical Parameters
| Input and Output | |
| Input voltage | 12-60VDC |
| Input current | 20A max. |
| Input signal | PWM(3/4CH, 5-24V or 36-60V) |
| Output voltage | 3/4 x (12-60)VDC |
| Output current | 3/4CH,5A max./CH |
| Output power | 3/4 x (60-300)W max. |
| Output type | Constant voltage |
| Warranty and Protection | |
| Warranty | 3 years |
| Protection | Reverse Polarity |
| Safety and EMC | |
| EMC standard (EMC) | EN301 489,EN 62479 |
| Safety standard(LVD) | EN60950 |
| Certification | CE,EMC,LVD |
| Environment | |
| Operation temperature | Ta: -30 OC ~ +55 OC |
| Case temperature (Max.) | T c: +85OC |
| IP rating | IP20 |

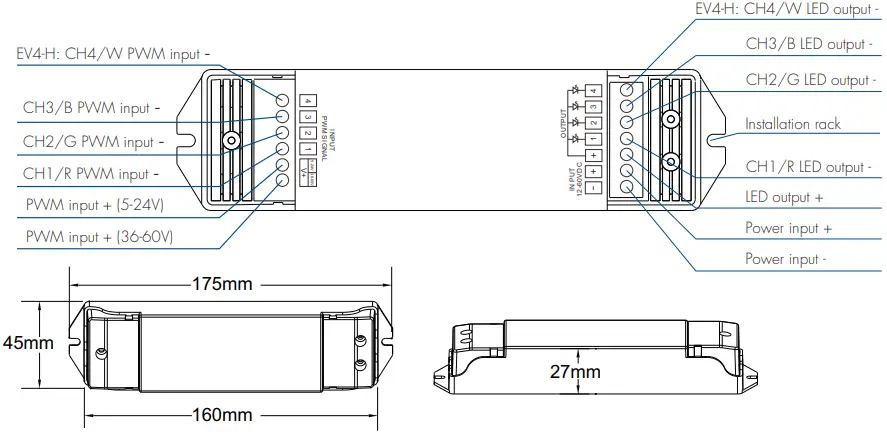

Mechanical Structures and Installations
Wiring Diagram

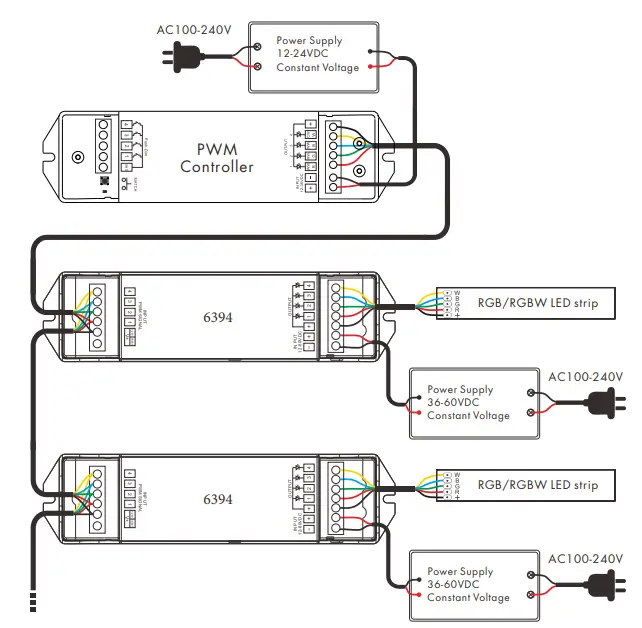

Parallel connection

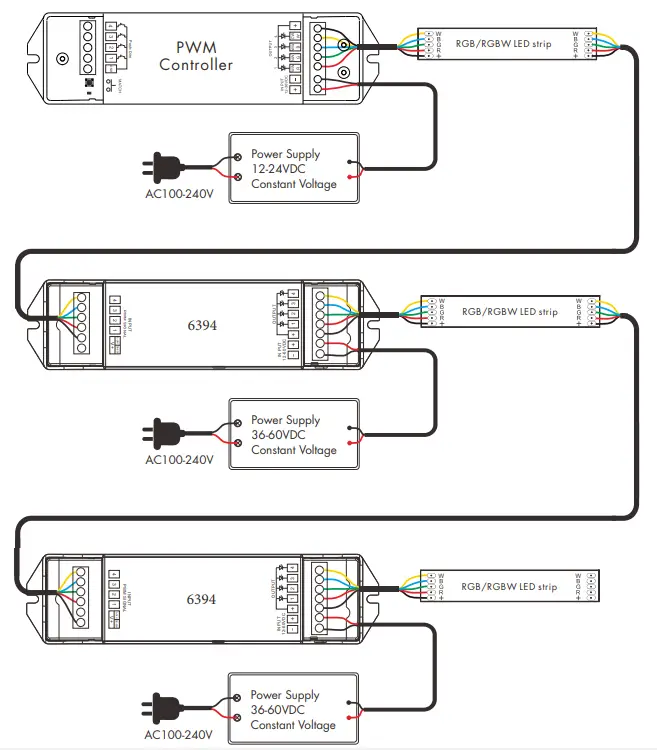

Series connection
NOTE:
The PWM input can be 5-24V or 36-60V, please select correct V+ wire terminal.
Malfunctions analysis & troubleshooting
| Malfunctions | Causes | Troubleshooting |
| No light | 1. No power. 2. Wrong connection or insecure. | 1. Check the power. 2. Check the connection. |
| Wrong color | 1. Wrong connection of R/G/B/W wires. | 1. Reconnect R/G/B/W wires. |
| Uneven intensity between front and rear,with voltage drop | 1. Output cable is too long. 2. Wire diameter is too small. 3. Overload beyond power supply capability. 4. Overload beyond controller capability. | 1. Reduce cable or loop supply. 2. Change wider wire. 3. Replace higher power supply. 4. Add power repeater. |
Safety & Warnings
- The product shall be installed and serviced by a qualified person.
- This product is non-waterproof. Please avoid direct sun,rain and high humid ambient.
- Good heat dissipation will prolong the working life of the controller, Please ensure good ventilation.
- Please check if the output voltage of any power supplies used comply with the working voltage of the product.
- Ensure all wire connections and polarities are correct and secure before applying power to avoid any damages to the LED lights.
- If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself.
