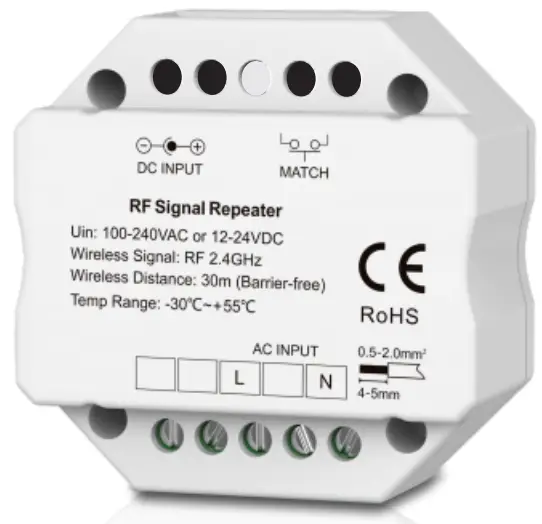

OPTONICA 6382 RF Signal Repeater
Features
- Apply for wireless signal extension, greatly ensures RF communication stability and wide controlling area.
- Powered by AC100-240V or DC12-24V.
- Compatibility with RF 2.4G remote control
- Easy to be placed in standard wall junction box.
Technical Parameters
| Input and Output | |
| Input voltage | AC100-240V DC12-24V |
| Power consumption | AC: <= 0.6W DC: <=0.4W |
| Input signal | RF 2.4GHz |
| Output signal | RF 2.4GHz |
| RF Control distance | 30m |
| Environment | |
| Operation temperature | Ta: -30 OC ~ +55 OC |
| Case temperature (Max.) | T c: +65OC |
| IP rating | IP20 |
| Safety and EMC | |
| EMC standard (EMC) | EN 55015:2013 EN 61547:2009 EN 61000-3-2:2014EN 61000-3-3:2013 |
| Safety standard(LVD) | EN 61347-2-11:2002 EN 61347-1:2015 EN 62493:2015 |
| Certification | CE,EMC,LVD |
| Warranty | |
| Warranty | 3 years |

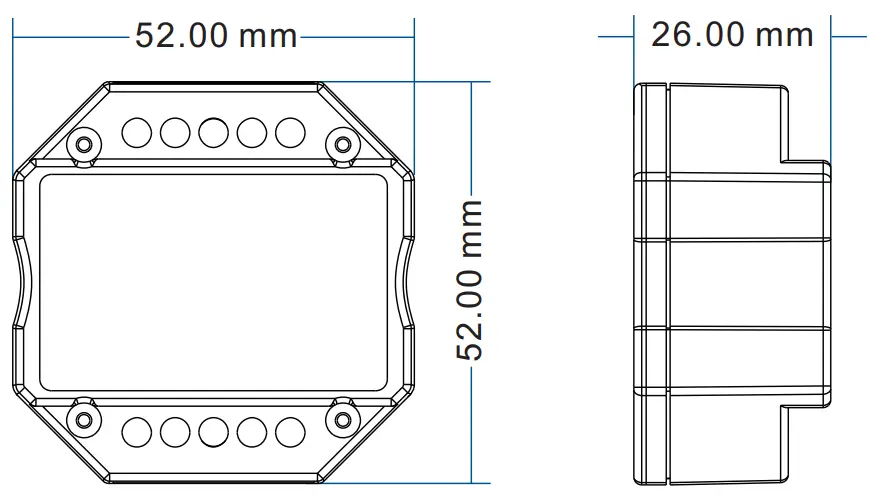

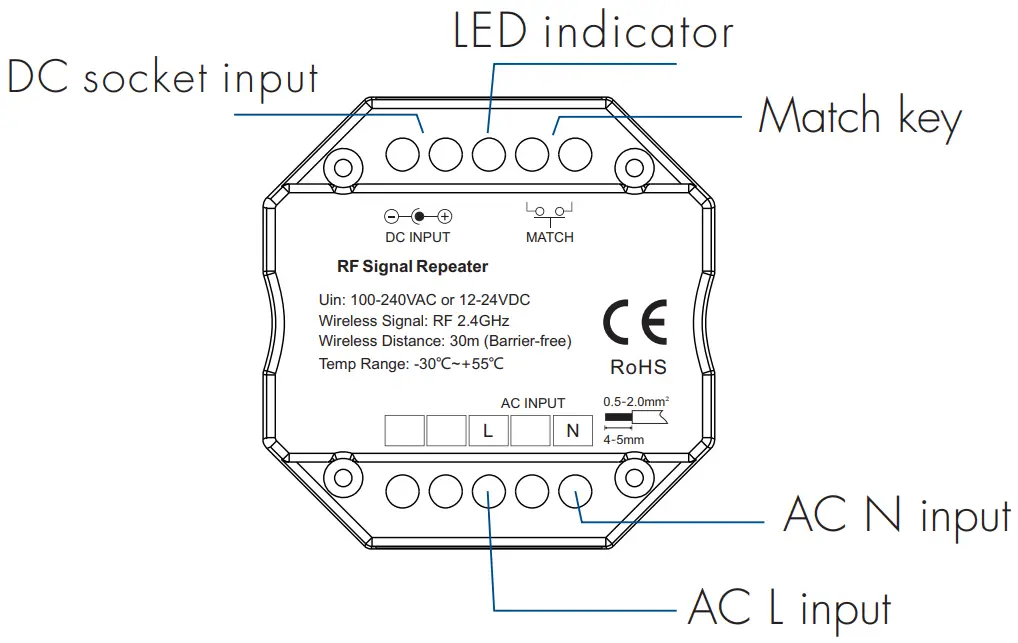

Mechanical Structures and Installations
Match Remote Control
If you want to extend the remote control signals, please match the remote control with the RF signal repeater firstly.
Match:
Short press match key, immediately press on/off key (single zone remote)
or zone key (multiple zone remote) of the remote.
The LED indicator fast flash a few times means match is successful.
Delete:
Press and hold match key for 5s to delete all match,
The LED indicator fast flash a few times means all matched RF remotes were deleted.
Application notes

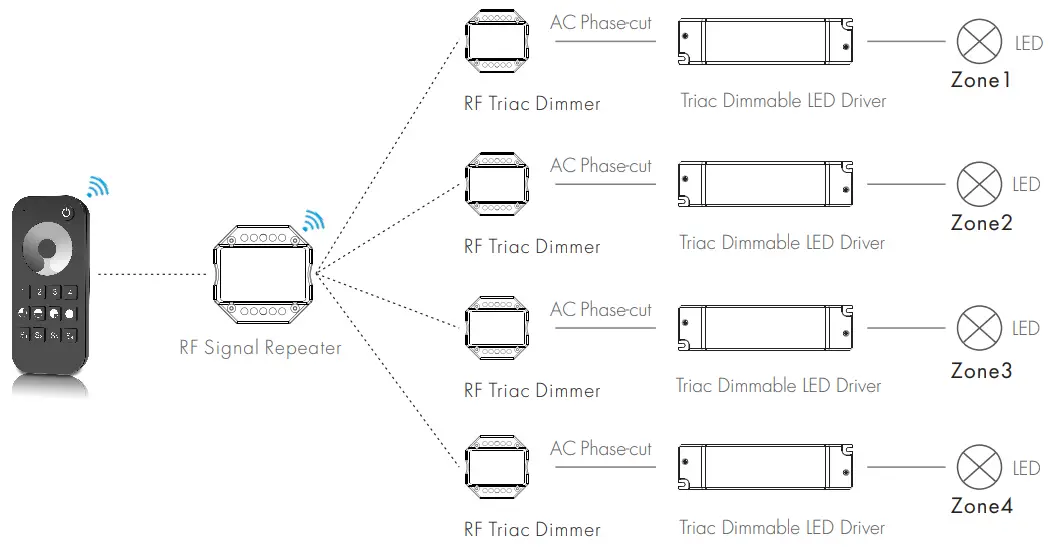

- RF remote & RF repeater application example.e.

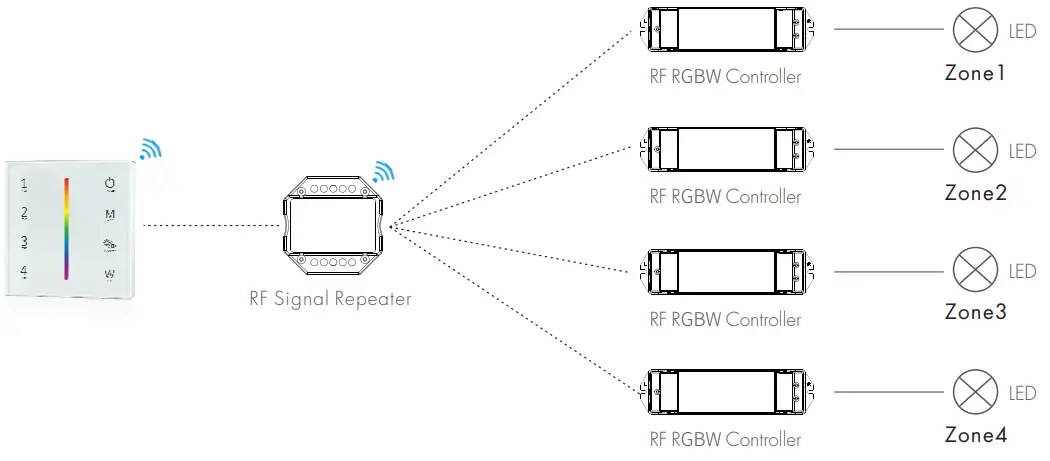

- RF remote panel & RF repeater application example.

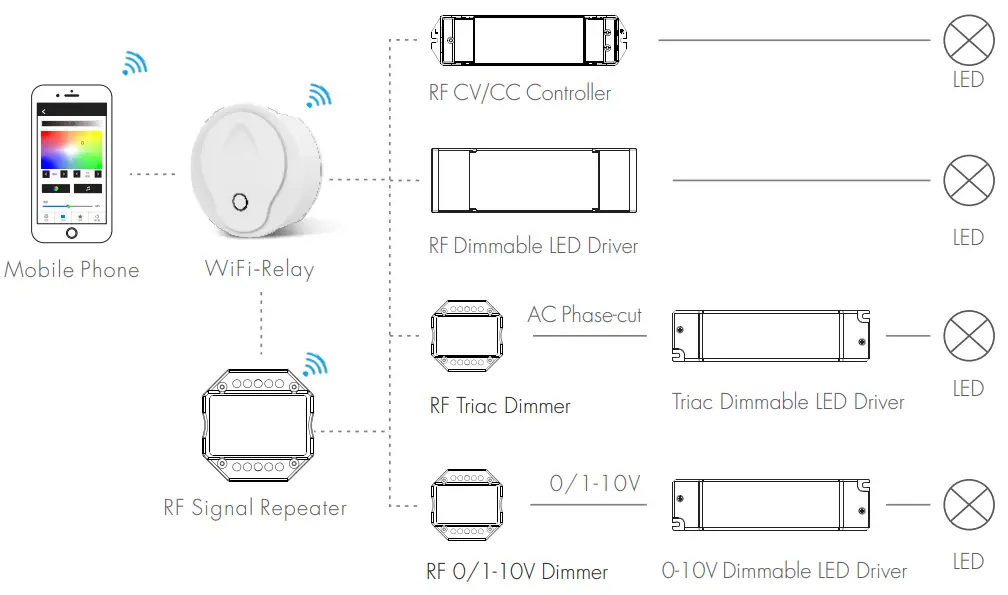

- WiFi-RF converter & RF repeater application example
