1Y.E8.230
 |  |
Utility Model – IB1YEVXX – 01/21 – Finder S.p.A. con Unico socio – 10040 AL MESE (TO) – ITALY

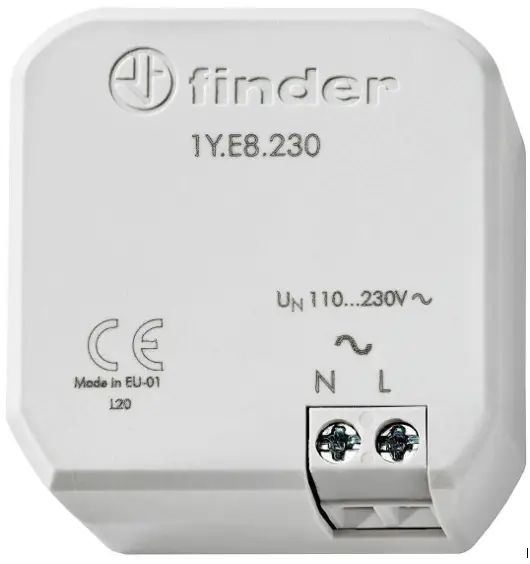

1Y.E8.230 RANGE EXTENDER 230 V AC

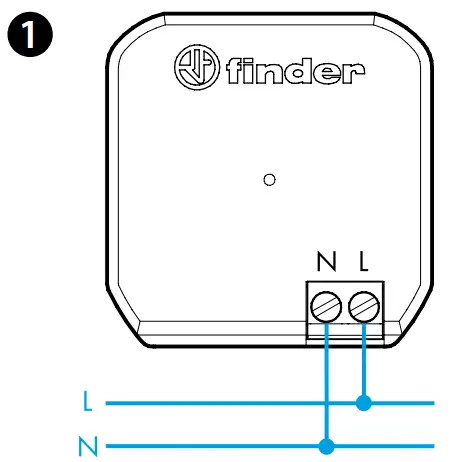

- WIRING DIAGRAM

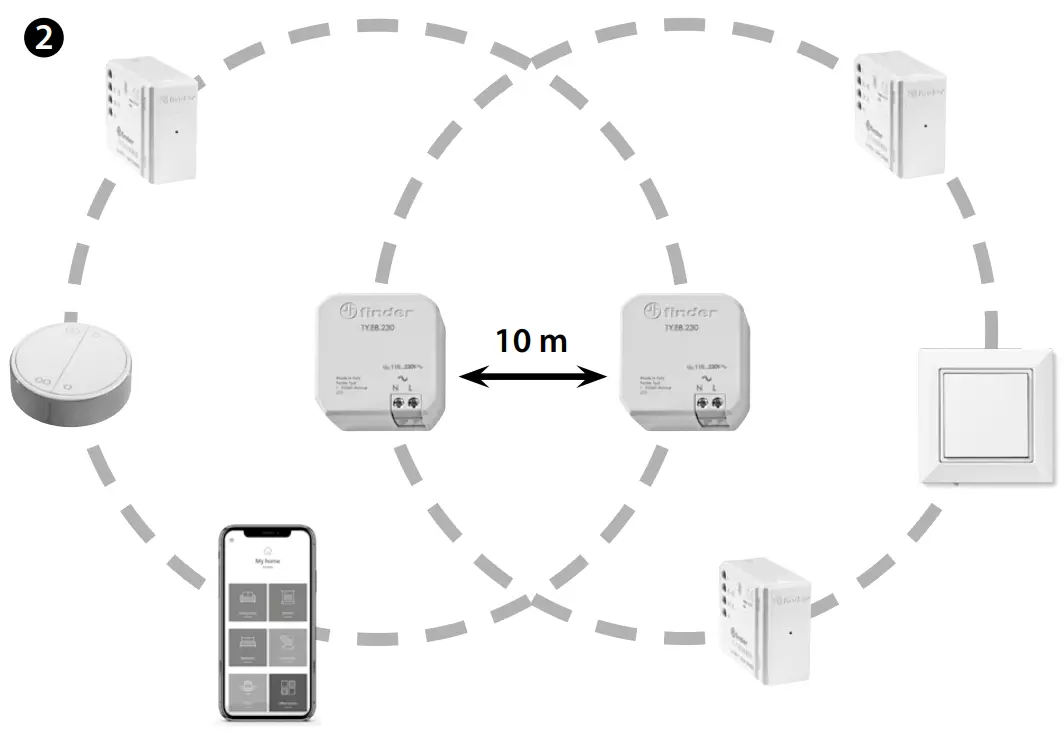

- INSTALLATION
NOTE
– Does NOT require configuration
– Maximum of 4 Range Extenders per YESLY device group
TECHNICAL SPECIFICATION
| Power supply | 110…230 V AC |
| Operating frequency | 2.4 GHz |
| Operating temperature | 10…+50°C |
| Approvals | CE, FCC, IC (Europe, US, Canada) |
| Transmission range | Approximately 10 m in free space and without obstacles. The transmission range may vary depending on the building structure |
