OWNER’S MANUAL
SLG-SP6LD
POLARIS SLINGSHOT SIDE PANEL SPEAKER
PODS WITH PRO SM6.2 & ZXI T1 INCLUDED
FOR ALL ELEMENTS
INTRODUCTION
If you’re looking to maximize sound in your Polaris Slingshot, you may consider adding these durable Polyethylene side panel Pods by DS18. These pods include one 6.5″ Waterproof Midrange Speaker (PRO-SM6.2) and one 1.7″ PEI Dome Tweeter (ZXI-T1) that your stereo system deserves. These pods come in pairs (Driver & Passenger) with a black textured finish to match the factory’s look. Very easy to Install using supplied bolts and brackets that fits directly into place.
FEATURES
- Pods Sold as a Set for Driver and Passenger Sides.
- Easy to install – all hardware and wiring included.
- OFC tinned wiring for more power handling and durability.
- 2 core 0.6M Input Wires for Speakers.
- Fits Slingshot Models from 2015 or later
- Coated Metal Bracket for better resistance to the elements.
- Include one set of 6.5″ PRO-SM6.2 Water Resistant Cone Midrange Speaker.
- Include one set of 6.5″ PRO-GRILL6-MS/BK Black Finish Metal Grill.
- Include one set of 1.7″ ZXI-T1 PEI Dome Tweeter.
- Durable (PE) waterproof enclosure with UV Protection.
- Sealed Type Waterproof Enclosure.
- Damping Material for more performance from Speaker.
- Black OEM Finish
WHAT’S IN THE BOX

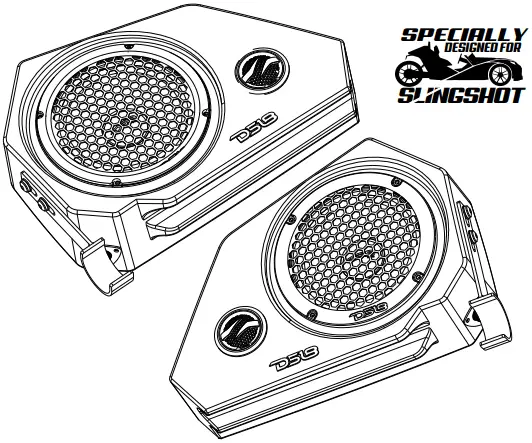

- Left & Right Speaker Pods with PRO-SM6.2 and ZXI-T1 included.
- Mounting Brackets.
- Screws and washers.
- Speaker Wiring.
INSTALLATION

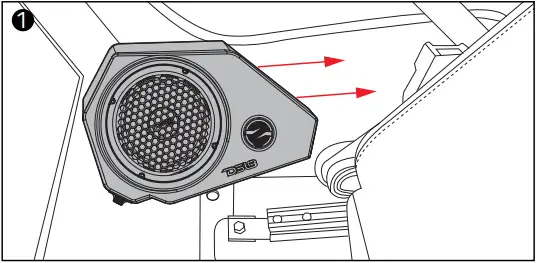

Start by moving the seats all away forward to get easy access to this area, it is optional if you want to remove the seats for running wires or easy installation on both driver and passenger side of the vehicle. (Picture 1)
Assemble the rear bracket to driver side speaker pod using (2) M6 Washer and (2) M6 Screw per bracket. The bracket will need to remain loosely hand tightened during this step. (Picture 2)
Secure the front side of the speaker pod removing the factory plastic clip that secures the vehicle factory plastic side panel to a bracket welded to the chassis tube, then use the supplied long screw with a washer and bolt it on using the factory hole through the speaker pod and tight it by hand using a screwdriver. (Picture 3)
Once the speaker pod is resting on its position, you can go ahead and fully tighten the rear bracket. (Picture 4)
Repeat steps 2-4 to install the passenger side speaker pod.
This kit needs to have an aftermarket amplifier pre-installed that can handle 2 ohms load per channel with the speaker wires in this location, only after this step you can connect the speakers pods using the aftermarket amp’s speaker wire. This concludes the installation of the SLG-SP6LD and it is ready to enjoy your new sound system upgrade!
GENERAL
Total Impedance ………………………… 2 Ohms
Load Configuration ……………………. Parallel / Paralelo
Input Wire ………………………………….. 2 Core OFC Tinned (2ft / 0.6m)
SPEAKER SPECIFICATIONS
Speaker Type / Size / ……………………………….. 6.5″ Slim Midrange
RMS Power Handling ………………………………… 200W
MAX Power Handling ………………………………. 400W
Sensitivity (1w/1m) ……………………………………… 95dB
Frequency Response …………………………………….. 80Hz-14KHz
Recommended Hi Pass Crossover ………………… 180Hz
Voice Coil Diameter ……………………………………… 1.5″ / 38.1mm
Voice Coil Former Material …………………………… Kapton
Winding Material …………………………………………… CCAW
Cone Material ………………………………………………… Water Resistant Paper
Surround Material …………………………………………… Coated Cloth
Basket Material ………………………………………………… Steel
Magnet Material ……………………………………………….. Ferrite
Magnet Weight ………………………………………………….. 20 oz
TWEETER SPECIFICATIONS
Speaker Type / Size / ………………………………….. 1.7″ PEI Dome Tweeter
AES Power handing ……………………………………… 25W
Program Power handing ……………………………….. 50W
Peak Power handing ………………………………………. 100W
Sensitivity (1w/1m) ………………………………………… 92dB
Frequency Response ………………………………………. 1KHz-20KHz
Voice Coil Diameter ………………………………………. 1″ / 25.4mm
Voice Coil Former Material …………………………….. Aluminum
Winding Material ………………………………………………. SV
Diaphragm Material ………………………………………….. PEI
Magnet Material …………………………………………………. Neodymium
Magnet Weight …………………………………………………… 13g
BOX SPECIFICATIONS
Box Type ………………………………………………… Sealed
Box Material ……………………………………………. Polyethylene (PE)
Finish Material …………………………………………. Black
UV Protection ………………………………………….. Yes
Waterproof Rating …………………………………….. IP65
MEASUREMENT
Overall Height ……………………………………………. 8.9″ / 226mm
Overall Width ………………………………………………. 12.8″ / 325mm

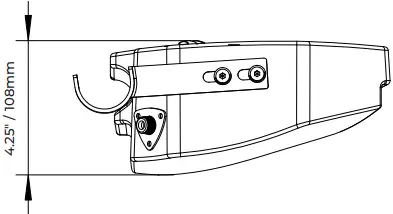

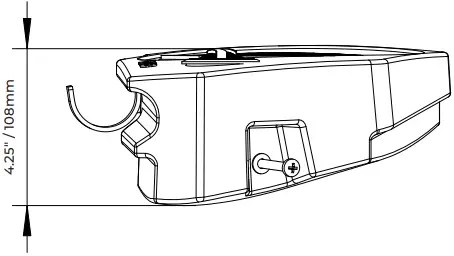

Overall Depth ………………………………………………. 4.25″ / 108mm
MEASUREMENTS
DRIVER SIDE
PASSENGER SIDE
WARRANTY
Please visit our website DS18.com for more information on our warranty policy.
We reserve the right to change products and specifications at any time without notice.
Images may or may not included optional equipment.
WARNING:
Cancer and Reproductive Harm. www.P65Warning.ca.gov
FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
V1
