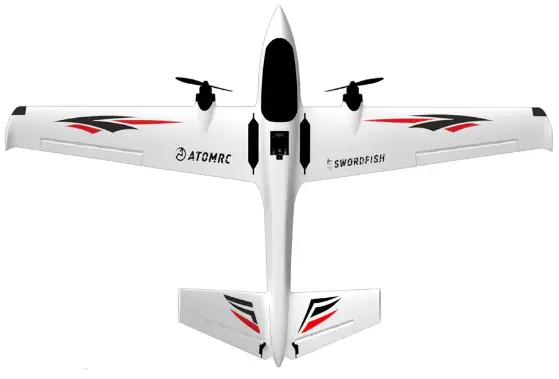

ATOMRC Swordfish Fixed Wing

Introduction

The swordﬁsh is a 1200mm wing span middle speed twin motor glider, the large V-tail improves the cruising speed stability, the aerodynamic shape and low cross-sectional area reduce ﬂight resistance and improve endurance.

We use lots of plastic injection parts to reduce the wight, size and also improved the strength. The fuselage and the wing are embedded with reinforced carbon tubes to maximize the torsional rigidity of the wing during ﬂight and the structural strength of the tail connection. Improved the control of precise ﬂight. The belly wheel and the tail skid design protect the bottom of the fuselage from landing.

The glider support DJI air unit, also support analog system, the 1000g±200g take oﬀ weight made the plane achieves balanced load on the take-oﬀ wing, balanced cruise speed, and convenient assembly and maintenance.

Speciﬁcations

Swordfish Specifications/剑⻥规格
Wingspan	1200mm
Length	810mm
WingArea	15.35d㎡
Servo	9g Servo*4PCS
Material	EPP
Recommend Motor:	2004~2306
Recommend ESC:	BLS 30A 2~4S
Recommend Propeller	7040-2
Recommend Weight	1200g

Version Description

ATOMRC Swordfish Fixed Wing
	Version	KIT	PNP	FPV	RTH	RTF+FPV
	Description	Pre-glued Fixed WING	KIT+Motor +ESC+Servo	PNP+VTX+C amera	PNP+Pre- turned FC+GPS, all electronics are installed	RTH+VTX+C amera, all electronic are installed
Basic Pack	Pre-Build KIT	√	√	√	√	√
	Wood plate	√	√	√	√	√
	Screws and Nuts	√	√	√	√	√
	Sticker and user manual	√	√	√	√	√
	Quick Release Connector	√	√	√	√	√
	Flight Light	√	√	√	√	√
Motor	ATOMRC 2306 2000kv		2pcs	2pcs	2pcs	2pcs
ESC	ATOMRC BLS 30A 2~4S		2pcs	2pcs	2pcs	2pcs
Servo	ATOMRC 9g *300mm		4pcs	4pcs	4pcs	4pcs
Prop	7040-2		4pcs	4pcs	4pcs	4pcs
Cam	Foxeer Toothless NANO			√		√
VTX	ATOMRC Exceed TX500 VTX			√		√
Antenna	ATOMRC			√		√
FC	ATOMRC F405 NAVI				√	√
GPS	BN220				√	√
The specs will be slightly adjusted according to different， actual specs are subject to the latest manual and real objects.

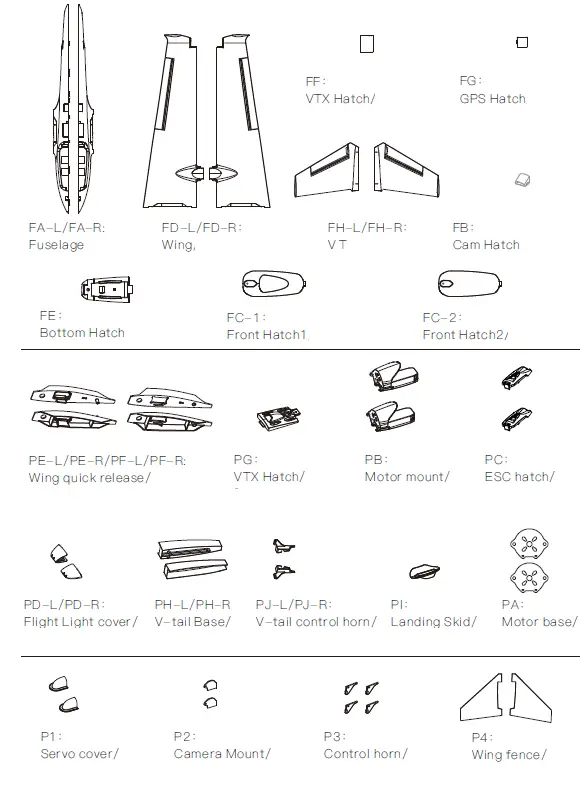

KIT Contents

KIT、PNP、FPV/Installation/KIT、PNP、FPV

Install the V-tail on the fuselarge

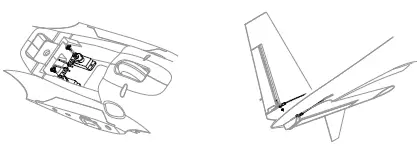

Install the V-tail servo

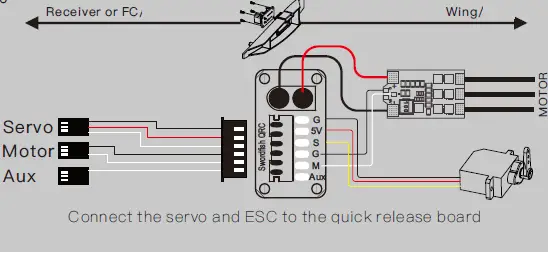

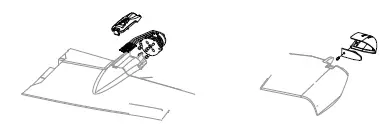

Install the push rods. Install the aileron servo, push rods and servo arm cover

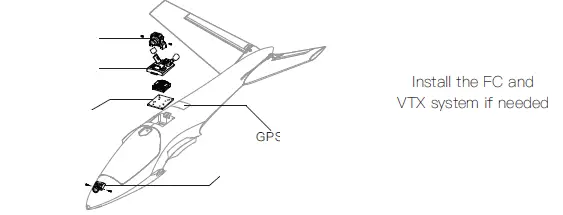

RTH/RTH FPV Installation

Install the V-tail
Installed the push rods.
Install the INAV conﬁgurator then plug to PC
Check INAV Conﬁgurator the receiver type,
then assign the channel and mode

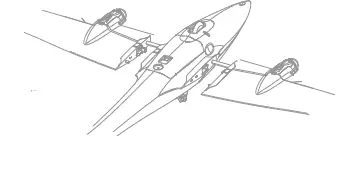

Install the Motor, ESC and LED

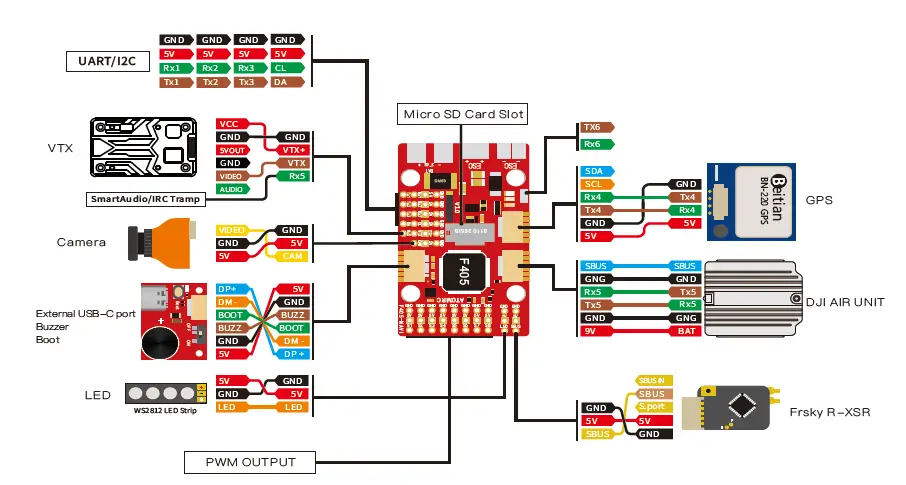

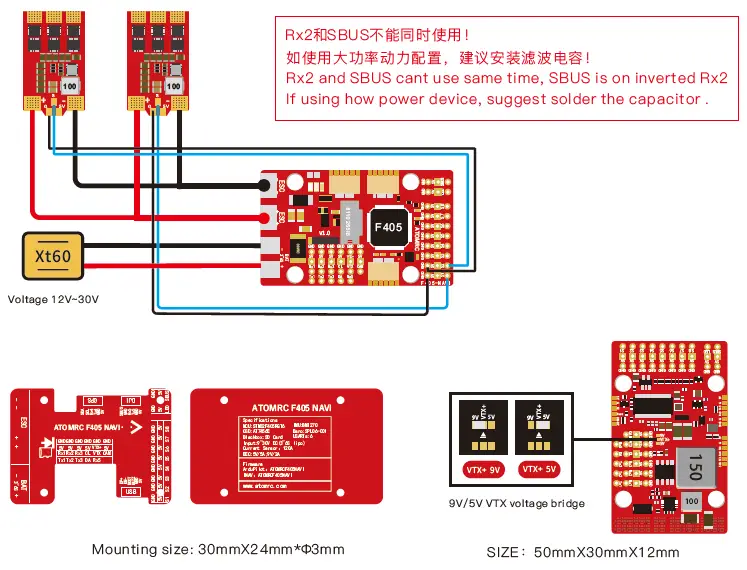

ATOMRC F405 NAVI Information

Tx500 VTX User manual/TX500

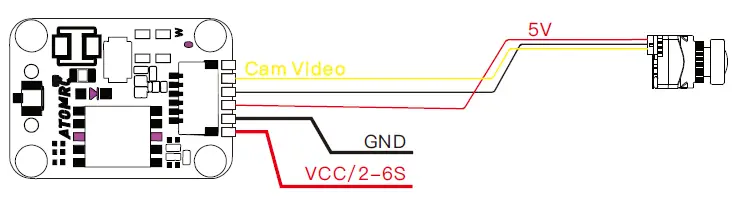

ATOMRC Tx500 VTX Wiring Diagram/TX500

VTX Setting

Hold button 3 seconds into setting mode.
In setting mode. short press the button to change band.
Then hold button 3 seconds into CH setting mode, short press button to change CH.
Hold button 3 second to get into Power setting mode, there is short bar on LED, short press to switch power, 1 bar means 25mW, 2 bar means 200mW, 3 bar means 500mW.

Band	Channel
Band	1	2	3	4	5	6	7	8
Band A	5865	5845	5825	5805	5785	5765	5745	5725
Band B	5733	5752	5771	5790	5809	5828	5847	5866
Band E	5705	5685	5665	5645	5885	5905	5925	5945
Airwave/FS	5740	5760	5780	5800	5820	5840	5860	5880
Race Band	5658	5695	5732	5769	5806	5843	5880	5917
L Band	5362	5399	5436	5473	5510	5547	5584	5621

ESC Information

Throttle calibration

The ESC included with the model has a safe start.If the motor battery is connected to the ESC and the throttle stick is not in the low throttle or oﬀ position,the motor will not start untill the throttle stick is moved to the low throttle or oﬀ position.
Power on the ESC(The ESC must connect to the motor and Receiver). The motor will emit a series of beeps, after the beeps, set the the throttle stick the the minimum, the motor will emit a series beep again. now the ESC calibration is done.

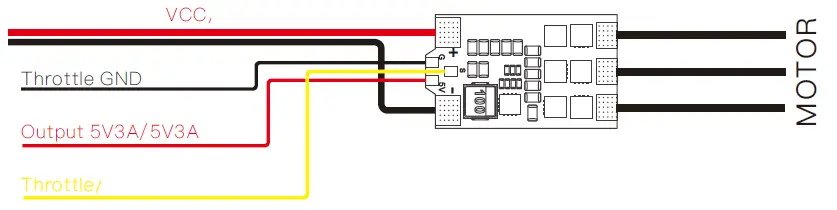

ATOMRC Exceed BLS 30A 5VBEC ESC Wiring Diagram
