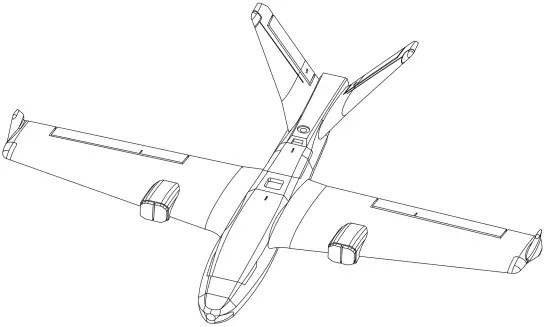

REPTILE Dragon Talon 800mm Dual Motor FPV Fixed Wing

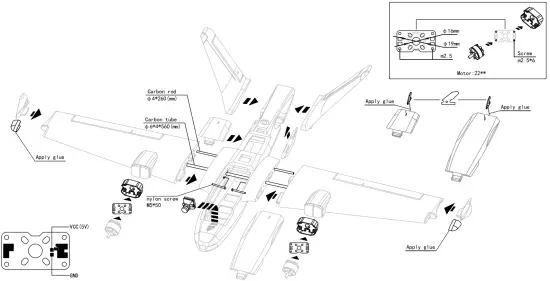

Decomposition diagram
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury. This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision.
Pull rod installation
Technical data
Specifications Table
| Wingspan | 800mm |
| Length | 580mm |
| Weight | 220g(Without electronic equipment) |
| Wing size | 10.4DM 2 |
| Flying weight | 700g |
Recommended Table
| Motor | 2205*2 |
| ESC | 30A-40A |
| Servo | 9g*4PCS |
| Propeller | 5inch |
| LiPO battery | 11.1V 3S 14.8V 4S |
| Radio | 4 channels with elevon mixing |

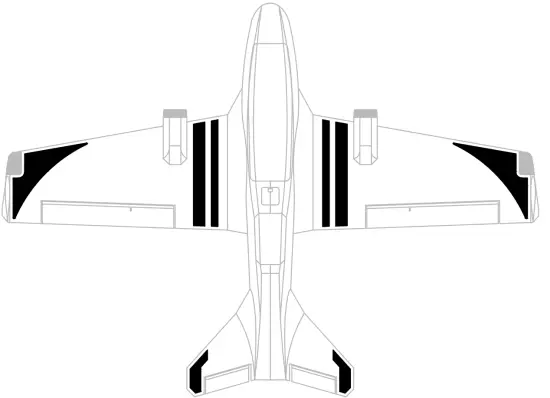

Sticker diagram
