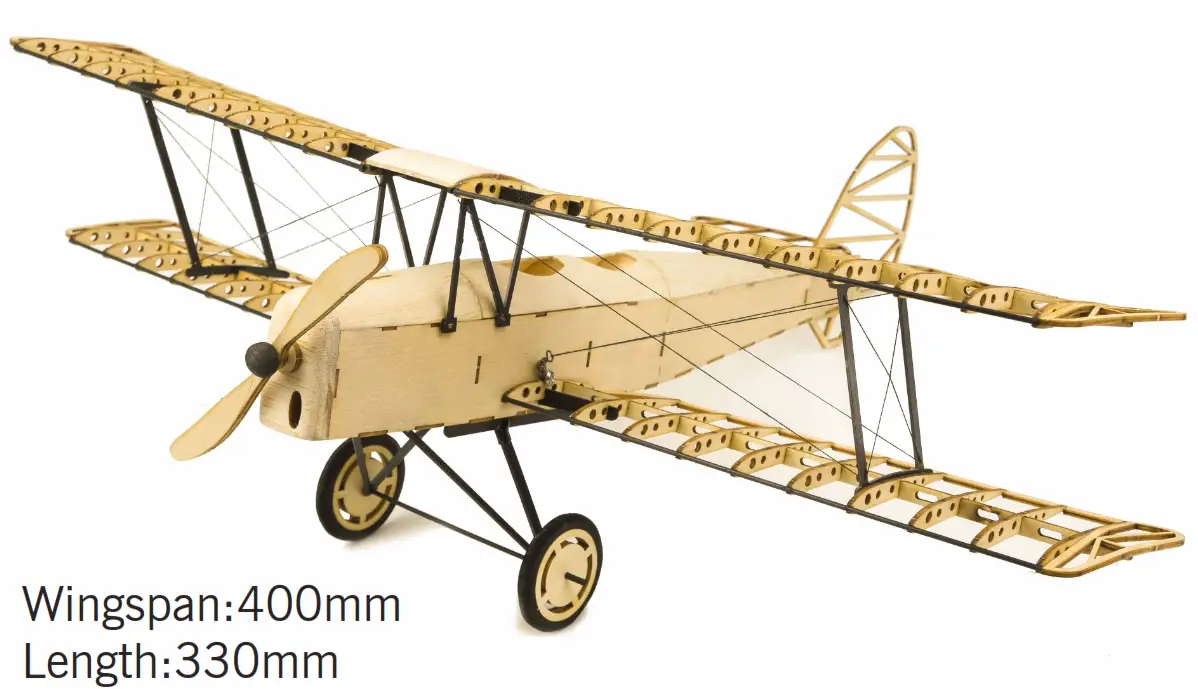

Tiger Moth(X10)
INSTRUCTION MANUAL

Pls take down the parts from the board by knife,and assemble them as per the procedures as below,we suggest you shape with 502 glue, and firm with white latex.

Material:

1. Basswood
2.  Balsawood
3. Paulownia
4. Fiberglass and others

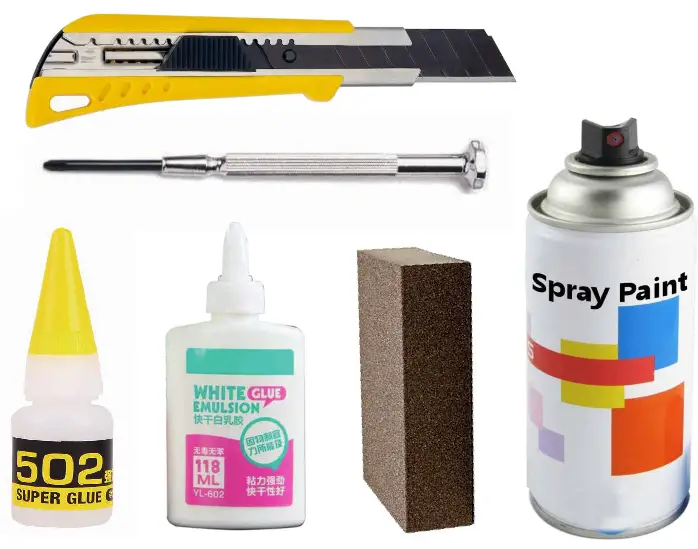

   Tools Needed

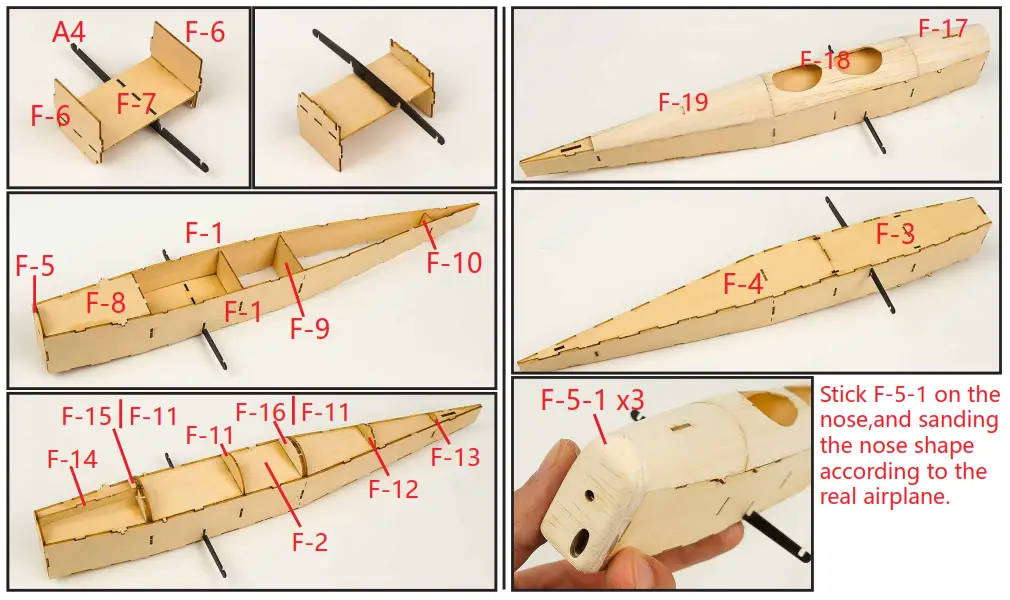

Fusalage Installation

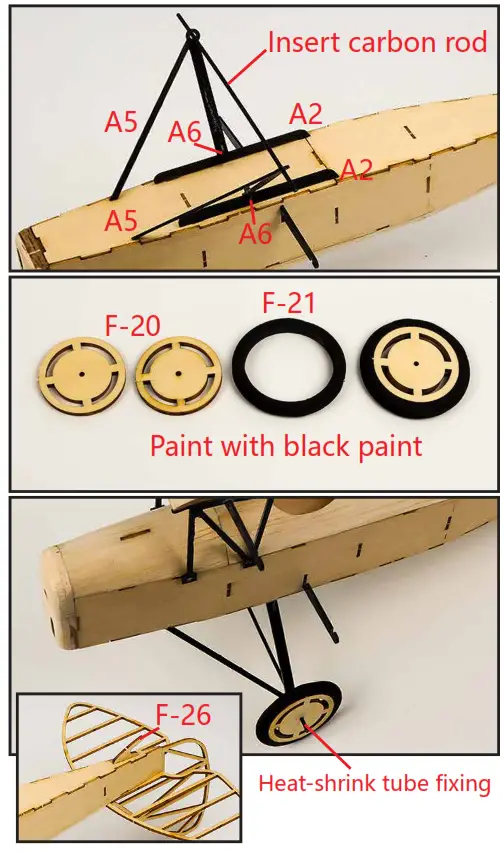

Landing Gear Installation

Wing Installation

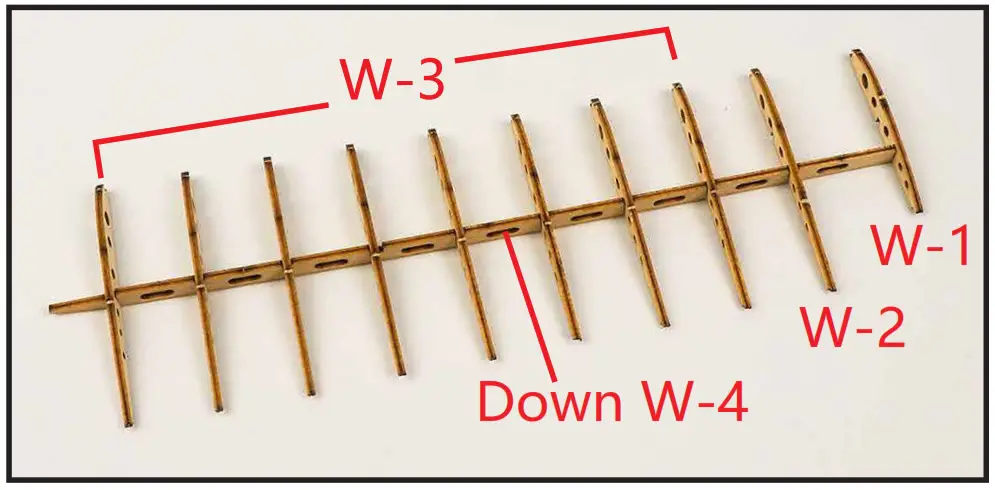

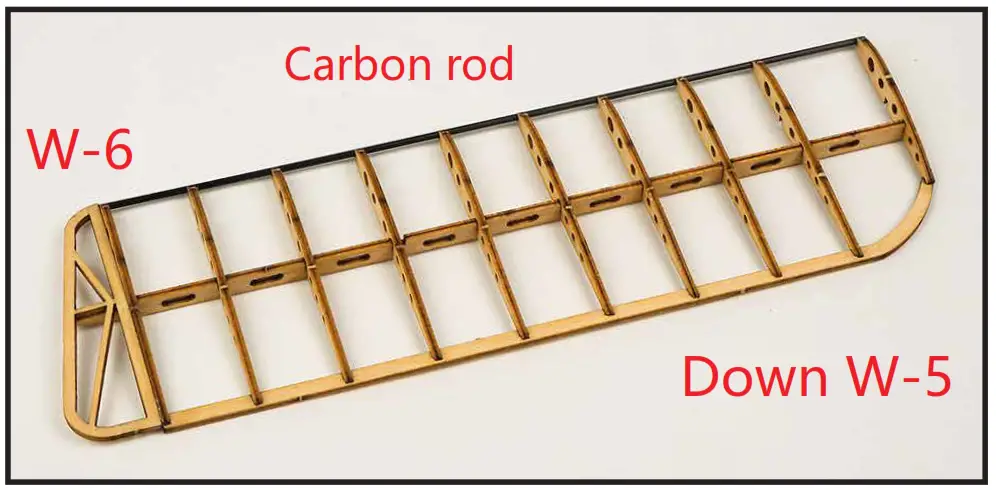

Down Wing

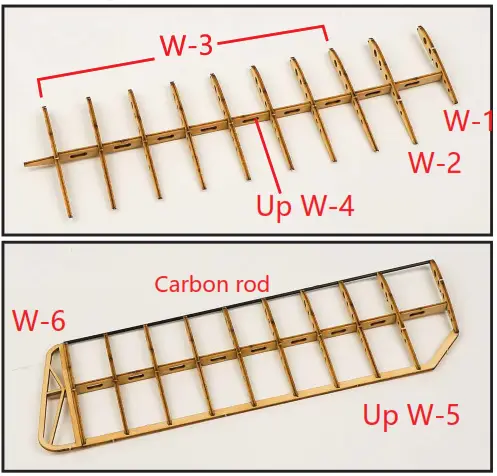

Up Wing

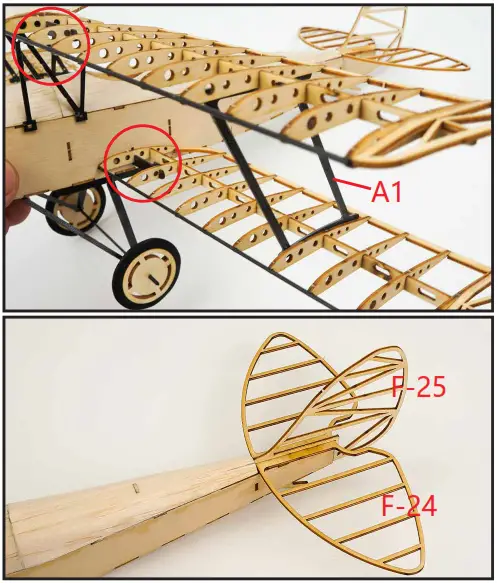

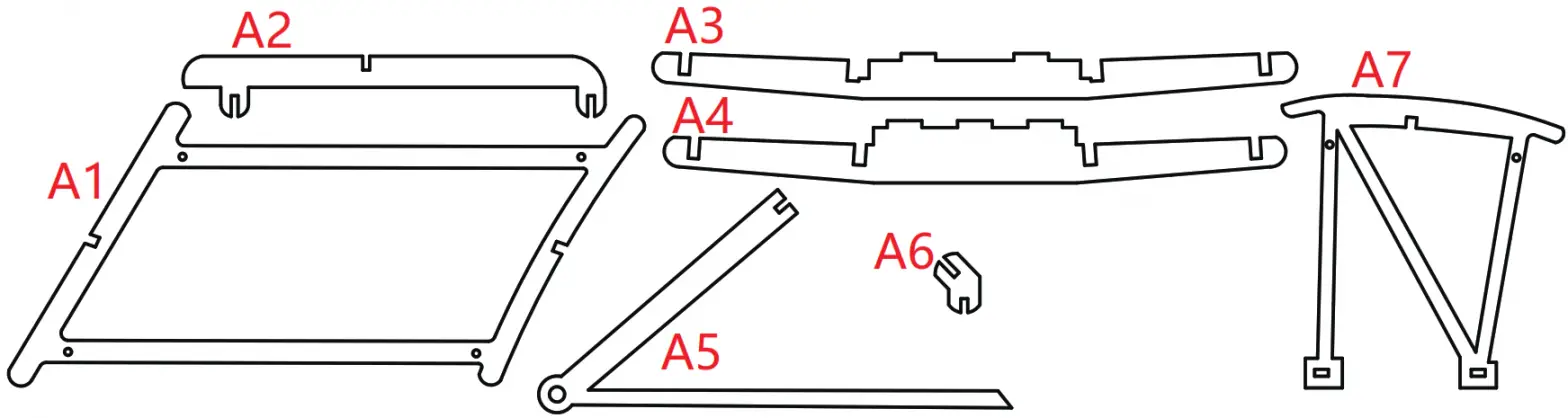

Install the finished down the wing and up the wing on A3 and A4. Connect the middle part between the up wing and down the wing with A1. Lastly, adjust the 1.Fuselage  Installation wing straightly before sticking the joints with A4 F-6 glue.

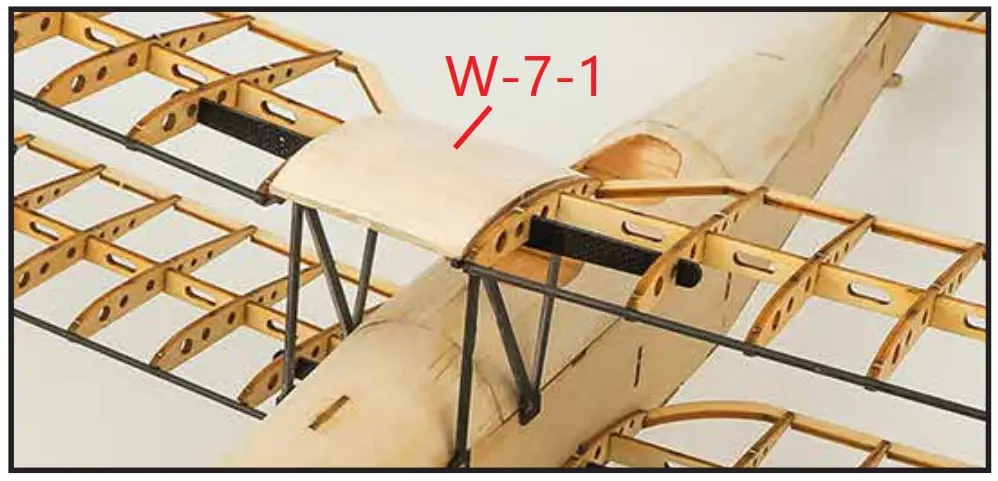

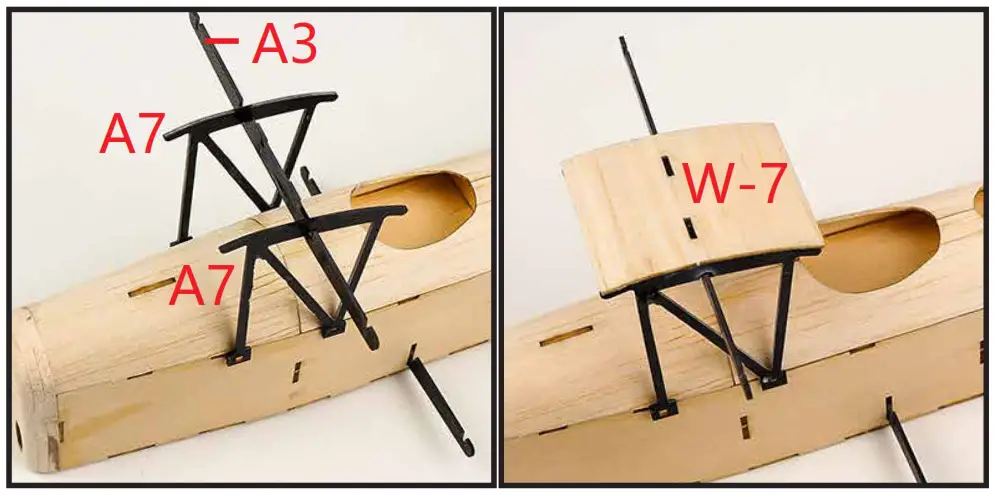

Stick W-7-1 on the W-7, and sand it according to the wing’s radian.

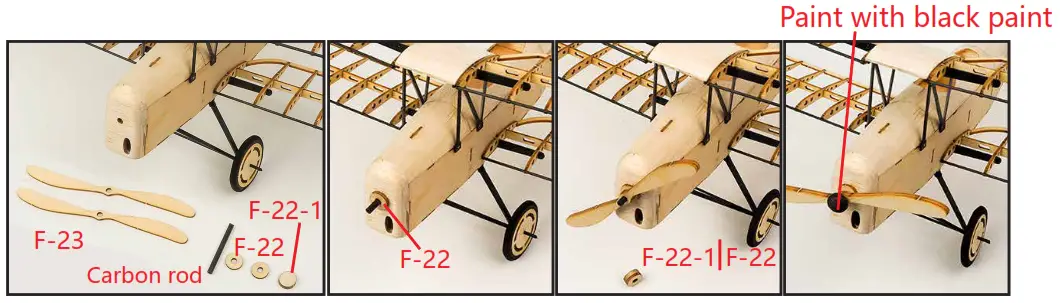

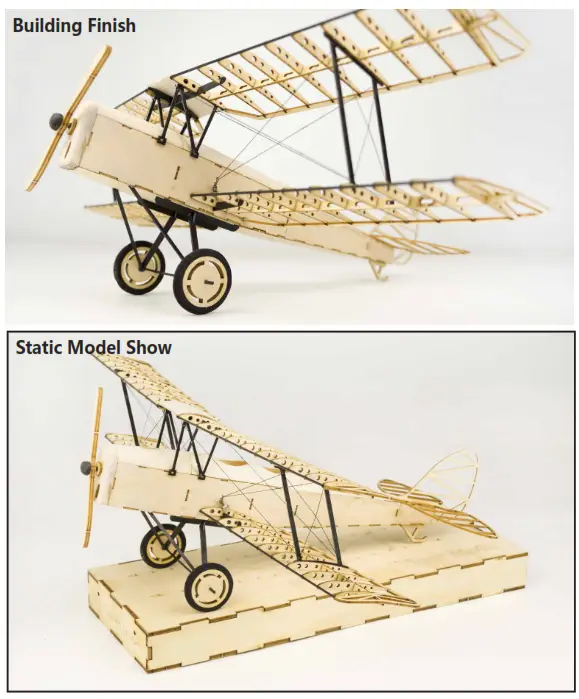

Propeller InstallationPulling Wire Installation Show

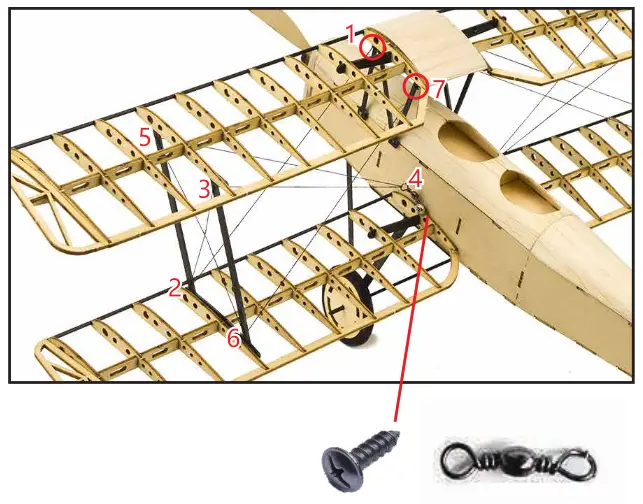

Pull the wire according to the numbers in the picture,”1″ is the starting point, “7” is the finishing point. Insert “1” and “7” pulling wire into the reserved hole of bracket, tie a knot, and fasten.
Here use a self-tapping screw to fix the buckle on the fuselage, assist pulling wire.

 CHOKING HAZARD-Small parts.Not for children under 3 years.
