Dancing Wings Hobby E32 600mm Savage Bobber Instruction Manual (+ PDF)

Suggested Motor: MC1108 4000Kv
Suggested ESC: 2S 5A ESC
Suggested Servos: 2.0g * 4pcs(1.00pin)
Suggested Propeller: 5inch Prop
Suggested Battery: 2S 150-200mAh
Radio≥4CH

Tools Needed

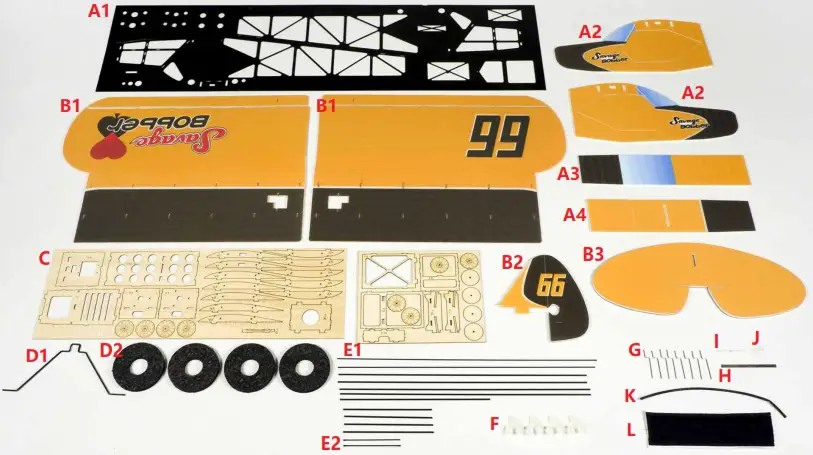

KIT

Photos shown here just for reference, the product you received maybe slightly differ from the photos due to continuous improvement on products.

A1-4：Fuselage
B1：Wing
B2：Horizontal Tail
B3：Vertical tail
C：Reinforcement Wooden Parts
D1-2：Landing gear
E1-2：Carbon Rod

F：Servo Horn
G：Z-shape Steel Wire
H：Carbon sheet
I：Stoppers
J：Paper hinge
K：Heat-shrinkable Tube
L：Velcro

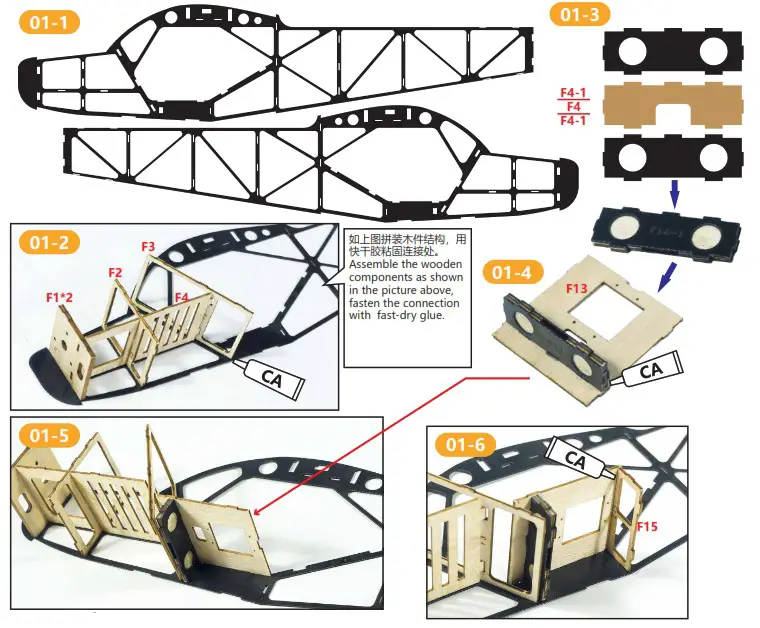

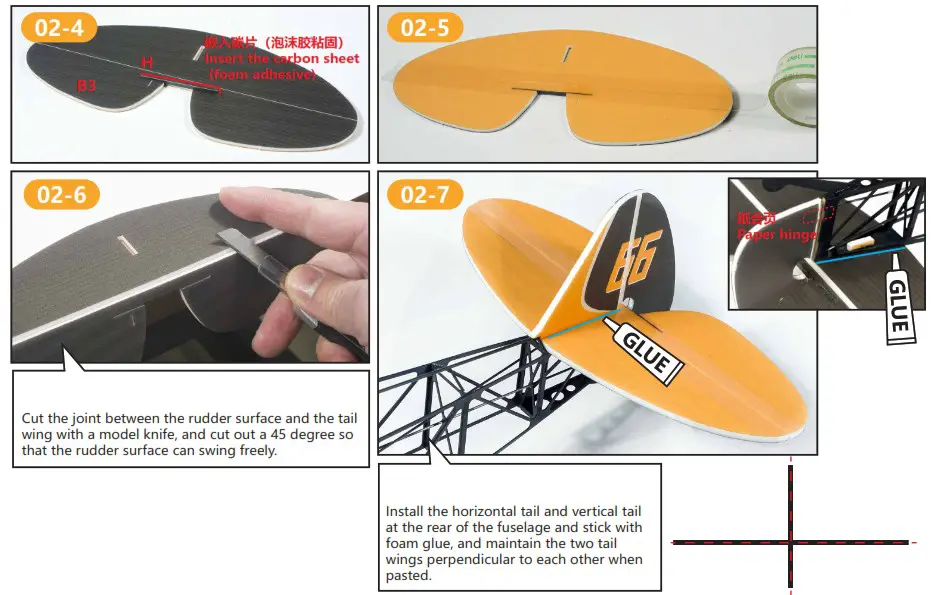

Assemble the Fuselage

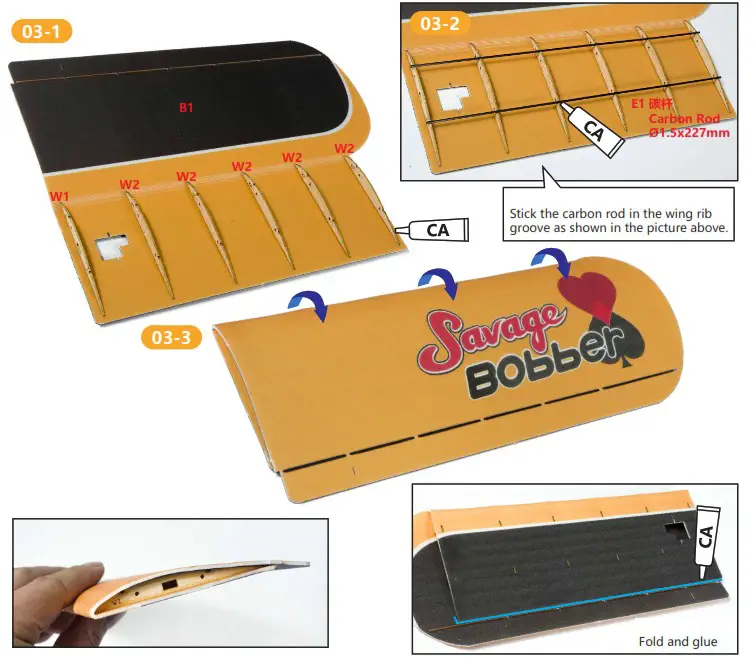

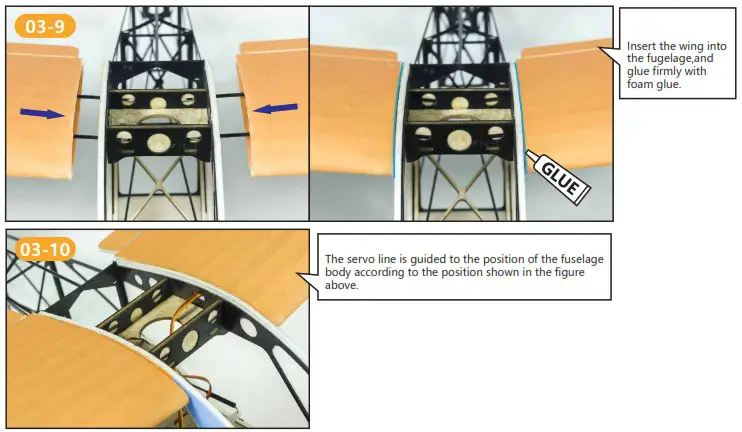

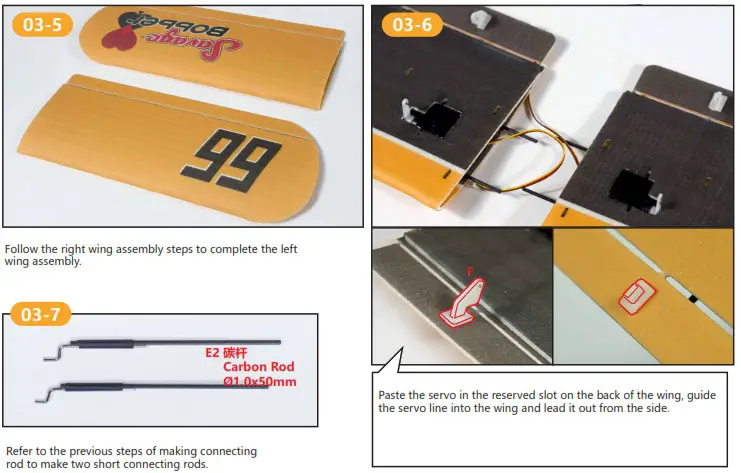

Assemble the Wing

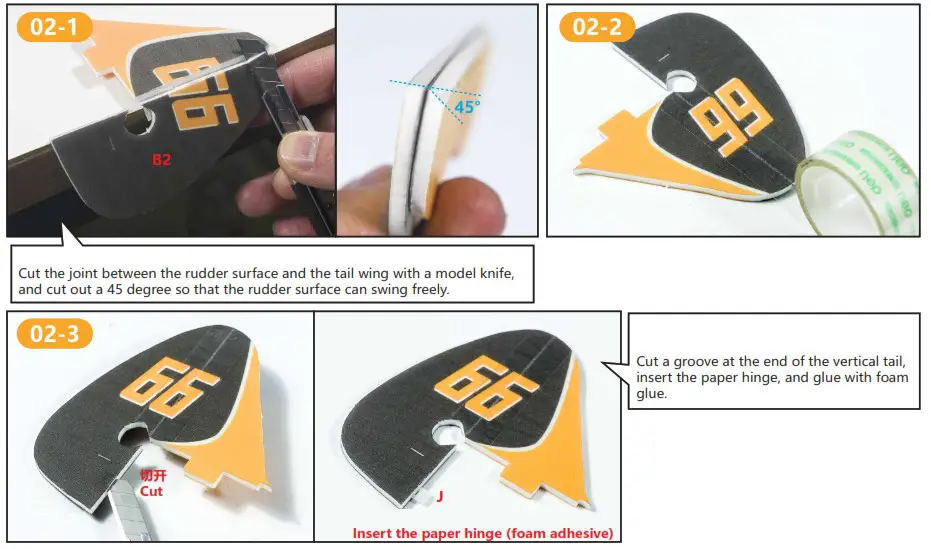

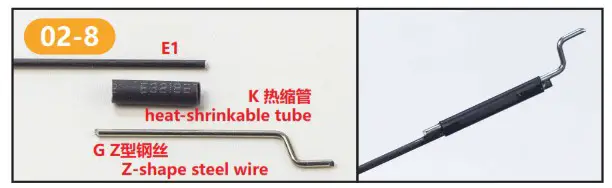

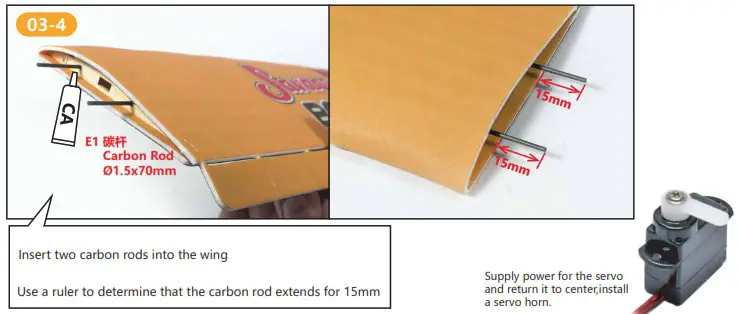

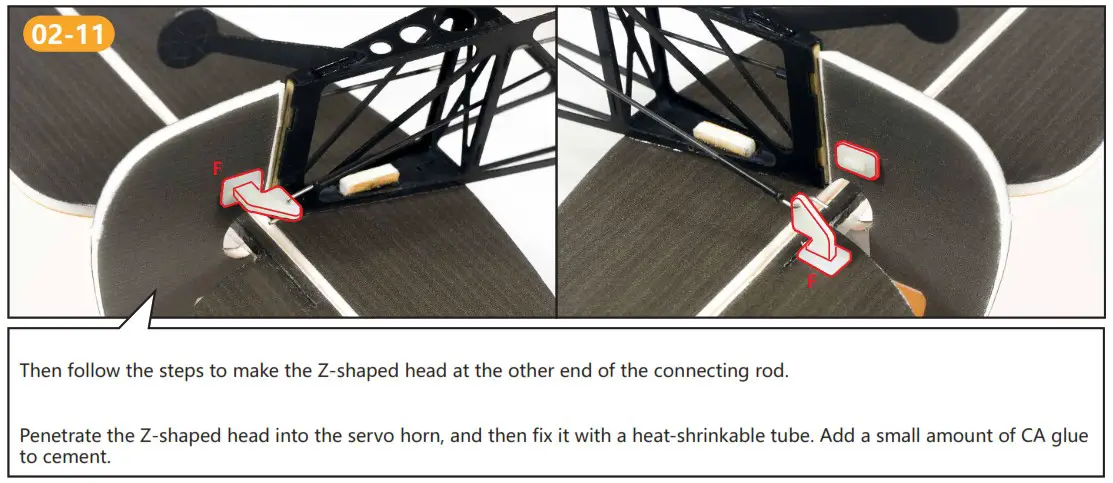

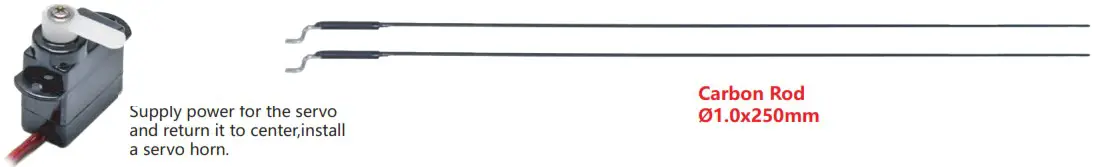

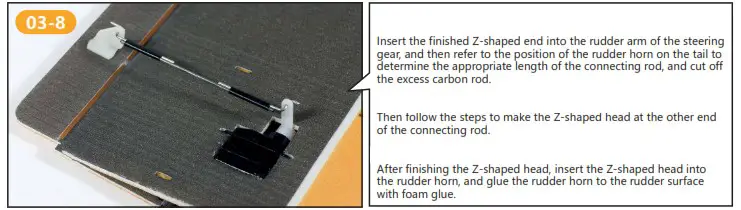

As shown in the picture on the left, cut the suitable length of the heat shrinkable tube, sleeve the Z-shaped steel wire and the carbon rod together, heat the heat shrinkable tube to shrink it, and then add a small amount of CA glue to reinforce it.

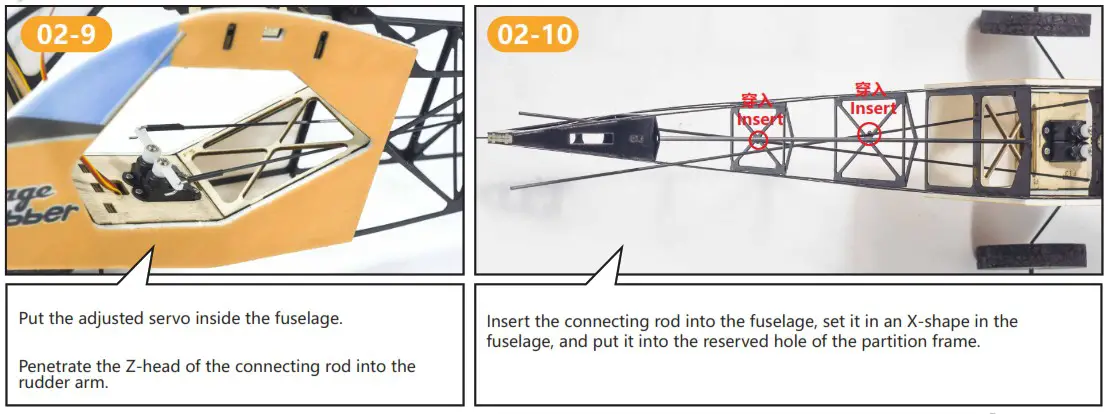

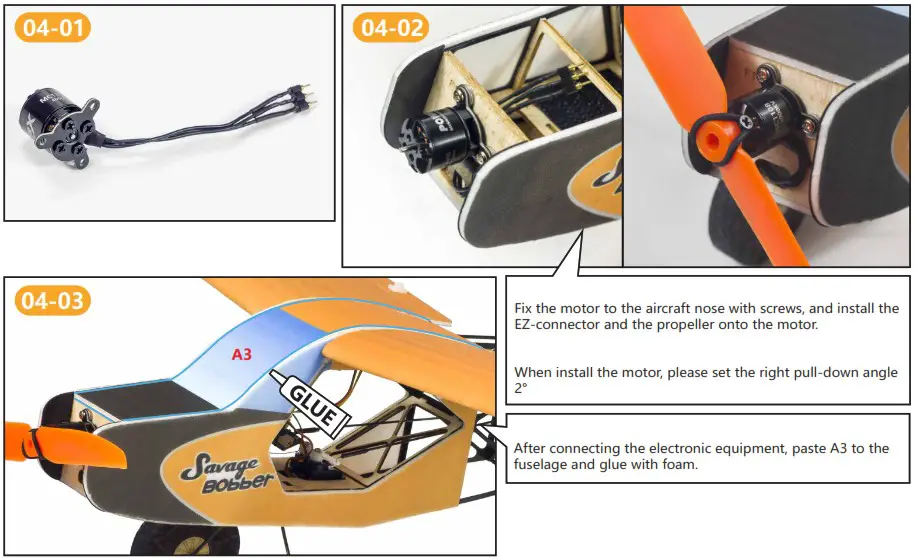

Power System Installation and Adjustment

More details about power system adjustment, please refer to below link: (You can scan QR Code directly.) http://www.dwhobby.com/art/connection

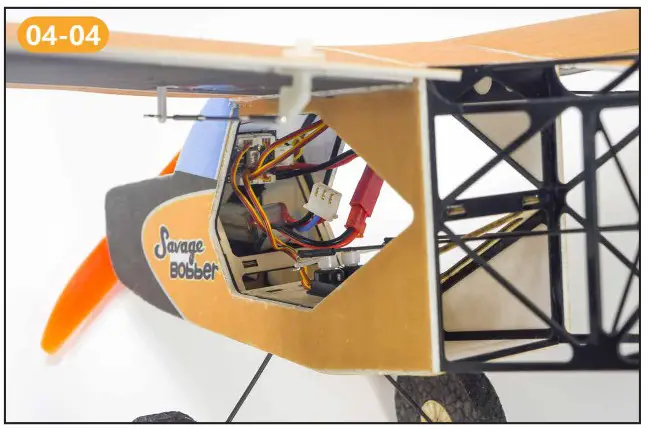

Demonstration of the installation of electronic equipment in the cabin.
AEO RX15X-E series all-in-one receiver is recommended here.
Description link: https://www.aeorc.com/rx14amp14eamp15e-series-mini-receiver-user-manual-a0074.html

Install the Landing Gear

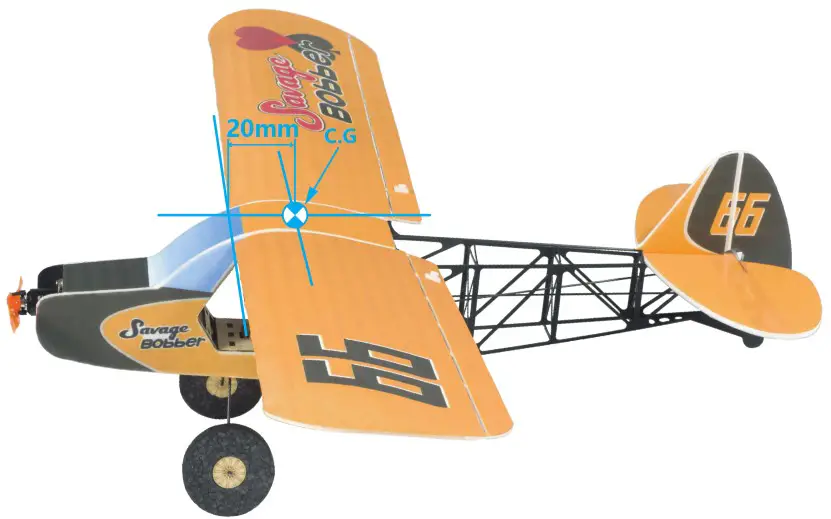

Display for C.G

Note: When you adjust CG, you can use battery as balance weight, adjust battery positon to find the suitable CG, then fasten the battery on the fuselage with magic tape.

Normal Flying		3D 3D Flying only support some models)
Aileron	±（15°-30°）	±40°	or larger
Elevator	±15°	±40°	or larger
Rudder	±15°	±40°	or larger
Flap	take-off	15°-20°	Landing 20°-40°

Some special models will have V-tails, flaps, leading edge wings, etc., which can be used as a reference for conventional flight angles. If you do not confirm and there is no experienced person to guide you, we recommend that you first test at a small angle to confirm that your settings are correct.

Control Directions Tests

	Transmitter Command	Aircraft Reaction

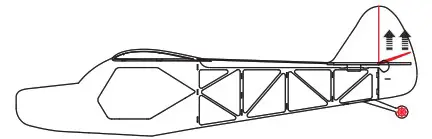

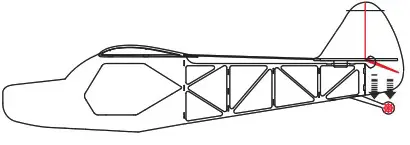

Elevator	Lifting rod down
Elevator	Lifting rod up

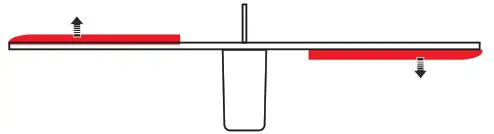

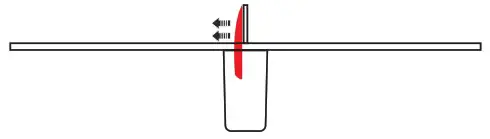

Aileron	Steering rod to the right
Aileron	Steering rod to the left

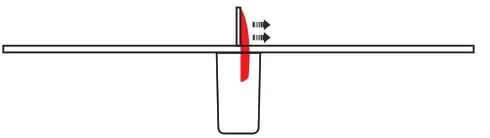

Rudder	Direction rod to the right
Rudder	Direction rod to the left

PRE-FLIGHT CHECKS

Check/adjust servo centering, in order to adjust the control surface better.
Double-check the spinning direction of motor at first usage, and sure it’s suitable for your model.
Set the center of gravity (CG) at the position that manual already marked out. If necessary, add weight to the nose or tail to ensure the best flight performance.
Double-check the inside of the fuselage, make sure all the equipments are correctly connected; Check the heat-shrink covering material’s surface, Make certain all screws, bolts, cabin and canopy remain secure.
Take great care when connecting/disconnecting the battery, pls replace the battery immediately once found low voltage or damage to battery.
The way the internal devices of the fuselage are connected will be related to your transmitter-receiver device. For those transmitter-receiver devices with more functions, you can simplify the connection of the internal devices of the fuselage. Check your device for details to see if it meets the features you need.
When the power system and transmitter-receiver device are paired for the first time, you may need to set the maximum stroke of the throttle. Please set it yourself.

SAFETY PRECAUTIONS

This product should not be considered a toy, but rather a complicated and sophisticated flying model. Your safety depends on how you use and fly it, If not correctly operated, could cause injury to you or your family members. Children must be accompanied by an adult at all times if operating this product. Not suitable for children under the age of 14. THIS IS NOT A TOY.
Do not fly around some restricted location like airports, military bases, residential areas, etc.
You will need to range check the transmitter to be sure you are not experiencing any interference.
Always turn on the receiver last after turning on the transmitter and shut off the receiver first before turning off the transmitter.
If you are only a beginner to the radio control model flying, do not attempt to fly your model without any assistance or advice from advanced expert fliers.
Keep relevant items out of reach of children.
This product has been flight tested to meet or exceed our rigid performance and reliability standards in normal use,if you plan to perform any high-stress flying, you are solely responsible for taking any and all necessary steps to control movement range and reinforce the body strength.
This product may include some fiberglass and carbon-fiber reinforced plastic parts,which may cause eye and skin discomfort,pls wear the goggles or dust-proof clothes when needed.
Due to air traffic safety control, the products you receive may not have the glue that appears in the list. Please understand and purchase the glue you need at your local stationery store.
