Mobula Fixed-Wing FPV Aircraft RC Airplane
User Manual
Introduction

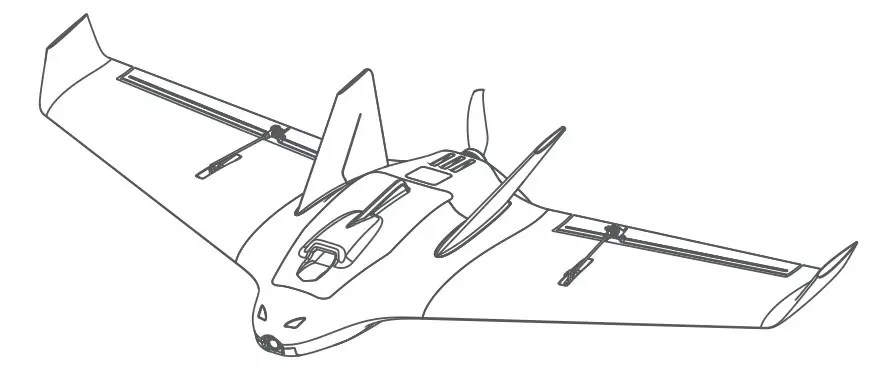

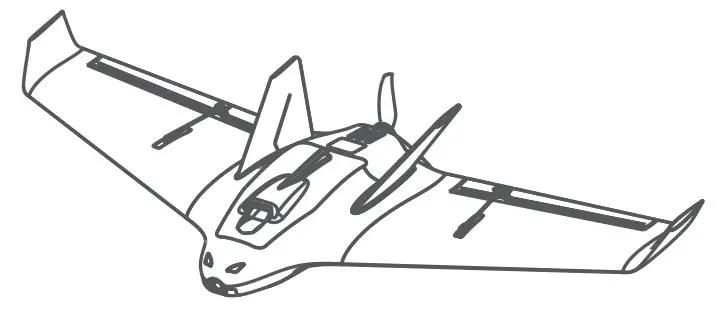

The Mobula 650 is a compact design FPV delta wing, designed for FPV, the 650mm wingspan makes the wing very swift for low attitude FPV, and the EPP material makes the wing durable when crashing. With a large fuselage, users can easily install the electronics.
Specifications
| Wingspan | 650mm |
| Length | 300mm |
| WingArea | 8d㎡ |
| Material | EPP |
| Recommend Motor | 2004 2700KV |
| Recommend ESC | 30A 2~4S |
| Recommend Propeller | 4023 |
| Servo | 9g Servo*2Pcs |
| Recommend Battery | 4S 850mAh Lipo |
Version Description
| Packing List/t4M-S | |||
| Version /ii&Z | KIT LITE | PNP | FPV |
| Description | Un-assembled KIT ( User needs to glue the plane) | Assembled KIT | PNP version of the plane |
| Wood Plate. g& | 2004 2700KV MOTOR | FOXEER Razer NANO | |
| Batthead Push Rods | Ks 30A ESC ( [flout 2-45 But it is 9.13A BEC ) | ATOMIC TX500 VTX | |
| BatteryStrap | 9g Servo’ 2 | 5.8G 2dB Antenna | |
| 4023 Prop | |||
KIT Contents

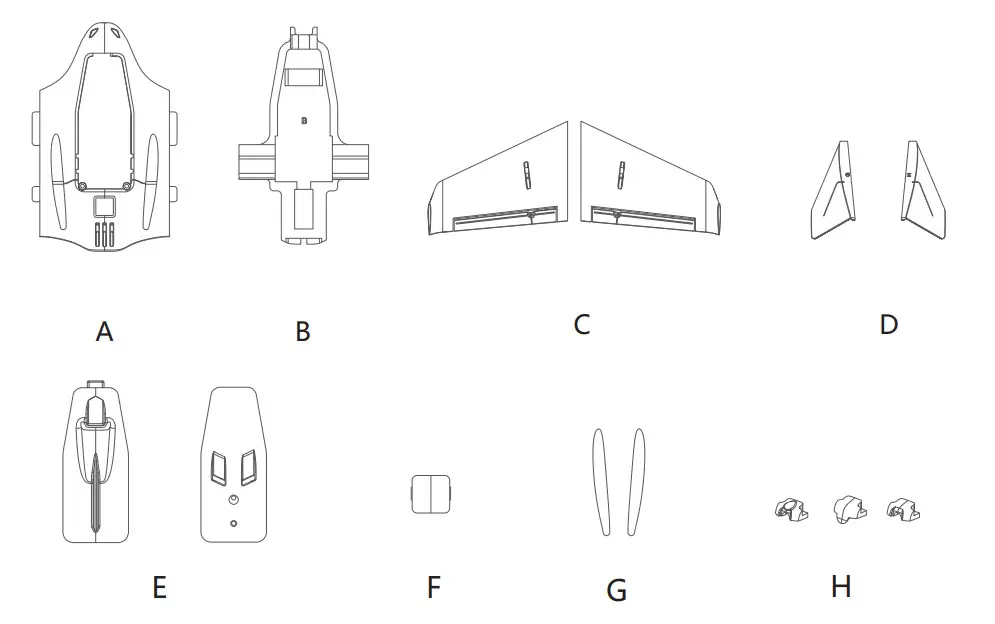

| A： Upper Fuselage | B： Bottom Fuselage | B： Bottom Fuselage |
| D： V Tail | E： Hatch | F： GPS Hatch |
| G： Blocker for V Tail | H： Camera Hatch |
Installation

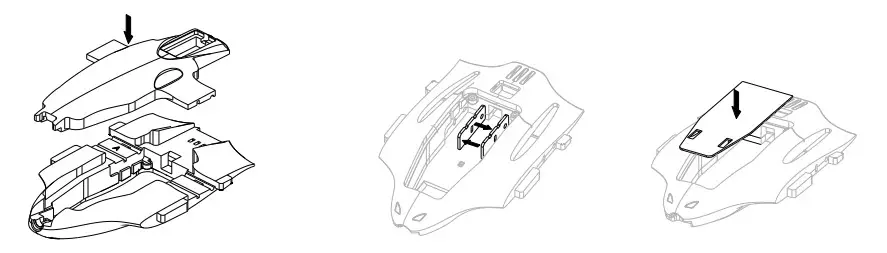

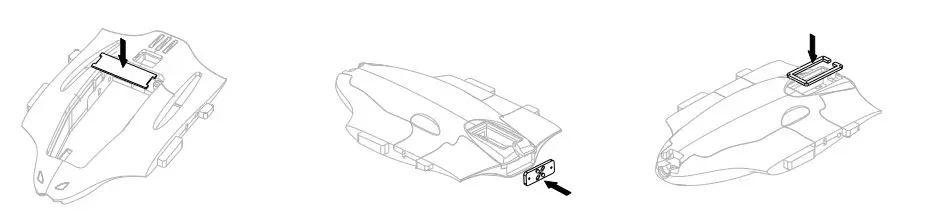

Glue the upper and lower fuselage, then glue the side and bottom plate.

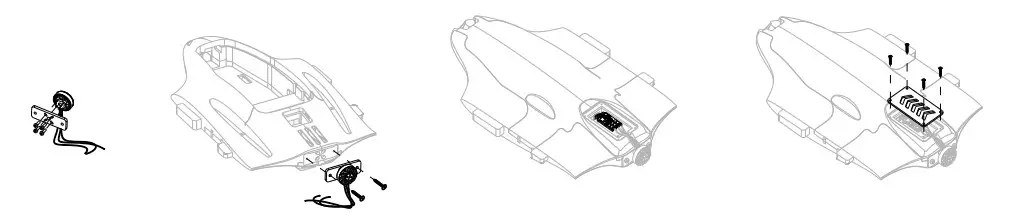

Glue the upper plate in the fuselage, then glue the ESC and Motor mount plate.
Install the Motor and ESC.

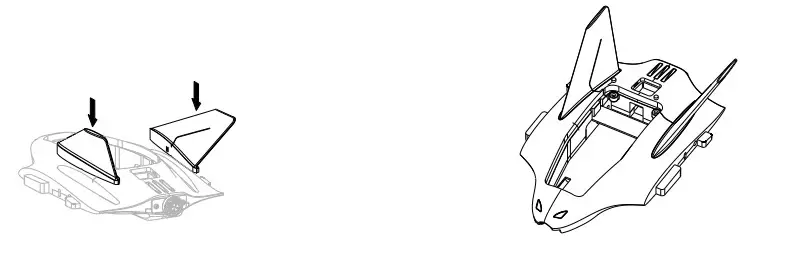

Glue the V tail.

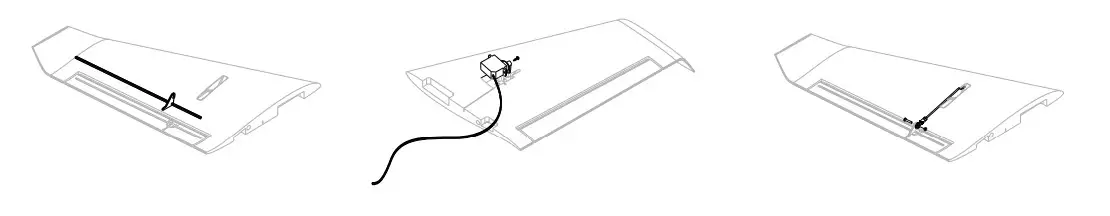

Glue the control horn, then glue the servo, install the push rod.

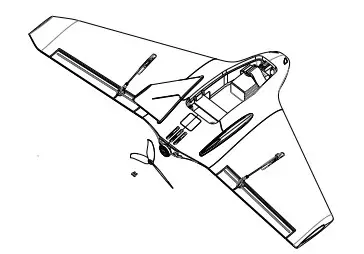

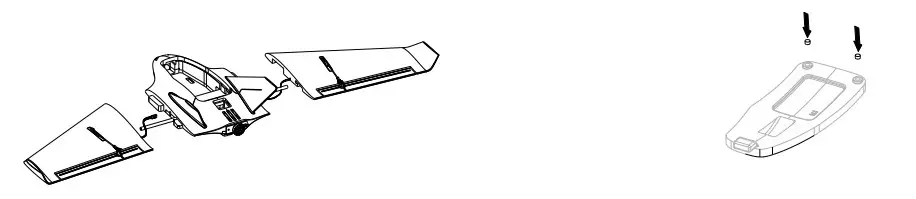

Glue wing , then glue the release hock and magnet on the fuselage cover.

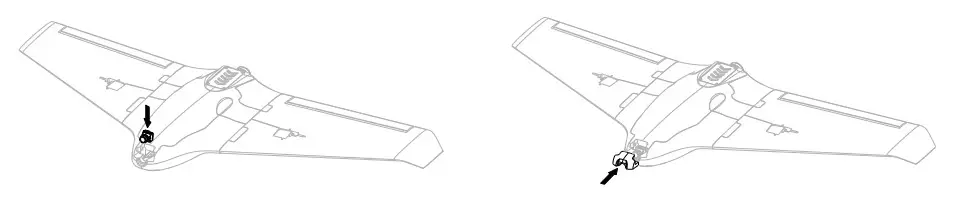

Install the camera, then glue the nose.
Install the Propeller, battery, and receiver.
Tx500 VTX User manual
| Band | Channel | |||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Airwave/FS | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Race Band | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| L Band | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
VTX Specs
Voltage input: 2~6S Lipo
Frequency:5.3~5.9Ghz
Power: 100/200/500mw Switchable
Power consumption: 9V 1.1A
VTX Setting
- Hold the button 3 seconds into setting mode. In setting mode. short press the button to change the band.
- Then hold the button 3 seconds into CH setting mode, and short press the button to change CH.
- Hold the button 3 seconds to get into Power setting mode, there is a short bar on the LED, short press to switch power, 1 bar means 100mW, 2 bar means 200mW, 3 bar means 500mW.
VTX Wiring
Tips
This product is not toy, adult supervision is required for those under 14 years old!

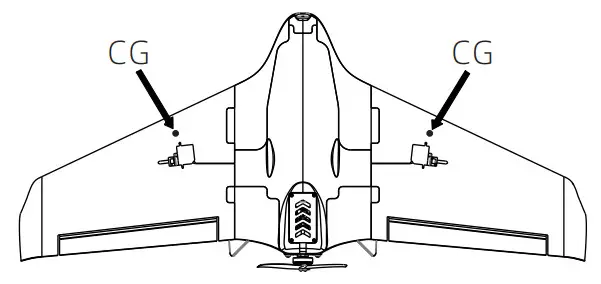

The CG is very important for mobile CG is marked on the bottom of the wing.
Check the CG carefully before flight.
The wing already has an upward design, so no need adjust the elevons upward.
