QUICK SETUP GUIDE
 |  |
1
2
3
 |  |
4
5
 |  |

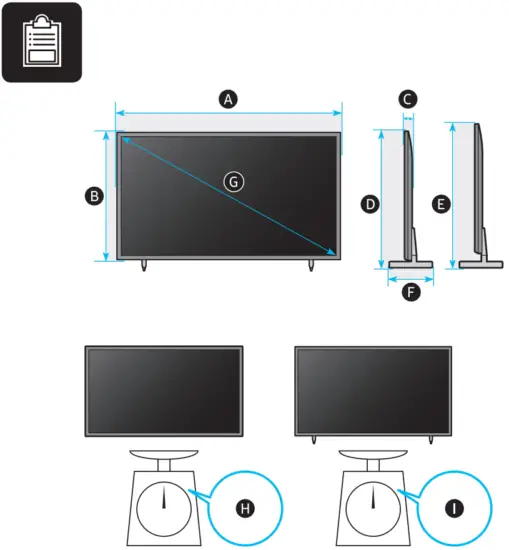

A | B | C | D | E | F | G | H | I | |
| UN75AU8*** | 66.0 Inches (1676.7 mm) | 37.8 Inches (960.3 mm) | 1.0 Inches (26.6 mm) | 39.5 Inches (1003.4 mm) | 40.5 Inches (1028.4 mm) | 131 Inches (332.2 mm) | 74.5 Inches | 70.8 lbs (321 kg) | 73.4 lbs (33.3 kg) |
| UN85AU8*** | 74.8 Inches (1900.9 mm) | 42.8 Inches (10861 mm) | 11 Inches (269 mm) | 44.5 Inches (1131.5 mm) | 45.5 Inches (1156.5 mm) | 15.5 Inches (394.7 mm) | 84.5 Inches | 91.5 lbs (41.5 kg) | 95.9 lbs (43.5 kg) |
*: 0~9, A~Z

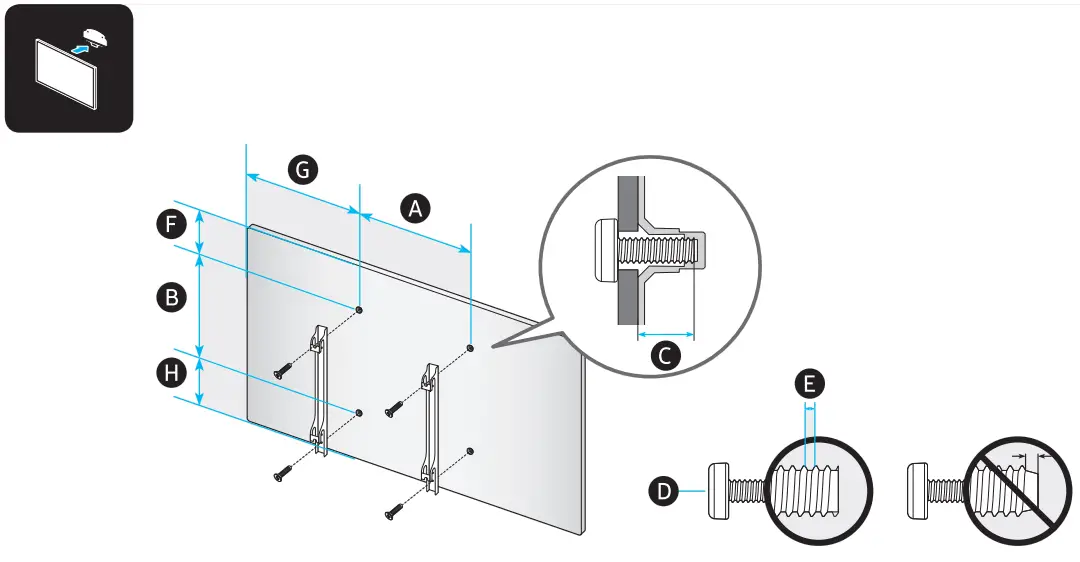

VESA | C(mm) | D × 4 | E(mm) | F(Inches) | G(Inches) |
| |
| UN75AU8*** | 400 x 400 | 11-13 | M8 | 1.25 | 101 | 25.0 | 11.8 |
| UN85AU8*** | 600 x 400 | 7.5 | 25.5 | 19.3 |
*: 0~9, A~Z
W Scan this QR code with your smartphone to see helpful videos.
