Quick Start GuideMiele CM5300 Coffee Machine

CM5300, CM5400, CM5500

These short instructions are not a substitute for the operating instructions supplied with the machine. Please read the operating instruction manual and pay particular attention to the Warning and Safety instructions.

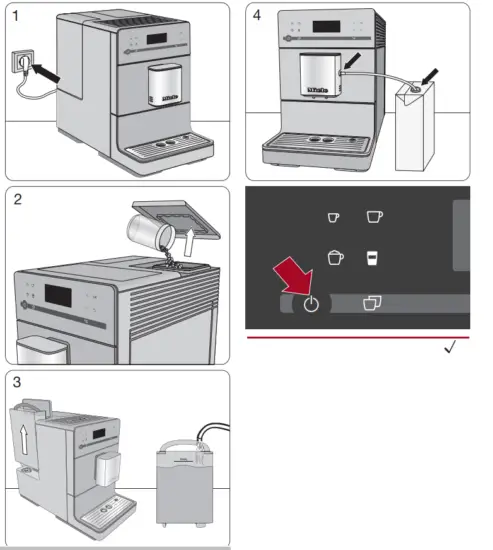

Before using it for the first time Miele CM5300 Coffee Machine - fig1

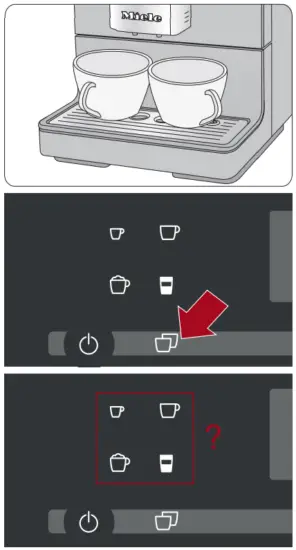

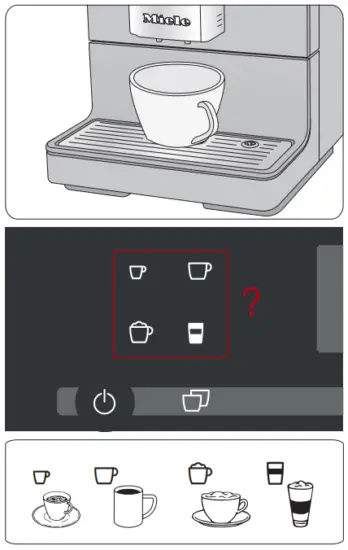

Making drinks

Miele CM5300 Coffee Machine - fig2

menu: Autres boissons : Ristretto / Café longlatte / Lait chaud / Mousse de lait

Miele CM5300 Coffee Machine - fig3

menu: Other drinks: Ristretto / Long coffee / Caffè latte / Hot milk / Milk froth

Descale

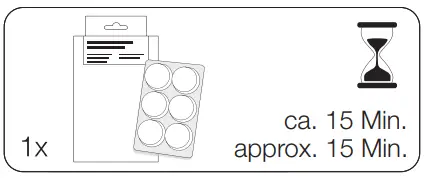

Miele CM5300 Coffee Machine - fig4

Descale OK
Miele CM5300 Coffee Machine - fig5

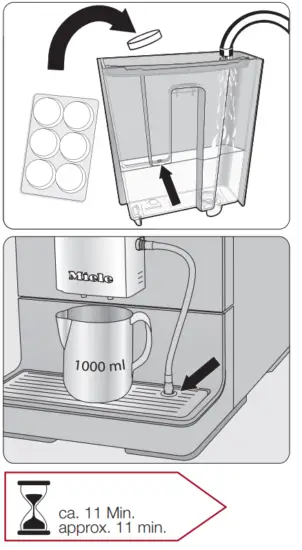

Fill water container with a descaling agent and lukewarm water up to the Miele CM5300 Coffee Machine - icon symbol and place in the appliance

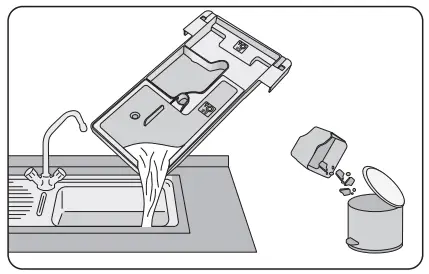

Miele CM5300 Coffee Machine - fig6Miele CM5300 Coffee Machine - fig7

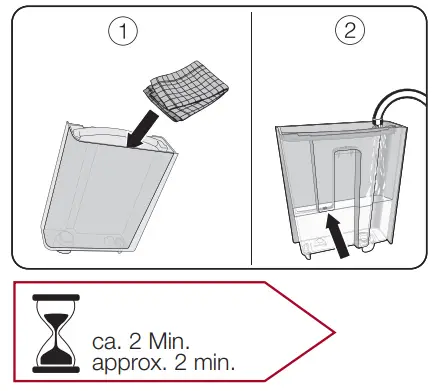

Rinse the water container and fill with fresh tap water up to the Miele CM5300 Coffee Machine - iconsymbol

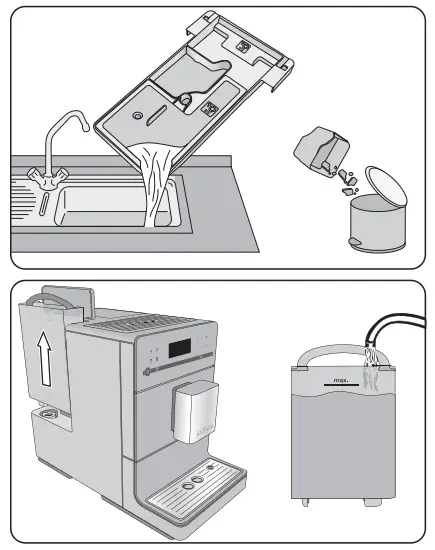

Miele CM5300 Coffee Machine - fig8Miele CM5300 Coffee Machine - fig9Insert the drip tray and the waste container. Process finished

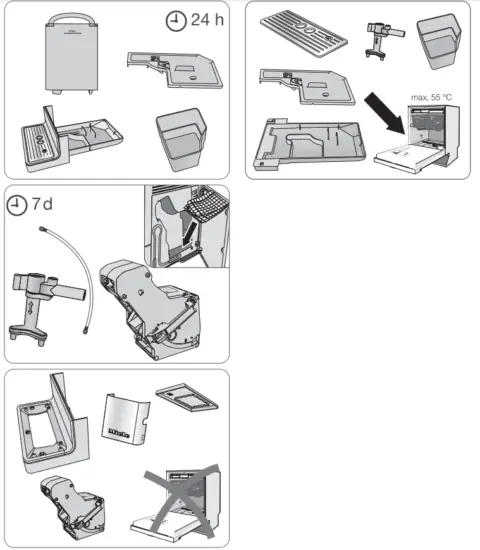

Cleaning and care

Miele CM5300 Coffee Machine - fig10

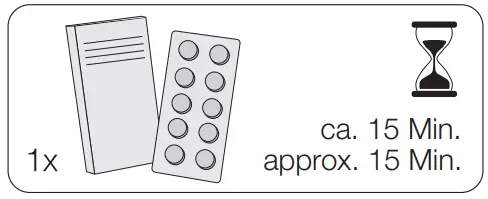

Degrease the brew unit

Miele CM5300 Coffee Machine - fig11

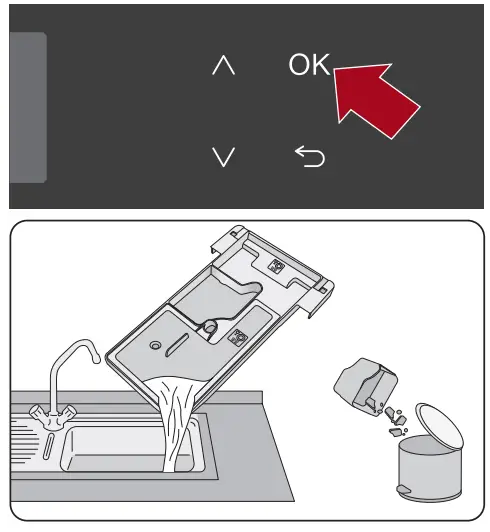

Degrease the brew unit and clean inside the machine OK

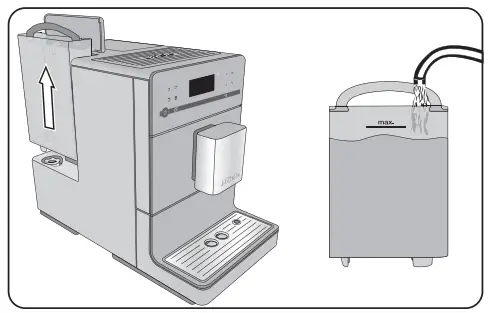

Miele CM5300 Coffee Machine - fig12Miele CM5300 Coffee Machine - fig13
Rinse the brew unit by hand and clean inside the machine

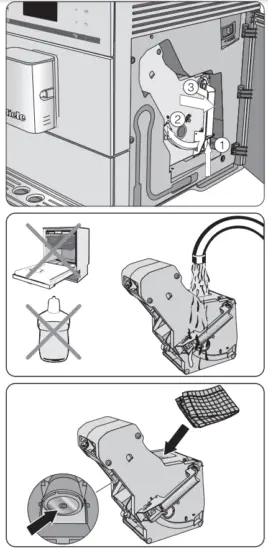

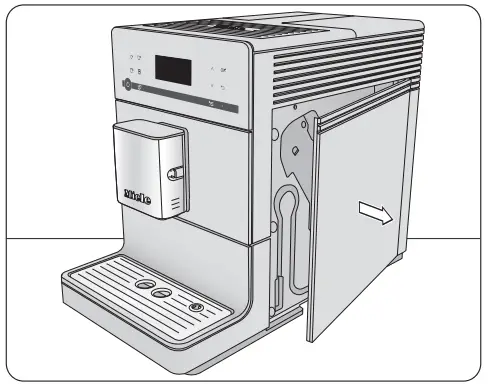

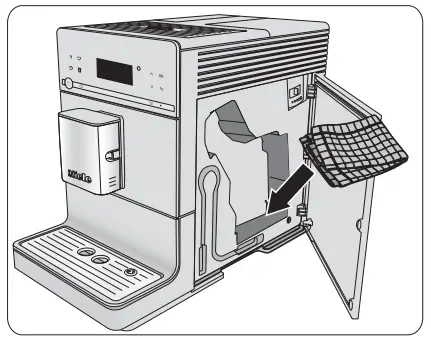

Miele CM5300 Coffee Machine - fig15Miele CM5300 Coffee Machine - fig16Miele CM5300 Coffee Machine - fig17Insert the brew unit with a cleaning tab in it and close the machine

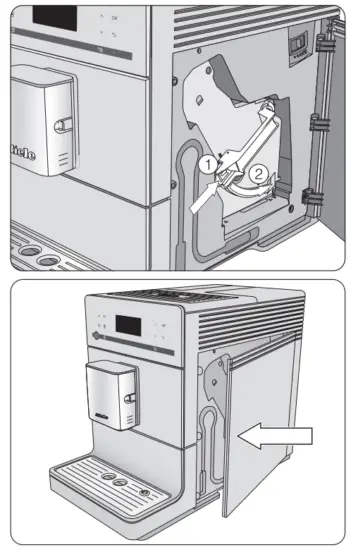

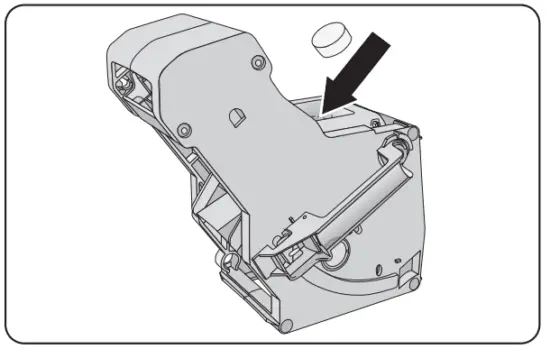

Miele CM5300 Coffee Machine - fig18Miele CM5300 Coffee Machine - fig19Place empty 1000 ml the container under the central spout OK

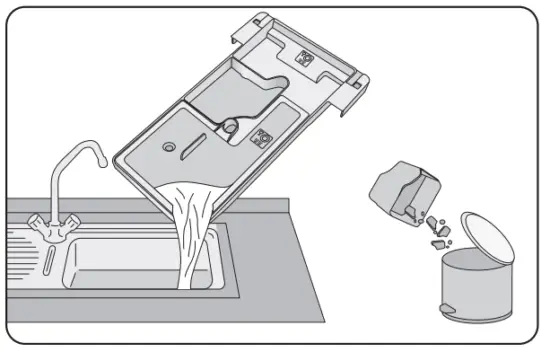

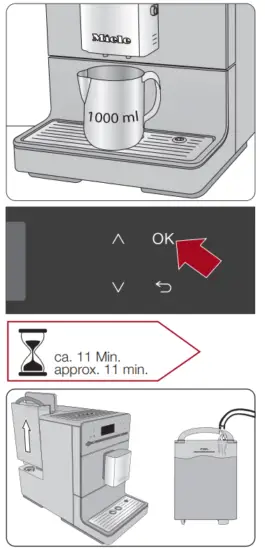

Miele CM5300 Coffee Machine - fig20Miele CM5300 Coffee Machine - fig21Insert the drip tray and the waste container. Process finished

Miele logo

M.-Nr. 10825021 / 01
