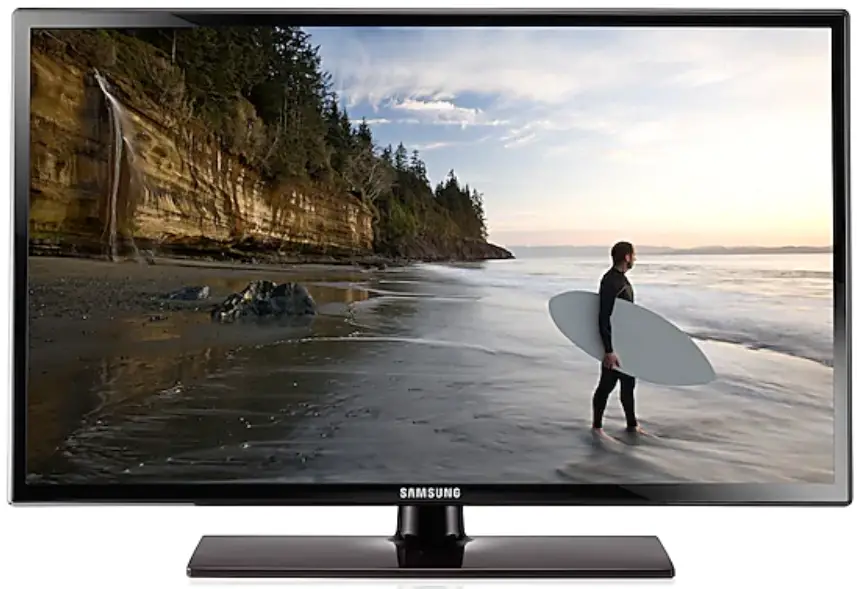

SAMSUNG BN68-12588A-03 Smart TV

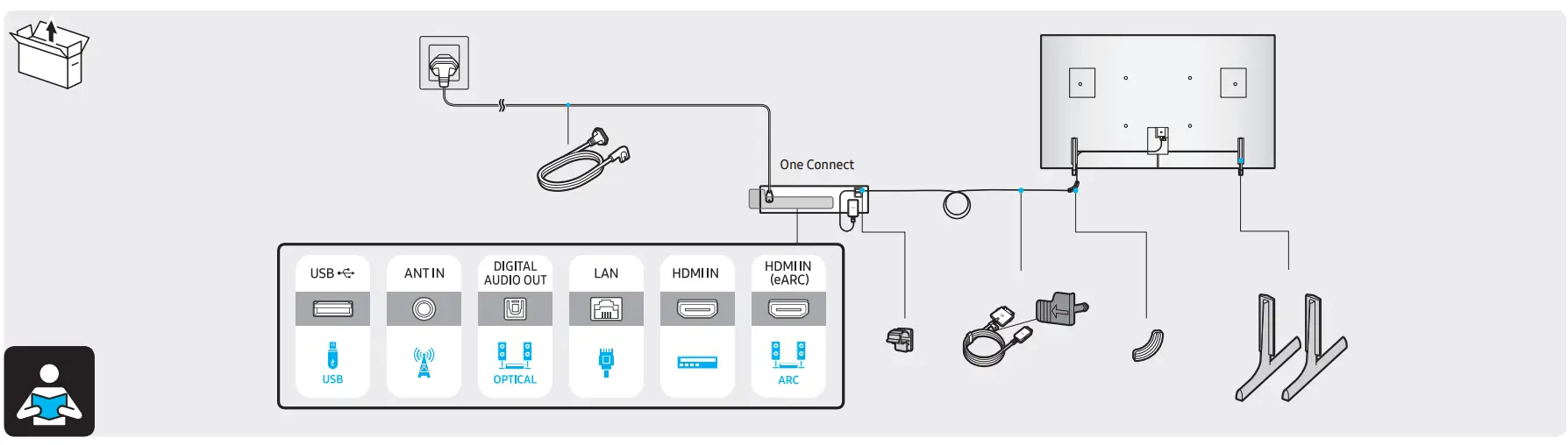

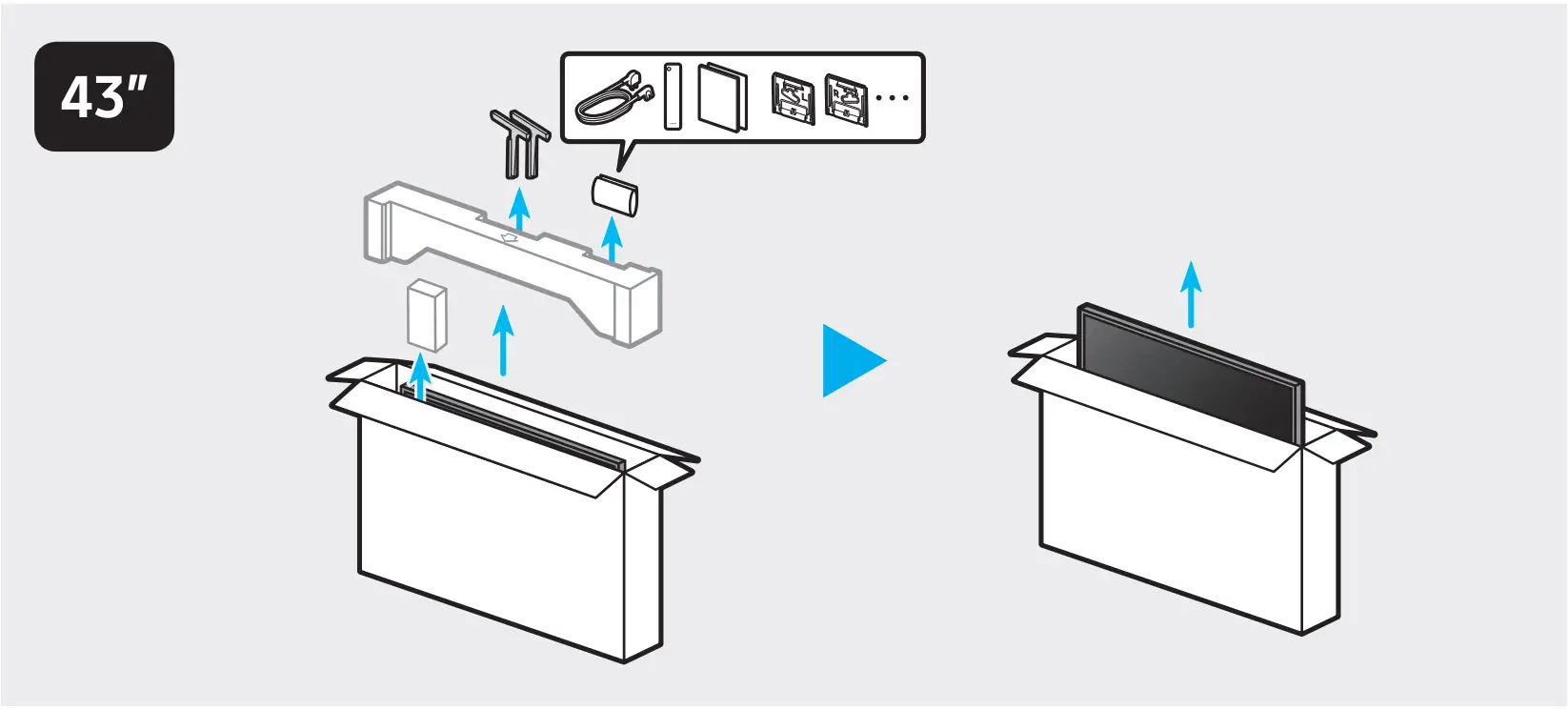

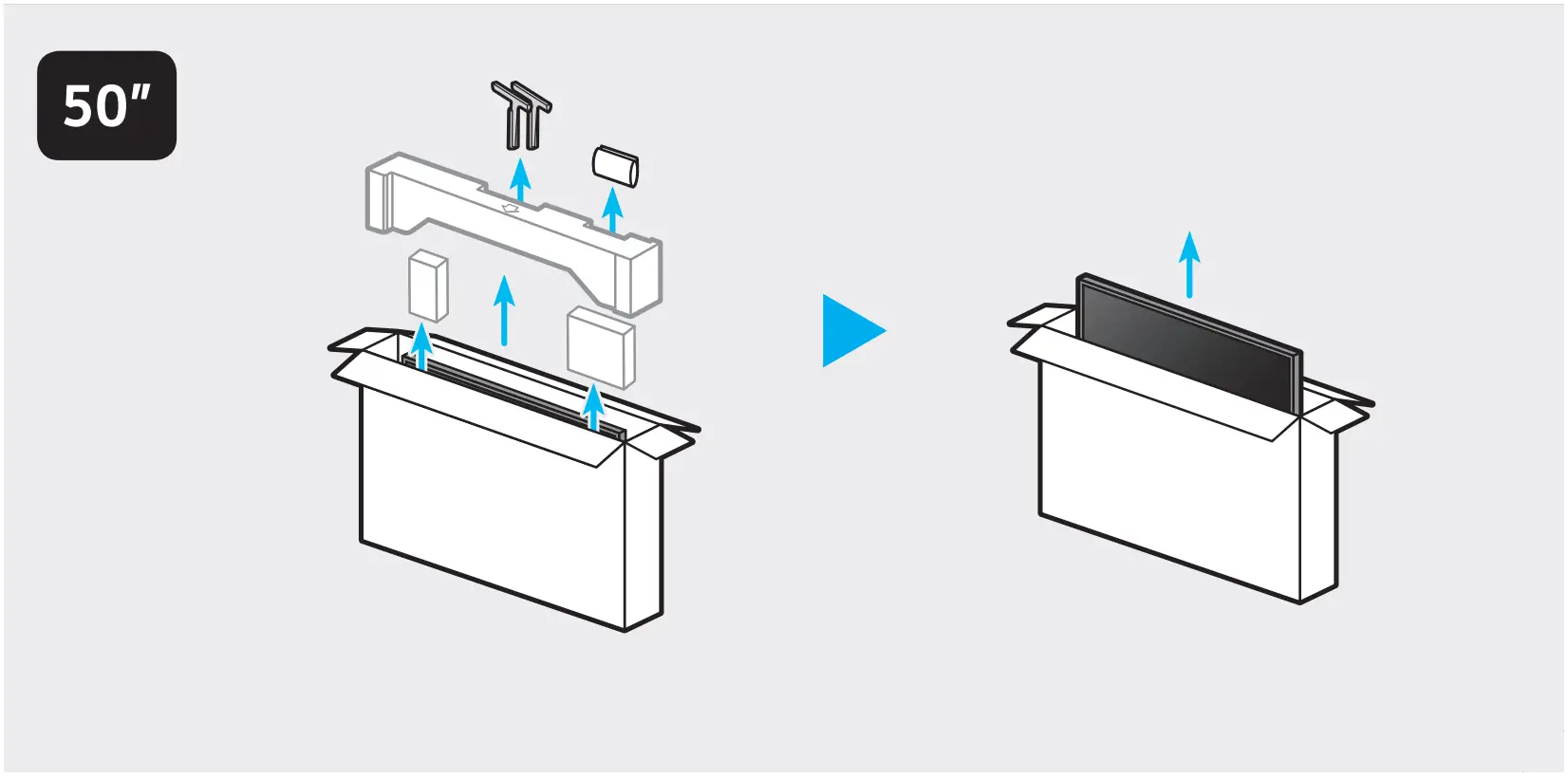

Package Content

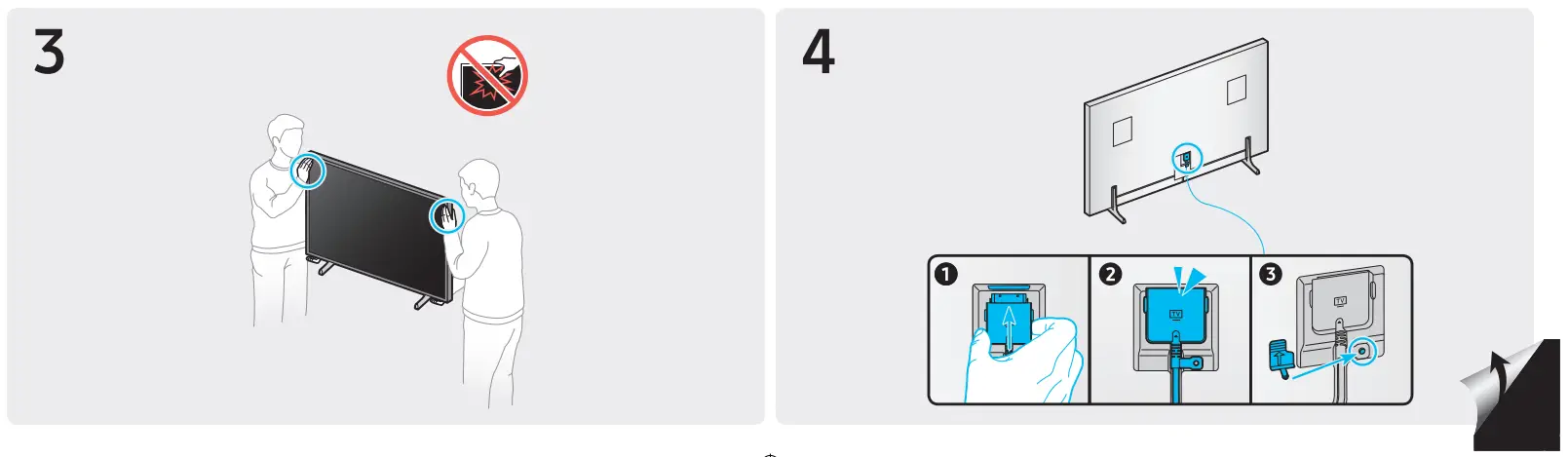

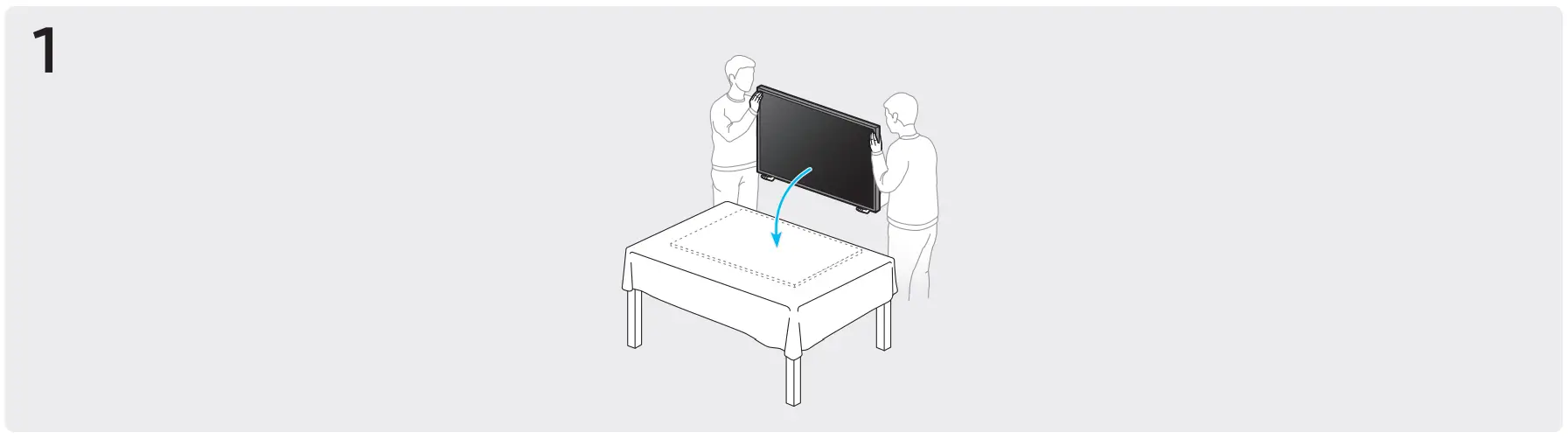

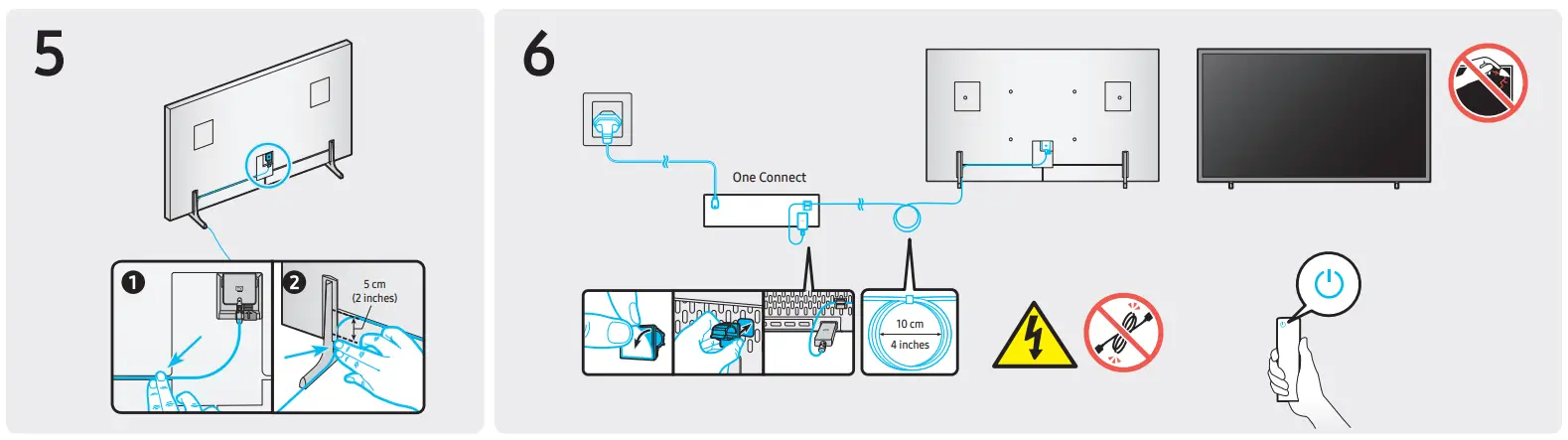

Installation Instructions
 |  |  |  |  |  |  |  |  | |

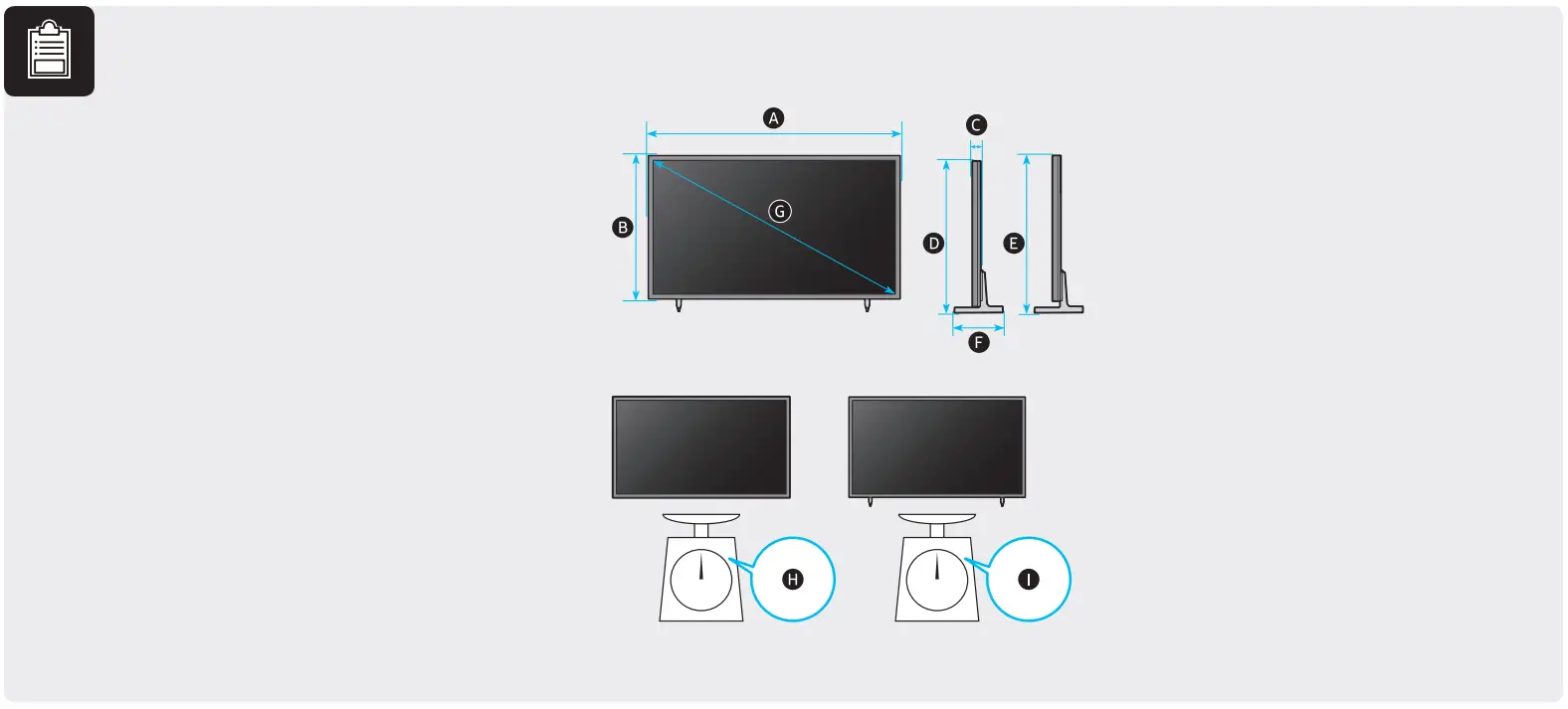

| 43LS03A 43LSA03 | 38.2 inches (969.5 mm) (96.95 cm) | 22.0 inches (557.8 mm) (55.78 cm) | 1.0 inches (24.9 mm) (2.49 cm) | 23.3 inches (591.9 mm) (59.19 cm) | 24.3 inches (616.9 mm) (61.69 cm) | 7.7 inches (196.8 mm) (19.68 cm) | 42.5 inches (108 cm) | 19.0 lbs (8.6 kg) | 19.6 lbs (8.9 kg) |
50LS03A 50LSA03 | 44.3 inches (1124.1 mm) (112.41 cm) | 25.4 inches (644.9 mm) (64.49 cm) | 1.0 inches (24.9 mm) (2.49 cm) | 26.7 inches (679.2 mm) (67.92 cm) | 27.7 inches (704.2 mm) (70.42 cm) | 9.0 inches (227.8 mm) (22.78 cm) | 49.5 inches (125 cm) | 26.0 lbs (11.8 kg) | 26.9 lbs (12.2 kg) |

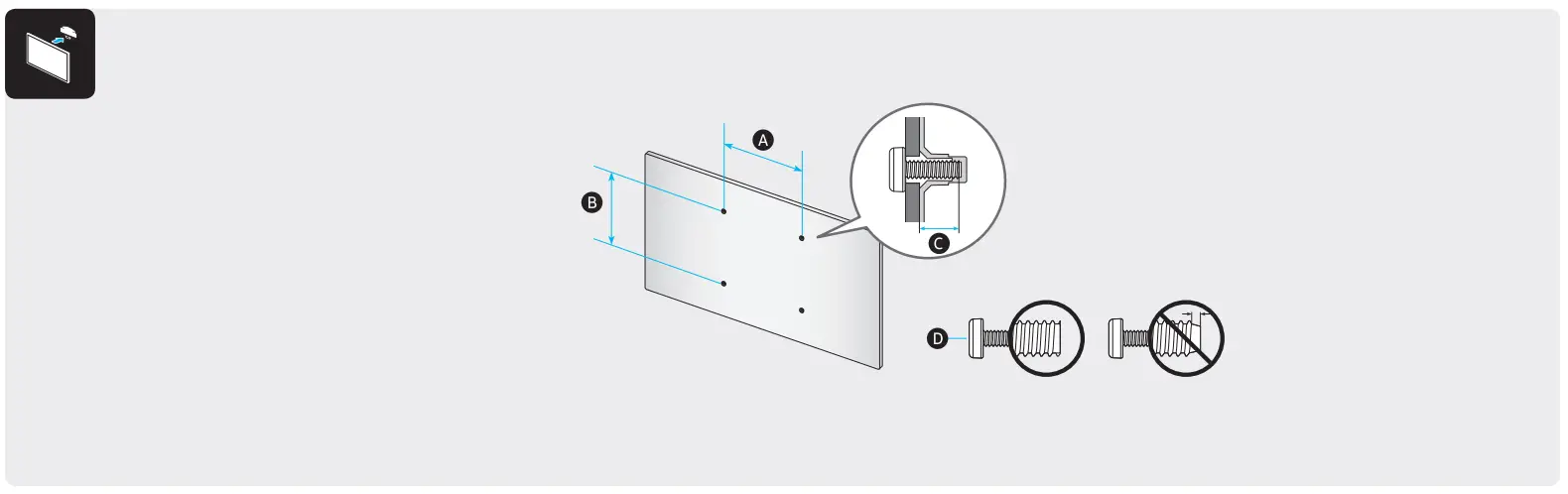

| VESA x (mm) | (mm) | x 4 | |
| 43LS03A 43LSA03 | 200 x 200 | 9-11 | M8 |
10-12 |
