QUICK SETUP GUIDE
BN68-15321A-00 Smart TV

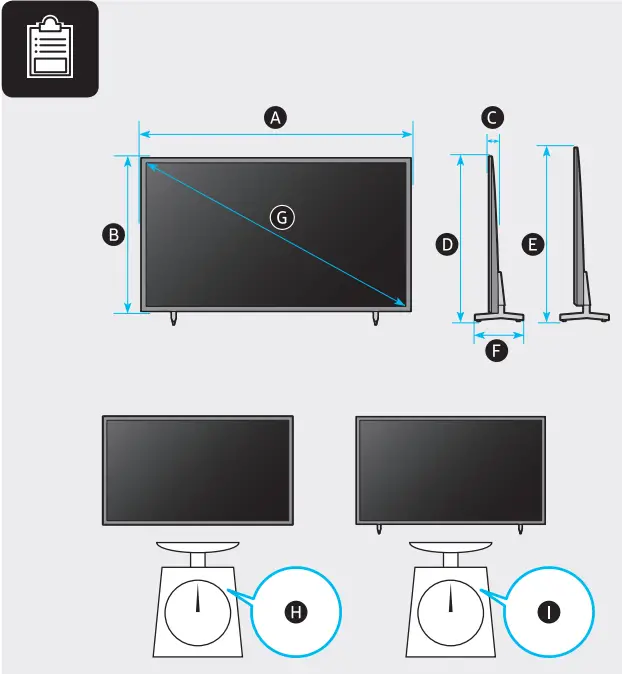

| A | B | C | D | E | F | G | H | I | |
| 55Q6*B | 48.5 inches (1232.1 mm) (123.21 cm) | 27.9 inches (708.3 mm) (70.83 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 29.4 inches (745.9 mm) (74.59 cm) | 30.4 inches (770.9 mm) (77.09 cm) | 8.8 inches (224.0 mm) (22.40 cm) | 54.6 inches (138 cm) | 34.2 lbs (15.5 kg) | 34.8 lbs (15.8 kg) |
| 60Q6*B 60QB6* | 53.3 inches (1353.0 mm) (135.30 cm) | 30.6 inches (776.3 mm) (77.63 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 32.2 inches (817.4 mm) (81.74 cm) | 33.2 inches (842.4 mm) (84.24 cm) | 10.8 inches (274.0 mm) (27.40 cm) | 60.1 inches (152 cm) | 41.0 lbs (18.6 kg) | 41.9 lbs (19.0 kg) |
| 65Q6*B 65QB6* | 57.1 inches (1450.9 mm) (145.09 cm) | 32.7 inches (831.4 mm) (83.14 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 34.3 inches (872.2 mm) (87.22 cm) | 35.3 inches (897.2 mm) (89.72 cm) | 10.8 inches (274.0 mm) (27.40 cm) | 64.5 inches (163 cm) | 46.1 lbs (20.9 kg) | 47.0 lbs (21.3 kg) |
| 70Q6*B 70QB6* | 61.4 inches (1559.7 mm) (155.97 cm) | 35.5 inches (902.1 mm) (90.21 cm) | 1.0 inches (26.6 mm) (2.66 cm) | 37.0 inches (939.6 mm) (93.96 cm) | 38.0 inches (964.6 mm) (96.46 cm) | 12.6 inches (320.0 mm) (32.00 cm) | 69.5 inches (176 cm) | 62.8 lbs (28.5 kg) | 64.2 lbs (29.1 kg) |

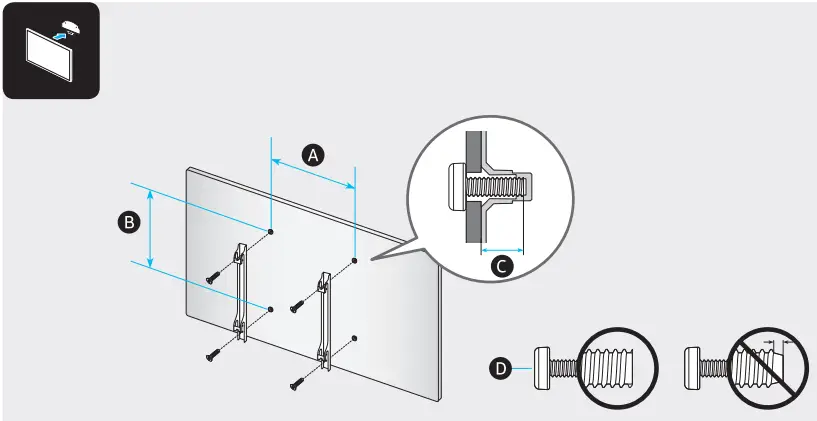

| VESA A x B (mm) | C (mm) | D x 4 | |
| 55Q6*B | 200 X 200 | 13-Nov | M8 |
| 60Q6*B 60QB6* | 400 X 300 | ||
| 65Q6*B 65QB6* | |||
| 70Q6*B 70QB6* |
BN68-15321A
