SAMSUNG BN68-15293A-00 Smart TV
QUICK SETUP GUIDE

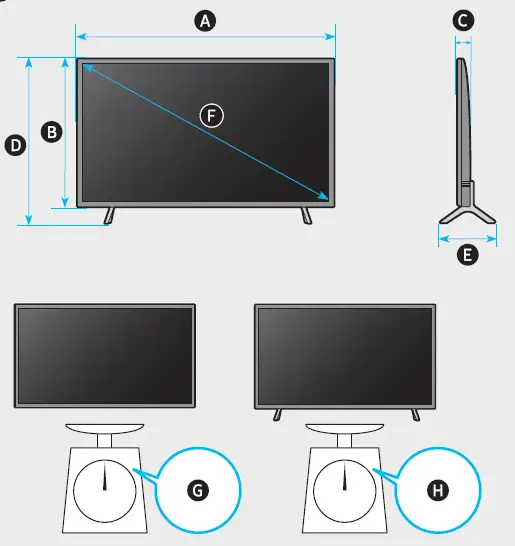

| 58AU7*** 58UA7*** | 50.8 inches (1291.0 mm) (129.10 cm) | 29.5 inches (748.6 mm) (74.86 cm) | 2.4 inches (59.9 mm) (5.99 cm) | 32.5 inches (824.3 mm) (82.43 cm) | 9.9 inches (250.2 mm) (25.02 cm) | 57.5 inches (146 cm) | 33.5 lbs (15.2 kg) | 34.0 lbs (15.4 kg) |
| 60AU7*** 60UA7*** | 53.2 inches (1351.3 mm) (135.13 cm) | 30.5 inches (775.1 mm) (77.51 cm) | 2.4 inches (59.9 mm) (5.99 cm) | 33.6 inches (852.8 mm) (85.28 cm) | 11.1 inches (282.1 mm) (28.21 cm) | 60.1 inches (152 cm) | 37.9 lbs (17.2 kg) | 38.6 lbs (17.5 kg) |
| 65AU7*** 65UA7*** | 57.1 inches (1449.4 mm) (144.94 cm) | 32.7 inches (830.3 mm) (83.03 cm) | 2.4 inches (59.9 mm) (5.99 cm) | 35.7 inches (906.6 mm) (90.66 cm) | 11.1 inches (282.1 mm) (28.21 cm) | 64.5 inches (163 cm) | 45.4 lbs (20.6 kg) | 46.1 lbs (20.9 kg) |
| 70AU7*** 70UA7*** | 61.3 inches (1556.2 mm) (155.62 cm) | 35.4 inches (899.3 mm) (89.93 cm) | 2.4 inches (60.5 mm) (6.05 cm) | 38.9 inches (988.1 mm) (98.81 cm) | 13.4 inches (341.1 mm) (34.11 cm) | 69.5 inches (176 cm) | 53.7 lbs (24.8 kg) | 55.8 lbs (25.3 kg) |
| 75AU7*** 75UA7*** | 65.9 inches (1673.2 mm) (167.32 cm) | 37.7 inches (958.2 mm) (95.82 cm) | 2.4 inches (59.9 mm) (5.99 cm) | 41.3 inches (1047.9 mm) (104.79 cm) | 13.4 inches (341.1 mm) (34.11 cm) | 74.5 inches (189 cm) | 67.0 lbs (30.4 kg) | 67.9 lbs (30.8 kg) |

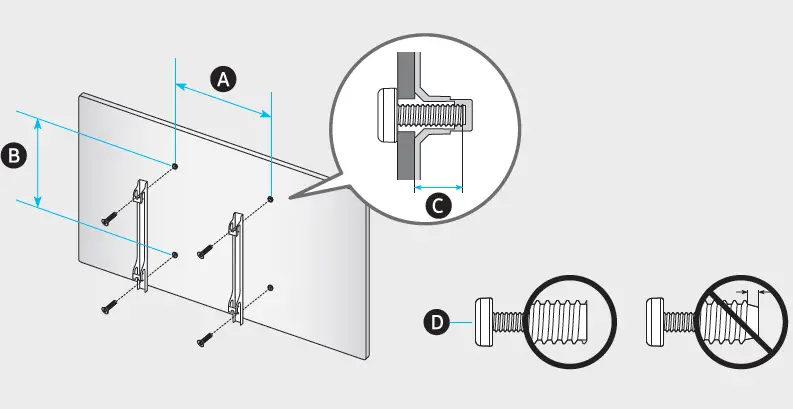

| VESA x (mm) | (mm) | x 4 | |
| 58AU7*** 58UA7*** | 400 x 300 | 20-22 | M8 |
| 60AU7*** 60UA7*** | |||
| 65AU7*** 65UA7*** | |||
| 70AU7*** 70UA7*** | |||
| 75AU7*** 75UA7*** | 400 x 400 |
