Arlo VMS3230 Wireless Home Security Camera System
No cords. No wires. No worries
From kids and pets to an empty home or after-hours business, you’ve got a lot to keep safe. Day or night, indoors or out, Arlo takes the wondering and worrying out of life with the 100% wire-free indoor/outdoor home monitoring system. Security is so simple—just place Arlo’s weatherproof cameras wherever you need them without needing to find a power outlet. They are battery powered and last up to 6 months. Then use the free Arlo app anytime, anywhere to see crystal-clear live and recorded HD video. Arlo cameras automatically detect movement, send alerts to your phone, and record video to your free private cloud storage to review anytime. Arlo is always ready to go when you are—add extra cameras to your system with the touch of a button.
Features
- 100% Wire-Free
Free of ugly power cords and wiring hassles - Night Vision
See what’s happening even in the dark - HD Quality
Enjoy amazingly sharp 720p live video
- Motion Alerts
Receive push notifications and emails if anything moves - Weatherproof
Put Arlo anywhere —indoors or out - FREE Cloud Storage
Store & review recent activity with cloud storage

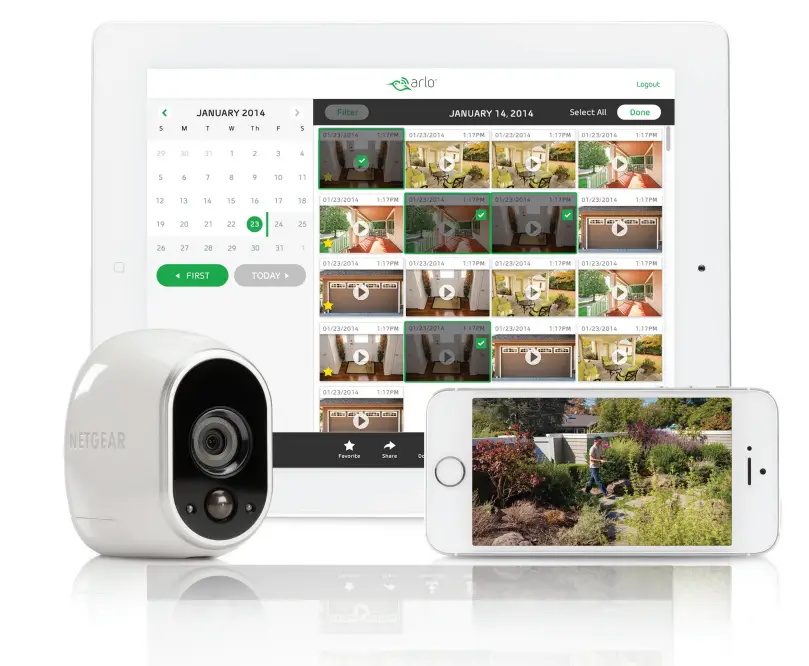

Watch anywhere
With FREE iOS & Android® apps
SYSTEMS
With an Arlo system, you’ll have everything you need to get started. Just connect the base station to your WiFi router, sync your cameras, fire up the free Arlo app, and you’re done in minutes. Make sure to upgrade your service plan and add more cameras to make the most out of your system.

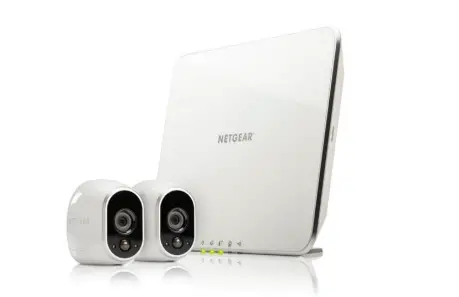

2 Wire-Free HD Camera Security System
SYSTEM INCLUDES
- (2) 100% Wire-Free HD Cameras with Night Vision
- (1) Arlo Base Station with power adapter
- (1) Ethernet cable
- (2) Magnetic camera mounts
- (2) Mounting screws
- (8) Lithium CR 123 photo batteries
- (1) Quick start guide
- (1) Window decal
REQUIREMENTS
- High-speed Internet connection– minimum 1 Mbps upstream recommended
- An available port on your router
CERTIFICATIONS
- FCC, IC, CE, UL
DIMENSIONS & WEIGHT
- Base Station
2.2 x 8.5 x 6.5 in (55 x 215 x 165 mm) 11.3 oz (320 g) - Camera:
2.8 x 1.7 x 2.6 in (72 x 44 x 66 mm) 4.3 oz (123 g) - Magnetic Mount:
2.1 x 2.1 x 0.9 in (54 x 54 x 23 mm) 1.4 oz (40 g) - Outdoor Mount:
2.3 x 2.3 x 4.8 in (58 x 58 x 122 mm) 4.8 oz (135 g) - Table/Ceiling Mount:
3.0 x 3.5 in (74 x 90 mm)
5.4 oz (154 g) - Replaceable Silicone Skins:
2.91 x 1.77 x 2.64 in (74 x 45 x 67 mm) 0.65 oz (18.5 g)
WARRANTY
CAMERA
- High Definition video resolution
- H.264 format
- Fixed focus range—2 feet to infinity
- 110° Field of view
- Digital pan & zoom
- Night Vision:
850 nm LEDs: illuminates up to 25 feet
IR cut-off filter - 4 video channels
- Imaging Sensor:
Full color
CMOS
Auto-adaptive white/black balance and exposure - Battery level indicator
- 4 to 6-month battery life1
- Motion Detection is adjustable up to 15 feet
- Automatic email alerts and push notifications
- Weatherproof:
Operating temperature: 14° to 122° F
(-10° C to 50° C)
Waterproof: IP65
BASE STATION
- Wireless:
Frequency: 2.4GHz 802.11n
Range: 300 feet line of sight - Fast Ethernet interface port
- Indicator LEDs:
Power
Internet
Camera
Smart Home
USB - IP Configuration DHCP
- Internal antenna
- Processor & Memory:
500MHz MIPS 74K processor
128MB flash; 128MB RAM
This product comes with a limited warranty that is valid only if purchased from a NETGEAR-authorized reseller.
Weight does not include batteries of 0.6 oz (17 g) each.
- Expected battery life is 4 to 6 months with recommended settings and typical usage. Individual results may vary.
- The camera range is up to 300 ft. (line of sight). For indoor installations, range will decrease depending on environmental factors, including construction materials and methods, and wireless interference. Wireless coverage is suitable for a typical 2,500-square-foot residence.
©2016 NETGEAR, The NETGEAR logo, Arlo and the Arlo logo are trademarks or registered trademarks of NETGEAR, Inc. Any other trademarks herein are for reference purposes only.
Frequently Asked Questions
I enjoy how easily I can access it from anywhere with a cloud-based IP camera, for example. I have lightning-fast fibre optic internet and an Asus router with four antennas that blast out a strong signal. Despite the fact that my building is tall and substantial, the farthest camera, which is located 70′ distant, still receives a strong pull signal from the router. The router is an important element in this. Additionally, the fibre is a huge, huge assist.
This system may essentially be configured remotely in any way to meet your demands and the needs of each camera. It’s a really simple system that will work nicely for you.
Yes. Under the housing for the battery, there is a USB port.
It broadcasts its own signal on an unknown band. It might be susceptible to some sort of interference or jamming, I’m sure. I advise looking for a professional solution if you genuinely believe there is a chance someone will go to the work of learning your wireless security camera’s frequency and jamming it.
Presently, no. The USB ports are not yet functional. They will be utilized as Netgear begins to include additional gadgets that can utilize the base station in the future. I’ve read a lot of information on their website, and I think a future firmware upgrade may add support for the external storage of video.
The cameras are usually used outside, and the batteries last for roughly 9 months. Although you may turn the cameras off, I believe they only draw power when you are observing or when motion is detected.
Without the base station, these are merely the cameras themselves.
The data I create each day from the cameras’ 30-second footage total about 50 MB. So the videos will typically total 1.5 GB over the course of a month.
Yes, you can turn on and off the Arlo from your house using your phone.
Yes. I was able to simultaneously stream from both of my cameras.
