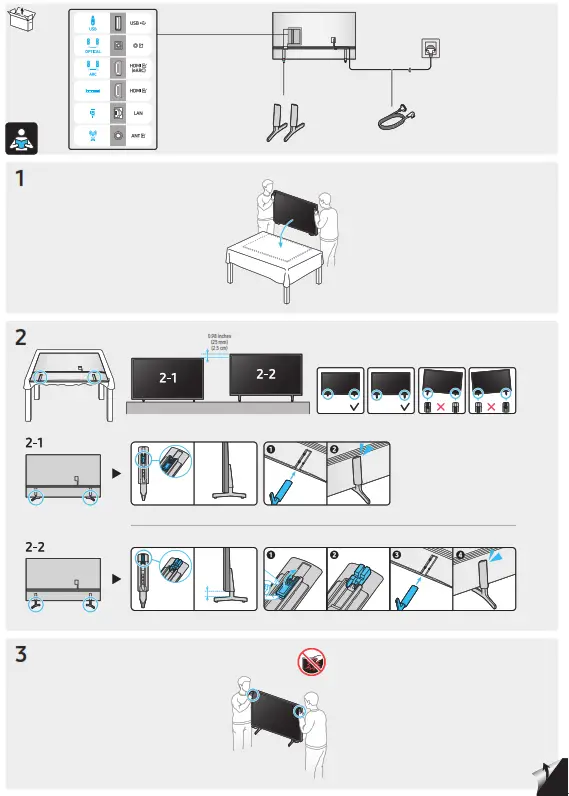

QUICK SETUP GUIDE
BN68-15310A-00 Smart TV

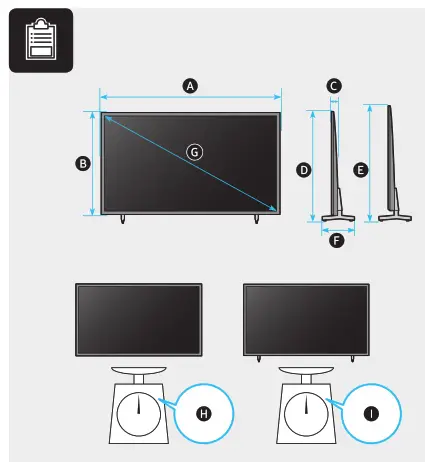

| A | B | C | D | E | F | G | H | I | |
| 43BU8*** 43UB8*** | 38.0 inches (965.5 mm) (96.55 cm) | 22.0 inches (559.9 mm) (55.99 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 23.6 inches (599.0 mm) (59.90 cm) | 24.6 inches (624.0 mm) (62.40 cm) | 8.1 inches (205.6 mm) (20.56 cm) | 42.5 inches (108 cm) | 179 lbs (8.1 kg) | 18.5 lbs (8A kg) |
| 50BU8*** 50UB8*** | 44.0 inches (1118.3 mm) (111.83 cm) | 25.4 inches (644.6 mm) (64.46 cm) | 1.0 inches (25.7 mm) (2.57 cm) | 26.9 inches (683.6 mm) (68.36 cm) | 27.9 inches (708.6 mm) (70.86 cm) | 9.0 inches (228.8 mm) (22.88 cm) | 49.5 inches (125 cm) | 23.6 lbs (10.7 kg) | 24.5 lbs (11.1 kg) |
* : 0~9, A~Z

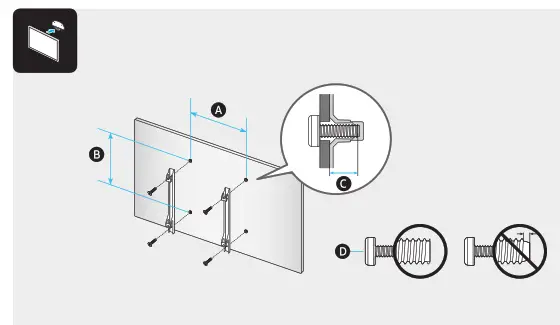

| VESA 0 x 0 (mm) | e(mm) | 0 x 4 | |
| 43BU8*** 43UB8*** | 200 x 200 | 11-13 | M8 |
| 50BU8*** 5OUB8*** |
* : 0~9, A~Z
BN68-15310A
