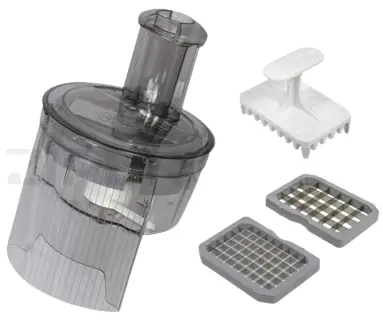

Bosch Muz5cc2 Cube Cutter User Manual (+ PDF)

with a kitchen machine from the same series MUMS2, MUMS4, MUM5.
With genuine parts and accessories.
for cutting up, shredding and grating food.
For dicing food.
Only take hold of the cutting discs by the edge.
Never touch the sharp blades and edges with bare hands.
Do not reach into the filling shaft.
Only use the pusher to push down ingredients.
Never assemble the accessories on the base unit.
Only attach and remove accessories once the drive has stopped and the appliance has been unplugged.
Only use the accessories once fully assembled.
The accessories should only be used in the intended operating position.

Avoiding material damage

Do not process food that contains hard components, e.g. bones, gristle or stones.
Do not insert objects into the filling shaft or housing, e.g. wooden spoons.
Before use, check the filling shaft and housing for foreign objects.
Do not apply great force with the pusher.
Do not process any frozen food.

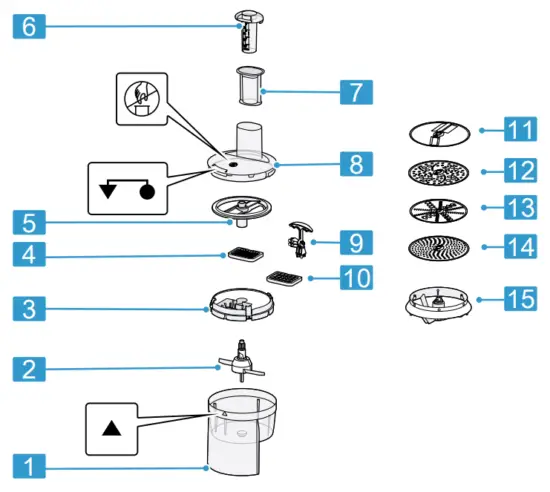

Overview

Housing
Drive shaft
Base holder
Cutting grid, small Depending on the appliance specifications
Cutter disc
Measuring beaker
Pusher
Lid with integrated filling shaft
Cutting grid cleaner
Cutting grid, large1
Reversible cutting disc, thick/thin1
Coarse grating disc1
Reversible shredding disc, coarse/ fine1
Fine grating disc1
Disc holder1 Depending on the appliance specifications

Symbols

Symbol	Description
	Do not reach into the filling shaft.
	Attach the lid
	Position marking housing

Cutting discs

Designation	Use
Reversible cutting disc, thick/ thin	Cutting food into thick or thin slices, e.g. fruit and vegetables. Marking: 1 = thick slices 3 = thin slices Note: Not suitable for processing hard cheese, bread, rolls or chocolate. Tip: Only cut up cooked potatoes once they have cooled down.

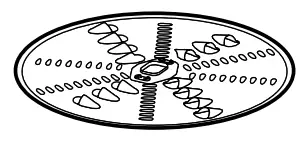

Reversible shredding disc, coarse/fine	Shredding food coarsely or finely, e.g. fruit, vegetables or cheese as Gouda or Edam. Marking: 2 = coarse side 4 = fine side Note: Not suitable for processing nuts or hard cheese, e.g. Parmesan. Tip: Shred soft cheese with the coarse side only.

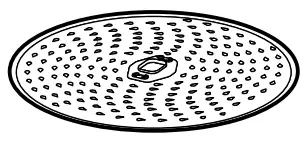

Fine grating disc	Shredding food medium fine, e.g. raw potatoes or hard cheese such as Parmesan. Note: Not suitable for processing soft cheese and cheese slices.
Coarse grating disc1	Grating food coarsely, e.g. raw potatoes for dumplings or potato pancakes.
Depending on the appliance specifications
	Depending on the appliance specifications

Overview of base units

This accessory can be used with different base units.

You can prepare your kitchen machine as shown.

A Kitchen machine from t he MUMS4 or MUM5 series

B Kitchen machine from the MUMS2 series

Using the accessories

Follow the illustrated instructions.

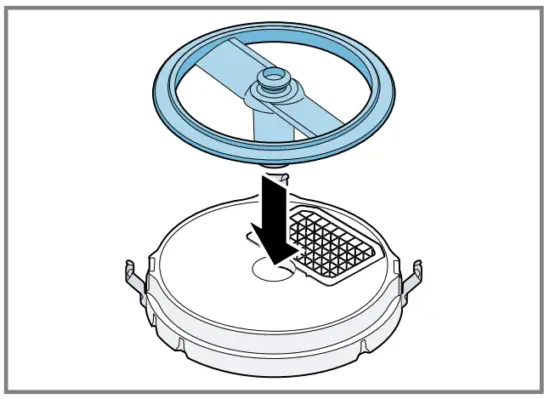

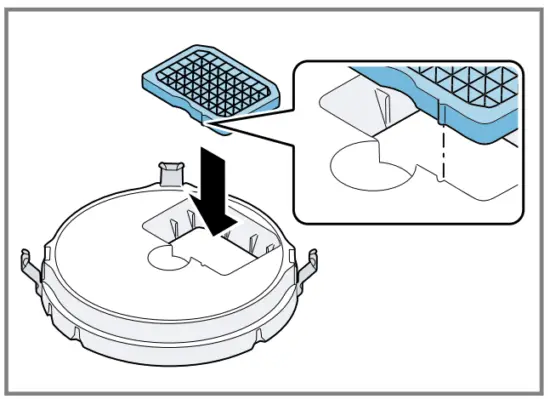

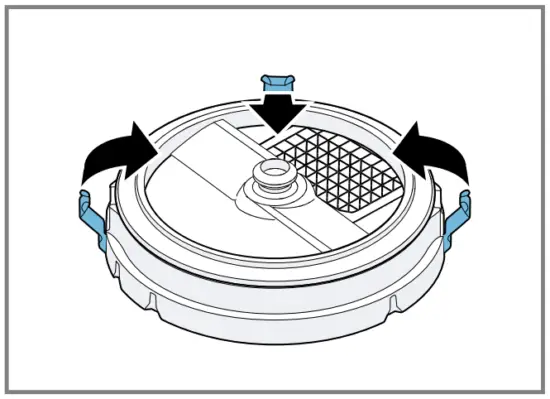

Assembling the cube cutter insert

Assembling the disc cutter insert

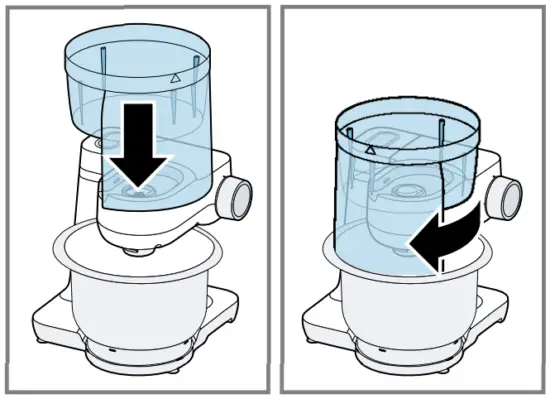

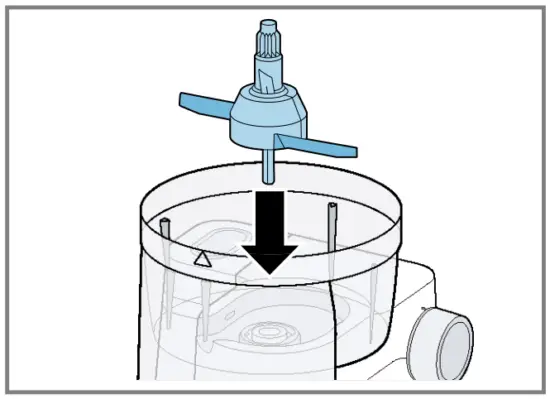

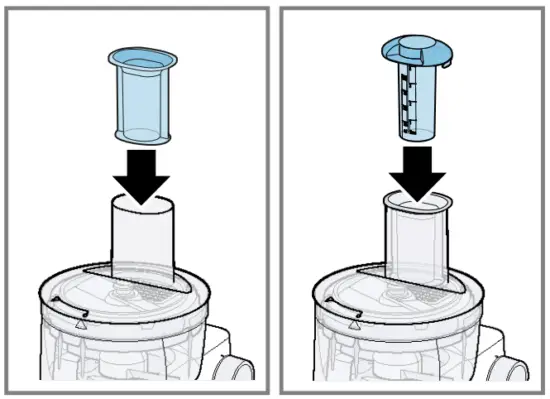

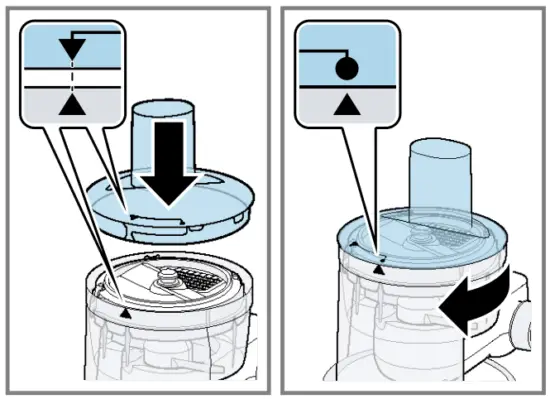

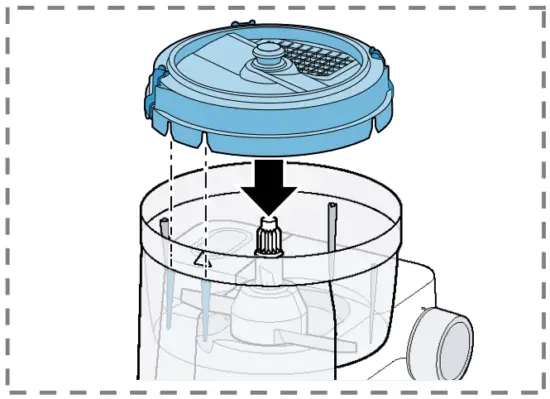

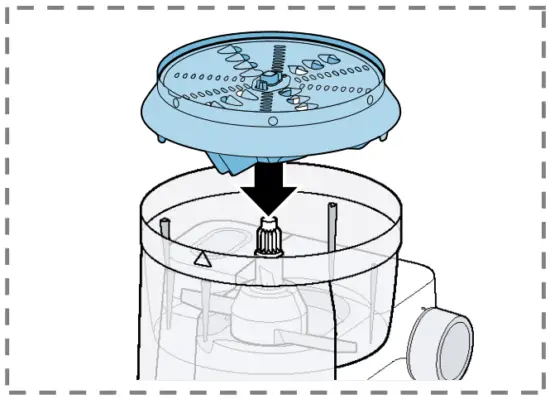

Fitting the accessory to the base unit

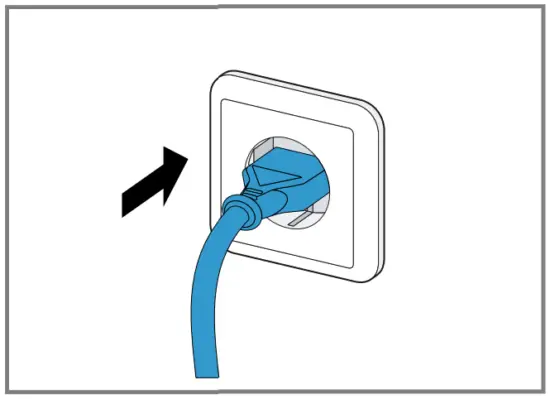

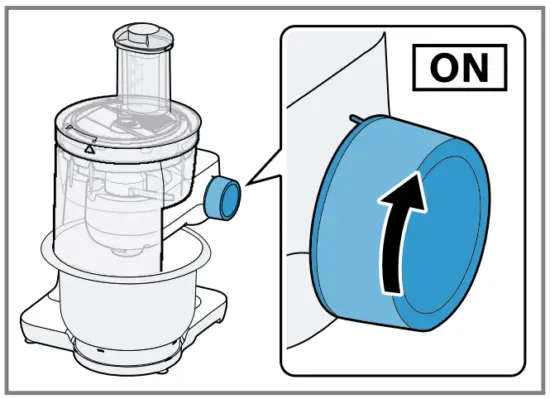

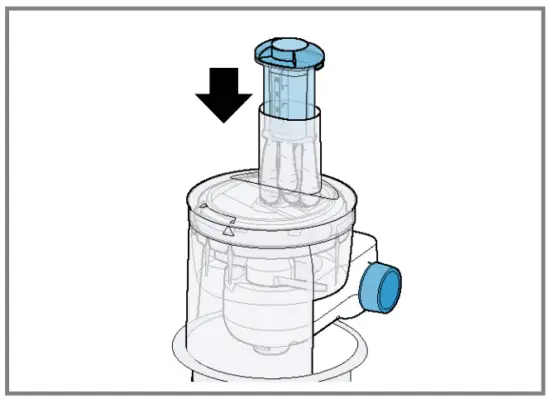

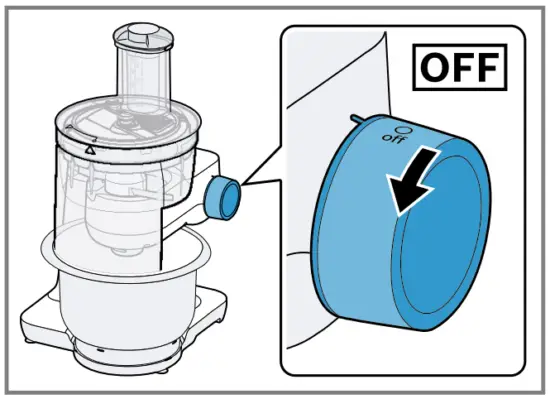

Using the accessories

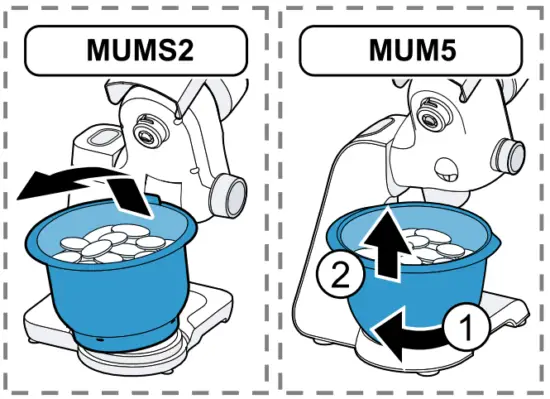

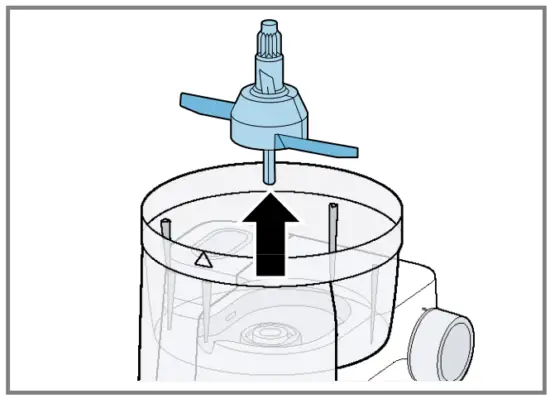

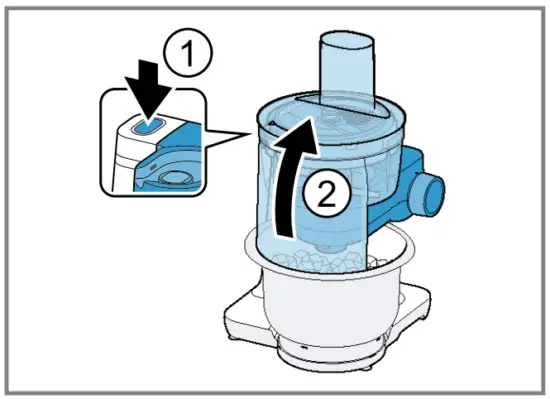

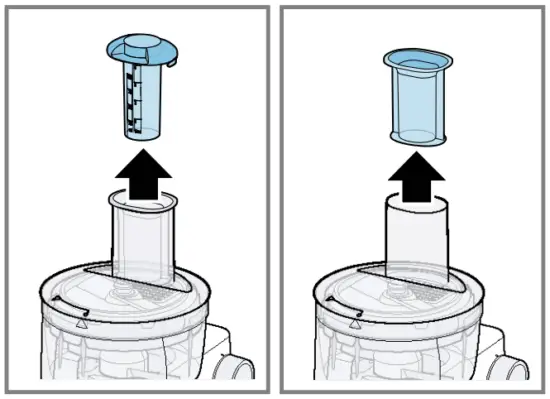

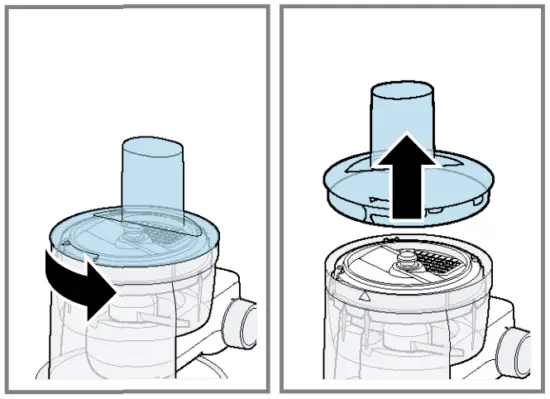

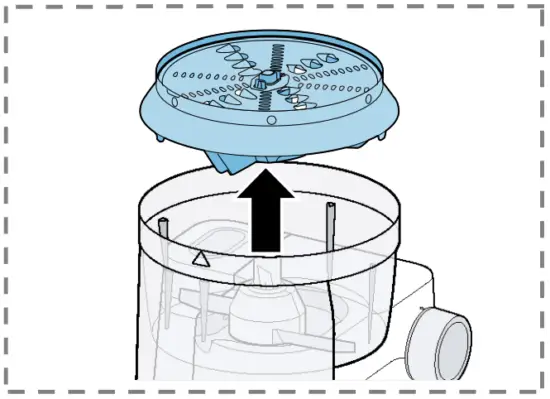

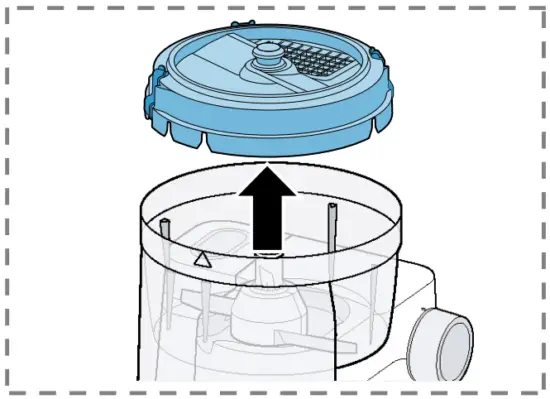

Removing accessories from the base

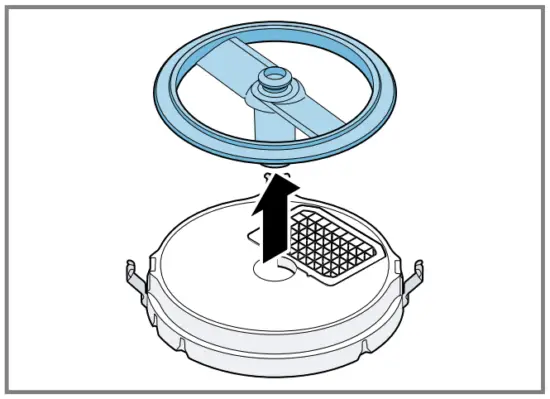

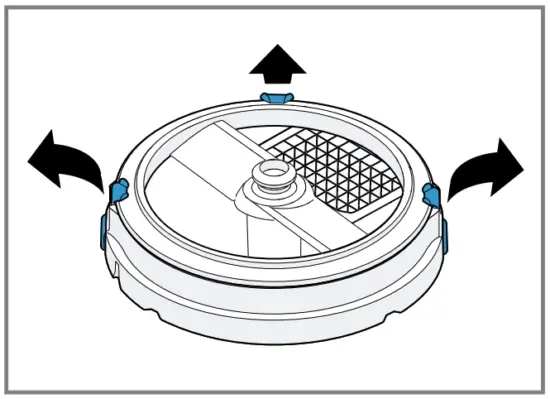

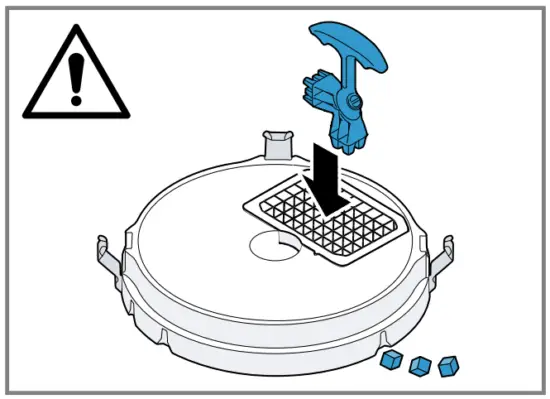

Disassembling the cube cutter insert

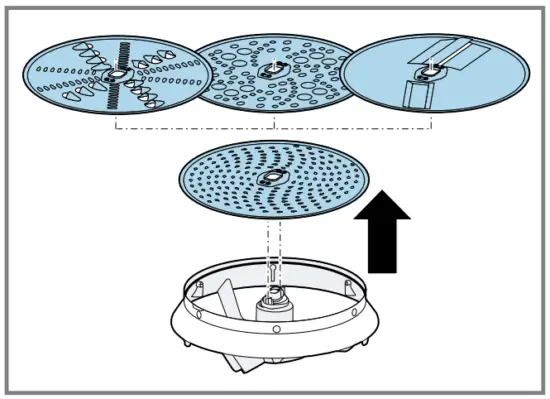

Disassembling the disc cutter insert

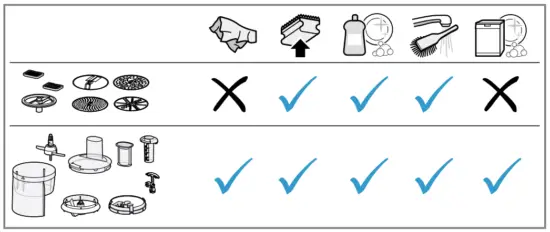

Cleaning the appliance and parts

Clean the individual parts as indicated in the table.

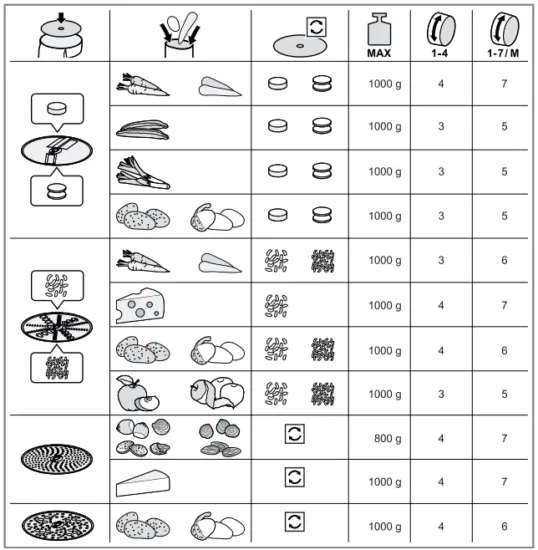

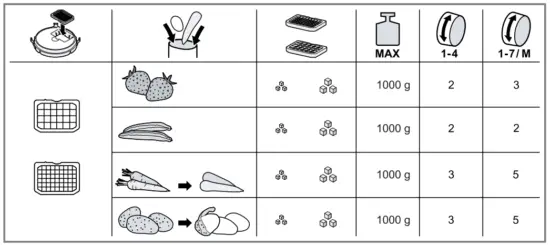

Application examples

This overview lists the ingredients and processing steps for various recipes.

Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting our after-sales service. This will avoid unnecessary costs.

Fault	Cause and troubleshooting
The accessory does not work.	An installed predetermined breaking point protects the drive from damage. Foreign objects cause the agitator paddle on the underside of the housing to break at the predetermined breaking point. To replace the insert, re-order from customer service quoting order number 623944. The accessory is not correctly assembled. Check whether the accessory has been correctly assembled.
Processed food does not fall into the bowl.	Outlet opening or housing is blocked. Finish processing and unplug from the mains. Remove the accessory. Take the accessory apart and remove the blockage.
