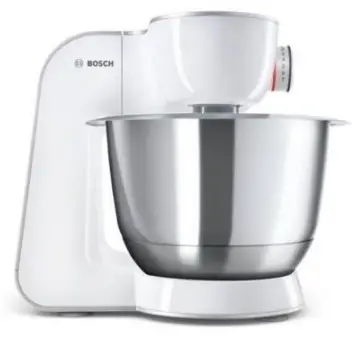

BOSCH MUZ5VL1 VeggieLove Slicer

Safety

Read this instruction manual carefully.
Observe the instructions for the base unit.

Only use the accessories:
with a kitchen machine from the same series MUMS2, MUMS4, MUM5. With genuine parts and accessories.

for cutting up, shredding and grating food.
Only take hold of the cutting discs by the edge.
Never touch the sharp blades and edges with bare hands.
Do not reach into the filling shaft.
Only use the pusher to push down ingredients.
Never assemble the accessories on the base unit.
Only attach and remove accessories once the drive has stopped and the appliance has been unplugged.
The accessories should only be used in the intended operating position.

Avoiding material damage

Do not process food that contains hard components, e.g. bones, gristle or stones.
Do not insert objects into the filling shaft or housing, e.g. wooden spoons.
Before use, check the filling shaft and housing for foreign objects.
Do not apply great force with the pusher.

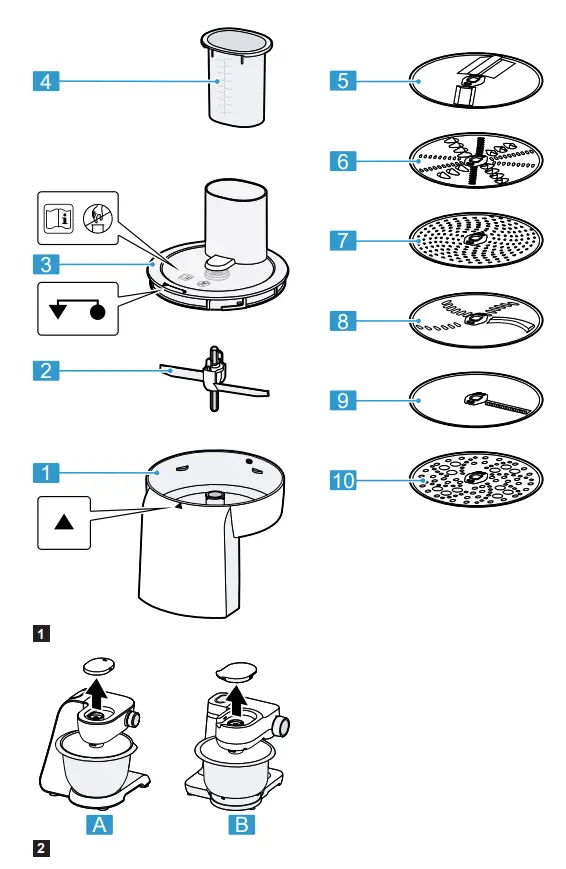

Components


1	Housing	Follow the instructions in the operating instructions.
2	Disc holder	Do not reach into the filling
3	Lid with integrated filling shaft	shaft.
4	Pusher and measuring jug	Attach the lid
5	Reversible cutting disc, thick/thin	Position marking housing
6	Reversible shredding disc, coarse/ fine
¹ Depending on the appliance specifica- tions

Symbols

Cutting discs		Designa Usetion
Designation	Use	Reversible Grating raw potatoes or cut- slicing / ting into slices.
Reversible cutting disc, thick/ thin	Cutting food into thick or thin slices, e.g. fruit and ve- getables. Marking: ¢ 1 = thick slices ¢ 3 = thin slices Note: Not suitable for pro- cessing hard cheese, bread, rolls or chocolate.	shredding Note: Not suitable for pro- disc1 cessing very fibrous foods, e.g. leek or mango. Asia veget- For cutting food into thin ables disc¹ strips, e.g. fruit and veget- ables.
	Tip: Only cut up cooked potatoes once they have cooled down.	¹ Depending on the appliance specifications
Reversible shredding disc, coarse/fine	Shredding food coarsely or finely, e.g. fruit, vegetables or cheese as Gouda or Edam. Marking: ¢ 2 = coarse side ¢ 4 = fine side	Overload protection The overload protection system prevents the motor and other components from be- ing damaged through being overloaded. If the continuous feed shredder is over- loaded or blocked, the disc holder shaft will break at the predetermined breaking point.
	Note: Not suitable for pro- cessing nuts or hard cheese, e.g. Parmesan. Tip: Shred soft cheese with the coarse side only.	Note: Spare parts with a predetermined breaking point are not covered by our war- ranty obligations. A new disc holder is available from customer service under order number 00630760.

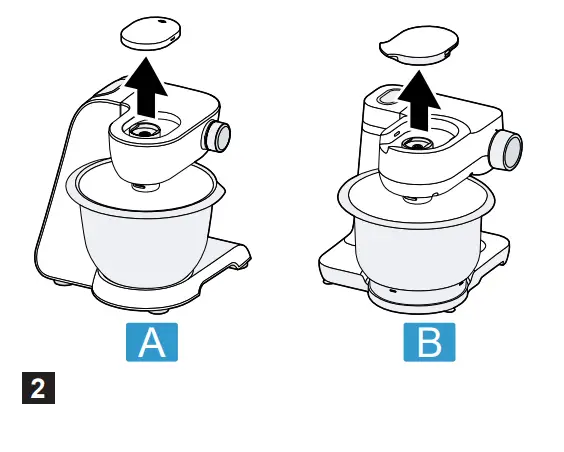

Fine grat- ing disc	Shredding food medium- fine, e.g. raw potatoes or hard cheese such as Parmesan. Note: Not suitable for pro- cessing soft cheese and cheese slices.	Overview of base units This accessory can be used with different base units. You can prepare your kitchen machine as shown. → Fig. 2
Coarse grating disc¹	Grating food coarsely, e.g. raw potatoes for dumplings or potato pancakes.	B	or MUM5 series Kitchen machine from the MUMS2 series
	Controls
¹ Depending on the appliance specifica- tions		Assembling the continuous feed

Controls

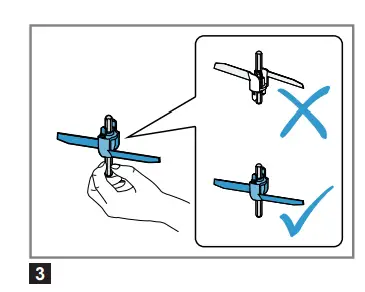

Assembling the continuous feed shredder

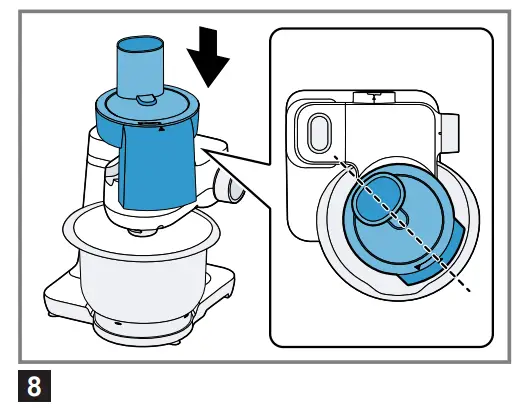

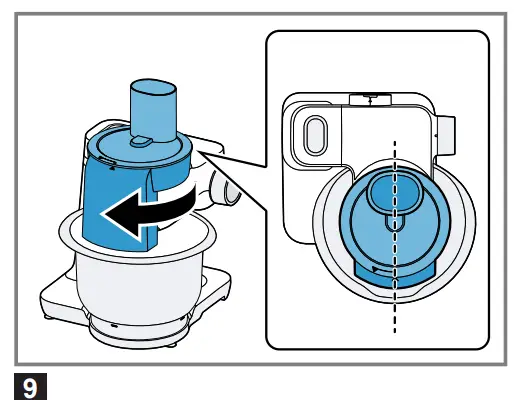

Fitting continuous feed shredder onto the base unit

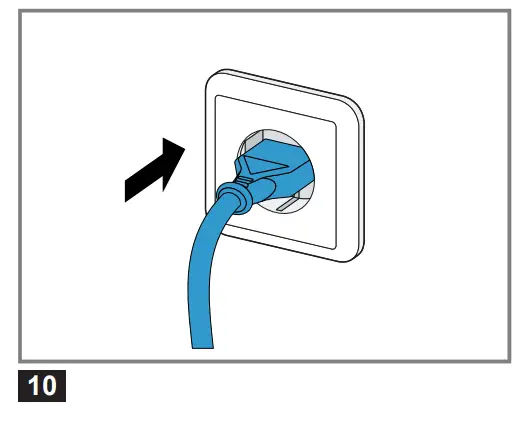

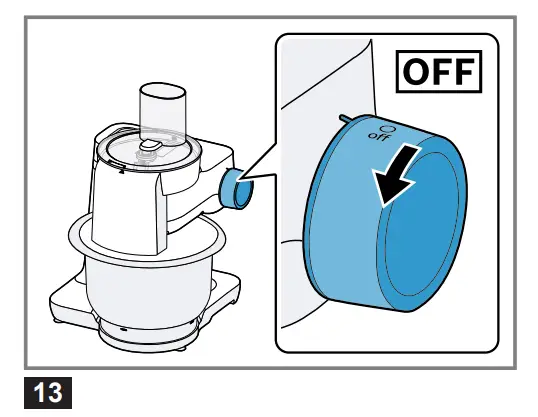

Processing food with the continuous feed shredder

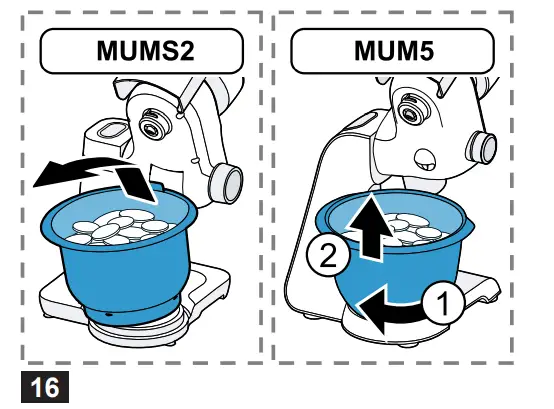

Emptying the bowl

Tip: You can empty the bowl during pro-cessing without removing the continuous feed shredder.

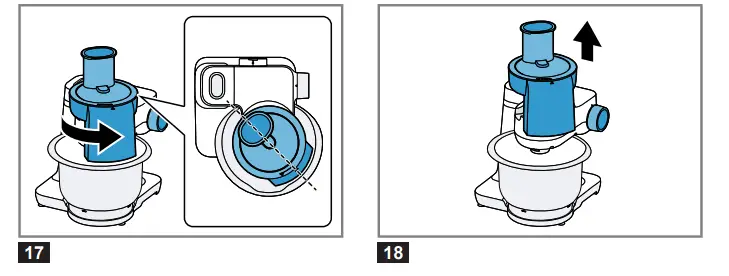

Removing the continuous feed shred-der

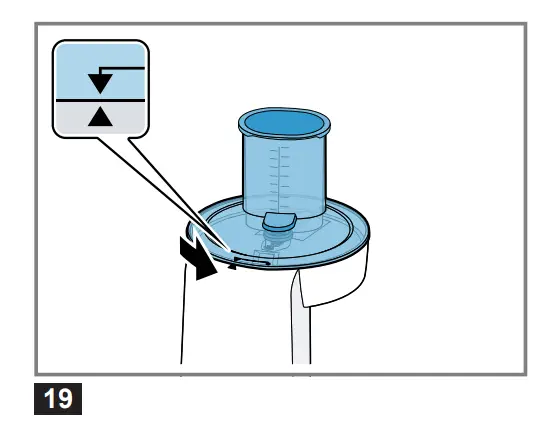

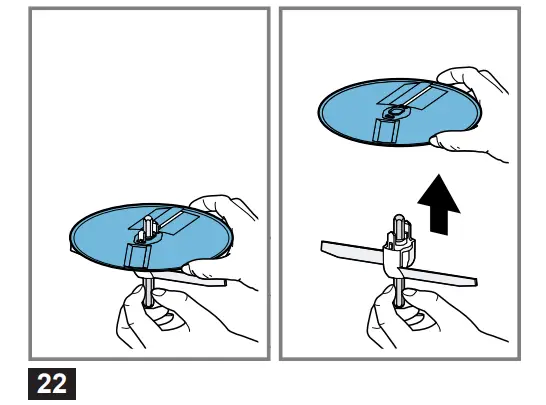

Dismantling the continuous feed shredder

Tip: Clean all parts immediately after use so that residues do not dry on.

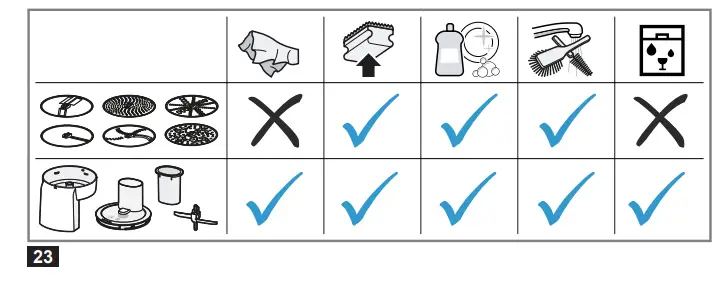

overview of cleaning

Clean the individual parts as indicated in the table.

Tip: When processing food such as carrots, plastic parts may become discoloured. Re-move discolouration with a soft cloth and a few drops of cooking oil.

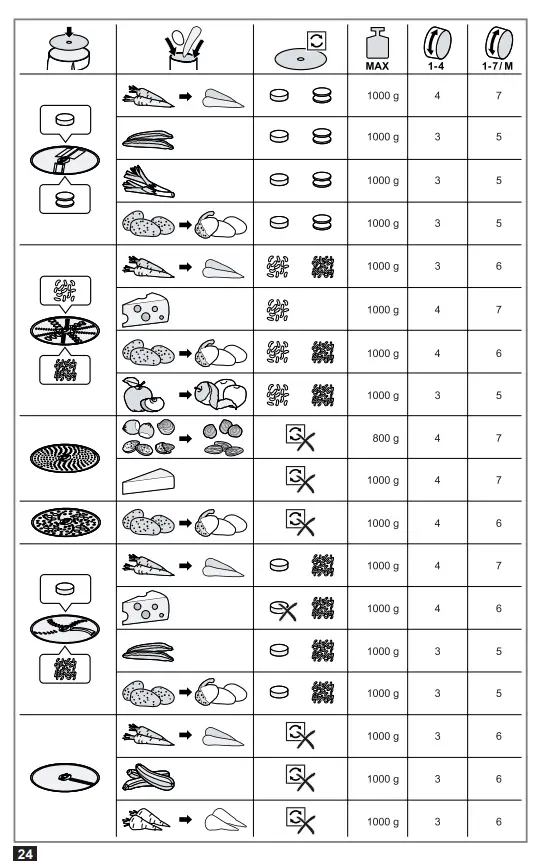

Application examples

Observe the comments and figures in the table.

Troubleshooting

Processed food does not fall into the bowl.

Outlet opening or housing is blocked.

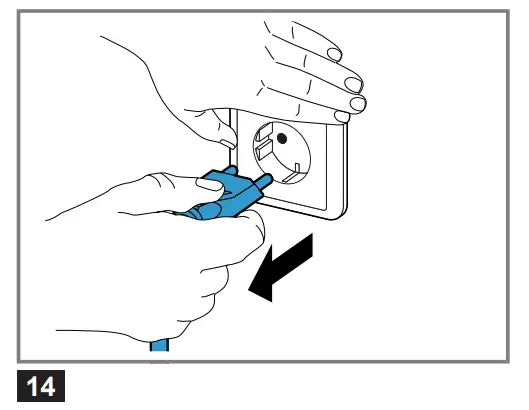

Finish processing and unplug from the mains.
Remove the accessory.
Take the accessory apart and remove the blockage.

The cutting disc does not rotate although the base unit is running.

Lid is not fitted and engaged properly.

Check whether the lid is fitted properly.
Accessory has been overloaded and the disc holder shaft has broken at the predetermined breaking point.
You can order a new disc holder from customer service under order number 00630760.
