BOSCH MUZ45XTM1 Kitchen Machine

Safety

Read this instruction manual carefully.
Observe the instructions for the base unit.

Only use the accessories:

with a kitchen machine from the same series MUM5, MUMS4, MUMS2, and MUM4.
With genuine parts and accessories.
For cutting up, chopping, mixing, puréeing, and emulsifying liquid or semi-solid food.
For grinding and chopping small quantities of spices, cereals, coffee or sugar. Spices include, for example, pepper, cumin, juniper, cinnamon, dried aniseed or saffron. Cereals include, for example, wheat, millet, and linseed.
- When cleaning and emptying the blender jug, watch out for the sharp blades.
- Never touch the edges of the blades with bare hands.
- Only install, remove or clean the blade insert using the blade guard.
- Never assemble the accessories on the base unit.
- Only attach and remove accessories once the drive has stopped and the appliance has been unplugged.
- Only use the accessories once fully assembled.
- The accessories should only be used in the intended operating position.
- Process hot food carefully.
- Do not process food that is hotter than 60 °C in the To-Go blender jug or in the glass container.

Avoiding material damage

Do not process food that contains hard components, e.g. bones, gristle or stones.
Do not process any frozen food in the glass container.
Do not expose the glass container to extreme temperature fluctuations.
If storing in the refrigerator, remove the blade holder together with the blade insert and place the lid on the container.

Components

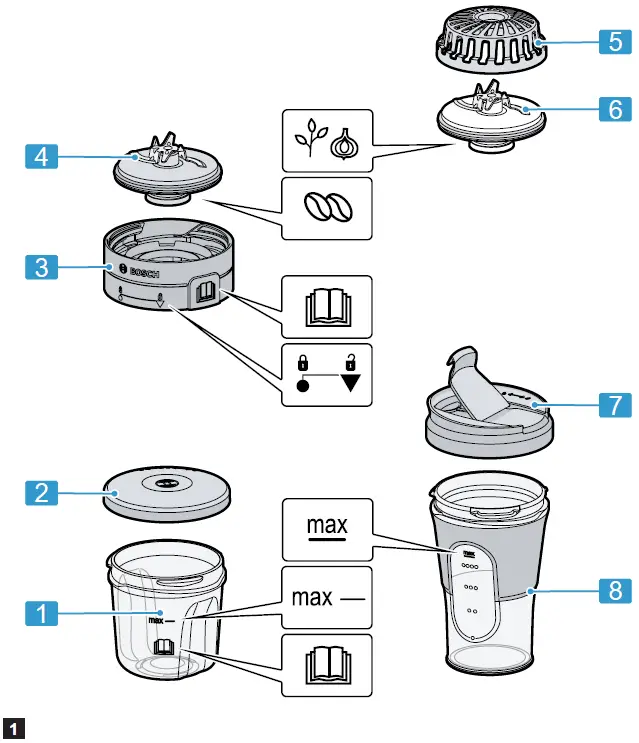

You can find an overview of the parts of your appliance here. Fig. 1

Glass container 1
Lid 1
Blade holder
1. The number varies depending on model
2. Depending on the appliance specifications
Blade insert with a grinding blade, black seal, and symbol
Blade guard
Blade insert with blender/chopping blade, red seal, and symbol
Lid with seal and closable mouthpiece 2
To-Go blender jug 2
1. The number varies depending on model
2. Depending on the appliance specifications.

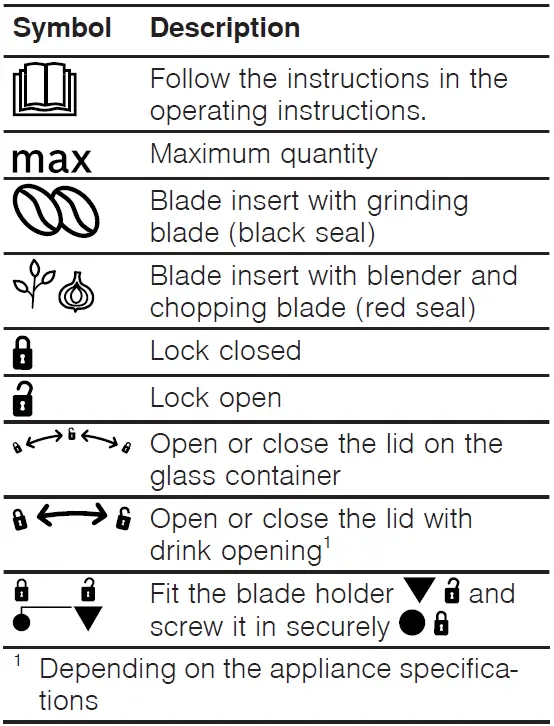

Symbols

Overview of base units

This accessory can be used with different base units.

Recipes

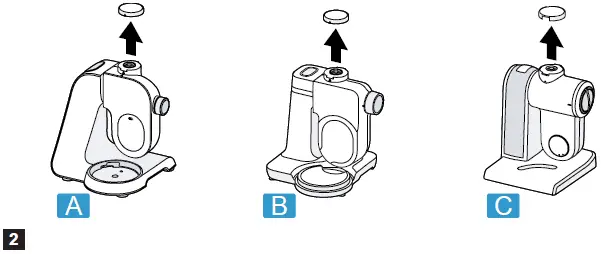

You can find a selection of recipes specially developed for your accessories here. You can prepare your kitchen machine as shown. Fig. 2

A Kitchen machine from the MUMS4 or MUM5 series
B Kitchen machine from the MUMS2 series
C Food processor from the MUM4 series

Preparing the attachment

Follow the illustrated instructions.

Note: Observe the maximum processing quantities.

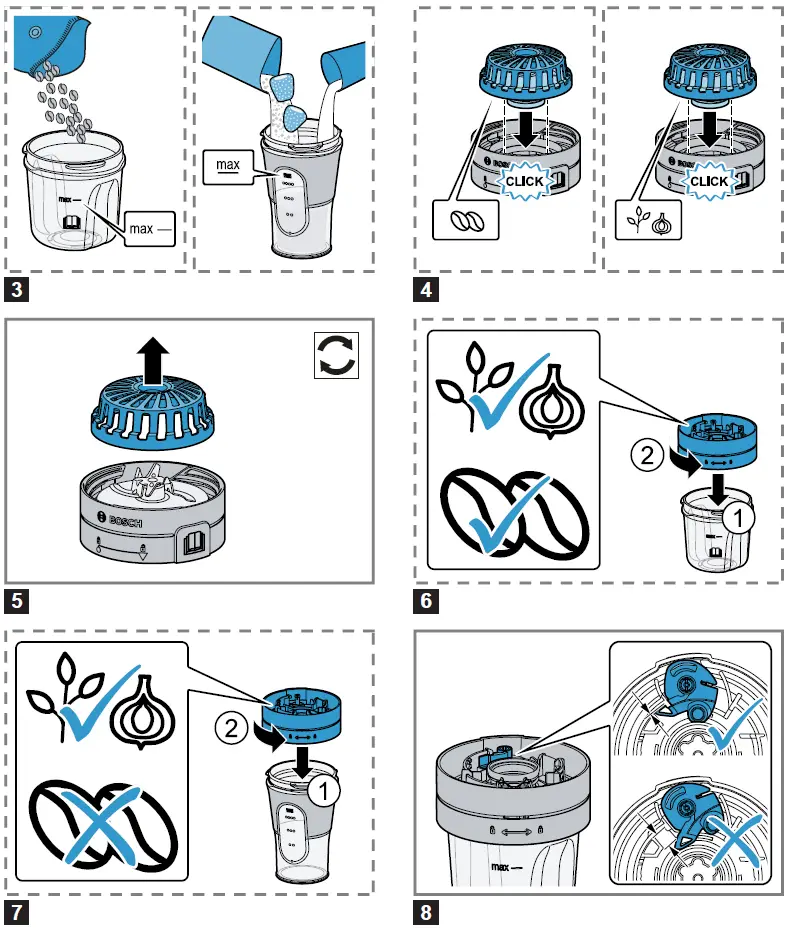

“Overview of recipes”, Fig. 3 – 8

Attaching the accessory to the base unit

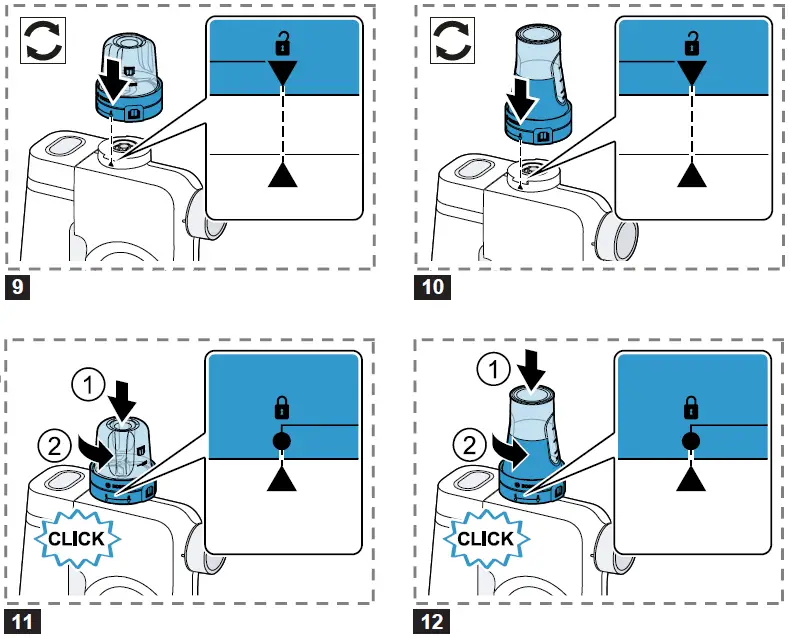

Follow the illustrated instructions. Fig. 9 – 12

Processing food

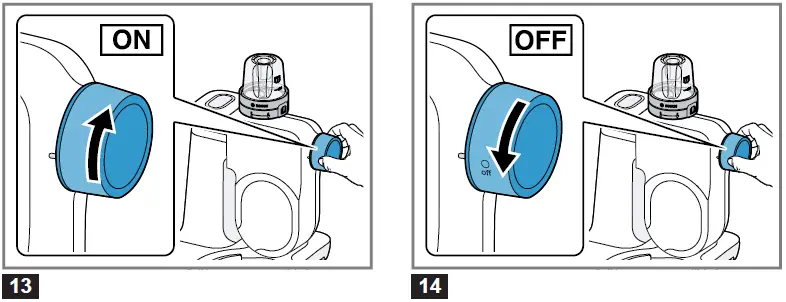

Follow the illustrated instructions. Fig. 13 – 14

After processing

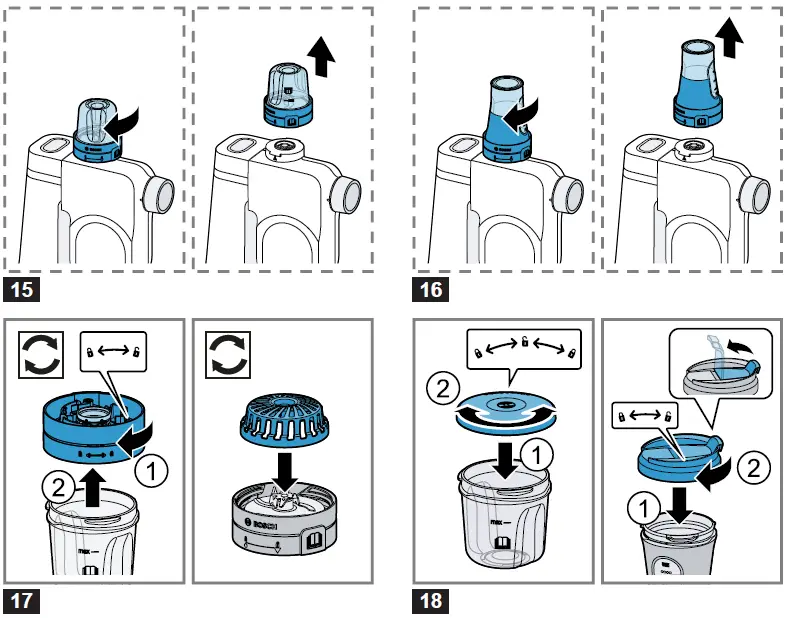

Follow the illustrated instructions. Fig. 15 – 18

Cleaning accessories and parts

Clean the individual parts as indicated in the table. Fig. 19

Disassembling the accessory

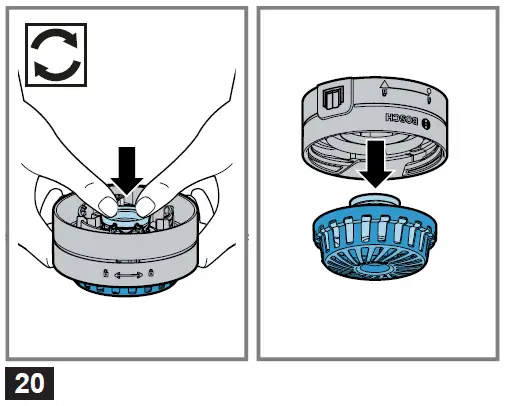

Follow the illustrated instructions. Fig. 20

Overview of recipes

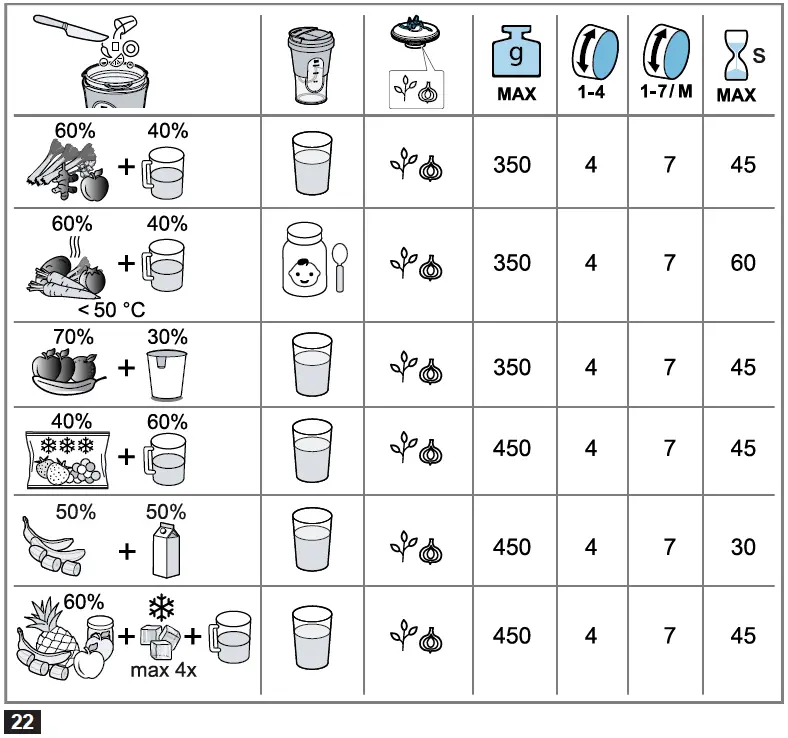

This overview lists the ingredients and processing steps for various recipes. Fig. 21-Fig. 22

Do not process food that is hotter than 60 °C in the To-Go blender jug or in the glass container

Note
Restrictions on processing:

The blender cannot be used to make mayonnaise.
Use enough liquid when mixing solid food.
Mix powdered food with sufficient liquid before blending, or dissolve it entirely in liquid. Examples of powdered food include icing sugar, cocoa powder, roasted soybeans, flour, and protein powder.
Do not process any frozen food in the glass container.
Do not place hot ingredients into an ice-cold glass container.

Recipe

Basil pesto

Ingredients

10 g pine nuts
3 g garlic
5 g salt
40 g Parmesan cheese
10 g fresh basil
70 g olive oil

Processing

Tool:

Glass container
Blender and chopping blade with a red seal
Put the pine nuts, garlic, salt, and Parmesan cheese in the glass container and close it with the blade holder.
Chop at the maximum setting 7 (4) for 15 s.
Add the basil and olive oil, and blend everything for 10 s at the maximum setting 7 (4).

Recipe

Green smoothie

Ingredients

1 green apple (approx. 100 g)
Juice of one lemon (approx. 20 g)
20 g kale
10 g celery
10 g coriander leaves
10 g linseed
1 g ground cinnamon
250 g chilled water

Processing

Tool:

To-Go blender jug
Blender and chopping blade with red seal
Peel the apple and cut it into pieces.
Cut the celery into pieces.
Put all of the ingredients into the To-Go blender jug and close it with the blade holder.
Blend at the maximum setting 7 (4) for 60 s.
