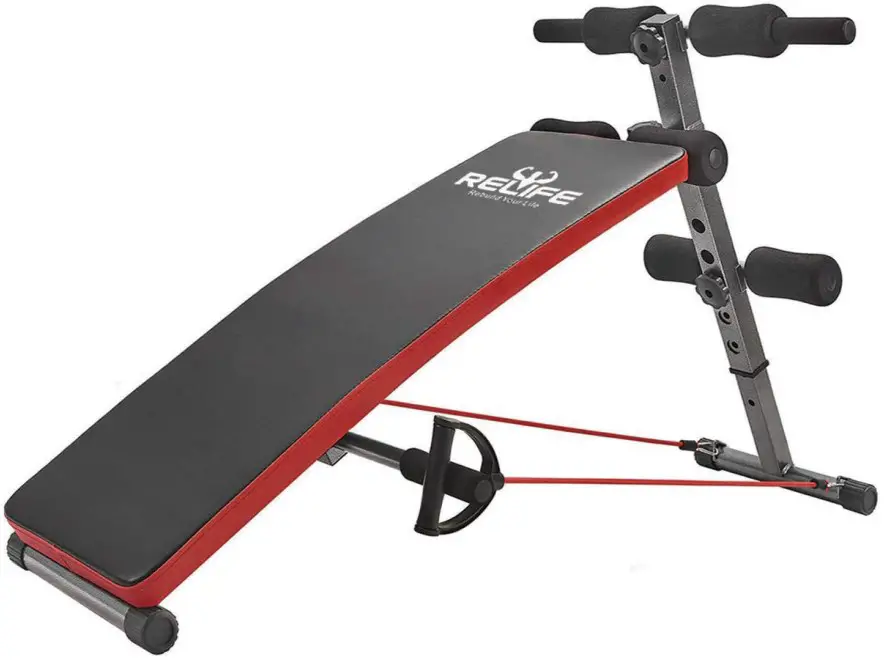

Relife ‎rl-jl-06 Sit Up Bench Adjustable Workout Foldable Bench Fitness Equipment User Manual

RELIFE ‎RL-JL-06 Sit Up Bench Adjustable Workout Foldable Bench Fitness Equipment User Manual

Pan Drawing

1. front foot tube*1

2. front coIumn*1

3. foam tube*1

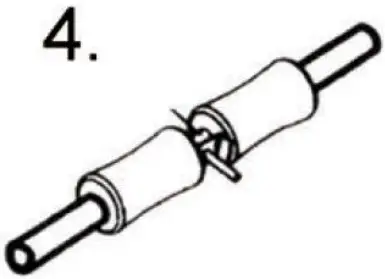

4. Long foam tube*1

5. screw*1

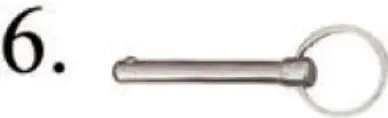

6. Iatch*1

7. washer°2

8. nut*1

9. bolt*2

10. cushion*1

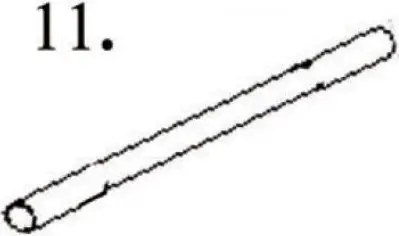

11. cross-bar°1

12. boIt*2

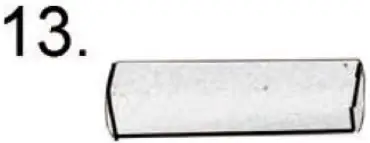

13. foam*2

14. stay cord *2


Note: Some bolts are pre-installed, need to remove it first.
Please note to check.

Installation instruction

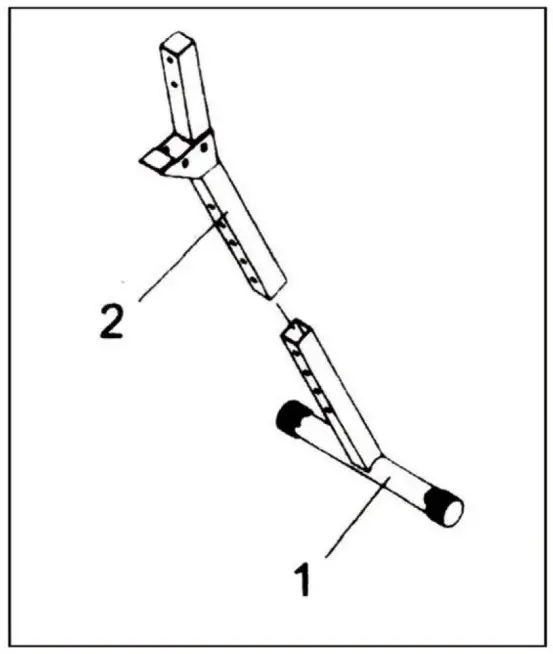

Step 1.

Push front foot pipe 1 into frame 2.
Note: Pay attention to the direction of the pipe.

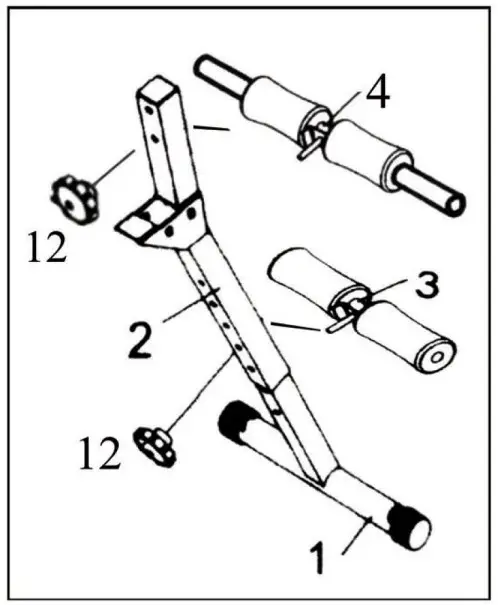

Step 2.

Fix foam frame 3 into frame 1 and 2 with screw top 12.
Fix foam frame 4 into frame 1 and 2 with screw top 12.

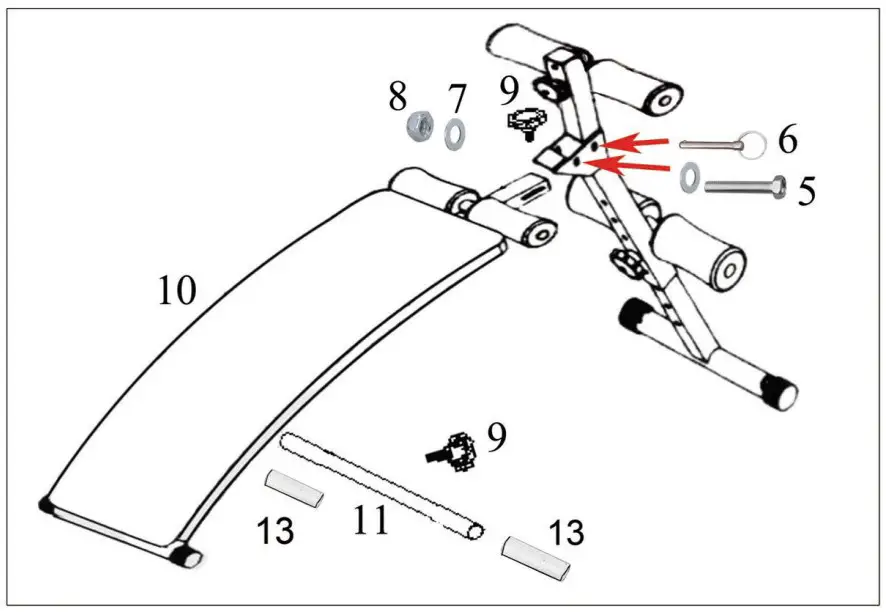

Step 3.

• Insert the back cushion into the tube, align it with the hole, then rotate bolt 9 for fixing.
• Align the hole and insert stug 6 for fixing.
• Install screw 5, washer 7 and tighten nut 8.
• Insert the cross-bar into the hole at the bottom of cushion, then install it with bolt 9.
• Insert the foam 13 into both ends of the cross-bar 11.


Step 4.

• Install the stay cords. Hook one end of the rope to the forefoot tube, then the other side hang on the corss-bar.
• Finally check all of the screws and bolts are completely locked. if the bench is shake, you could adjust the four foot pads.
  Please feel free to contact us if there are any problem with this bench.(like installation issue, parts missing, defective, etc.)


Type of Exercise
