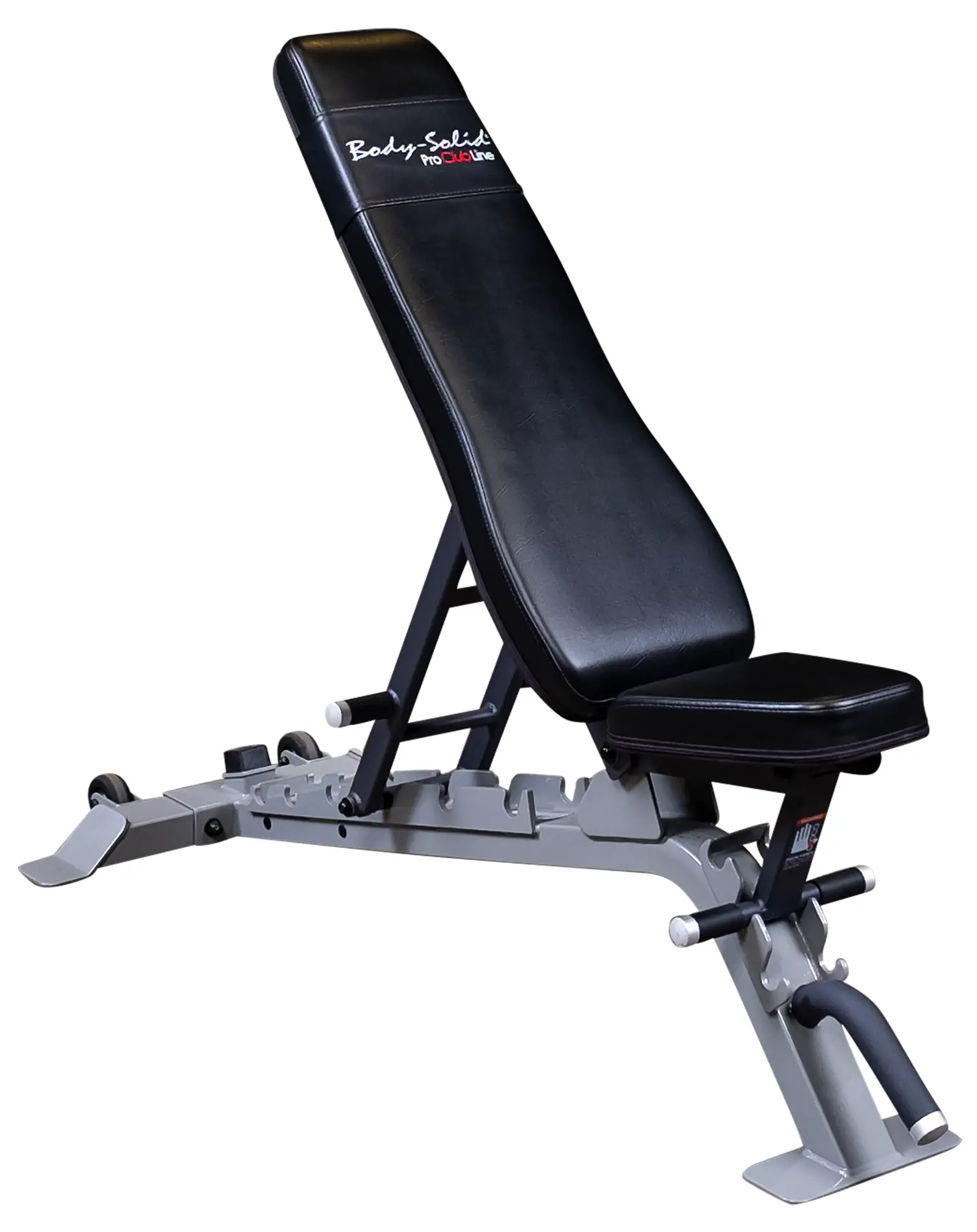

Body-Solid SFID325 Pro Clubline Adjustable Bench Owner’s Manual
Contents hide
Assembly Instructions

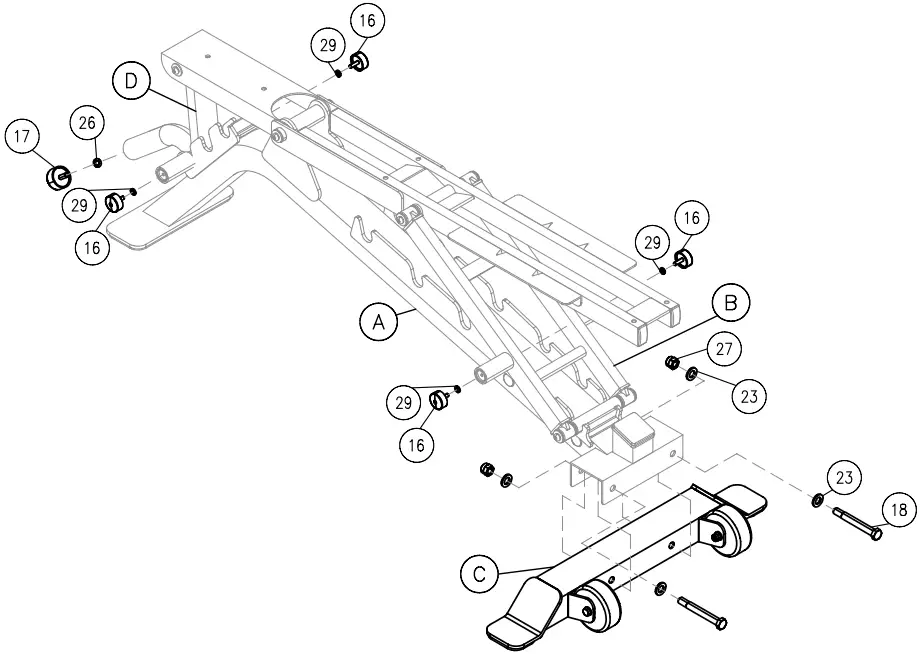

Be careful to assemble all components in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. Do Not wrench tighten until end of step 2.
- A. Attach rear leg (C) to mainframe (A) as shown using:
two 18 (Hex Bolt M12 X 105mm)
four 23 (Flat Washer 12mm)
two 27 (Nylon Lock Nut M12) - B. Attach two End Cap (16) to Back Pad Support structure (B) handle as shown using:
two 16 (End Cap Ø25)
two 29 (spring washer 6mm) - C. Attach two End Cap (16) to Seat Support Structure (D) handle as shown using:
two 16 (End Cap Ø25)
two 29 (spring washer 6mm) - D. Attach two End Cap (17) to mainframe (A) front handle as shown using:
one 17 (End Cap Ø30)
one 26 (spring washer 8mm)

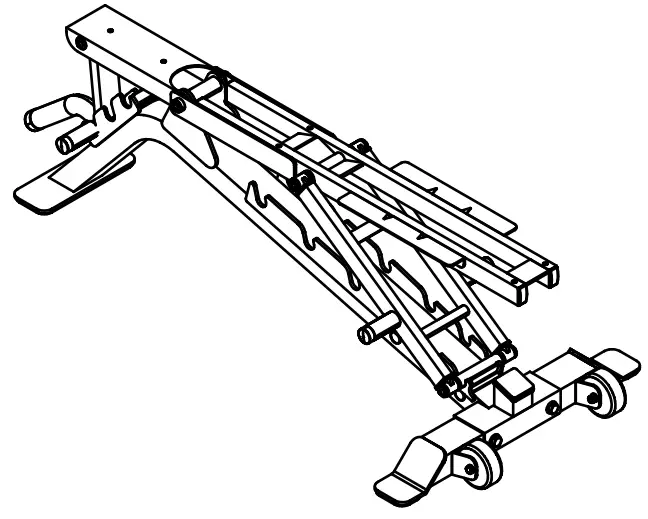

Above shows STEP 1 assembled and completed.
Be careful to assemble all components in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. Do Not wrench tighten until end of step 2.

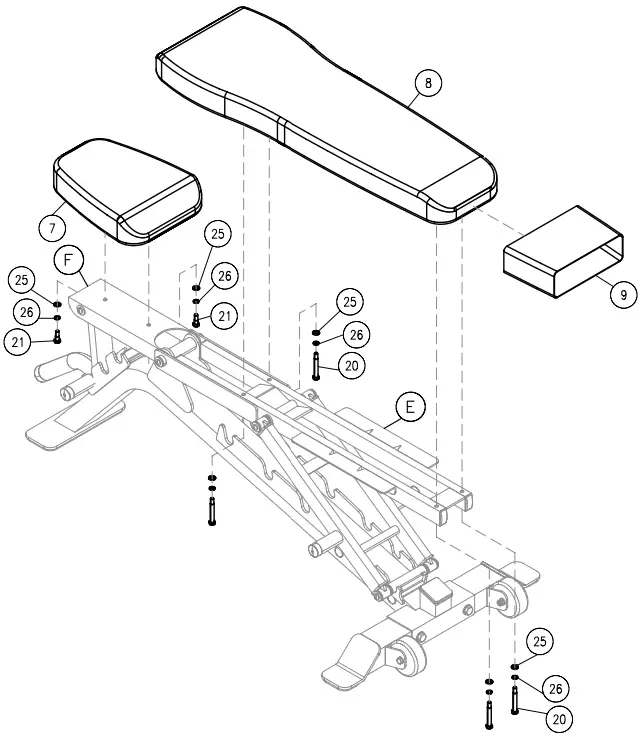

- A. Attach Back Pad (8) with Pad Wrap (9) to Back Pad Structure (E) as shown using:
four 20 (hex bolt M8 x 55 mm)
four 26 (spring washer 8mm)
four 25 (flat washer 8mm) - B. Attach Seat Pad (7) to Seat Pad Structure (F) as shown using:
two 21 (hex bolt M8 x 21 mm)
two 26 (spring washer 8mm)
two 25 (flat washer 8mm)

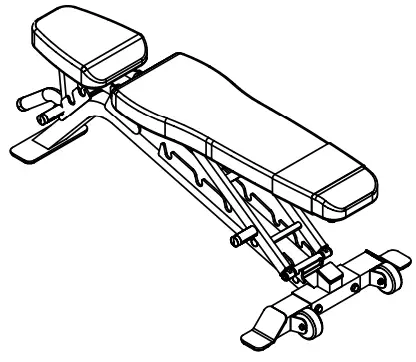

Above shows STEP 2 assembled and completed.

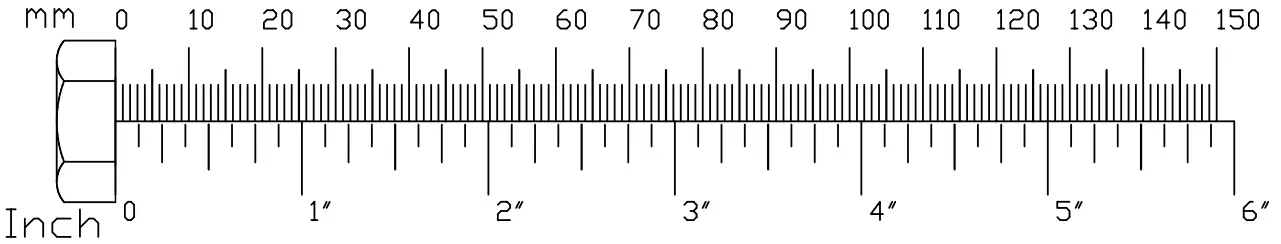

SFID325 Hardware
( Actual Size Shown)

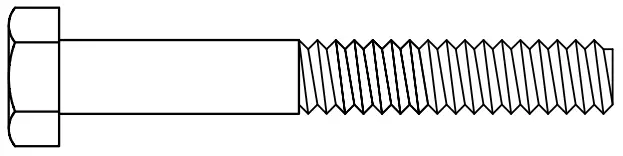

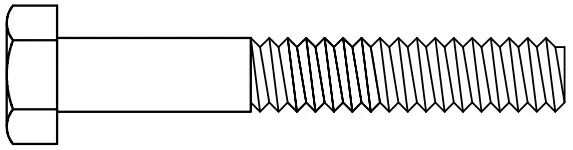

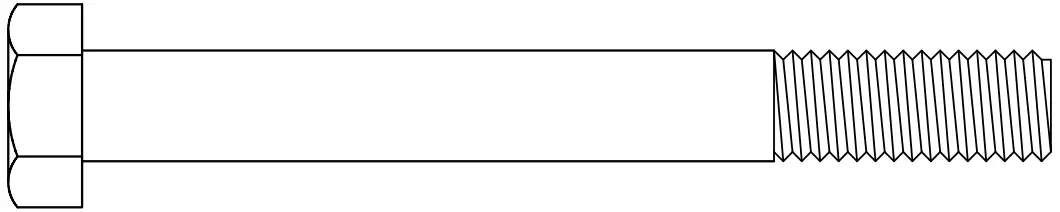

- (18) HEX BOLT 12mm X 105mm PARTIAL THREAD QTY. 2
- (19) HEX BOLT M8 X 60mm PARTIAL THREAD QTY. 2
- (20) HEX BOLT M8 X 55mm PARTIAL THREAD QTY. 4
- (21) HEX BOLT M8 X 25mm PARTIAL THREAD QTY. 2
- (22) ROUND ALLEN HEAD M8 X 15mm FULL THREAD BOLT QTY. 8

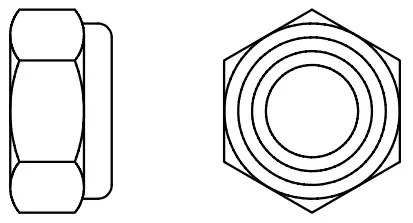

- (27) NYLON LOCK NUT 12mm QTY. 2
- (28) NYLON LOCK NUT 8mm QTY. 2

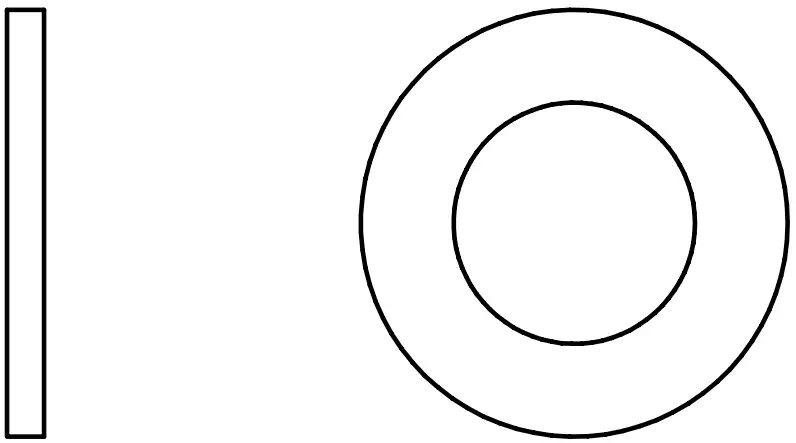

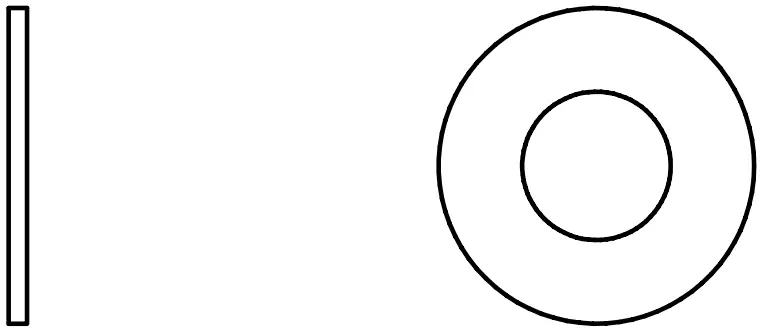

- (23) FLAT WASHER 12mm QTY.4

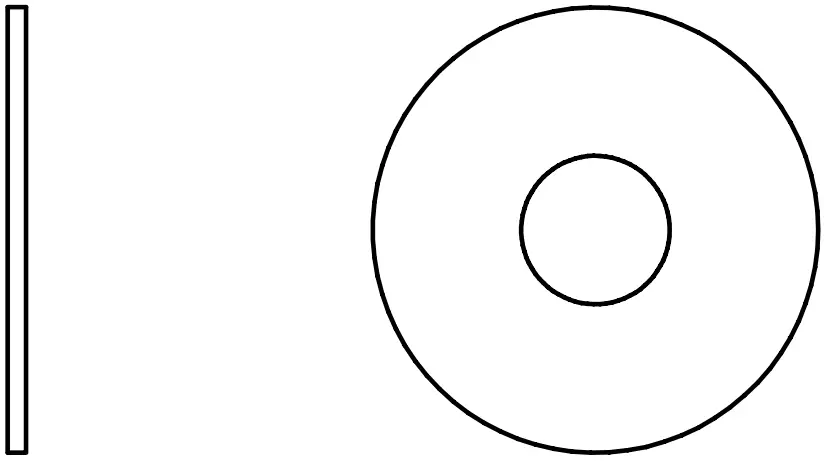

- (24) BIG FLAT WASHER 8mm QTY. 8
- (25) FLAT WASHER 8mm QTY. 10

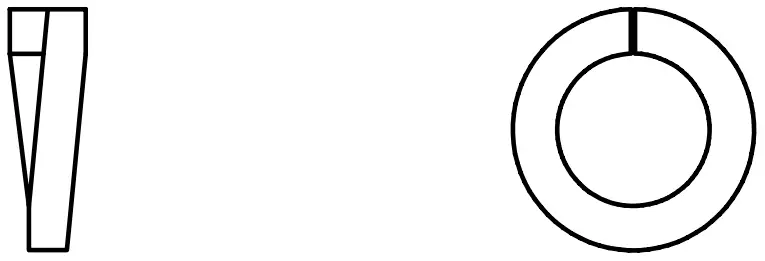

- (26) SPRING WASHER 8mm QTY. 15
- (29) SPRING WASHER 8mm QTY. 4
Main frame Parts List
| Part# | Qty | Description |
| 1 | 2 | shaft |
| 2 | 4 | Long Bushing |
| 3 | 10 | Short Bushing |
| 4 | 2 | Bushing Φ30 |
| 5 | 1 | Seat Pad Structure Shaft |
| 6 | 1 | Main Pivot Shaft |
| 7 | 1 | Seat Pad |
| 8 | 1 | Back Pad |
| 9 | 1 | Pad Wrap |
| 10 | 1 | Back Frame Support Tubing |
| 11 | 2 | Back Pad Structure End Cap |
| 12 | 2 | Transfer Wheel |
| 13 | 1 | Front Handle Foam Grip |
| 14 | 4 | Side Handle Foam Grip |
| 15 | 4 | Plug |
| 16 | 4 | End Cap Φ25 |
| 17 | 2 | End Cap Φ30 |
| 18 | 2 | Hex Bolt M12 X 105mm |
| 19 | 4 | Hex Bolt M8 X 60mm |
| 20 | 2 | Hex Bolt M8 X 55mm |
| 21 | 8 | Hex Bolt M8 X 25mm |
| 22 | 4 | Round Allen Head Bolt M8 X 15mm |
| 23 | 8 | Flat Washer 12mm |
| 24 | 10 | Big Flat Washer 8mm |
| 25 | 14 | Flat Washer 8mm |
| 26 | 2 | Spring Washer 8mm |
| 27 | 2 | Nylon Lock Nut M12 |
| 28 | 4 | Nylon Lock Nut M8 |
| 29 | 2 | Spring Washer 6mm |
| 30 | 1 | Spring Washer 10mm |
| 31 | 1 | Round Allen Head Bolt M10 X 20mm |
| 32 | 1 | Back Pad Rubber Stopper |
| A | 1 | Bottom Frame |
| B | 1 | Rear Frame |
| C | 1 | Rear Leg |
| D | 1 | Seat Pad Support Frame |
| E | 1 | Back Pad Frame |
| F | 1 | Seat Pad Board |

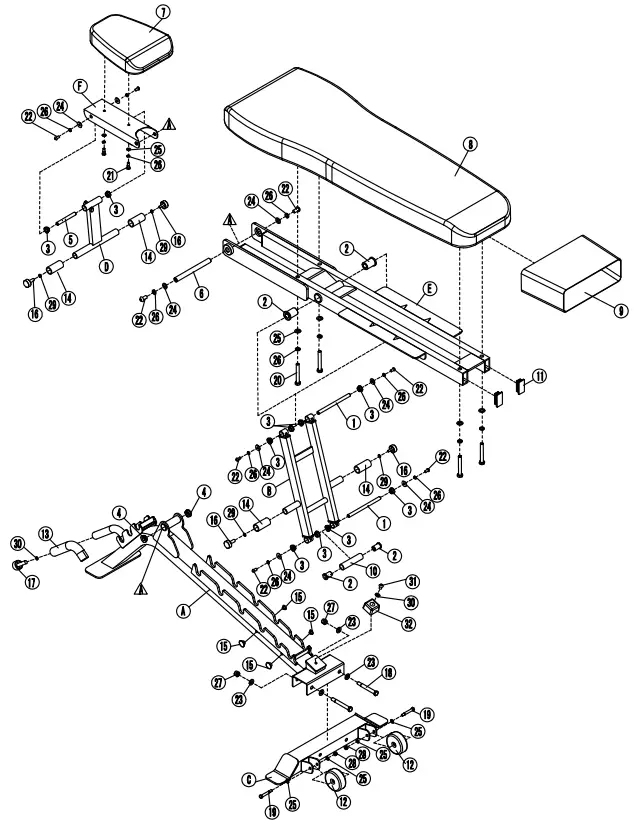

SFID325 Exploded View
© Copyright 2010. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specifications when we feel it will improve the product.
Body-Solid machines maintain several patented and patent pending features and designs. All rights reserved on all design patents and utility patents.
