Lanbon Phone Home Series Wall Mounted Wireless Charger Instruction Manual

Phone Home Series
Wall Mounted Wireless
Charger Instruction Manual–V-1.0–

Product introduction

Thank you for your patronage, ooother, Phone Home series wall-mounted wireless mobile phone charger, is an innovative mobile phone charger product, giving your mobile phone a fixed charging position, making your desktop tidier, and can also avoid Children playing with mobile phones and bringing more convenience to your life.

Product parameters
Input: 5V2A, 9V2A, 12V2A
Input power: 24W Max
Output power: 15W Max
Standby power: ＜0.5W
Vertical induction range: ≤5mm
Charging area： off-centering：≤8mm
Qi-enabled wireless charging protocols: 15W/10W/7.5W/5W

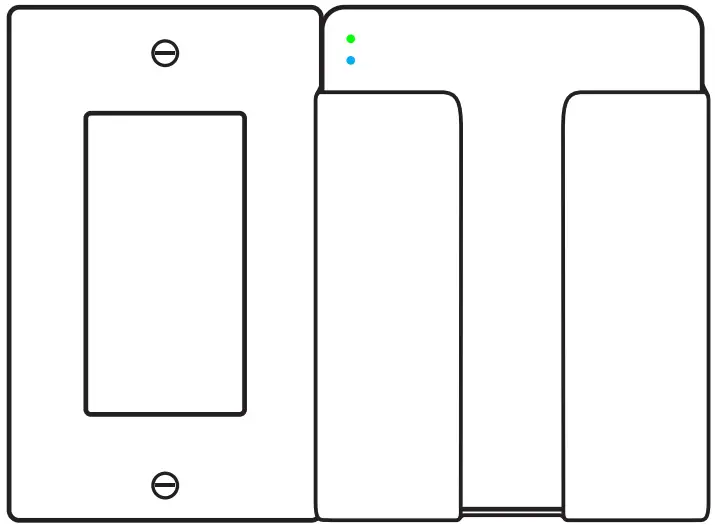

Product description

Screw	Installation panel

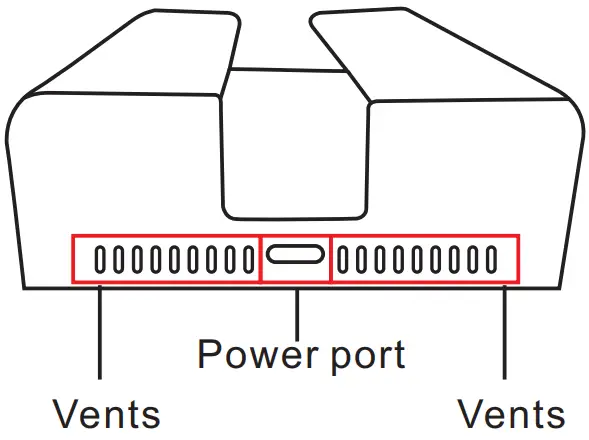

Wireless charging case	Bottom of product

Installation method

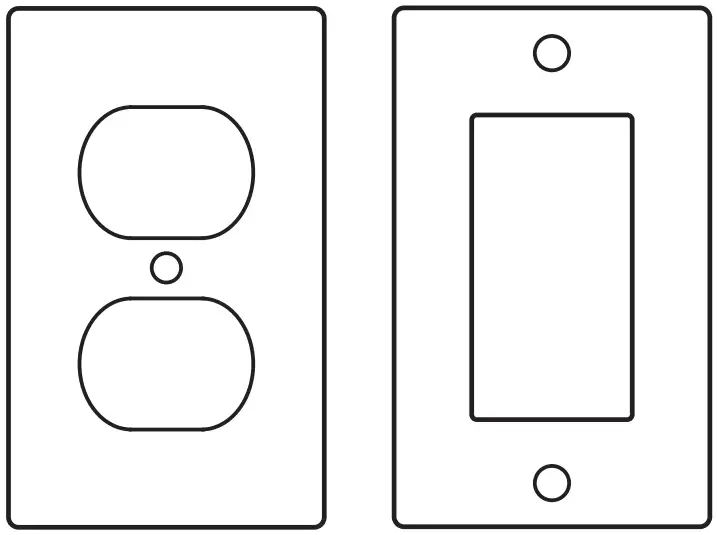

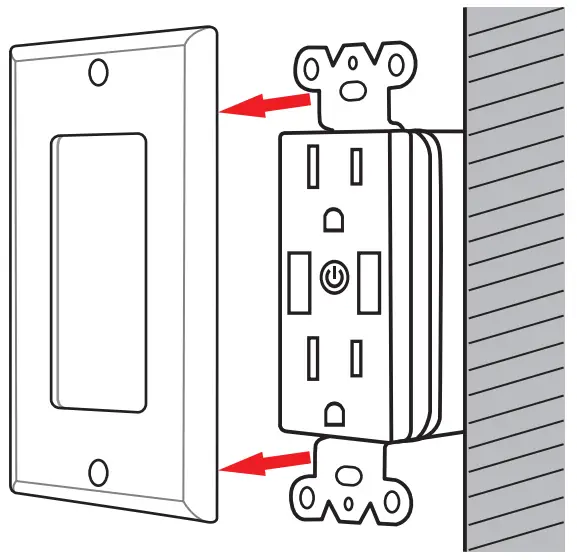

1. Remove the panel of the original socket

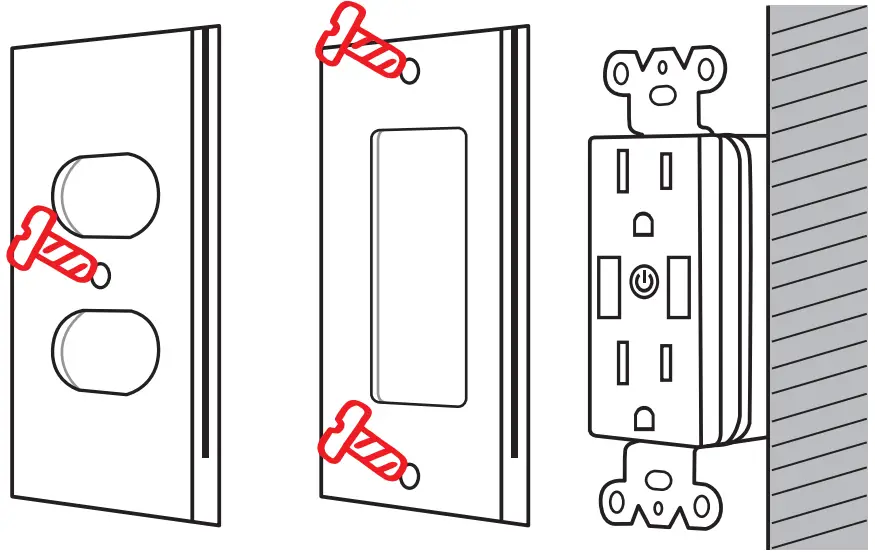

2. Install the product with the accessory panel according to the original style (pay attention to tightening the screws)

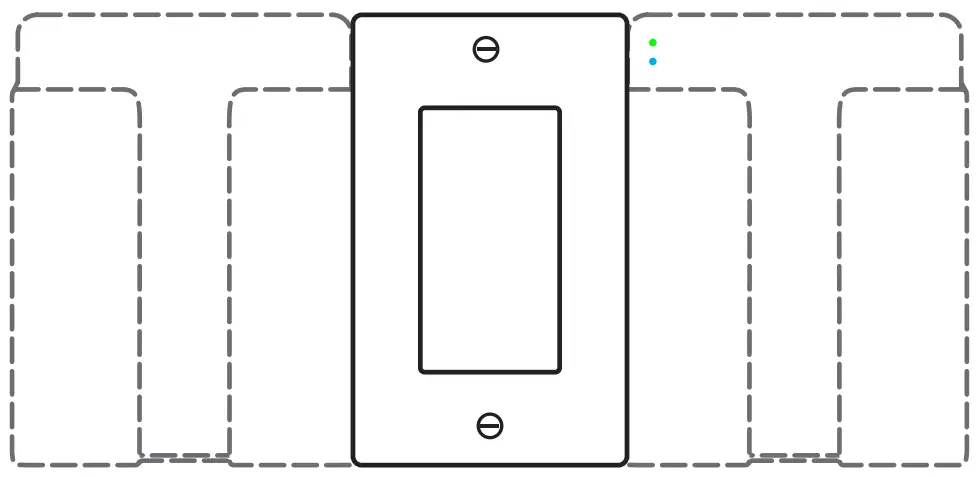

3. Select the direction to install the charging box, you can install it on the left or on the right

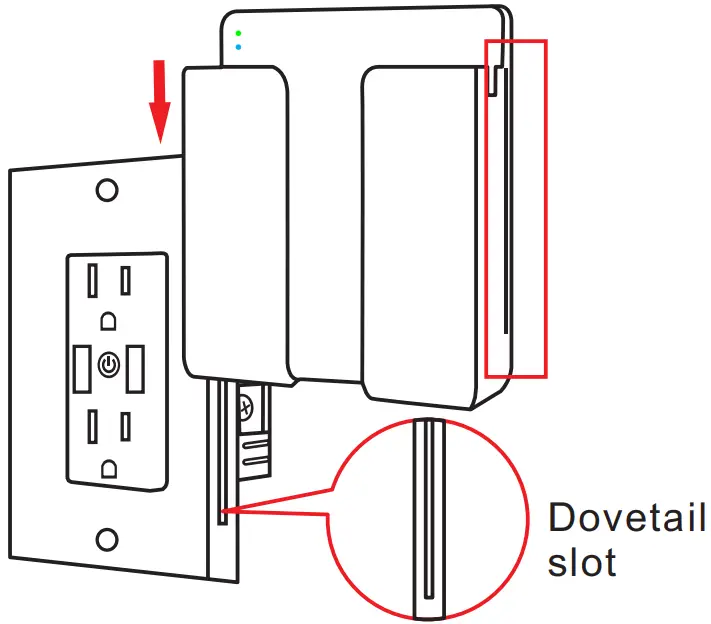

4. Insert the charging case from the side top to the bottom
5. Plug in, you can use your existing phone charger. (The recommended parameter is greater than 5v2A, the charging effect will be better)

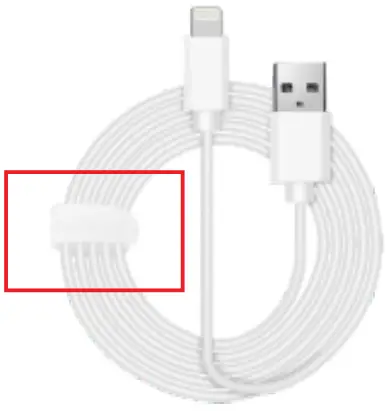

6.  Storage charging cable

Methods of use

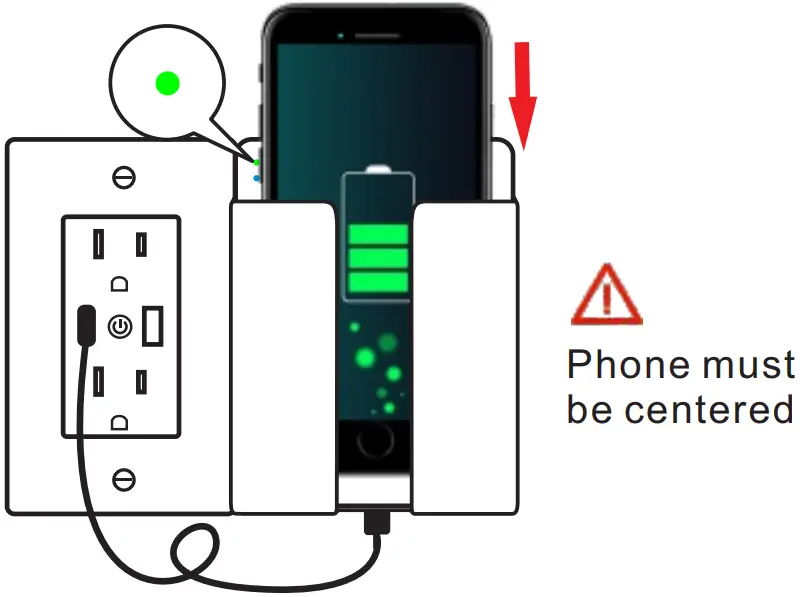

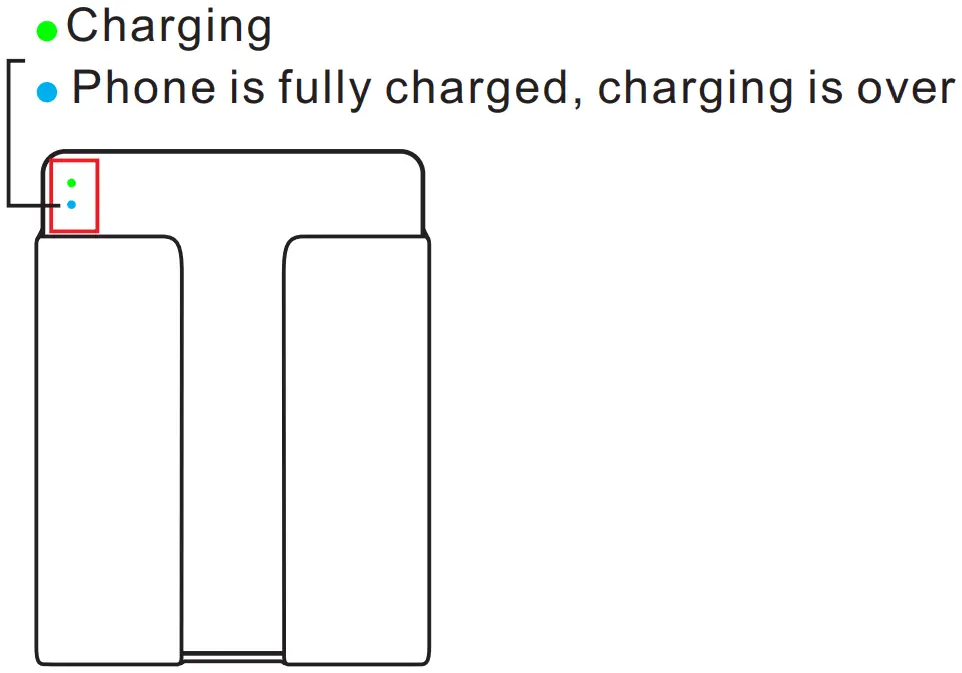

1. To charge with wireless charging, place the mobile phone that supports wireless charging directly in the charging box. The green light is on means charging. Lit blue means power status.

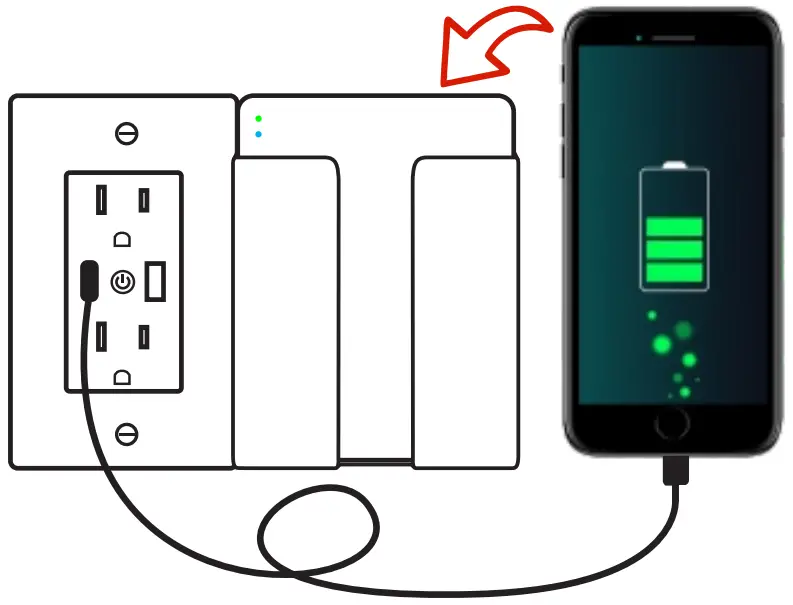

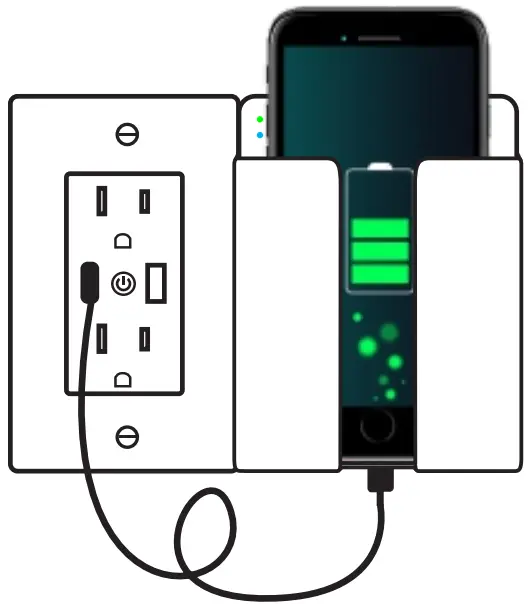

2. Use USB direct charging. Plug the USB directly into the phone. Then place the phone into the phone case.

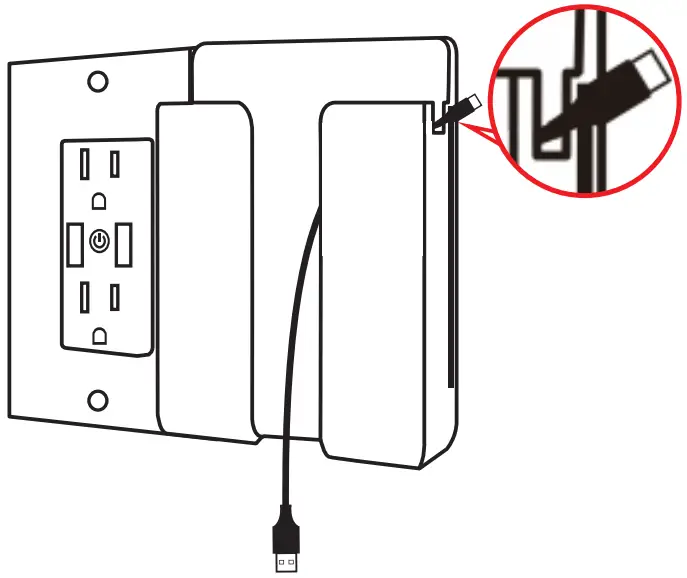

3. Mobile phone charging cable storage. After the USB charging is completed, the mobile phone charging cable can be placed in the card slot on both sides of the charging box.

Answers to common questions

1. The wireless charging speed is too slow:
   Please choose a power supply with a higher power, it is recommended to use 5V 2.4A or above.
2. Can’t charge wirelessly:
   A. Please confirm that your mobile phone must support wireless charging.
   B. You can adjust the position of the mobile phone appropriately.
   C. Try a new USB cable.

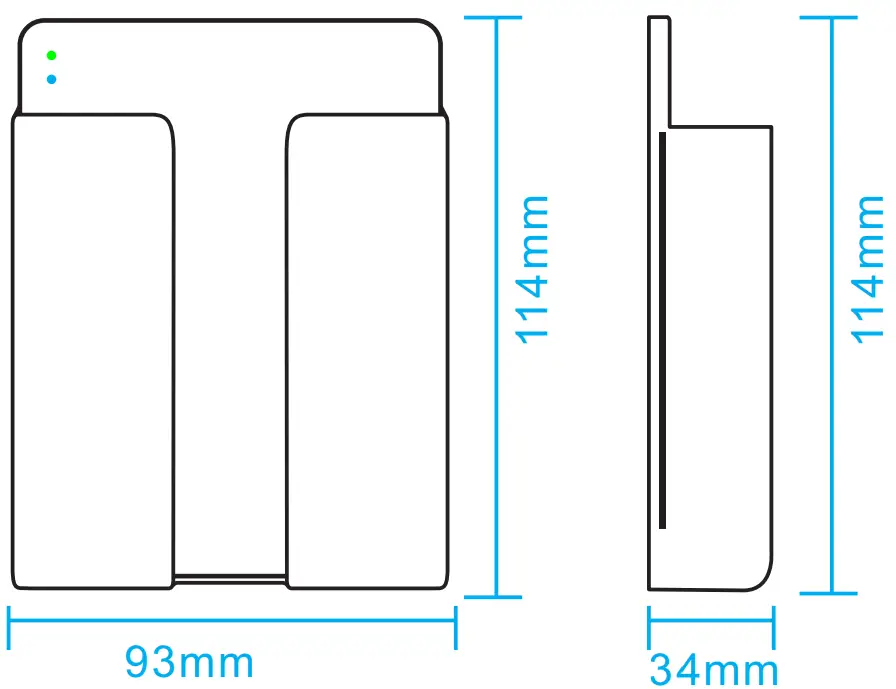

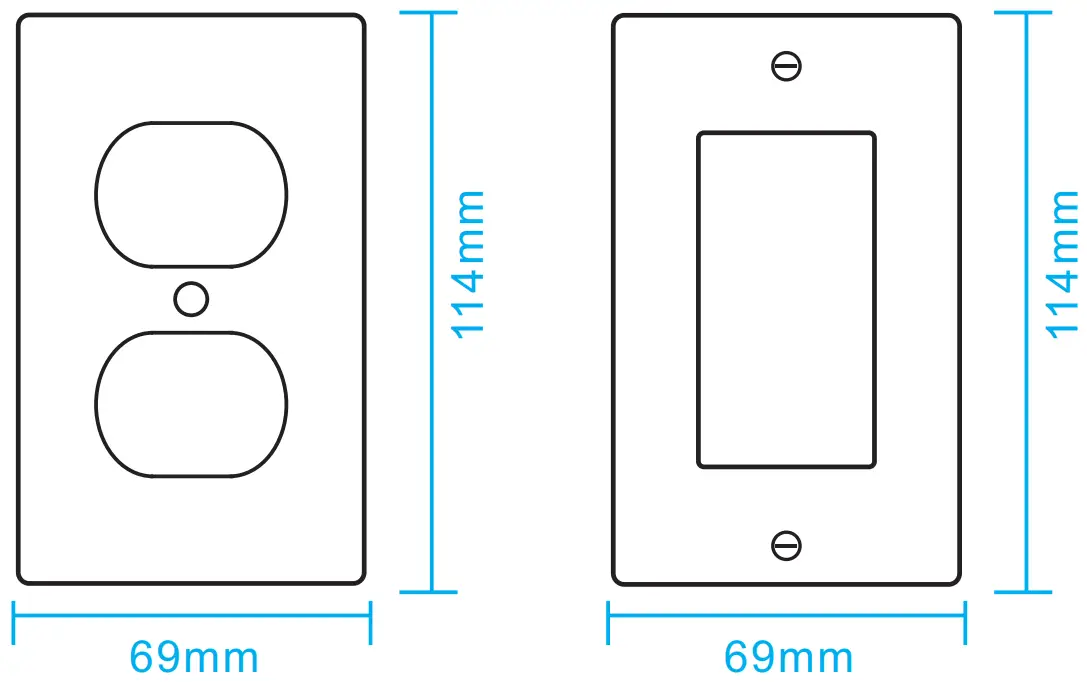

Product size

FCC warning：

1. This device should be installed and operated with a minimum distance of 20cm between the radiator&your body.
2. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
   (1) This device may not cause harmful interference, and
   (2) This device must accept any interference received, including interference that
   may cause undesired operation.
3. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
4. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
   —Reorient or relocate the receiving antenna.
   —Increase the separation between the equipment and receiver.
   —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
   —Consult the dealer or an experienced radio/TV technician for help.

Manufacturer
Shenzhen Lanbon Smart Living Hi-Tech Co., Ltd.
[email protected]
3rd Floor, ZhanRun Business Building,
Yunfeng Road NO.1, Queshan Industrial Area,
dalang, Longhua district, Shenzhen, China
