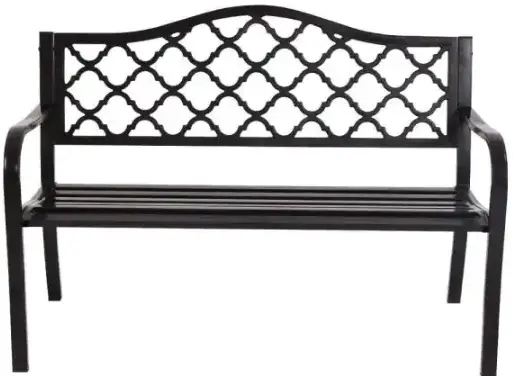

WELLFOR HW-HGY-67395 2 Seat Black Metal Outdoor Bench

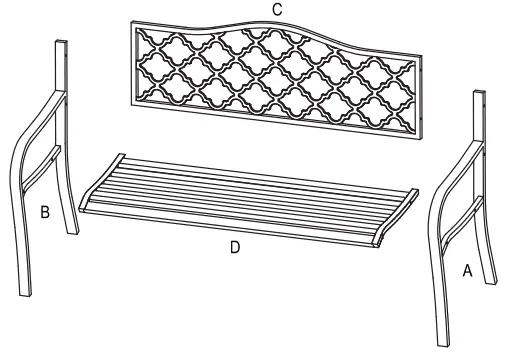

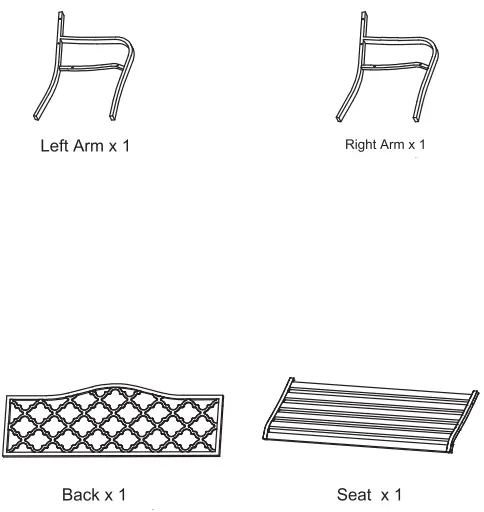

Part identification
Not actual size

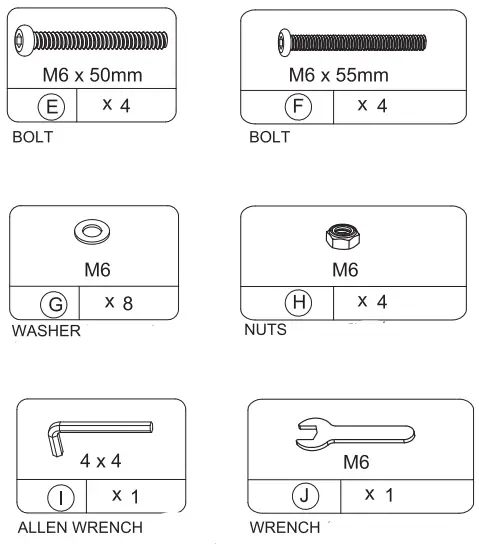

Hardware List
Actual size
ASSEMBLING

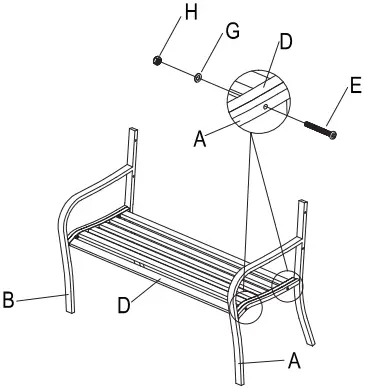

- STEP 1
Attach the seat (D) to the arm (A) by bolts (E) with washers (G) and nuts(H) through the pre-drilled holes on the arm and the pre-drilled holes on the seat. Repeat steps for the other side arm (B). Part A is different from Part B. This Park bench would fail to assembleif the installation position of Part A and Part B is reversed. Please swap the Part A and Part B and then reassemble them, if you fail to assemble.
IMPORTANT: Do not tighten screws completely until all parts are assembled in place.

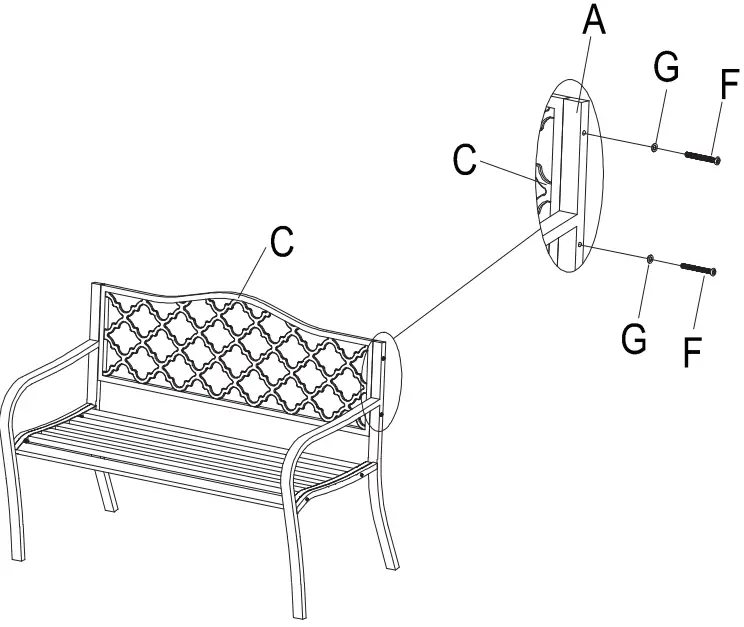

- STEP 2
Attach the back (C) to the arm (A) by installation bolts (F) with washers (G) through the pre-drilled holes on the arm into the pre-welded nuts on the back. Repeat step for the other side arm(B).
- STEP 3

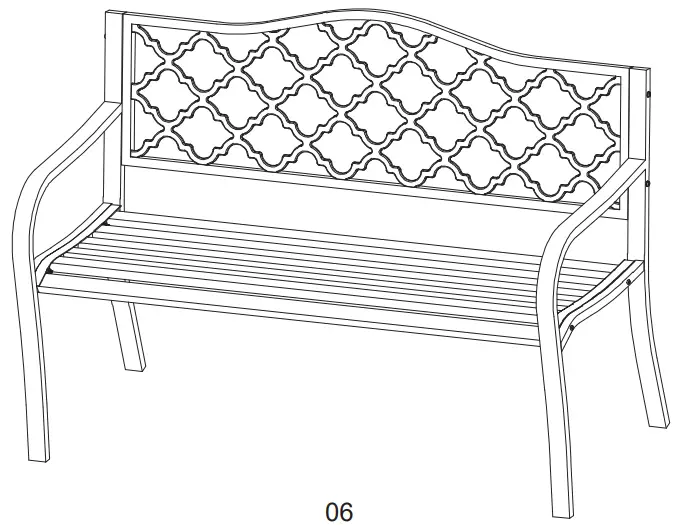

Tighten all the bolts with the wrench and the allen wrench and turn the bench to the upright position. Your bench is now ready for use, so relax & enjoy!

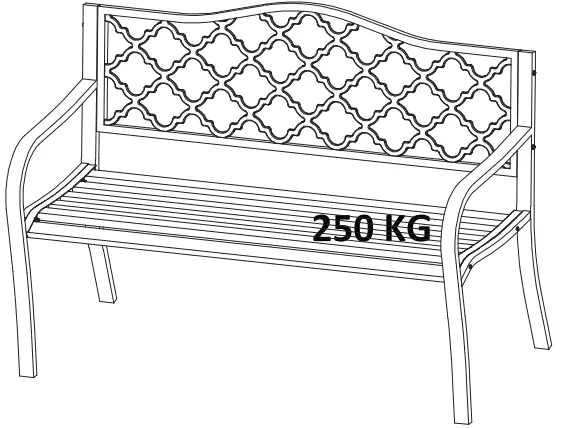

Maximum Loads
WARNING
This item is only suitable within the specified maximum load-bearing. Heavier loads than the indicated load capacty may cause instability, resulting in possible injuries.
